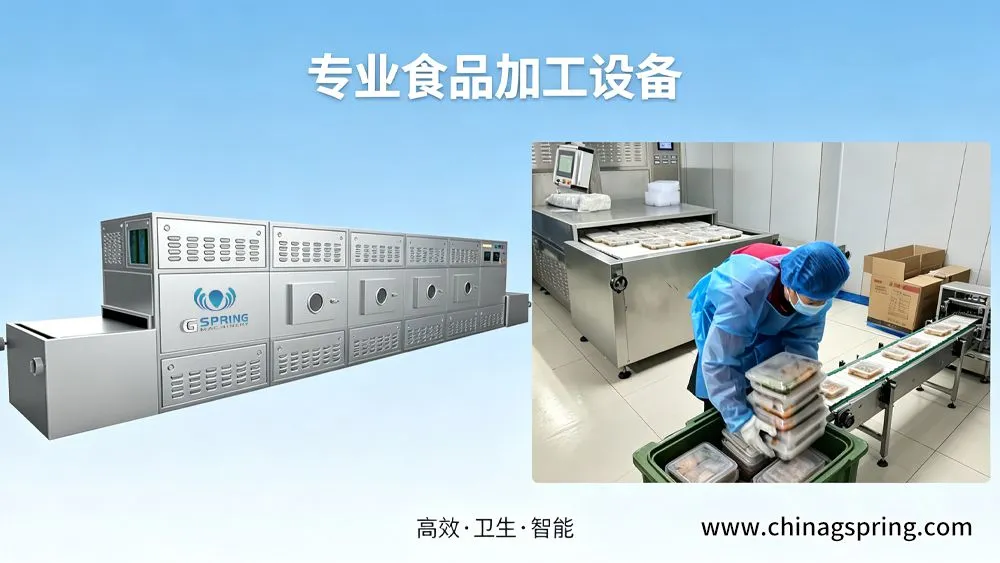

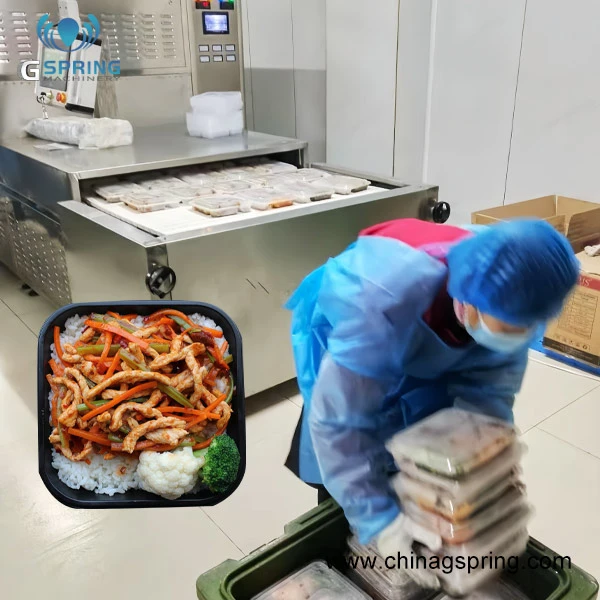

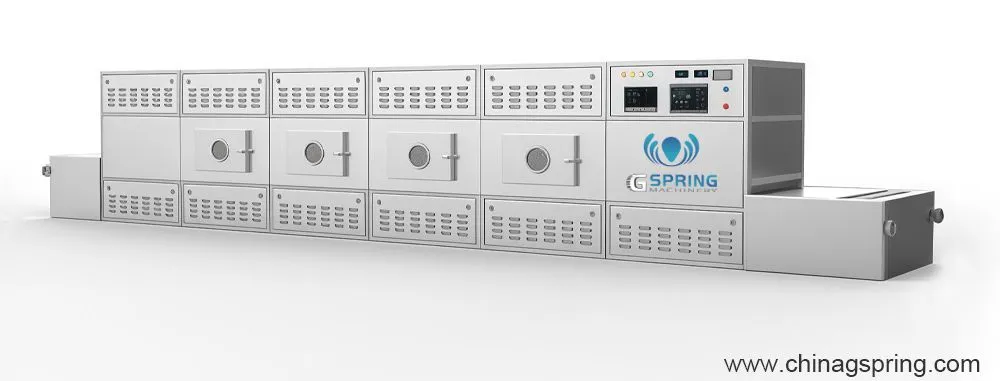

Help CenterPLC Control Continuous Conveyor Microwave Heating Sterilization Machine For Fast Food / Burgers / Chicken Nuggets
Product Spotlights
Related Products
-
New Design Continuous Industrial Microwave Oven for Saffron Drying Sterilization MachineNegotiableMOQ: 1 Set -
Low Temperature Microwave Dryer for Saffron Color Protection Drying EquipmentNegotiableMOQ: 1 Set
-
Tunnel Industrial Microwave Oven for Corn Bean Grain Drying and SterilizationNegotiableMOQ: 1 Set
-
High-efficiency Industrial Microwave Dryer Machine for Corn Bean Grain Drying Sterilization Processing EquipmentNegotiableMOQ: 1 Set
-
Factory Price Industrial Microwave Oven For Food Drying Sterilization Processing MachineNegotiableMOQ: 1 Set
New technology Industrial microwave dryer machine＆industrial microwave oven for food processing machinery
Increase Production Speed · Reduce Energy Cost · Ensure Food Safety
✔ Continuous Conveyor System
✔ PLC Intelligent Control
✔ Uniform Heating & Sterilization
Application Industry
Fast food factories
Central kitchens
Frozen food processing plants
Snack production lines
Meat & poultry processing
🌟 Why Choose Our Machine?
1️⃣ Advanced Microwave Technology
Deep penetration heating
No thermal inertia
2️⃣ Energy Saving Design
Save 30%-50% electricity
High efficiency conversion
3️⃣ Food Safety Guarantee
Sterilization during heating
No chemical residue
4️⃣ Intelligent Control System
PLC + Touch Screen
Adjustable temperature & speed
About Our Factory
10+ years manufacturing experience
Exported to 50+ countries
CE / ISO certification
Professional R&D team
-
Microwave Machine has widely usage in food application due to its kinds of advantage
1.Speed: Microwaves heat food rapidly because they directly heat the moisture within the food, which is much faster than conventional heating methods.
2.Energy Efficiency: Microwaves convert a significant portion of the electrical energy into heat within the food, resulting in less energy waste, not like hot air heating,
or heat-transfer dry, which has great heat loss.
3.Quality Preservation: Microwave heating can preserve the nutritional value, color, flavor, and texture of food better than traditional thermal processing methods,
as microwave food dryer can heat only with a low temperature, which is specially good for poor thermal conductivity goods and heat-sensitive food.
4.Uniform Heating: Microwaves penetrate the food uniformly, reducing the risk of overcooking the exterior while the interior remains undercooked
5. Reduced Process Time: The rapid cook time can reduce the process time to increase capacity & low process cost;
6.Sterilization and Pasteurization: Microwaves can effectively kill bacteria and other microorganisms, extending the shelf life of food products, especially for grains,
tea industry, also packaged food, like pickle, beverage etc.
7.Flexibility: Gspring Machines can design different microwave oven machine to satisfy kind of industrial needs, plus the microwave capacity is flexible by controlled
microwave generator's quantities;
Microwave Food Dryer Application
1.Evaporate Water: Microwave machine can evaporate water rapidly , 30-50% more efficiency than traditional heat-transfer drying. Especially to work on kind of
grains & cash crop(beans, wheat), seasoning & herbs drying (moringa leaves, pepper, cumin); Nuts(Cashews, Pistachios), Nutritional power etc.
2.Sterilization: Microwave machine directly work on food inside, it can sterilize food, kill insect eggs, bacteria & other microorganisms, especially for tea industry,
grain industry, medical herbs, pickle industry etc.
3. Thawing: Microwave generator can directly work on inside & outside food, so it can be widely used to thaw frozen food, like poultry, aquatic products,
prefabricated products.
4. Grill: Microwave can work on some meat to keep its own natural nutritional, such as beef, pork, shrimp, fish etc. after microwave grill, they can be a
popular nutritional protein snack;
5. Color Protect: Microwave is especially better work on heat-sensitive food compared to traditional heating, such as flower tea, spices etc
6. Puff: Microwave can work on food inside moisture and puff food under some extrusion food, such as pellet snack, pet food etc.
7. Cook: Microwave can cook instant heat food to take a important role on the pre-prepared food industry. Box-lunch etc.
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
We are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch microwave oven for lab use or for
small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma industry etc. We have more than 10 years
experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan,Philippines, Brazil, Egypt,
Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for industrial microwave oven, if any questions about the machine, pls email
grace@chinagspring.com.
