Help CenterIndustrial Thermostatic Steam Trap With Stainless Steel Bellows – Manufacturer
Product Spotlights
✔ Excellent Steam Saving Performance
✔ Rapid Air Venting During Startup
✔ Accurate Temperature-Controlled Condensate Discharge
✔ Corrosion-Resistant Stainless Steel Construction
✔ Compact Design and Easy Installation
✔ Low Maintenance and Long Service Life
✔ Suitable for Steam Tracing, Heat Exchangers and Process Equipment
Related Products
-
Bellows Steam Trap Manufacturer | Industrial Thermostatic Steam Traps SupplierNegotiableMOQ: 1 Piece -
OEM Thermostatic Bellows Steam TrapNegotiableMOQ: 1 Piece
-
Capsule-Type Steam Trap Forged SteelNegotiableMOQ: 1 Piece
-
WDV CS41H-16C Free Float Steam Trap, Carbon Steel / Stainless Steel, For Chemical Processing, Nuclear Power, Food & Pharmaceutical ApplicationsNegotiableMOQ: 1 Set
-
OEM Inverted Bucket Steam Trap IB Series | High Efficiency Mechanical Steam Trap for Boiler Steam Line | Cast Steel Flanged Steam Trap ManufacturerNegotiableMOQ: 1 Piece
Bellows seal trap
The thermo-sensitive element of bellows seal traps is bellows filled with volatile liquid,which employs the volatility of the liquid and flexibility of the bellows.When temperature of the steam pipe goes up,the liquid volatilizes into gas,the size expands and produces pressure to impel bellows to stretch.In contrast,when temperature of the steam pipe goes down to the temperature for gas to turn into liquid,the size gets smaller and the bellows contract due to lack of impetus.
Merits
1.Convenient use due to adjustable water discharge temperature ranging from 70 to 100 degrees.
2.Capability to prevent discharge of high-temperature condensate so as to maintain heat energy of the steam pipe.
3.Continuous water discharge without noise.
4.Free from the effect of small fluctuation of steam pressure.
5.Simple structure,small size and easy installation.
6.Improvement of discharge capacity condensate by increasing diameter of bellows.
7.Good air diameter performance with resistance to coldness.
8.Zero leakage and backpressure ratio up to 75%.
Technique parameter
|
Shell pressure grade |
Maximum operating pressure differential |
Maximum allowable temperature |
Permitted backpressure rate |
|
|
1.6、 2.5MPA |
1.6MPA |
350℃ |
75% |
|
|
Freezing resistance |
Air exhaust system |
Used medium |
Energy saving effect
|
Load leakage
|
|
Excellence |
Automatic |
Steam、 condensate water |
Excellence |
0% |
The materials of primary accessories
|
Part and component name |
Material |
|
Valve Body、Valve Cover |
Carbon steel、Stainless steel |
|
Reservoir |
Stainless steel、Volatile liquid |
|
Valve seat |
High chrome stainless steel、Four Fluorine |
|
Filtrating screen |
Stainless steel |

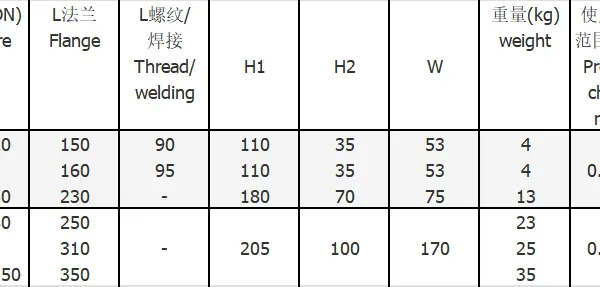

Prime out-form dimensions and weigh
|
Product model |
(DN) Calibre |
L Flange |
L Thread/ welding |
H1 |
H2 |
W |
(kg) weight |
(MPa) Pressure Change range |
(MPa) Nominal pressure |
S711 |
15~20 25 |
- |
90 95 |
148 170 |
28 26 |
55 55 |
2.0 2.2 |
0.1-1.6 |
2.5 |
