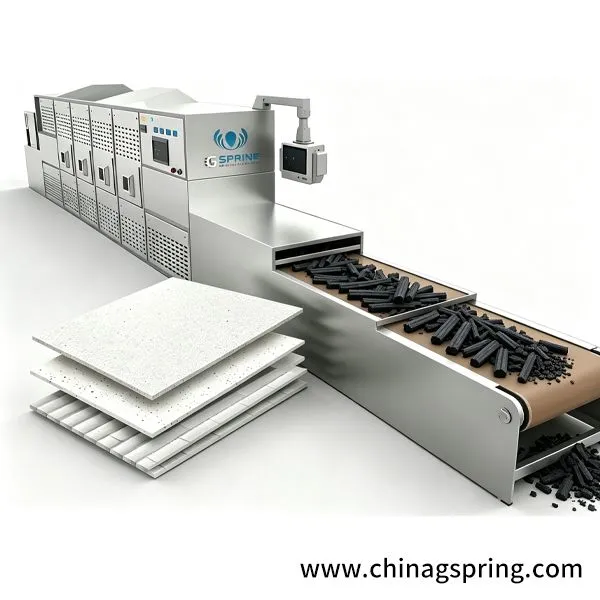

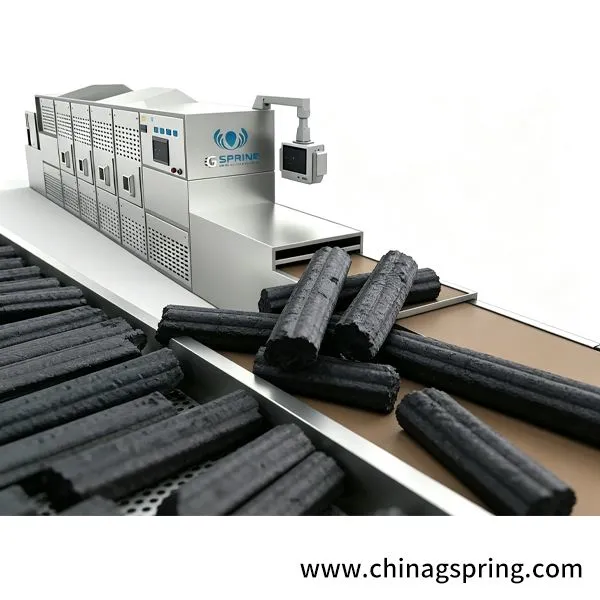

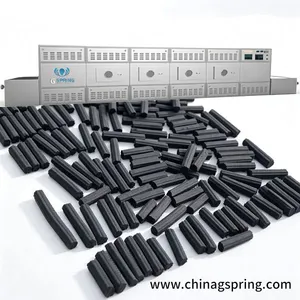

High Output Industrial Microwave Drying Machine for Coal
Our High Output Industrial Microwave Drying Machine is designed for efficient coal moisture reduction in mining, coal preparation, and industrial fuel processing. Using advanced microwave heating technology, the system removes moisture rapidly and uniformly, helping improve handling efficiency, storage stability, and downstream processing performance.
The continuous conveyor design and PLC intelligent control system enable stable, automated operation for medium- and large-scale production while supporting customized capacities to meet different plant requirements.
This industrial microwave drying machine is specially designed for high-efficiency drying of coal and construction materials. It adopts advanced microwave heating technology combined with a continuous conveyor belt system to ensure fast, uniform, and energy-saving drying performance.
Compared with traditional drying equipment, this machine significantly reduces drying time while improving product quality and production efficiency.
Key Features
High-output continuous production
Rapid and uniform moisture removal
PLC touch-screen intelligent control
Adjustable microwave power
Adjustable conveyor speed
Continuous conveyor drying system
Energy-efficient operation
Stable 24-hour industrial performance
Customized processing capacity
Easy operation and maintenance
OEM & ODM manufacturing available
CE-compliant design available
Suitable Materials
The equipment is suitable for moisture reduction of:
Bituminous coal
Lignite (brown coal)
Anthracite
Coal fines
Coal powder
Coal briquettes
Activated carbon
Carbon-based industrial materials
Other suitable mineral materials
Working Principle
Microwave energy penetrates the coal and directly heats internal moisture, accelerating water evaporation from the inside outward. This volumetric heating method provides faster and more uniform drying than many conventional surface-heating methods. Actual drying performance depends on the coal type, initial moisture content, particle size, and target moisture level.
Why Choose Our Microwave Dryer?
Professional industrial microwave equipment manufacturer
Factory-direct pricing
Customized engineering solutions
High-efficiency continuous production
Experienced technical support team
Installation and commissioning assistance
One-year warranty
Lifetime technical support
Export experience in international markets
Industrial Microwave Dryer Application in Coal Industry
· Coal Preparation Plants:For the continuous drying of fine coal fractions to improve their quality and market value.
· Power Generation:To prepare coal for use in power plants, ensuring that it meets the necessary moisture content specifications.
·Steel Production:In steel mills, where coal is used as a reducing agent, microwave drying can improve the quality of the coal and enhance the efficiency of the steel production process.
· Environmental Remediation:By reducing the levels of sulfur and other contaminants in coal, microwave drying can help to mitigate the environmental impact of coal usage.

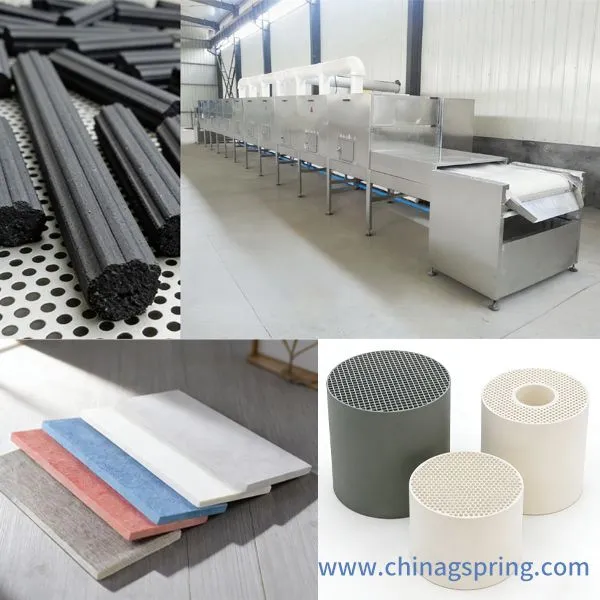

Except Coal Industry, Industrial Microwave Dryer also can be used for kinds of construction material, except normal wood & textile, but for some synthetic material,
like insulation board, fireproof material.
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request
FAQ
Q1: What types of coal can this machine process?
It is suitable for various coal types, including bituminous coal, lignite, anthracite, coal fines, and briquettes, subject to material testing and process requirements.
Q2: Can the machine capacity be customized?
Yes. We can customize throughput, microwave power, conveyor dimensions, and system configuration according to your production needs.
Q3: Is microwave drying more efficient than conventional drying?
For many applications, microwave drying can provide faster and more uniform moisture removal. The actual efficiency depends on the material characteristics and operating conditions.
Q4: Do you provide OEM & ODM services?
Yes. We offer customized machine design, branding, voltage configuration, and complete production line solutions.
