Single Punch Tablet Press

Single Punch Tablet Press thumbnail-1
Single Punch Tablet Press thumbnail-2
Single Punch Tablet Press thumbnail-3
Single Punch Tablet Press photo-1
Single Punch Tablet Press photo-2
Single Punch Tablet Press photo-3
US$ 900 ≥1 Set
Key Specifications
Get Latest Price
Certification:
CE Certified, ISO Certified
Warranty:
12 months
Capacity:
Other, 4500pcs/hour
Contact Supplier Request Quote Chat Now
Liaoyang Yishan Machinery Imp. & Exp. Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE Certified, ISO Certified
Warranty 12 months
Capacity Other, 4500pcs/hour
Automation Level Semi-Automatic
Tablet Shape Oval, Rectangular, Round, Square
Specification TDP-5NT
Origin China

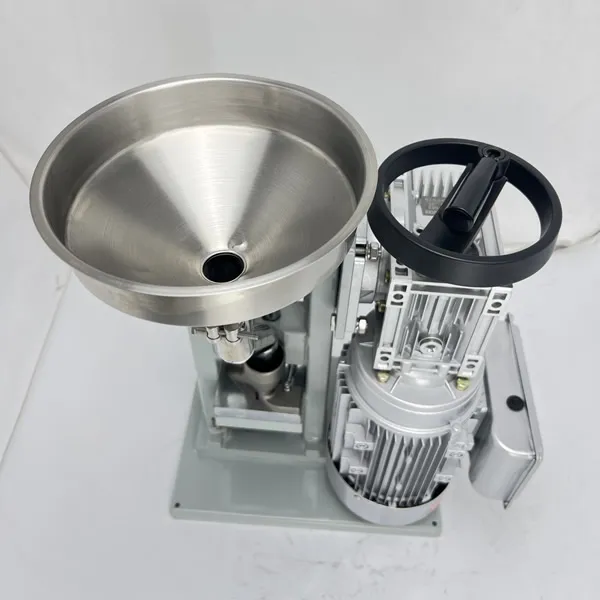

Single Punch Tablet Press TDP-5NT



Features:

1. Mini model with 1.1KW high pressure, lightweight and easy to move

2. Continuous feeding and sheet discharging; pressure and weight adjustable

3. Equipped with round mould; other moulds customizable and replaceable

4. Inching operation & direct feeding; large material barrel



Main Technical Parameters


Working Voltage: Customizable 220V/110V, Power: 1.1KW

Production Capacity: 4,500 pieces per hour

Adjustable Tableting Pressure: 50kN (adjustable)

Tableting Diameter Range: 4-16mm

Comes with one standard die. In-stock sizes: 4.5, 6, 8, 10, 12, 14, 15, 16mm for optional selection. Additional dies available for purchase and self-replacement; special-shaped dies can also be customized.

Adjustable Tableting Thickness: 2-6mm, adjustable according to actual requirements

Net Weight of Main Unit: 53kg

Packing Weight: 65kg

Packaging: Standard plywood case, disassembled by removing bottom screws

Overall Dimension: 460*330*680mm

Packing Dimension: 560*430*710mm

Material: Carbon steel + stainless steel. Parts in contact with materials adopt die steel; stainless steel cannot meet hardness requirements

Unpacking Notice: Remove screws at the bottom to lift and open the case cover easily. Do not force apart the bottom and side panels.
