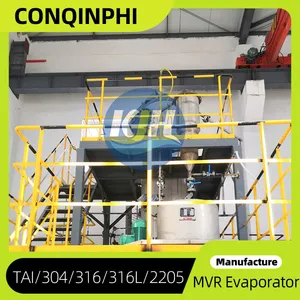

Help CenterMVR Evaporation Equipment With 1-Year Warranty, Free Installation and Commissioning
Product Spotlights
Related Products
-
PLC Controlled MVR Evaporation Crystallizer, 380V, 15-30 KW, for Zero Liquid DischargeUS$ 29400 - 790000MOQ: 1 Combo -
MVR Crystallization System, 12-Month Warranty, On-Site Training and After-Sales SupportUS$ 29400 - 790000MOQ: 1 Combo
-
Automatic MVR Evaporator Crystallizer, 220V/380V, 1-10 Ton/Day Capacity, 316L Stainless SteelUS$ 29400 - 790000MOQ: 1 Combo
-
MVR Evaporation Concentration Crystallization Unit for Pharmaceutical Industry, GMP CompliantUS$ 29400 - 790000MOQ: 1 Combo
-
MVR Concentration Evaporator, 0.5-5 Ton/Hour, 316L, With CIP Cleaning SystemUS$ 29400 - 790000MOQ: 1 Combo
As a leading manufacturer with over 9 years of experience in environmental treatment technology, Qingdao Conqinphi Environmental Technology Group Co., Ltd. proudly presents our MVR Evaporation Equipment – a highly efficient, energy-saving solution for liquid concentration and zero liquid discharge (ZLD) applications. Our factory, spanning 10,000–30,000 square meters, and a skilled team of 201–300 employees ensure rigorous quality control and on-time delivery. This MVR evaporator comes with a 1-year warranty and free installation and commissioning, making it a risk-free investment for your industrial evaporation needs.
Key Features & Technical Specifications
- Mechanical Vapor Recompression (MVR) technology – Recycles latent heat of vaporization, reducing energy consumption by up to 70% compared to traditional multi-effect evaporators.
- High evaporation capacity – Ranges from 500 L/h to 50,000 L/h, tailored to your production scale.
- Advanced control system – PLC + HMI touch screen for fully automatic operation, minimizing manual intervention.
- Robust construction – Made of SS304 or SS316L stainless steel, resistant to corrosion and suitable for aggressive media.
- Low operating cost – Only electrical power required; no need for external steam or cooling water in most designs.
- Compact footprint – Space-saving modular design, easy to integrate into existing plants.
- Environmentally friendly – Enables zero liquid discharge (ZLD), reducing waste disposal costs.
| Parameter | Specification |
|---|---|
| Model | CQ-MVR Series |
| Evaporation Temperature | 40°C – 120°C (adjustable) |
| Compressor Type | Centrifugal / Roots blower (optional) |
| Material of Construction | SS304 / SS316L / Duplex (customized) |
| Heating Source | Electricity (compressor drive), no additional boiler required |
| Control Mode | Automatic (PLC + HMI) with remote monitoring option |
| Warranty | 1 year (free replacement of defective parts) |
| Installation | Free installation & commissioning by our engineers |
Why Choose Our MVR Evaporation Equipment?
- Proven reliability – Our equipment is exported to more than 20 countries, including North America, Europe, and Southeast Asia, with annual export value exceeding US$10 million.
- Comprehensive certifications – Factory certified with ISO9001, ISO14000, HACCP, SA8000, and many other international standards, ensuring consistent quality and safety.
- Customization available – We tailor the evaporator to your specific feed characteristics, capacity, and site conditions.
- After-sales support – 7×24 technical hotline, spare parts warehousing, and remote diagnostics to minimize downtime.
- Free installation & commissioning – Our experienced engineers will supervise the entire setup process, train your operators, and verify performance.
Trust & Credibility
Since our establishment in 2015, Qingdao Conqinphi Environmental Technology Group has grown into a 10,000–30,000 m² modern factory employing 201–300 professionals. We hold certifications including ISO9001, ISO14000, OHSAS18001, HACCP, and others, demonstrating our commitment to quality, environment, and social responsibility. Our products serve industries from food processing to pharmaceutical concentration, and our global market coverage spans every major region. When you partner with Conqinphi, you receive not just a machine, but a long-term partner dedicated to your operational excellence.
Frequently Asked Questions (FAQ)
Q1: What is the working principle of an MVR evaporator?
A: MVR (Mechanical Vapor Recompression) uses a compressor to raise the pressure and temperature of the vapor generated from boiling liquid. This compressed vapor is then used as the heating medium in the same evaporator, drastically reducing external steam consumption. The process is highly energy-efficient.
Q2: Can the MVR evaporator handle highly corrosive or viscous liquids?
A: Yes. Our equipment is built with corrosion-resistant materials like SS316L or duplex stainless steel, and we can add special coatings or design features (e.g., forced circulation) to handle viscous or scaling-prone liquids. Please provide your fluid properties for a customized solution.
Q3: How much energy can I save compared to a traditional multiple-effect evaporator?
A: Typically, MVR technology saves 50–70% of energy. For example, concentrating a 10% feed to 30% requires about 20–30 kWh per ton of water removed, while a triple-effect evaporator may consume 100–150 kg of steam per ton of water removed.
Q4: What electrical supply is needed?
A: Common voltages are 380V/50Hz or 415V/50Hz (three-phase), but we can accommodate 460V/60Hz, 690V, and other voltages based on your site. The compressor power depends on capacity; our engineers will calculate the exact requirement.
Q5: Do you offer remote monitoring or IoT integration?
A: Yes, we can equip the system with a remote monitoring module that allows you to view real-time data (temperature, pressure, flow, energy consumption) via a web portal or mobile app. This is optional and can be customized.
Q6: Is the installation truly free? What about travel expenses for engineers?
A: The installation and commissioning service is free of charge for standard projects, including our engineers' labor. However, travel, accommodation, and local transportation expenses for our engineers are typically covered by the buyer. We will clarify the terms in your contract.
Q7: How long does it take to receive the equipment after ordering?
A: Standard delivery time is 45–60 days after receiving the down payment, depending on the complexity and capacity. For urgent orders, we can expedite production upon request.
Q8: What spare parts should I keep in stock?
A: We recommend keeping a set of seals, gaskets, and a spare oil filter for the compressor. A full spare parts list is provided with the equipment manual. We also maintain a warehouse with common parts for quick dispatch.
Contact us today to discuss your application and get a tailored MVR evaporation solution with free installation and commissioning. Join hundreds of satisfied customers worldwide who trust Conqinphi for energy efficiency and reliability.
