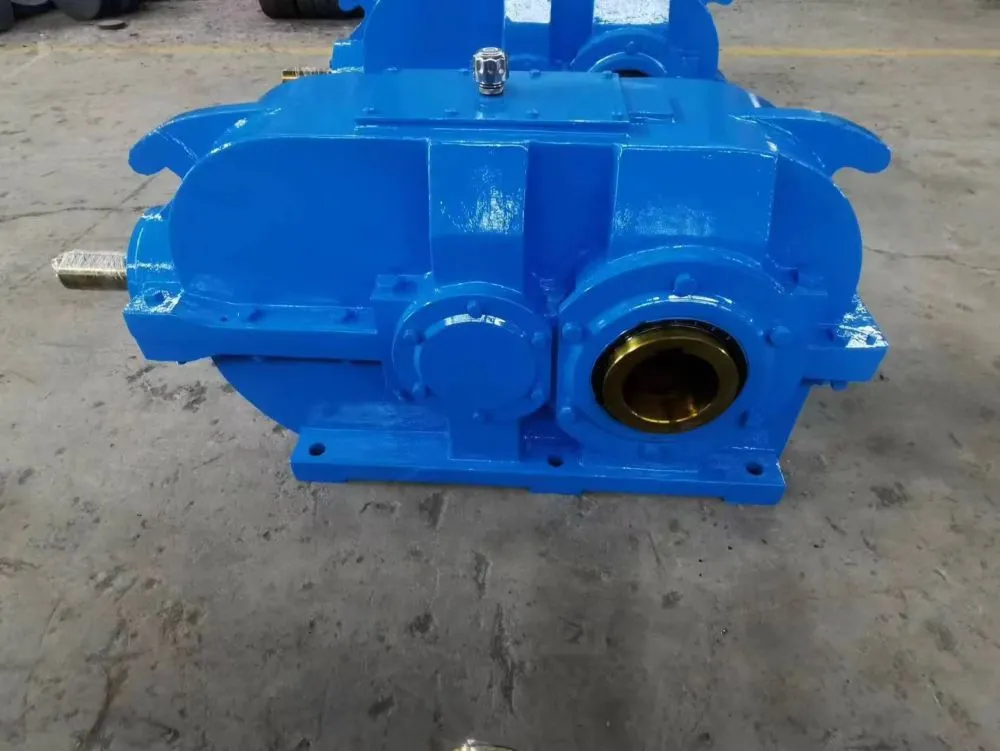

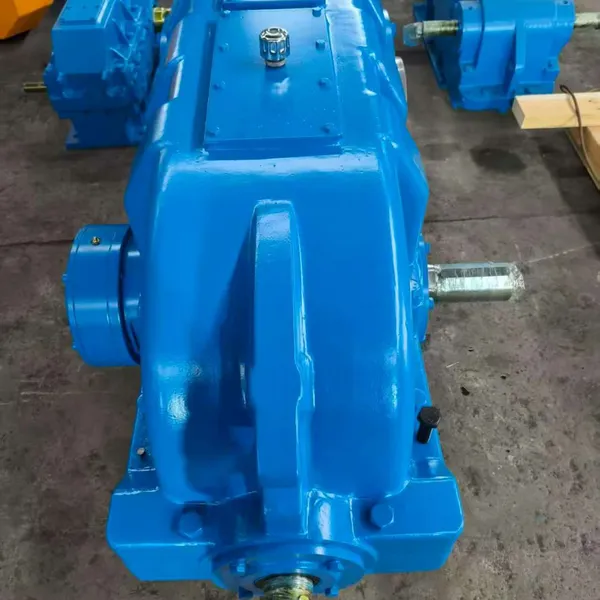

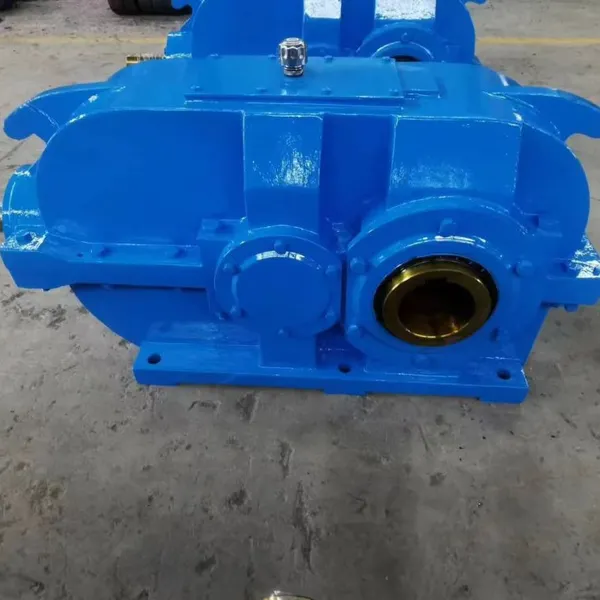

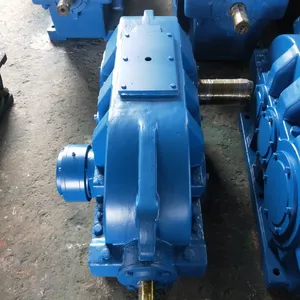

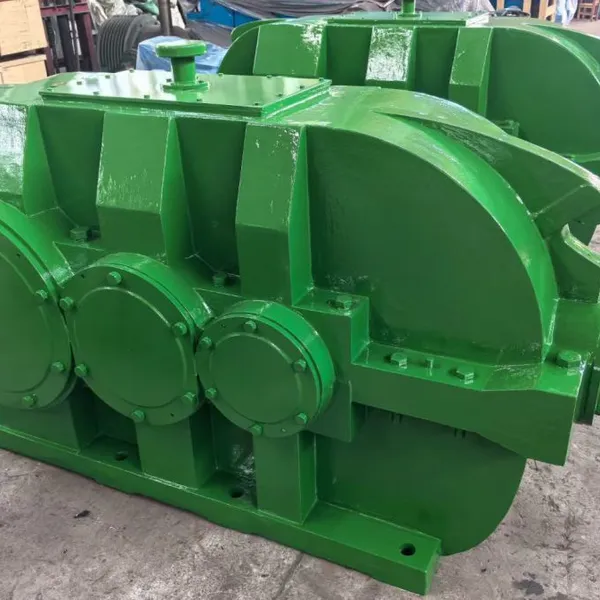

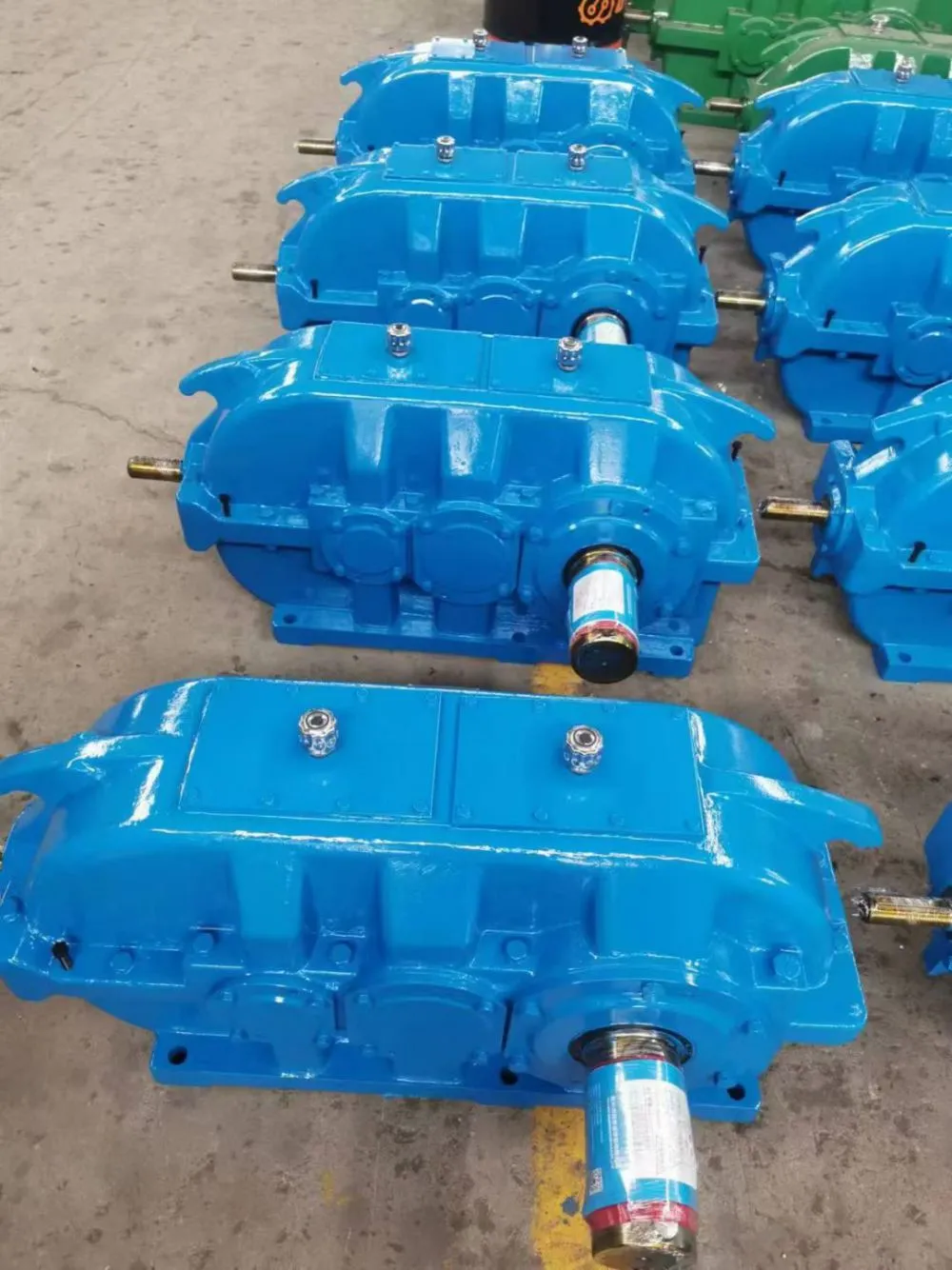

Jiangsu Manqi Machinery Co., Ltd. proudly presents the High Torque Low Vibration DCY450 Bevel Cylindrical Gear Reducer, specifically engineered for cement plant transmission boxes. Since our establishment in 2017, we have focused on delivering durable and efficient gear reducers that meet the demanding requirements of heavy industrial applications. With a factory spanning 10,000–30,000 square meters and a dedicated team of 11–50 employees, we combine precision manufacturing with rigorous quality control. The DCY450 combines a bevel gear stage with a cylindrical gear stage to deliver exceptional torque output while maintaining remarkably low vibration levels — a critical feature for cement plant machinery where uptime and reliability are paramount.
Key Features & Benefits
- High Torque Output: The DCY450 is designed to transmit high torque loads efficiently, making it suitable for heavy-duty cement mill drives, kiln drives, and conveyor systems.
- Low Vibration Technology: Helical and bevel gear meshing geometries are optimized to minimize vibration, reducing wear on connected equipment and ensuring smooth operation even under variable loads.
- Compact & Robust Construction: The gearbox housing is made from high-strength cast iron or welded steel (customizable), providing excellent rigidity and heat dissipation.
- High Efficiency: Precision-ground gears achieve efficiency rates above 94%, lowering energy consumption and operational costs over the product lifetime.

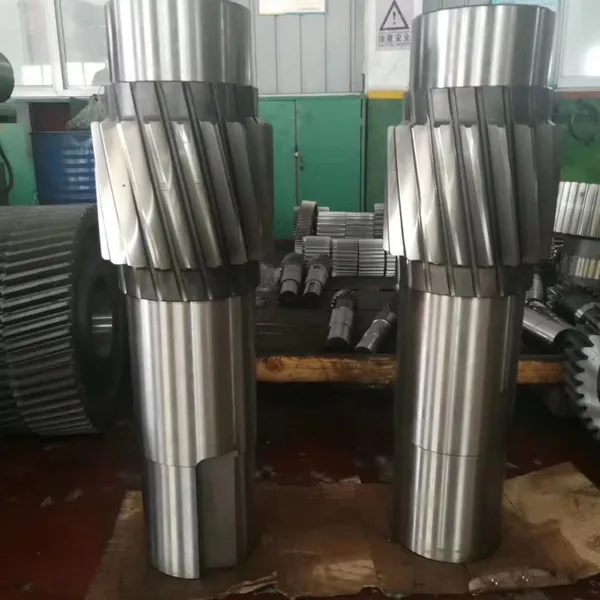

- Long Service Life: Case-hardened alloy steel gears with carburizing and quenching treatment offer superior wear resistance. Bearings are selected from reputable brands (e.g., SKF, NSK — available upon request).
- Easy Maintenance: Oil drain plugs, breather vents, and inspection covers are strategically positioned for convenient servicing. The gearbox can be supplied with optional forced lubrication or cooling systems.
- Flexible Mounting Options: Available in horizontal or vertical configurations, with foot or flange mounting as per installation requirements.
- Customizable Accessories: Options include backstop, cooling fan, torque arm, oil cooler, and temperature sensors to match specific cement plant applications.
Technical Specifications
| Model | DCY450 |
| Gear Ratio Range | 8:1 to 100:1 (custom ratios available) |
| Nominal Output Torque | Up to 500,000 N·m (depending on ratio and configuration) |
| Input Speed | 750 – 1500 RPM (typical motor speed) |
| Efficiency | ≥ 94% at full load |
| Vibration Level | ≤ 4.5 mm/s (RMS) per ISO 10816 |
| Gear Material | 20CrMnTi case-hardened alloy steel (hardness 58–62 HRC) |
| Housing Material | HT250 cast iron (standard) or Q235 welded steel (optional) |
| Operating Temperature | -15°C to +45°C (with optional cooling for higher ambient) |
| Mounting Position | Horizontal (standard) / Vertical (optional) |
The DCY450 series has been widely adopted in cement plants for applications such as ball mill drives, belt conveyor gearboxes, bucket elevator reducers, and kiln transmission systems. Its bevel-cylindrical design provides both high reduction ratios and smooth power transmission, essential for maintaining consistent material flow and minimizing downtime.
At Jiangsu Manqi Machinery, every DCY450 gear reducer undergoes a four-stage inspection process: incoming material inspection, gear cutting test, assembly run-in test, and final performance test under load. Our annual export volume may be under US$1 million, but we serve clients in Eastern Europe, Southeast Asia, Africa, and South Asia with customized solutions. Each unit is shipped from the Port of Shanghai with robust export packaging to prevent damage during transit. Our after-sales team provides technical documentation, spare parts lists, and online support — giving you peace of mind.
Choose the DCY450 for your cement plant transmission needs and experience a reliable partner that values quality over quantity. Contact us today for a detailed quotation or engineering consultation — we are ready to tailor this gearbox to your specific load profile and mounting constraints.
Frequently Asked Questions (FAQ)
-
Q: What is the typical lead time for a DCY450 gear reducer?
A: Standard models with common ratios (e.g., 20:1 to 40:1) can be delivered within 30–45 days after order confirmation. Custom configurations may require 60–90 days depending on complexity. We recommend confirming your requirements early. -
Q: Can I use this gearbox for applications other than cement plants?
A: Absolutely. While designed for cement plant environments, the DCY450 is suitable for other heavy industries such as mining, steel, chemicals, and power generation — anywhere high torque and low vibration are needed. -
Q: What lubrication system does the DCY450 use?
A: Standard configuration uses splash lubrication (oil bath). For high-speed or continuous operation, forced lubrication with an external oil pump and cooler is available as an option. Please specify your operating conditions. -
Q: How do you control vibration levels?
A: We use precision-ground gears with optimized helix angles, dynamically balanced rotors, and high-tolerance bearing fits. Each unit is tested on a vibration analyzer before shipment to ensure compliance with ISO 10816 limits. -
Q: What certifications does your factory hold?
A: Our production management follows internal quality standards. We can provide material certificates, test reports, and a warranty certificate upon request. For specific certifications (e.g., CE, ISO), please consult with our sales team for project-specific requirements. -
Q: Can the DCY450 be supplied with a backstop (anti-reverse) device?
A: Yes, a backstop can be integrated into the output shaft or as a separate module. This is common for conveyor applications to prevent reverse rotation during power outages. -
Q: What is the warranty period for this gear reducer?
A: We offer a standard 12-month warranty from the date of shipment, covering defects in materials and workmanship. Extended warranties can be negotiated. -
Q: Do you provide spare parts lists and maintenance manuals?
A: Yes, each gearbox ships with technical documentation including an exploded view, bearing and seal list, lubrication guide, and installation instructions. We also keep common spare parts in stock for quick dispatch.
