Product Introduction

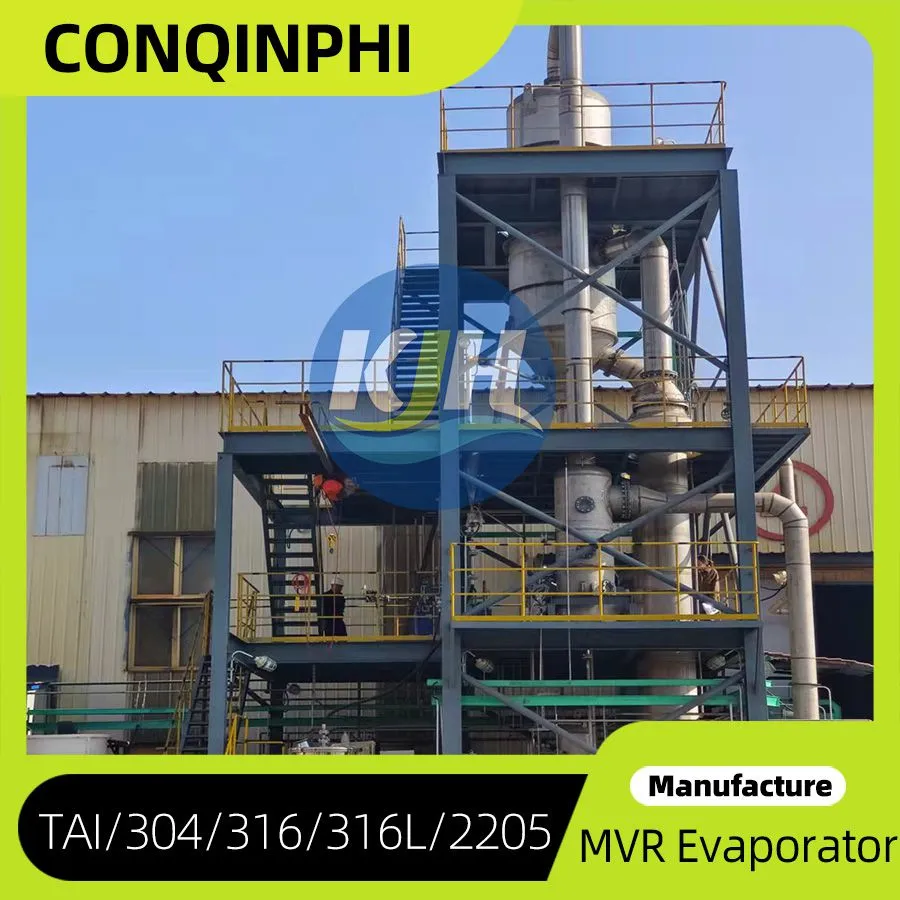

As a leading manufacturer based in Qingdao, China, Qingdao Conqinphi Environmental Technology Group Co., Ltd. has been dedicated to sustainable water treatment solutions since 2015. Our 304 Stainless Steel High-Salt Wastewater Zero Liquid Discharge (ZLD) System with MVR Compressor represents the pinnacle of efficient, corrosion-resistant technology for industries facing stringent discharge regulations. By integrating a mechanical vapor recompression (MVR) compressor, this system achieves high evaporation rates while minimizing energy consumption—turning problematic high-salinity wastewater into clean condensate and dry solids. Backed by a 10,000–30,000 m² factory and over 200 skilled professionals, we deliver reliable, customized zero liquid discharge solutions worldwide.
Key Features & Technical Specifications
- Superior Corrosion Resistance – Constructed from 304 stainless steel, the system withstands aggressive high-salt and acidic wastewater, ensuring long service life and low maintenance.
- Energy-Efficient MVR Compressor – The MVR compressor recovers latent heat from vapor, reducing steam consumption by up to 60–80% compared to traditional multi-effect evaporators.
- Automatic PLC Control – Touch-screen operation with real-time monitoring of temperature, pressure, flow, and compressor status; supports remote control and data logging.
- Zero Liquid Discharge Compliance – Produces distilled water (TDS < 50 ppm) and solid salt crystals, meeting environmental discharge or reuse standards.
- Compact Modular Design – Pre-assembled skid-mounted units simplify installation, reduce footprint, and allow easy capacity expansion.
| Material | 304 Stainless Steel |
| Power Supply | 380V / 50Hz (3-phase, customizable) |
| Evaporation Temperature | 60–100°C (adjustable) |
| Condensate Water Quality | TDS < 50 mg/L |
| Salt Recovery Rate | > 95% (dry crystal) |
| Control System | PLC + HMI touch screen |
| Certifications | ISO9001, ISO14000, OHSAS18001, etc. |
Customer Benefits
- Reduce Operating Costs – Low energy consumption (only 15–30 kWh per ton of water evaporated) significantly cuts electricity bills.
- Environmental Compliance – Avoids costly wastewater discharge fees and meets strict zero liquid discharge regulations.
- Water Reuse – High-quality distilled water can be reused in production processes, reducing fresh water intake.
- Minimal Downtime – Robust 304 SS construction resists scaling and fouling; designed for continuous operation with automatic cleaning cycles.
Trust & Reliability
With an annual export value of US$10–50 million and serving markets across North America, Europe, Southeast Asia, Africa, and Oceania, Conqinphi has proven its global capability. Our factory, spanning 10,000–30,000 m² and staffed by 201–300 employees, is equipped with advanced fabrication and testing facilities. We hold multiple quality and safety certifications including ISO9001, ISO14000, and OHSAS18001, ensuring every system meets rigorous standards. By choosing our 304 Stainless Steel High-Salt Wastewater ZLD System with MVR Compressor, you gain a partner committed to long-term performance and environmental stewardship. Contact us today to discuss your specific wastewater challenges and receive a tailored proposal.
Frequently Asked Questions
-
Q: What types of high-salt wastewater can this system handle?
A: It is suitable for industrial brines, reverse osmosis concentrates, desulfurization wastewater, landfill leachate, and chemical process streams with salt concentrations up to 25% (customizable for higher). -
Q: How much energy does the MVR compressor save compared to traditional evaporators?
A: MVR technology can save 60–80% of thermal energy, as it reuses vapor compression heat. Typical power consumption is 15–30 kWh per ton of evaporated water. -
Q: What is the lifespan of the 304 stainless steel components?
A: Under normal operating conditions, 304 SS provides excellent corrosion resistance in high-chloride environments. Lifespan typically exceeds 10 years with proper maintenance. -
Q: Is the system fully automatic? Do I need full-time operators?
A: Yes, it features PLC automatic control with alarm and shutdown functions. One operator can monitor multiple units; remote monitoring is optional. -
Q: Can you customize the capacity to match my flow rate?
A: Absolutely. We design systems for capacities ranging from 1 ton/day to 500 tons/day. Please provide your specific parameters for a customized solution. -
Q: What after-sales support does Conqinphi provide?
A: We offer online technical support, spare parts supply, commissioning supervision, and optional on-site training. Our global network ensures quick response. -
Q: How long does delivery typically take?
A: Standard lead time is 45–90 days depending on system size and customization. We can expedite orders upon request. -
Q: What certifications does your system comply with?
A: Our manufacturing facilities are certified under ISO9001, ISO14000, and OHSAS18001. Specific product certifications can be obtained based on destination requirements.
