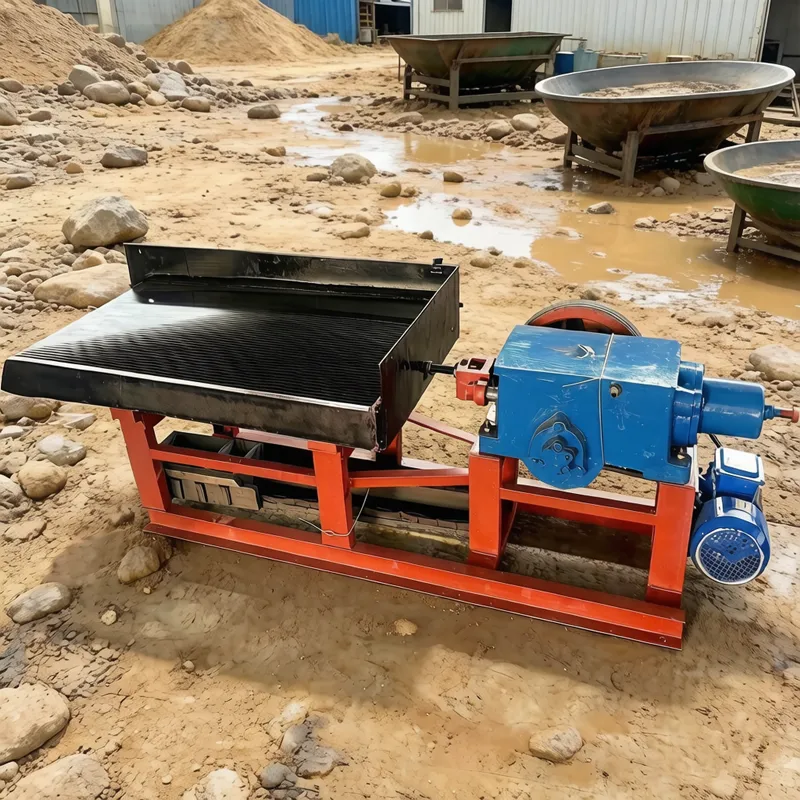

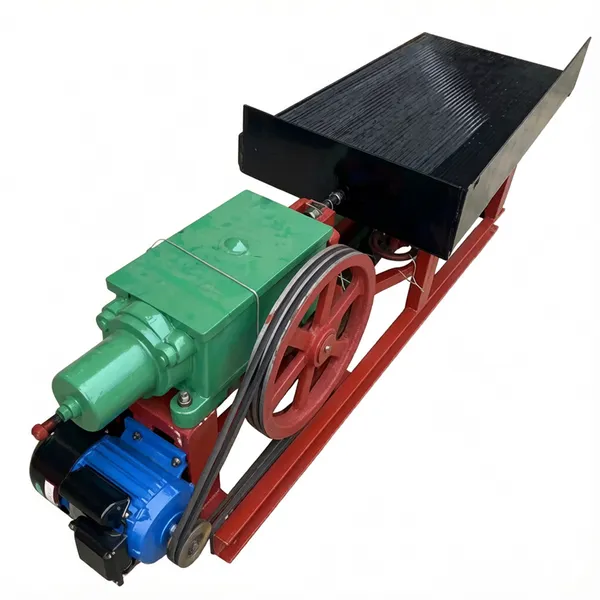

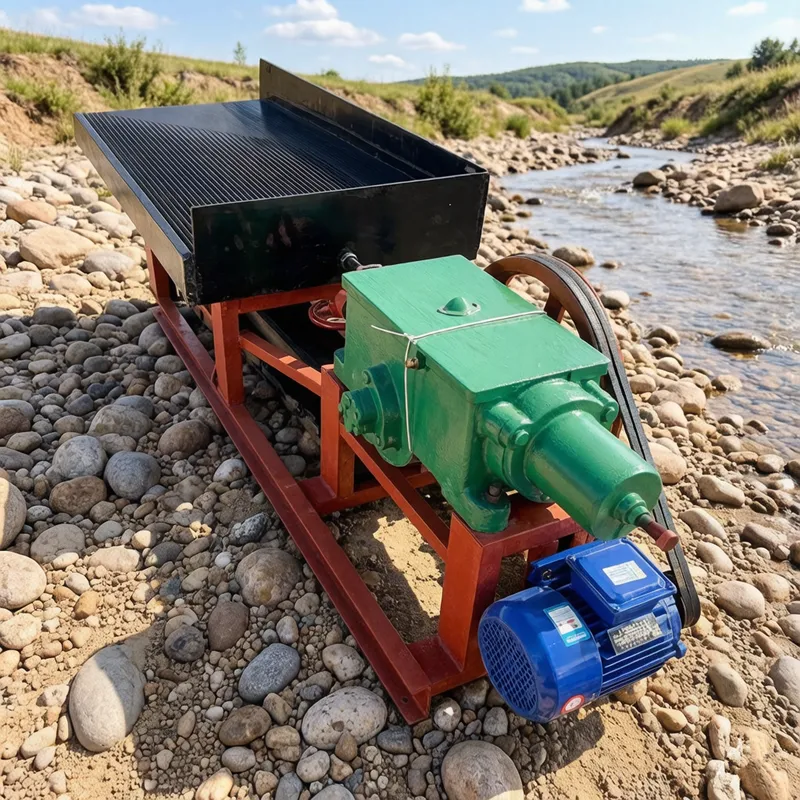

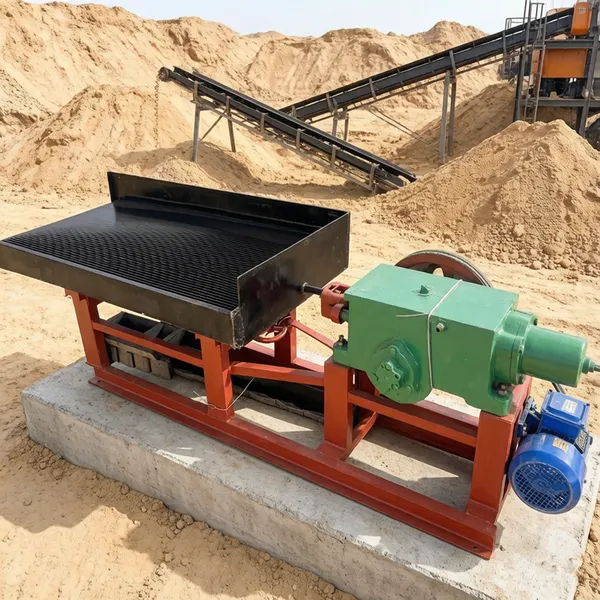

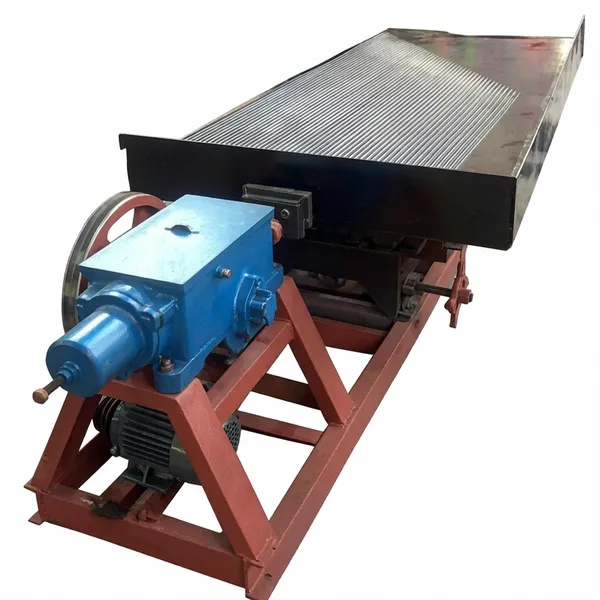

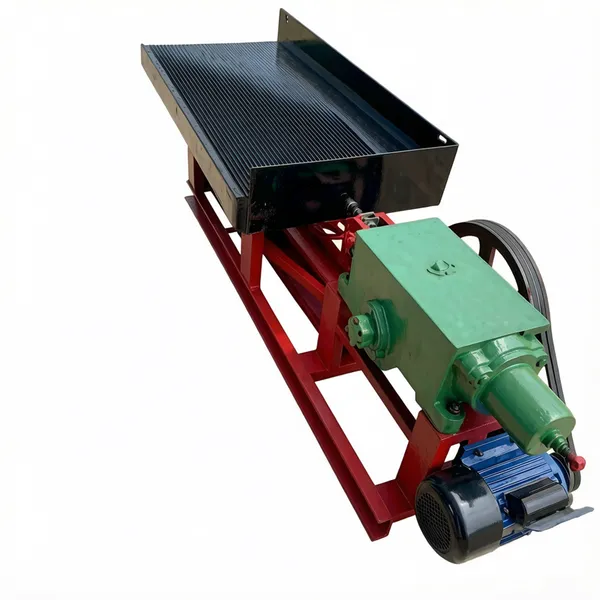

LY1100 Laboratory Shaking Table Mini Gold Gravity Concentrating Table for Small Scale Mineral Processing
🔹 Product Overview
The LY1100 Laboratory Shaking Table is a compact wet gravity separation device designed for mineral beneficiation laboratory testing, pilot plant sampling, and small-scale gold / tin / tungsten concentrating. With a deck size of approx. 1100×500 mm, it simulates the separation performance of full-size 6-S shaking tables on a miniature scale.
It is ideal for universities, geological survey institutes, and mining labs to conduct ore amenability studies, process flow determination, and small-batch concentrate cleaning of gold (alluvial & hard rock), cassiterite, wolframite, coltan, chromite, zircon, etc.—before scaling up to production equipment.
🔹 Working Principle
Driven by an electric motor through an eccentric linkage, the FRP deck performs an asymmetric reciprocating motion (slow forward – rapid return). Ore pulp is fed from the upper corner of the deck; transverse wash water flows from the side trough.
Under the combined action of deck vibration, gravity, and lateral water flow:
-
Heavy minerals (high specific gravity) settle into the riffles and migrate diagonally toward the concentrate discharge zone.
-
Light gangue minerals are washed downslope and exit as tailings.
-
An intermediate fraction (middlings) is also collected.
This achieves one-pass separation into Concentrate – Middlings – Tailings with no chemicals required—perfect for observing mineral behavior in lab tests.
🔹 Key Features & Advantages
-
✅ Lab-Size, Plant-Performance – Same riffle geometry & separation principle as industrial tables; reliable for predicting full-scale results.
-
✅ Compact & Lightweight – Only ~150 kg; can be placed on a lab floor or small frame without special foundation.
-
✅ FRP Wear-Resistant Deck – Fiberglass Reinforced Plastic with corundum-embedded surface; waterproof, anti-corrosion, non-deforming.
-
✅ Interchangeable Riffle Types – Coarse sand / Fine sand / Slime riffle patterns available to match particle size.
-
✅ Easy Adjustment – Deck slope (0–10°), stroke length (9–17 mm), and stroke frequency are manually adjustable.
-
✅ Low Power & Water – 0.55 kW motor; minimal water consumption (0.1–0.5 t/h)—economical for lab use.
-
✅ Customizable – Voltage (220V/380V/415V), riffle pattern, paint color & logo can be customized.
🔹 Typical Applications
Applicable Ore |
Function |
|---|---|
Gold (Placer & Vein) |
Lab gravity test before CIP / amalgamation / panning |
Tin (Cassiterite), Tungsten (Wolframite) |
Fine mineral sample concentration test |
Tantalum-Niobium (Coltan), Zircon, Chromite |
Rare heavy mineral lab separation |
Copper / Lead-Zinc Ore |
Pre-flotation grind & gravity amenability test |
Quartz, Feldspar |
Non-metal sample purification test |
Suitable for:
-
Coarse Sand Deck: 2 – 0.5 mm
Fine Sand Deck: 0.5 – 0.074 mm
-
Slime Deck:
🔹 Technical Parameters (LY1100 Standard)
Item |
Specification |
|---|---|
Model |
LY1100 Laboratory Shaking Table |
Deck Size (L × Feed End W × Discharge End W) |
1100 × 500 × 430 mm |
Concentration Area |
≈ 0.51 m² |
Feed Size |
2-0.074 mm |
Feed Density |
10 – 30% solids by weight |
Capacity |
0.05 – 0.20 t/h (50 – 200 kg/h, ore dependent) |
Stroke Length |
9 – 17 mm (adjustable) |
Stroke Frequency |
280 – 460 rpm (adjustable) |
Deck Slope (Transverse) |
0° – 10° (adjustable) |
Water Consumption |
0.1 – 0.5 t/h |
Motor Power |
0.55 kW (or 1.1 kW per configuration) |
Voltage / Frequency |
380V / 50Hz / 3Phase (customizable) |
Overall Dimension (L×W×H) |
≈ 1530 × 500(–800) × 660 mm |
Machine Weight |
≈ 130 – 170 kg |
Deck Material |
FRP with wear-resistant emery surface |
Riffle Types Available |
Coarse sand / Fine sand / Slime |
🔹 Main Components
-
FRP deck with selected riffle pattern (pre-installed)
Feed box & water distribution trough
Eccentric link-type head motion (transmission mechanism)
-
Adjustable tilt stand / frame
0.55 kW electric motor + V-belt drive
Stroke & slope adjustment hand wheels
🔹 Packaging & Service
-
Package: Export plywood case / steel frame + bubble wrap; suitable for LCL sea / air / express shipment
Warranty: 12 months on main frame & transmission against manufacturing defects
After-Sales: Operation video & manual provided; online technical support; engineer dispatch available upon request
-
OEM/ODM: Custom voltage, riffle type, deck color & company logo accepted
