High Recovery Rate Tin Ore Processing Spiral Chute for Mineral Separator
🔹 Product Overview

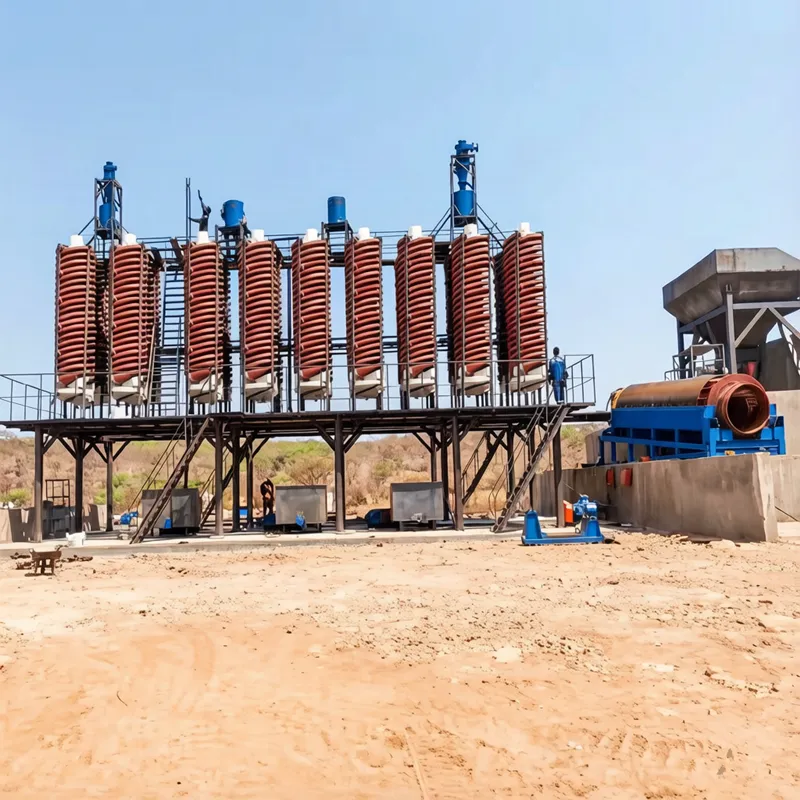

The Spiral Chute (also called Spiral Concentrator or Gravity Spiral Separator) is a no-power, high-efficiency gravity separation device widely used in the roughing and scavenging of fine-grained heavy minerals from alluvial sand, beach sand, and crushed ore.
Made of Fiberglass Reinforced Plastic (FRP) with wear-resistant surface, it separates minerals of different specific gravity by the combined action of gravity, centrifugal force, and slurry flow in the helical trough — no electricity, no moving parts, minimal water consumption.
Typical applications include concentration of placer gold, ilmenite, rutile, zircon, monazite, chromite, tungsten (wolframite/scheelite), tin (cassiterite), tantalum-niobium ore, and iron ore fines.
🔹 Working Principle
Ore pulp (25–55% solids by weight) is fed evenly to the top of the spiral trough via a distributor. As the slurry flows downward along the helical channel, mineral particles stratify under the combined forces of:
-
Gravity (pulling particles downward)
Centrifugal force from the curved flow path
Frictional resistance of the trough surface
Transverse circulating flow across the trough cross-section
→ High-density (heavy) minerals sink to the bottom of the laminar flow and migrate toward the inner edge of the spiral, discharging as concentrate.
→ Low-density (light) gangue minerals remain in the upper faster-flowing layer and are carried to the outer edge, discharging as tailings.
→ An intermediate fraction (middlings) can also be collected via adjustable splitters.
The result is a clean 3-product split — Concentrate / Middlings / Tailings — in a single pass with no reagents.
🔹 Key Features & Advantages
-
✅ No Power Required – Operates purely on gravity & slurry flow; zero electricity cost.
-
✅ High Recovery on Fine Particles – Effectively recovers heavy minerals down to 0.02–0.03 mm.
-
✅ Durable FRP Construction – Fiberglass body with corundum; anti-corrosion, waterproof, UV-resistant.
-

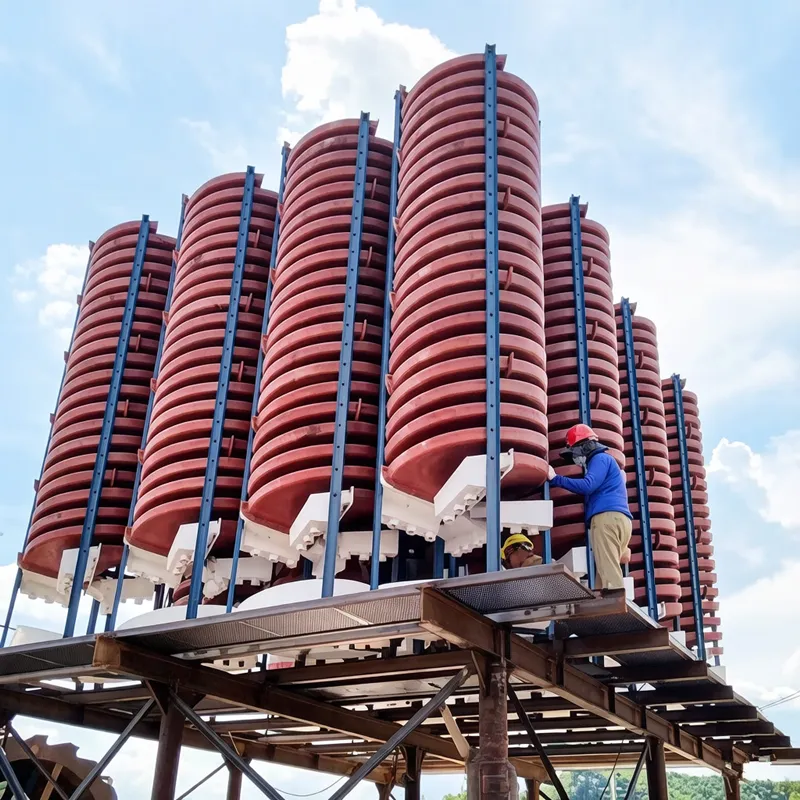

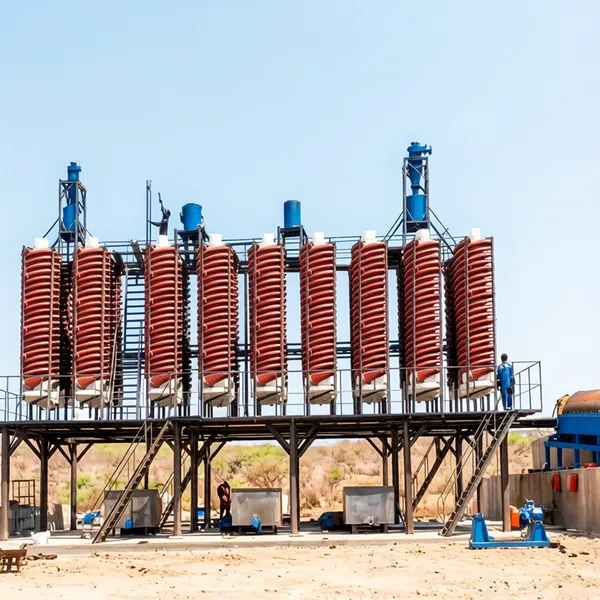

✅ Multiple Starts per Column – 2/3/4 spiral starts available on one support frame to multiply capacity in minimal footprint.
-
✅ Simple Operation & Low Maintenance – No moving parts; only periodic cleaning; adjustable splitters for product cut-point tuning.
-

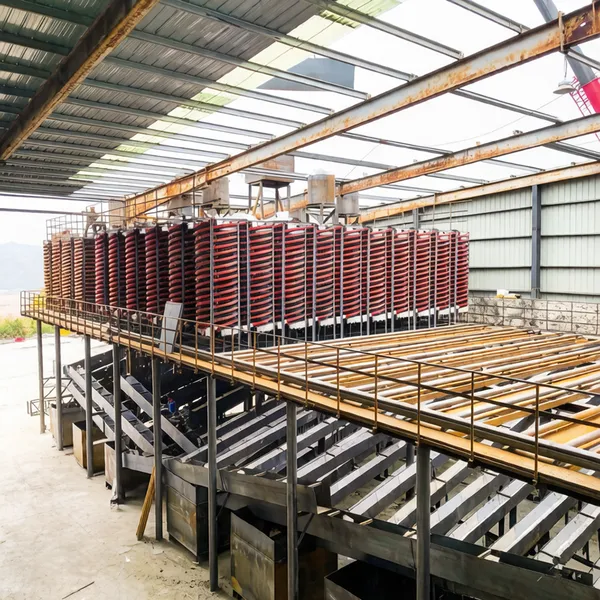

✅ Excellent Cost-Performance – Low CAPEX & OPEX; suitable for large-scale rougher/scavenger circuits.
-
✅ Customizable – Diameter (400 / 600 / 900 / 1200 / 1500 / 2000 mm), pitch ratio, number of turns (4–5 turns standard), riffled or smooth surface, support frame material (carbon steel / stainless steel).
🔹 Typical Applications
Applicable Ore / Material |
Function |
|---|---|

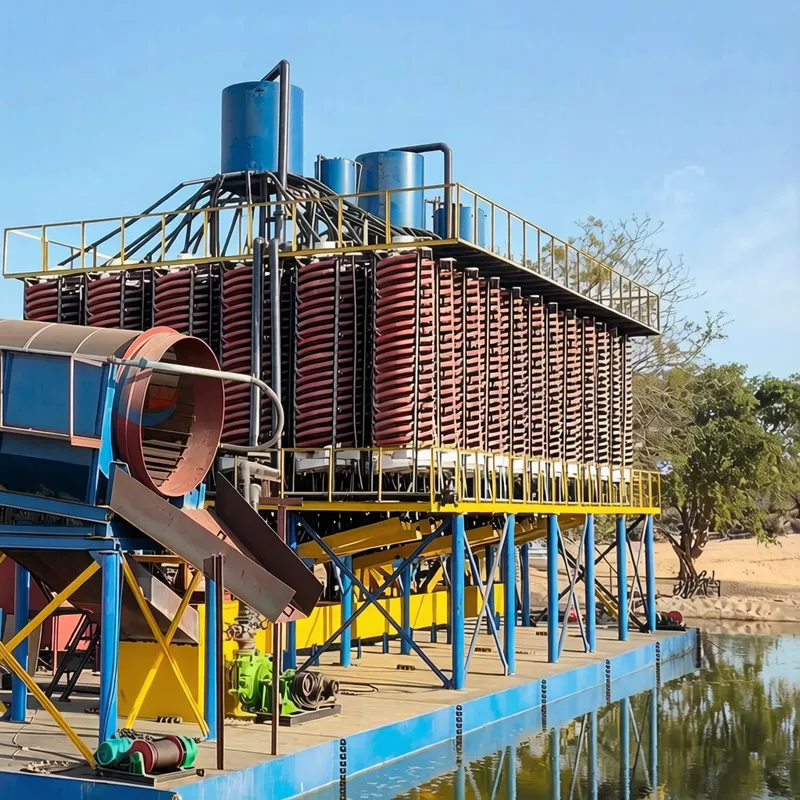

Alluvial Gold / Placer Gold |

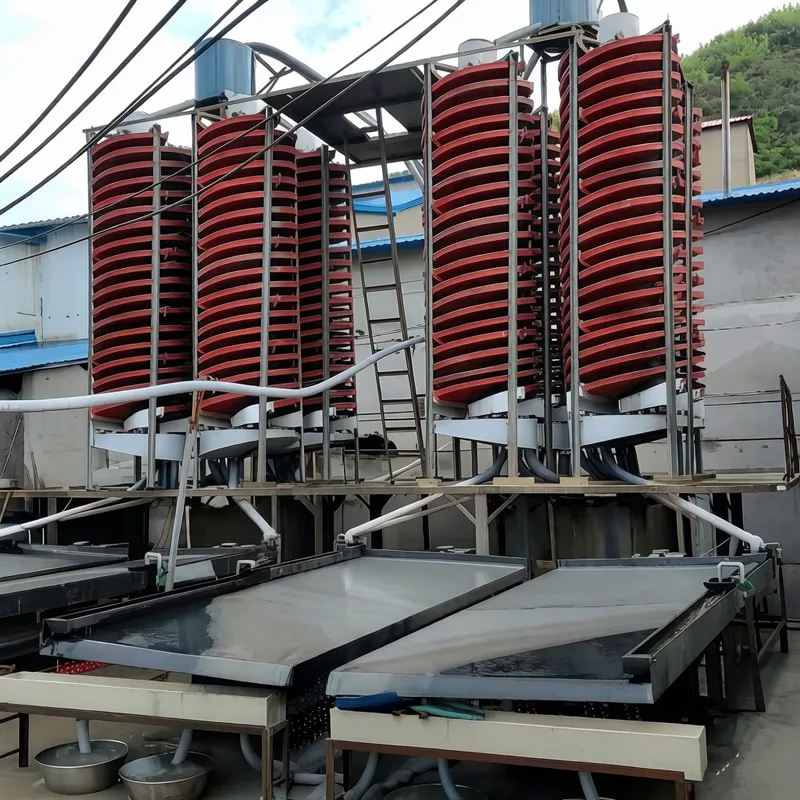

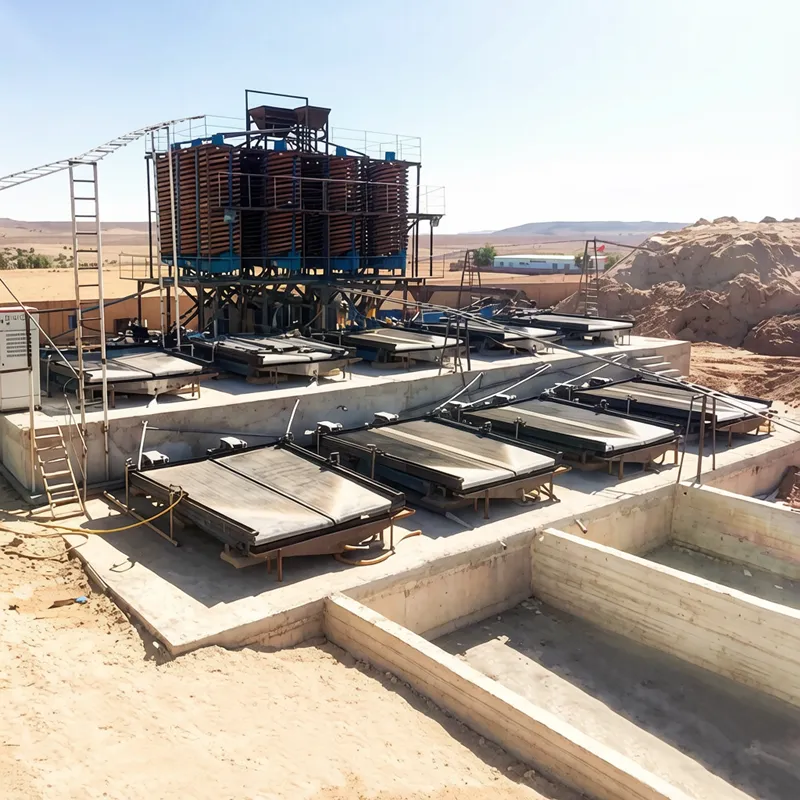

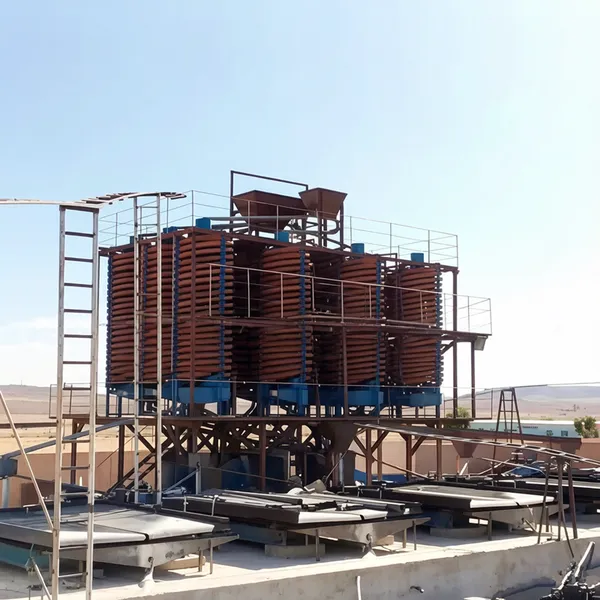

Roughing & scavenging before shaking table / amalgamation |
Ilmenite, Rutile, Zircon, Monazite |
Beach sand / heavy mineral sand separation |
Chromite, Tungsten (Scheelite/Wolframite) |
Fine slime gravity concentration |
Cassiterite (Tin Ore), Coltan (Ta-Nb) |
Primary roughing of fine heavy minerals |
Iron Ore Fines |
Gravity pre-concentration before magnetic separation |
🔹 Technical Parameters (5LL Series – Common Models)
Model |
Spiral Dia. (mm) |
Pitch (mm) |
Pitch/Dia Ratio |
Turns |
Starts / Column |
Feed Size (mm) |
Feed Density (%) |
Capacity (t/h per start) |
Height (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
BLL-2000 |
Ø2000 |
1200 |
0.6 |
3.5 |
3 |
0.04–4 |
20–45 |
15–40 |
≈6500 |
≈1100 |
BLL-1500 |
Ø1500 |
720 / 540 |
0.6 / 0.45 |
4–5 |
4 |
0.037–0.8 |
30–60 |
6–8 |
≈5230 |
≈800 |
BLL-1200 |
Ø1200 |
720 / 540 |
0.6 / 0.45 |
4–5 |
4 |
0.03–0.3 |
25–50 |
4–6 |
≈5230 |
≈600 |
BLL-900 |
Ø900 |
675 / 540 / 405 |
0.75 / 0.6 / 0.45 |
4–5 |
4 |
0.03–0.3 |
25–55 |
2–3 |
≈4000 |
≈400 |
BLL-600 |
Ø600 |
450 / 360 |
0.75 / 0.6 |
4–5 |
2 |
0.02–0.2 |
25–55 |
0.4–0.8 |
≈2600 |
≈150 |
BLL-400 |
Ø400 |
240 / 180 |
0.6 / 0.45 |
4–5 |
2 |
0.02–0.2 |
25–55 |
0.15–0.2 |
≈1500 |
≈50 |
🔹 Main Components (Per Unit)
-
FRP spiral trough(s) with wear-resistant inner lining
Feed distributor / feed box
Intercepting splitters (concentrate / middlings / tailings)
Product collection launders
Support frame (angle steel / channel steel / stainless steel, painted or galvanized)
-
Anchor bolts & assembly hardware
🔹 Packaging & Service
Package: Nude spiral bundles + steel strap + plastic film; frames & accessories in plywood case. Suitable for 20'/40' GP container loading.
Warranty: 12 months against manufacturing defects (wear parts excluded)
After-Sales: Installation diagram & operation video provided; online technical support; engineer dispatch available upon request
-
OEM/ODM: Custom spiral diameter, pitch, starts, frame material, voltage for accessory pumps, logo & color accepted
