Product Description
C1100 Introduction
C1100 is pure Copper with a Copper content of over 99.90%. It is refined Copper in which 0.02-0.05% Oxygen remains when electrolytic Copper is melted, also known as "Tough-Pitch Copper" (TPC). Because of the high purity of Copper, it has an excellent conductor of electricity and heat as is C1020, but care must be taken to avoid hydrogen embrittlement when heated to high temperatures or welded in a reducing atmosphere due to the effect of Oxygen remaining in the material.
C1100 Copper Round Bar Introduction
Copper round bar is a solid cylindrical copper product widely used in industrial manufacturing, electrical equipment, machinery parts, and hardware fittings. It is mainly made of high‑purity copper or copper alloy with good electrical conductivity, thermal conductivity, corrosion resistance, and machinability. It can be easily cut, turned, drilled, threaded, and processed into various components such as threaded plugs, pipe fittings, fasteners, and mechanical parts. With stable performance and high dimensional accuracy, copper round bar is suitable for hydraulic systems, plumbing installations, automotive parts, and general industrial applications.
C1100 Copper Round Bar Drawing

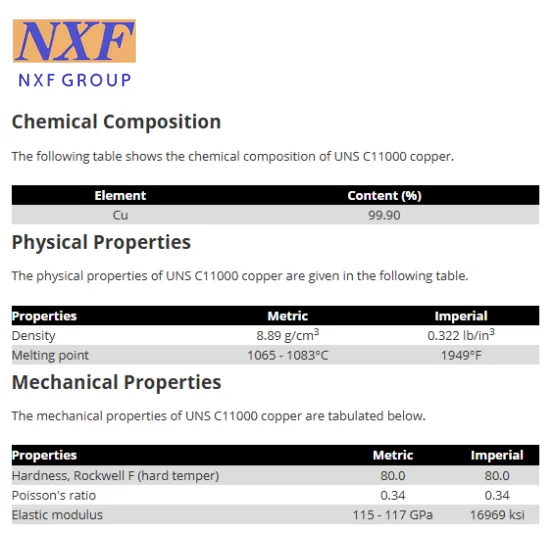

C1100 Chemical Composition And Physical Properties

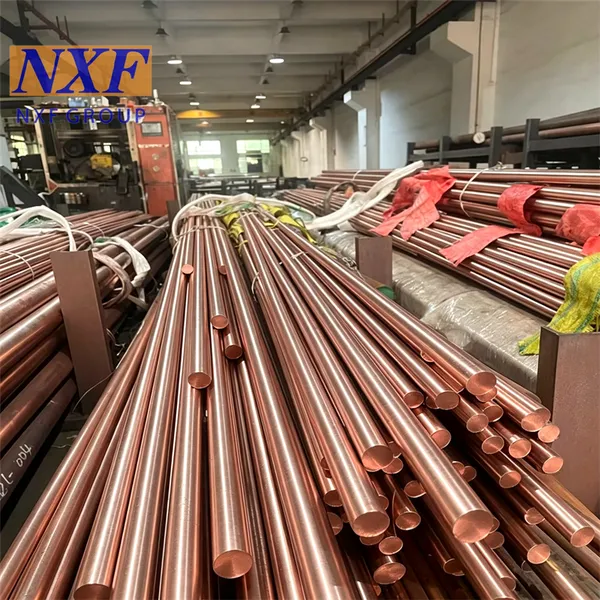

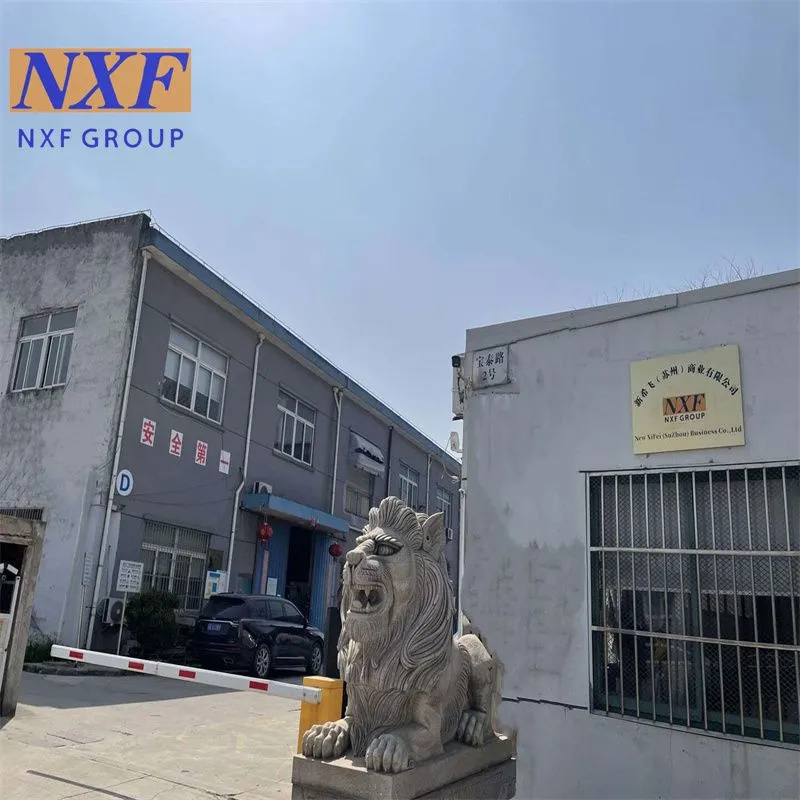

Factory and Product Pictures

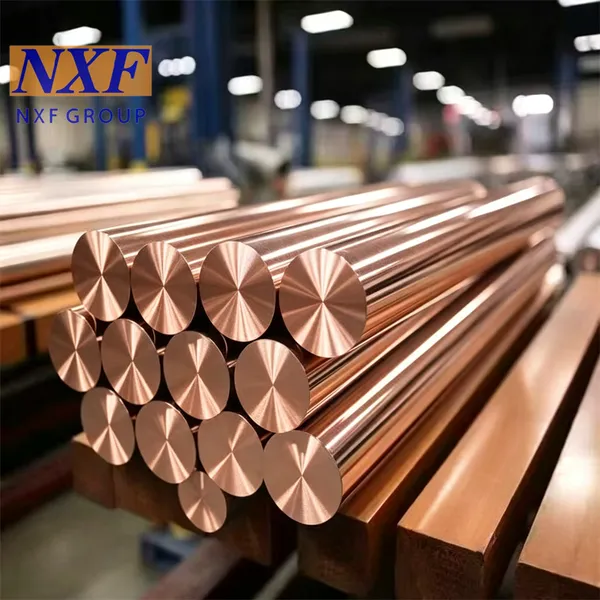

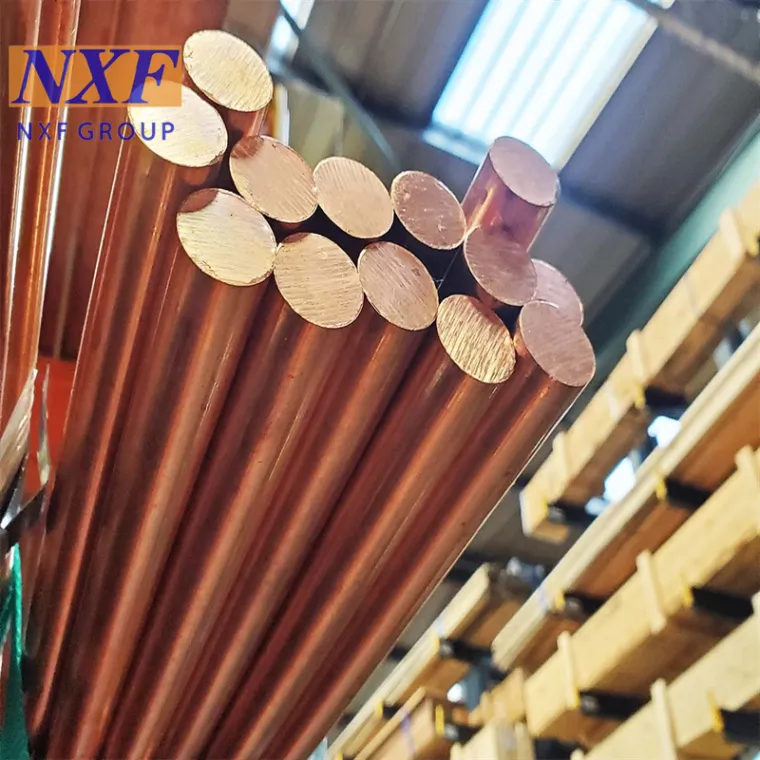

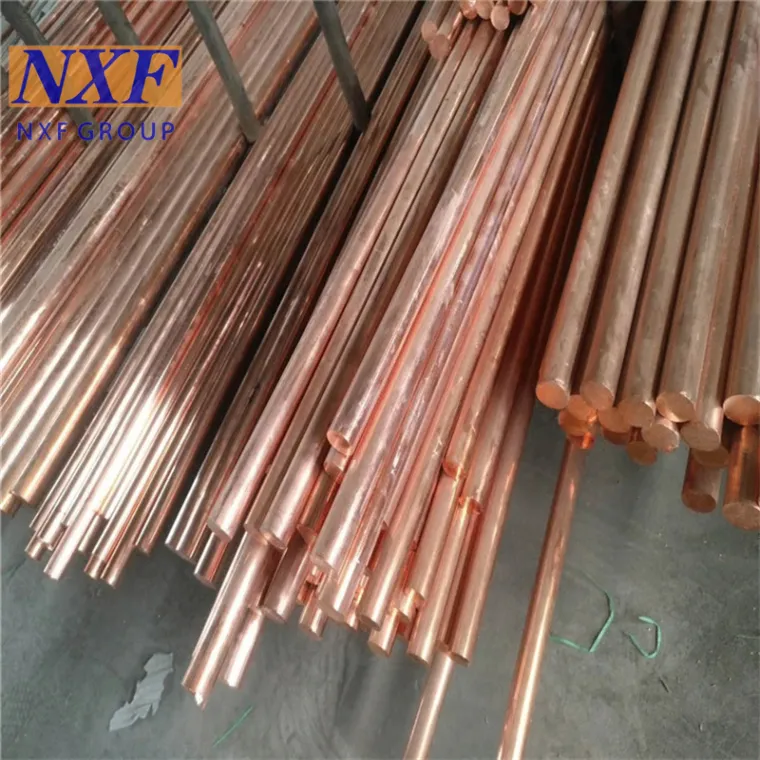

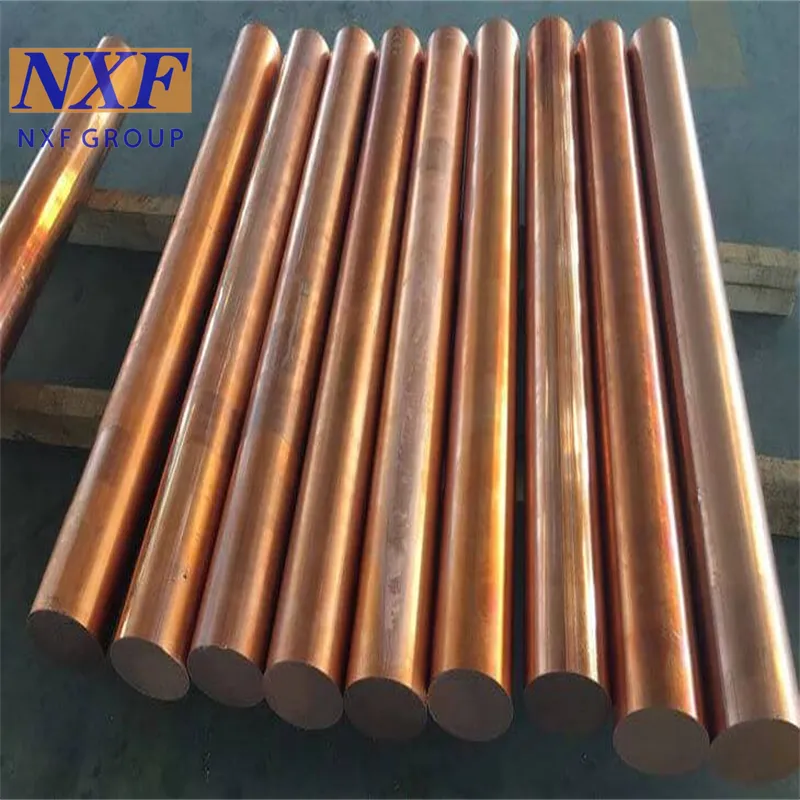

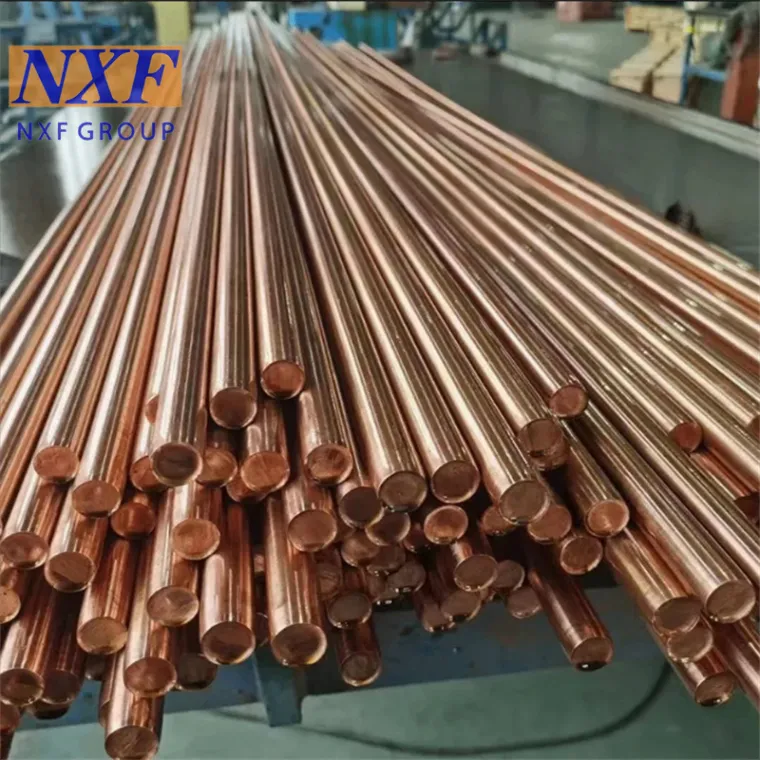

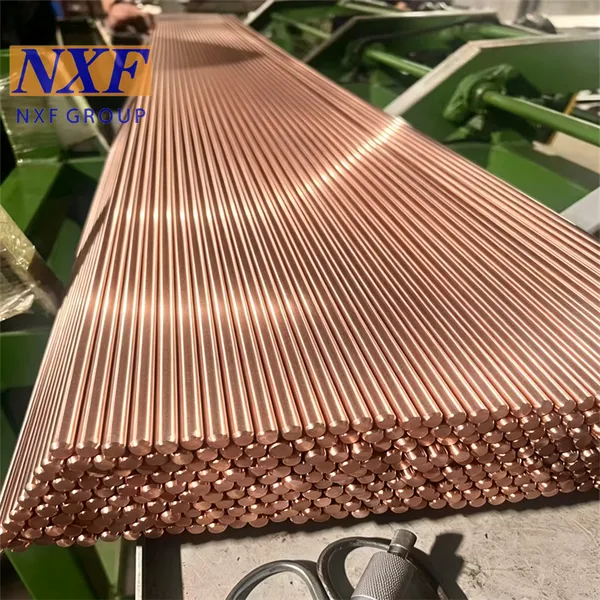

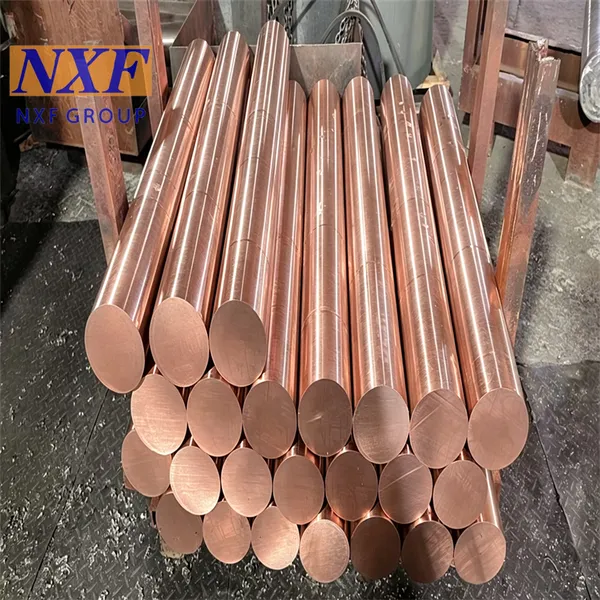

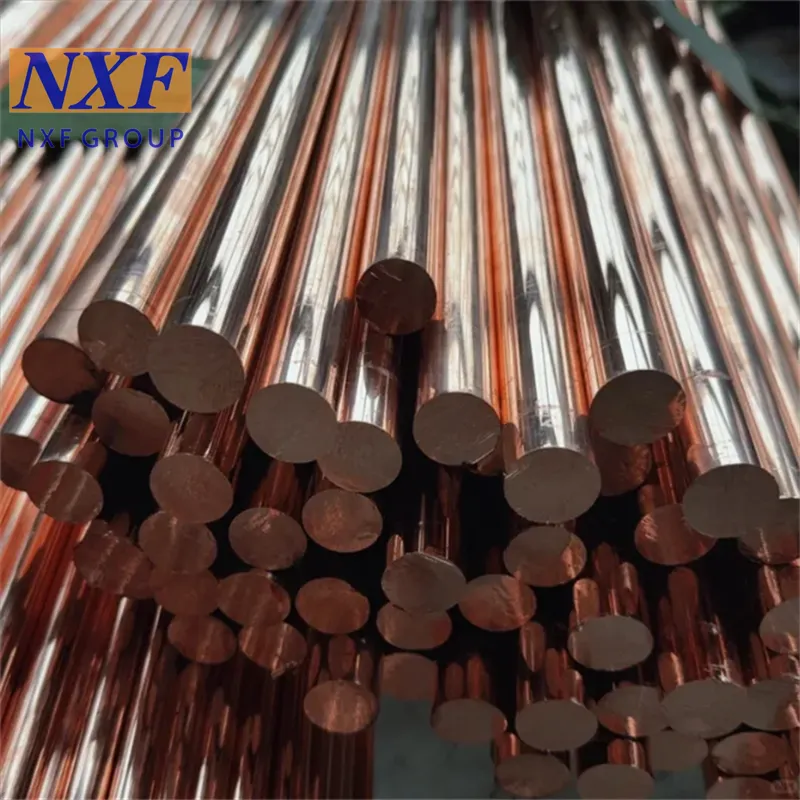

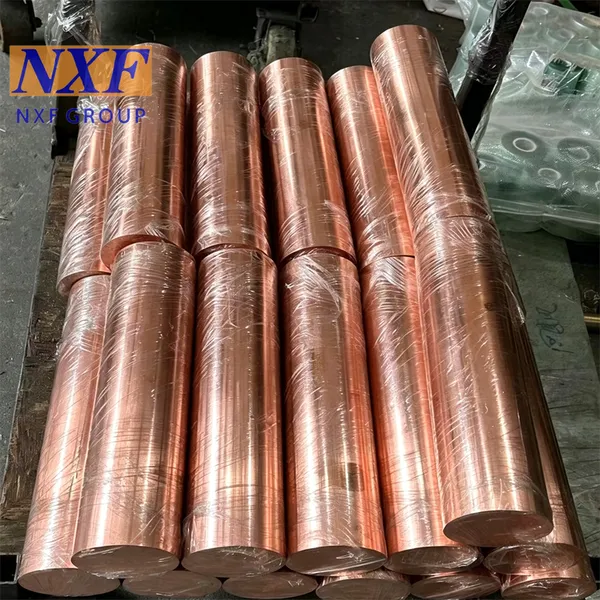

C1100 Copper Round Bar Product Pictures

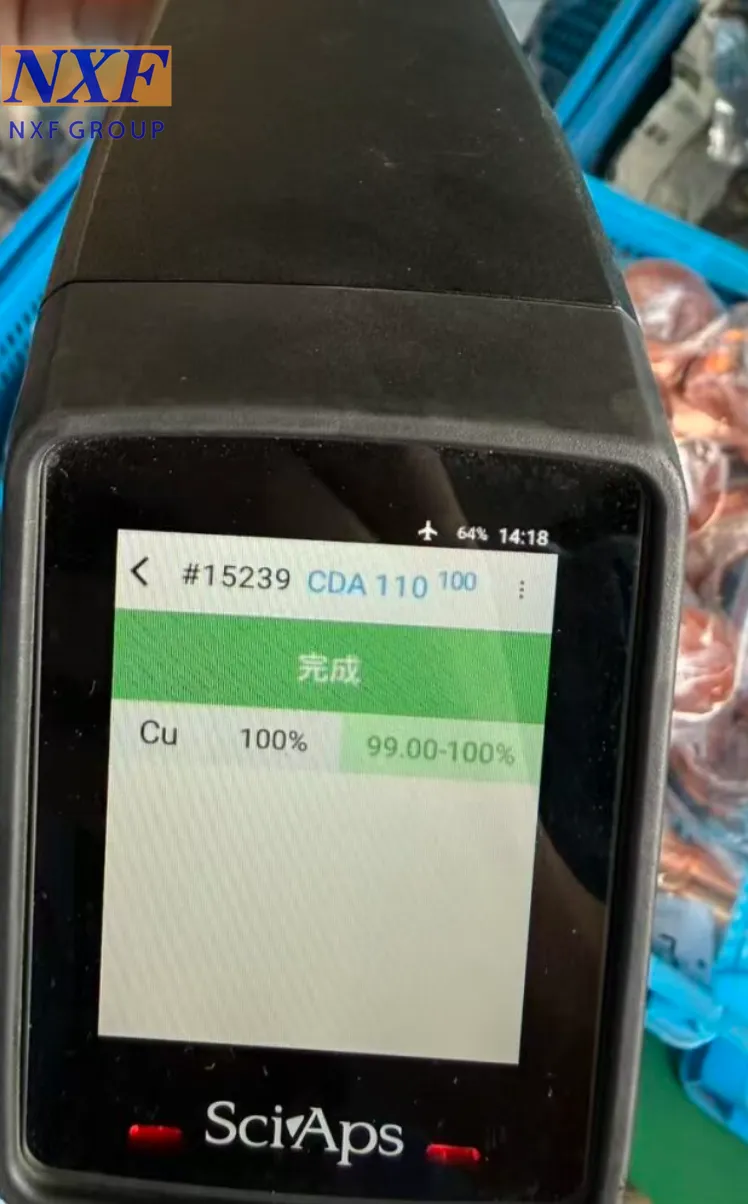

C1100 PMI spectral testing proves
Product processing
C1100 Copper Round Bar Product Processing

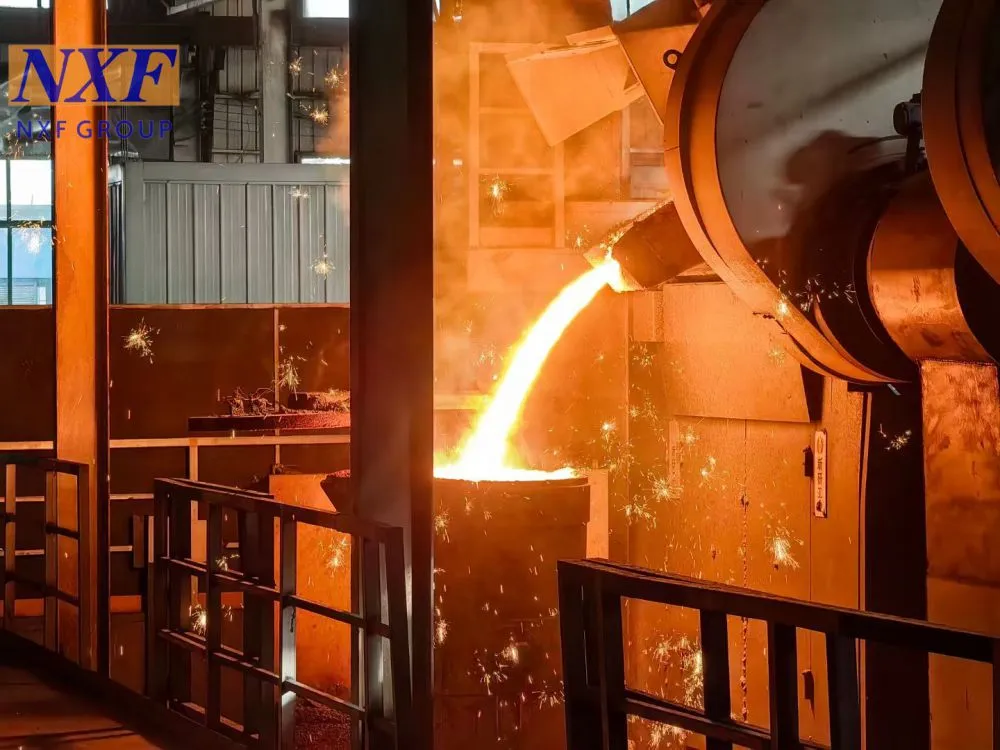

1.Raw Material Smelting: High-purity electrolytic copper is selected and heated to above 1100℃ in a medium-frequency induction furnace. A deoxidizer is added to remove oxygen impurities from the molten copper. After stirring and slag removal, filtration is performed to eliminate bubbles and impurities, ensuring the purity of the base material.
2. Continuous Casting: Molten copper is poured into a continuous casting machine and cooled to form a solid copper billet. The cooling rate is controlled to avoid internal cracks. After producing the rough billet, the defective ends are removed.
3. Hot Extrusion Forming: The billet is heated and held at a specific temperature before being sent to an extruder for high-pressure extrusion, forming copper rods of different diameters in a single process. This significantly increases the metal density and eliminates internal porosity.
4. Drawing and Reduction: The rough copper rod is cold-drawn through multiple drawing dies, gradually reducing the outer diameter to precisely control dimensional tolerances. Cold drawing causes work hardening; for finer specifications, an intermediate annealing process is interspersed.
5. Bright Annealing: The copper rod is sent to a nitrogen-protected annealing furnace for high-temperature recrystallization to eliminate drawing stress, restore material plasticity, prevent bending and cracking, and simultaneously isolate the surface from air to prevent oxidation and blackening.
6. Finishing and Polishing: After annealing, the bar stock is washed with alkali and rinsed with clean water to remove oil and oxide scale. Then, the outer diameter is polished using a centerless lathe and polishing machine to achieve a bright and smooth surface.
7. Cutting and End Face Treatment: The bar stock is cut to customer specifications, and both ends are milled flat to remove burrs and flash, ensuring a smooth and clean end face.8. Inspection and Warehousing: The outer diameter, hardness, conductivity, and appearance defects are inspected. Qualified products are wrapped with protective film, sorted, packaged, labeled, and stored for shipment.
Our NXF GROUP advantage as follow:
1.Our NXF GROUP have our own factory, and we can control the cost by producing by ourselves. We have a great advantage in price and can give you the lowest price based on best quality.
2.Our NXF GROUP can strictly control the quality. We have production, quality inspection, warehousing and other departments to coordinate and control the quality,Such as PMI and size testing.
3.Our NXF GROUP biggest advantage is 3S service. Small quantity, short time, special materials.
4.Our NXF GROUP have excellent quality certificate system and trademark certificate.
5.Our NXF GROUP have a comprehensive after-sales service guarantee, such as the transaction guarantee provided by International Station, as well as remote technical guidance and services.
6.Our NXF GROUP have a well-established logistics support system that can save you both time and money, providing you
with a one-stop service.
Packing & Delivery
Company Profile
New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals, machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories. Established in 1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship."
C1100 Copper Round Bar Certifications
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),
Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),
North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%).
There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products
4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish,Russian
