As a leading manufacturer based in Qingdao, China, Qingdao Conqinphi Environmental Technology Group Co., Ltd. (established 2015, factory size 10,000-30,000 sqm) proudly presents our Multi-effect Evaporation Concentration Crystallizer designed specifically for the pharmaceutical industry. This advanced system combines 304 stainless steel construction with PLC control to deliver reliable, efficient, and scalable concentration and crystallization processes. Whether you need to concentrate active pharmaceutical ingredients or recover solvents, our equipment ensures high purity, energy savings, and consistent output. With over US$10 million annual export value and a team of 200+ professionals, we are your trusted partner for pharmaceutical evaporation solutions.
Our multi-effect evaporation crystallizer operates on the principle of using multiple evaporation stages (effects) to maximize heat recovery and minimize energy consumption. Each effect reuses the vapor from the previous stage, reducing steam usage by up to 70% compared to single-effect systems. The 304 stainless steel wetted parts guarantee corrosion resistance and compliance with pharmaceutical hygiene standards. The fully integrated PLC control system automates temperature, pressure, feed rate, and discharge, ensuring precise process repeatability and minimal operator intervention.
Key Features & Technical Specifications
- Multi-effect design – 2 to 5 effects available, achieving high concentration ratios (up to 10:1).
- 304 stainless steel construction – All contact parts made of SS304, optional SS316L for higher corrosion resistance.
- PLC automatic control – Touch screen interface with PID regulation, data logging, and remote monitoring capability.
- Vacuum operation – Low-temperature evaporation (40-80°C) preserves heat-sensitive pharmaceutical compounds.
- Flexible heating media – Steam, hot water, or thermal oil according to site utilities.
- Compact footprint – Skid-mounted design for easy installation and integration into existing lines.
- Energy recovery – Vapor recompression (optional MVR) further reduces energy costs.
- Automated CIP/SIP – Clean-in-place and sterilize-in-place options available for pharmaceutical standards.
| Parameter | Specification |
| Model Range | QCE-MEE-500 to QCE-MEE-5000 |
| Evaporation Capacity | 500 – 5000 L/h (customizable) |
| Operating Temperature | 40 – 100 °C (adjustable) |
| Working Pressure | -0.098 MPa (vacuum) to 0.3 MPa |
| Material of Construction | 304 Stainless Steel (316L optional) |
| Control Type | PLC + HMI Touch Screen |
| Power Supply | 380V/50Hz, 3-phase (customizable) |
| Heating Medium | Steam / Hot Water / Thermal Oil |
Advantages for Pharmaceutical Applications
- Product Quality: Low-temperature evaporation protects thermolabile APIs and reduces degradation.
- Energy Efficiency: Multi-effect design cuts steam consumption drastically, lowering operating costs.
- Hygienic Design: 304 stainless steel with smooth surfaces, no dead corners, easy to clean and validate.
- Process Control: PLC with recipe management enables batch-to-batch consistency and full traceability.
- Space Saving: Skid-mounted unit reduces installation footprint and simplifies site preparation.
- Scalability: Modular design allows capacity increase or integration with other processing equipment.

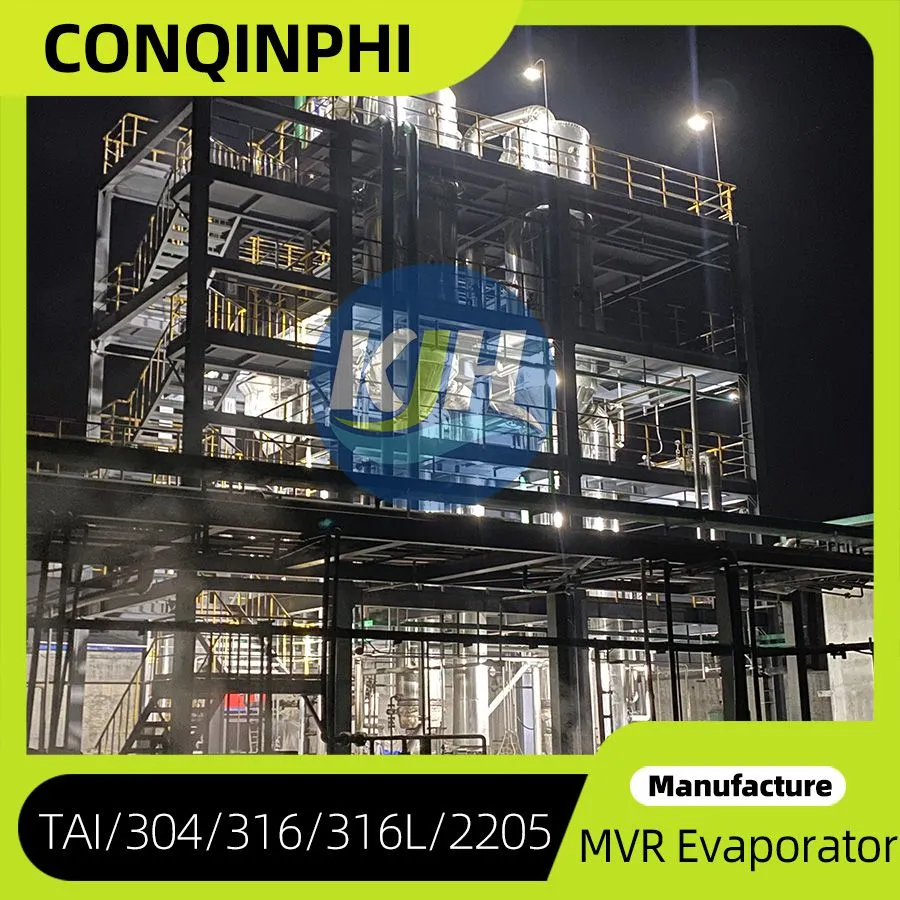

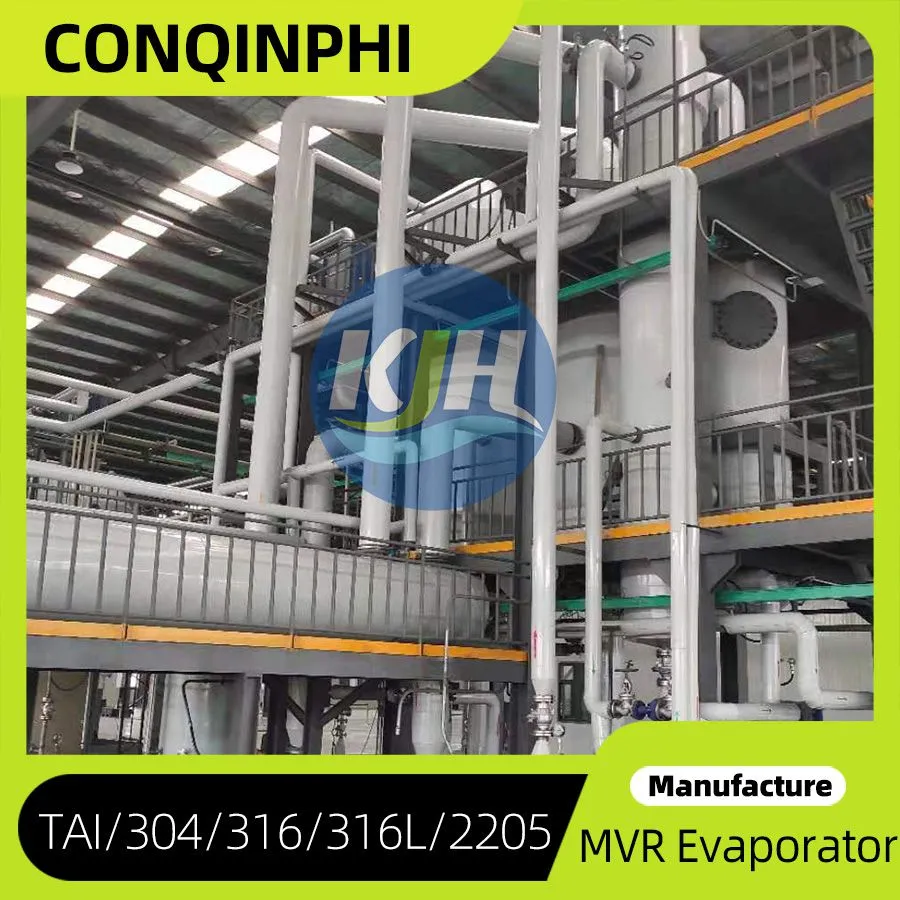

Our crystallizer has been successfully deployed in multiple pharmaceutical facilities across North America, Europe, and Asia for concentration of antibiotic solutions, extraction of herbal medicines, and crystallization of fine chemicals. The robust construction and intelligent control ensure trouble-free operation even under demanding 24/7 production schedules.
Trust & Reliability – Why Choose Qingdao Conqinphi
Since 2015, Conqinphi has grown into a 30,000 sqm manufacturing base with over 200 skilled employees and an annual export value exceeding US$10 million. Our products are certified under ISO9001, HACCP, and other international standards, demonstrating our commitment to quality and safety. We have exported to more than 20 countries and maintain a strong presence in both emerging and developed markets. Our in-house engineering team provides customized solutions, installation guidance, and after-sales support. When you choose our multi-effect evaporation concentration crystallizer, you are investing in a proven technology backed by a reliable manufacturer with extensive pharmaceutical experience.
Contact us today for a detailed proposal tailored to your specific process requirements. We look forward to helping you improve your pharmaceutical production efficiency.
Frequently Asked Questions (FAQ)
-
What is the maximum concentration ratio achievable with this crystallizer?
Depending on the product and number of effects, typical concentration ratios range from 2:1 to 10:1. Our team can customize the design to meet your specific target concentration. -
Can the equipment handle heat-sensitive pharmaceutical ingredients?
Yes. The system operates under vacuum, allowing evaporation at low temperatures (as low as 40°C), which preserves heat-sensitive compounds effectively. -
What materials are used in contact parts?
Standard is 304 stainless steel. For highly corrosive media, we offer 316L stainless steel or other special alloys upon request. -
Is the PLC control system user-friendly for operators?
Absolutely. The HMI touch screen provides intuitive menus, real-time monitoring, and alarm history. We also provide operator training and manuals. -
What utilities are required for installation?
Typical requirements include steam or hot water supply, cooling water, compressed air, and electricity (380V/50Hz). Our engineers will help you determine exact needs. -
Do you provide CIP/SIP capabilities?
Yes. Clean-in-place and sterilize-in-place systems are available as options to meet pharmaceutical validation requirements. -
How long is the delivery time for a standard unit?
Typically 8-12 weeks after order confirmation, depending on customization. We can expedite for urgent projects. -
What warranty and after-sales support do you offer?
We provide a standard 12-month warranty, plus lifetime technical support. Spare parts are available from our warehouse in Qingdao.
