Hebei Speed Torque Transmission Technology Co., Ltd., established in 2017, operates a state-of-the-art factory spanning 3,000–5,000 square meters with a dedicated workforce of 101–200 employees. Our annual export value exceeds US$5–10 million, serving markets across North America, South America, Europe, Asia, Africa, and Oceania. As an ISO9001-certified manufacturer, we present our 12-Month Warranty Universal Shaft Coupling Cardan Joint Assembly, a robust solution for power transmission applications. Each assembly comes with a Mill Test Report, ensuring material traceability and performance verification. This product combines durability, precision engineering, and a comprehensive warranty to meet the toughest demands of industrial, agricultural, and automotive systems.
Product Overview

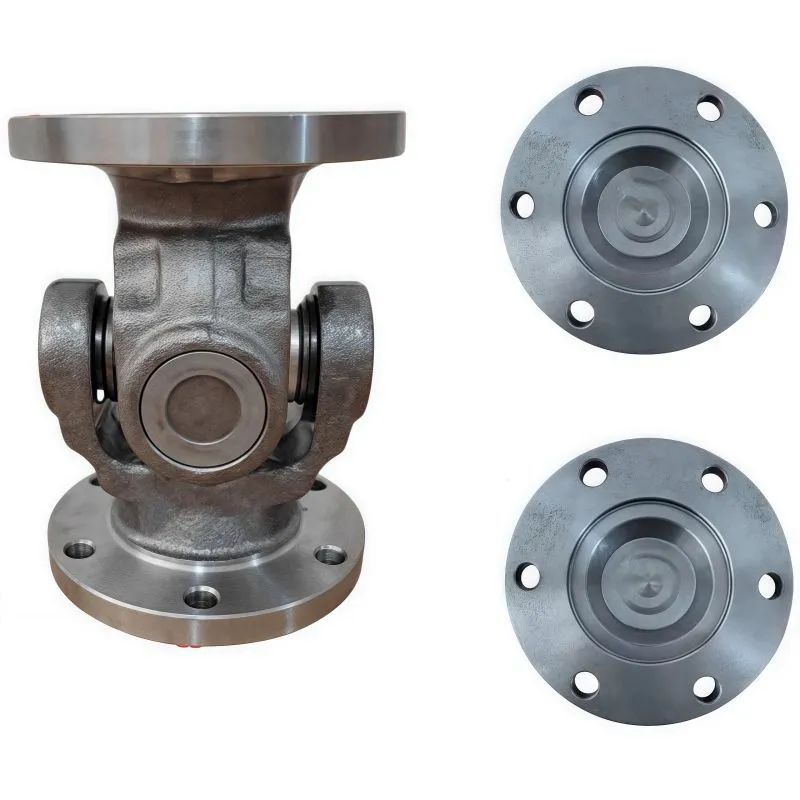

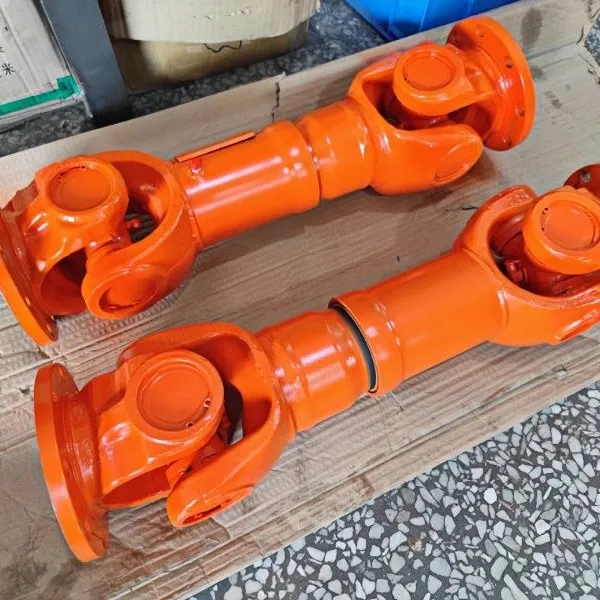

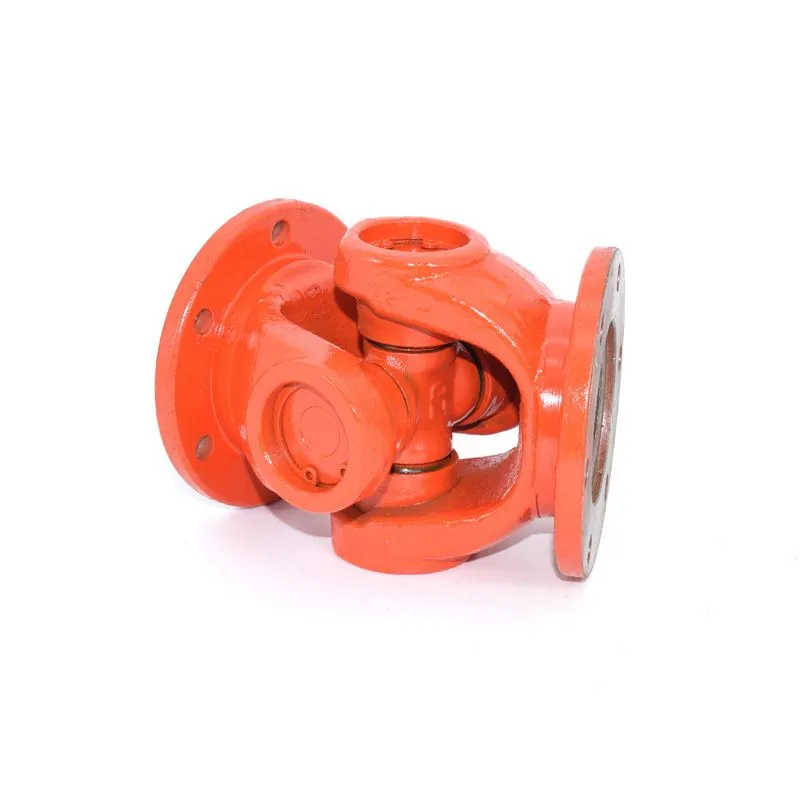

The Universal Shaft Coupling, also known as a Cardan Joint Assembly, is designed to transmit torque between shafts that are not collinear, accommodating angular misalignment and axial movement. Our assembly is manufactured from high-strength alloy steel, heat-treated for enhanced fatigue resistance and longevity. It features precision-machined yokes and cross trunnions, equipped with needle bearings or plain bearings depending on application requirements. The complete unit is balanced and tested to ensure minimal vibration and optimal performance under high rotational speeds.
Key Features & Benefits
- 12-Month Warranty: Covers manufacturing defects, giving you peace of mind and reduced downtime risk.
- Mill Test Report Included: Provides documented chemical composition and mechanical properties of materials used, meeting quality assurance standards.
- High-Strength Alloy Steel Construction: Ensures exceptional torque transmission capacity and resistance to wear.
- Customizable Sizes & Configurations: Available in various bore diameters, lengths, and flange patterns to fit your specific machinery.
- ISO9001 Certified Manufacturing: Consistent quality control throughout production, from raw material inspection to final assembly.
- Versatile Applications: Suitable for agricultural PTO drives, industrial gearboxes, conveyors, pumps, compressors, and more.
- Low Maintenance Design: Sealed lubrication system or regreasable options extend service intervals.
- Balanced Assembly: Reduces vibration and noise, improving operator comfort and equipment life.
Technical Specifications
| Parameter | Details |
|---|---|
| Material Grade | 40Cr / 45# Steel (or equivalent alloy steel) |
| Heat Treatment | Quenching & Tempering (hardness 28–32 HRC) |
| Bearing Type | Needle roller bearings or plain bearings (optional) |
| Misalignment Capability | Up to 45° (angular), axial movement customizable |
| Operating Temperature | -40°C to +120°C (depending on lubrication) |
| Surface Treatment | Black oxide, zinc plating, or phosphating (customizable) |
| Balance Grade | ISO 1940 G6.3 or higher (upon request) |
Why Choose Our Cardan Joint Assembly?
Our components undergo stringent quality checks: from raw material spectrographic analysis to dimensional inspection via CMM. The Mill Test Report accompanies every shipment, detailing the material’s chemical composition and tensile strength – a critical requirement for industries like oil & gas or heavy machinery. With a 12-month warranty, we stand behind the reliability of our product. The assembly is available in standard sizes ranging from 1 inch to 6 inches bore diameter, and custom orders are welcome with a short lead time.
Trusted by Global Clients
Since 2017, Hebei Speed Torque has exported over US$5 million worth of power transmission components annually to more than 15 countries. Our factory is equipped with CNC lathes, gear hobbing machines, and heat treatment furnaces, ensuring complete in-house production control. We are proud to serve clients from North America, Europe, Southeast Asia, South America, Africa, and Oceania. Our products are shipped from major Chinese ports (Shanghai, Tianjin, Qingdao) with reliable logistics partners. Contact us today for a quotation or to discuss your specific coupling requirements – we offer quick response, competitive pricing, and technical support.
Frequently Asked Questions (FAQ)
-
Q: What does the Mill Test Report include?
A: It includes the chemical composition (C, Si, Mn, S, P, etc.) and mechanical properties (yield strength, tensile strength, elongation) of the raw material used in the yokes and cross shafts. -
Q: How long is the warranty, and what does it cover?
A: The product carries a 12-month warranty against manufacturing defects in material and workmanship. It does not cover damage due to misuse, improper installation, or normal wear. -
Q: Can I customize the length or flange pattern?
A: Yes, we offer customizable sizes. Please provide your required bore diameter, shaft length, and flange dimensions. Custom patterns require a drawing or sample. -
Q: What is the maximum torque capacity of your Cardan Joint Assembly?
A: Torque capacity depends on the size and material. For a typical 2-inch bore model, rated torque is approximately 500 Nm. Larger sizes can exceed 10,000 Nm. Contact us with your application details for a precise recommendation. -
Q: Is the assembly pre-lubricated?
A: Yes, most assemblies are pre-greased with high-temperature lithium grease. For regreasable models, we provide grease fittings. -
Q: Do you provide technical drawings or CAD files?
A: Yes, we can supply 2D and 3D drawings upon request to assist with integration. -
Q: What is the lead time for standard orders?
A: For standard sizes in stock, shipping can occur within 5–10 working days. Custom orders typically require 15–25 working days, depending on complexity. -
Q: Which ports do you ship from?
A: We ship from Shanghai, Tianjin, and Qingdao ports. FOB and CIF terms are available.
