Hebei Speed Torque Transmission Technology Co., Ltd. proudly presents our ISO Certified Steel Flexible Tyre Coupling – a robust and reliable solution for demanding shaft connection applications. Engineered with high-grade steel and precision manufacturing, this coupling delivers exceptional durability and flexibility, ensuring smooth power transmission even under heavy loads. Our factory, spanning 3,000-5,000 square meters and staffed by over 100 experienced professionals, has been dedicated to producing top-tier transmission components since 2017. With annual exports ranging from US$5 million to US$10 million, we serve clients across North America, Europe, Asia, and beyond.

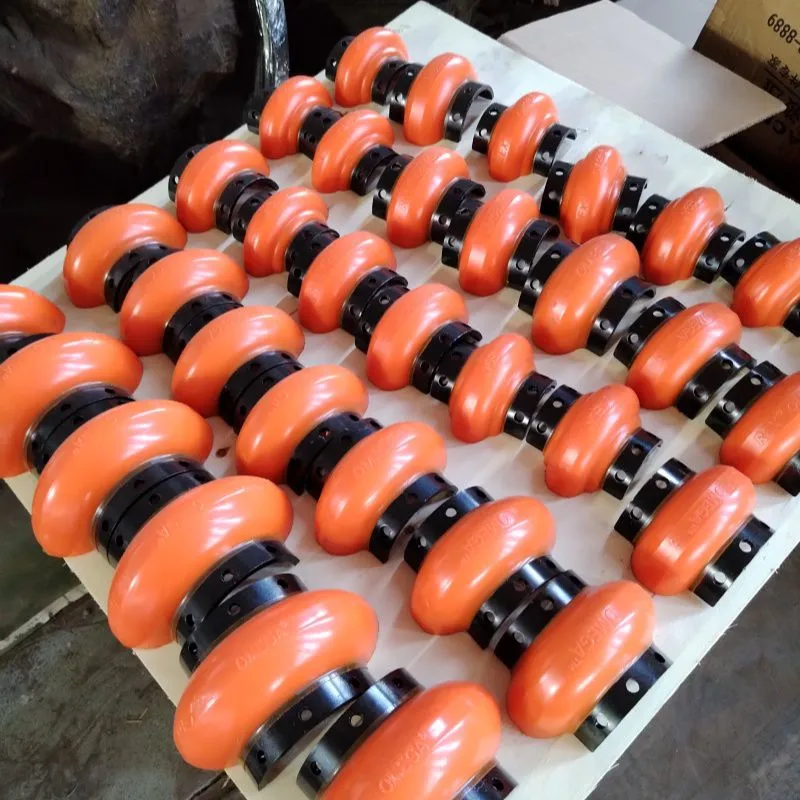

This flexible tyre coupling is designed to accommodate misalignment, reduce vibration, and protect connected machinery from shock loads. Its unique tyre-shaped elastomeric element, combined with a steel hub, provides both strength and elasticity, making it ideal for heavy-duty industries such as mining, steel mills, cement plants, and material handling systems. Below, we detail the key features and specifications that set this coupling apart.
Key Features & Benefits
High Load Capacity: The steel construction and reinforced tyre element withstand extreme torque and axial forces, ensuring long service life.
Flexible Misalignment Compensation: The tyre design absorbs parallel, angular, and axial misalignments up to certain limits (see table), reducing stress on bearings and seals.
Vibration Dampening: The elastomeric insert effectively dampens torsional vibrations and shock loads, enhancing system stability and operator safety.
Easy Installation & Maintenance: Simple two-piece design allows quick assembly without special tools. The tyre element is replaceable, minimizing downtime.
ISO9001 Certified Quality: Our entire manufacturing process adheres to ISO9001 standards, ensuring consistent performance and reliability.
Corrosion Resistance: High-quality steel with optional surface treatments (paint, galvanization) for harsh environments.
Customizable Options: Bore sizes, keyways, and overall dimensions can be tailored to customer requirements upon request.
Technical Specifications (Typical Range)
| Parameter | Value |
| Bore Diameter Range | 20 mm – 150 mm (0.79 in – 5.91 in) |
| Torque Capacity | 20 Nm – 20,000 Nm (depending on size) |
| Maximum Speed | Up to 5,000 RPM (for smaller sizes) |
| Misalignment Capacity | Parallel: ±1.5 mm; Angular: ±1°; Axial: ±2 mm |
| Operating Temperature | -30°C to +80°C (with standard elastomer) |
| Material | Steel hubs (45# steel or alloy steel); Elastomeric tyre (Natural Rubber or Polyurethane) |
| Certification | ISO9001 |
The above values are indicative; exact specifications vary by model. We offer a wide range of sizes and custom designs to meet your exact application requirements. Contact our engineering team for detailed drawings and performance data.
Applications
Conveyor systems in mining and aggregate industries
Steel rolling mills and metal processing equipment
Pump and compressor drives
Mixers, crushers, and heavy machinery
Wind turbine gearboxes (where specified)
Port machinery and marine applications
Why Choose Hebei Speed Torque Transmission Technology Co., Ltd.?

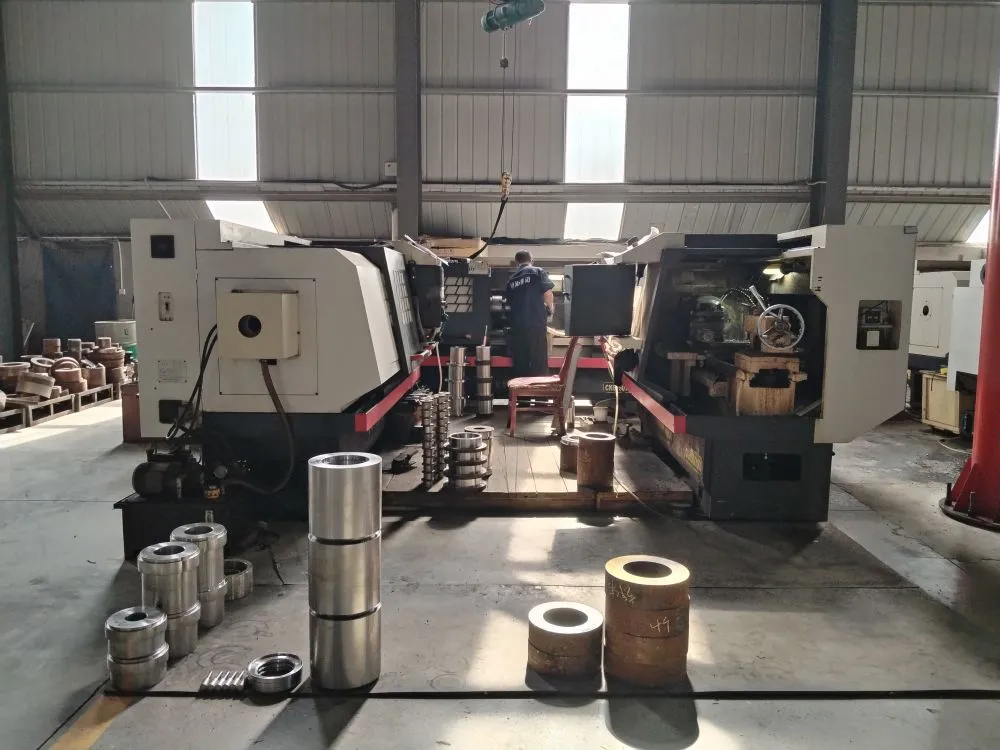

Since our establishment in 2017, we have grown into a trusted partner for global clients. Our factory, spanning 3,000–5,000 square meters, is equipped with advanced CNC machines and testing facilities, ensuring every coupling meets stringent quality standards. With a dedicated team of 101–200 employees and an annual export value exceeding US$5 million, we have successfully supplied shaft couplings to over 30 countries and regions, including North America, Europe, Southeast Asia, and the Middle East.
Our ISO9001 certification reflects our commitment to continuous improvement and customer satisfaction. We offer competitive pricing, prompt delivery from our ports (Shanghai, Tianjin, or Qingdao), and comprehensive after-sales support. Whether you need a standard model or a custom-engineered solution, our team is ready to assist. Choose our steel flexible tyre coupling for dependable performance, reduced downtime, and cost-effective operation.
Contact us today for a quote or technical consultation – let us power your heavy-duty applications with reliability and precision.
Frequently Asked Questions (FAQ)
Q: What makes a tyre coupling different from other flexible couplings?
A: Tyre couplings use a rubber or elastomeric element shaped like a tyre, providing excellent misalignment absorption, vibration dampening, and shock load protection. They are particularly suited for heavy-duty applications where flexibility and durability are critical.Q: Can this coupling handle high misalignment?
A: Yes, the steel flexible tyre coupling can accommodate parallel misalignment up to ±1.5 mm, angular misalignment up to ±1°, and axial misalignment up to ±2 mm (depending on size). For extreme misalignment, consult our engineering team for custom solutions.Q: Is the tyre element replaceable?
A: Absolutely. The elastomeric insert is designed to be replaced without removing the hubs from the shafts, simplifying maintenance and reducing downtime.Q: What bore sizes and keyways are available?
A: We offer a wide range of standard bore diameters from 20 mm to 150 mm. Custom bores, keyways, and taper lock systems are available upon request.Q: What materials are used for the tyre element?
A: Standard material is natural rubber, offering good resilience and temperature resistance. For higher temperatures or chemical exposure, polyurethane or specialty elastomers can be selected.Q: Do you provide ISO9001 certification for this product?
A: Yes, our entire factory is ISO9001 certified, and we can provide a certificate upon request for each shipment.Q: What is the typical lead time?
A: For standard sizes, lead time is 15–25 days. Custom orders may require 25–35 days depending on complexity. We can expedite urgent orders based on stock availability.Q: How do I select the correct coupling size for my application?
A: Please provide parameters such as torque, speed, shaft sizes, and misalignment values. Our technical team will recommend the optimal model or design a custom solution.
Note: Specifications are subject to change without notice. Contact our sales team for the latest technical data.
