Hebei Speed Torque Transmission Technology Co., Ltd. proudly presents our high-quality Standard Compliant Cardan Joint Assembly Universal Shaft Coupling. With a factory spanning 3,000–5,000 square meters and over 100 skilled employees, we have been delivering reliable power transmission solutions since 2017. Our annual export value of US$5–10 million to markets worldwide (North America, Europe, Asia, Africa, Oceania) reflects the trust our customers place in us. This cardan joint assembly is manufactured under strict ISO9001 quality management, ensuring dimensional consistency and long service life. By choosing our factory-direct support, you benefit from competitive pricing, prompt shipping from Ports of Shanghai/Tianjin/Qingdao, and customizable solutions tailored to your exact specifications.
Product Overview:

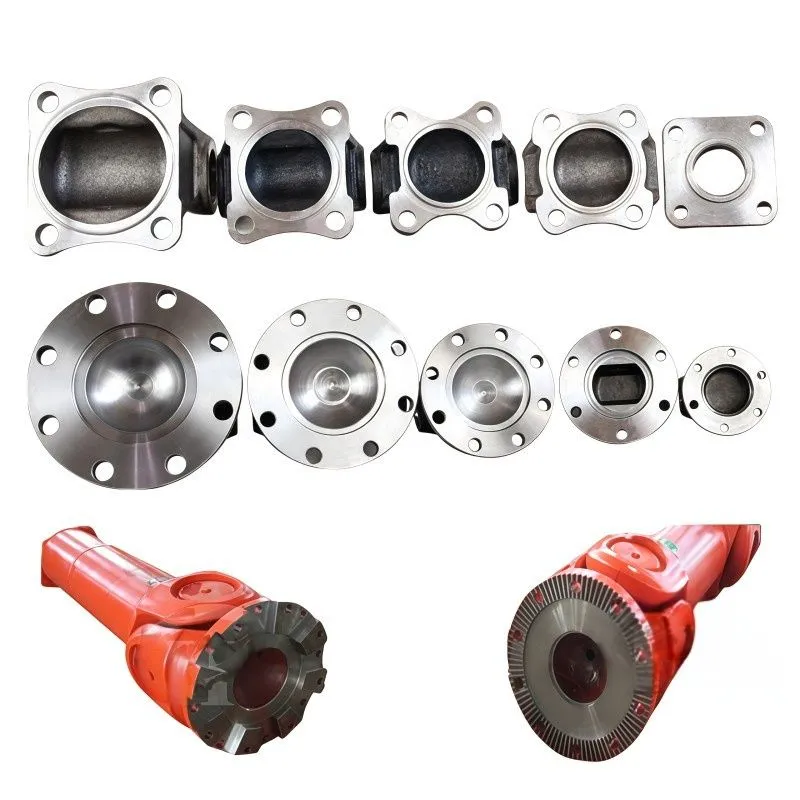

A cardan joint assembly (also known as a universal joint or U-joint) is an essential component in mechanical power transmission, allowing torque to be transmitted between shafts that are not collinear. Our standard compliant design adheres to international norms, making it a direct replacement for many common applications. The assembly includes yokes, cross journal, bearings, and seals – all precision machined from high-strength alloy steel. Whether you need a single-joint configuration or a double-cardan setup for higher angular compensation, we offer a range of options to meet your needs.
Key Features & Benefits:
Precision Engineering: CNC-machined components ensure tight tolerances (IT7-IT8) for minimal play and smooth operation.
Durable Construction: Forged alloy steel yokes with induction-hardened bearing races; optional stainless steel for corrosion resistance.
Standard Compliance: Dimensions match DIN 808, ISO 9001, and other international standards for easy interchangeability.
High Torque Capacity: Capable of transmitting torques up to 2000 Nm (larger sizes available on request).
Low Maintenance: Pre-packed with high-temperature grease and sealed with nitrile rubber covers to keep contaminants out.
Flexible Configurations: Single, double, telescopic (slip) variants; custom bore/keyway profiles.
Wide Application Range: Suitable for conveyors, pumps, compressors, agricultural machinery, automotive drivelines, and more.
Factory Direct Support: Quick lead times (15–30 days) and direct technical assistance from our engineering team.
Technical Specifications (Typical Parameters):
| Model | Max Torque (Nm) | Max Speed (rpm) | Bore Diameter (mm) | Overall Length (mm) | Weight (kg) |
|---|---|---|---|---|---|
| SP-200 | 500 | 6000 | 20–40 | 150–250 | 2.5 |
| SP-350 | 1000 | 4500 | 30–60 | 200–350 | 4.8 |
| SP-500 | 2000 | 3000 | 40–80 | 300–600 | 8.2 |
| SP-DC (Double Cardan) | 1500 | 3500 | 35–70 | 400–800 | 12.0 |
Note: All parameters are nominal; custom dimensions and higher torque capacities are available upon request. Please consult our sales team for specific requirements.
Detailed Product Advantages:
Enhanced Durability: Each cross journal is made of carburizing steel and ground to a high finish, reducing friction and wear. Needle roller bearings provide smooth rotation even under heavy loads.
Sealed for Life: Multi-lip seals with nitrile rubber prevent grease leakage and block dirt ingress, extending service intervals.
Easy Installation: Standard flange or round bore connections with keyways make retrofitting simple. Snap rings or bolted covers secure the bearings.
Thermal Stability: Operating temperature range from -30°C to +120°C, suitable for both cold climates and hot industrial environments.
Customization Options: We can adjust yoke length, bore size, keyway dimensions, and even integrate joints into complete drive shaft assemblies for specialized machinery.
Quality Assurance & Trust Building:
At Hebei Speed Torque Transmission Technology Co., Ltd., quality is ingrained in our process. Our factory is equipped with advanced inspection instruments such as coordinate measuring machines (CMM), hardness testers, and torque test benches. Every batch of cardan joint assemblies undergoes 100% dimensional check and 5% destructive torque testing. This commitment has earned us long-term cooperation with clients in over 20 countries. With an export value of US$5–10 million annually and a team of 101–200 dedicated employees, we have the capacity to handle both small prototype orders and large volume contracts. Our location in Cangzhou, Hebei, provides convenient access to major ports, ensuring reliable shipping to North America, South America, Europe, Africa, Oceania, the Middle East, and Asia.
Why Choose Our Factory-Direct Cardan Joint Assembly?
Competitive pricing without intermediaries.
ISO9001 certified quality management system.
Engineers available for technical support and design optimization.
Flexible MOQ (minimum order quantity) – samples welcome.
Fast response within 24 hours for inquiries.
We invite you to experience the reliability of our standard compliant universal shaft coupling. Contact us today with your specifications (bore size, length, torque requirement) for a prompt quotation. Let Hebei Speed Torque be your trusted partner in power transmission.
Frequently Asked Questions (FAQ)
What is the difference between a single cardan joint and a double cardan joint?
A single cardan joint transmits torque between two shafts with angular misalignment, but it introduces a non-constant velocity (fluctuation in speed). A double cardan joint (two joints with a coupling shaft) provides constant velocity if properly aligned, reducing vibration at high speeds.How do I select the correct size of cardan joint for my application?
You need to know the maximum operating torque, rotational speed, shaft diameters, and the maximum working angle. Our technical team can help with calculations; generally, choose a joint with a rated torque at least 1.5 times the actual load.Can I get a sample before placing a bulk order?
Yes, we offer sample units at a reasonable cost. For standard sizes, samples can be shipped within 7–10 working days. After order confirmation, the sample cost can be deducted from the bulk payment.What is your typical delivery time?
For standard sizes without customization, lead time is 15–20 days. Custom designs may take 25–35 days depending on complexity. We ship FOB from Shanghai, Tianjin, or Qingdao ports.Do you provide warranty on your cardan joint assemblies?
Yes, we provide a 12-month warranty against manufacturing defects from the date of shipment. This covers material and workmanship failures under normal operating conditions.Are your products compatible with European/American shaft standards?
Our standard compliant joints are designed to match common international dimensions such as DIN 808, SAE J901, and ISO 9001. They can directly replace many well-known brands. Please provide your existing dimensions for confirmation.What maintenance is required for these universal joints?
Our joints are pre-lubricated and sealed. Under normal use, they require no regular greasing. However, for heavy-duty or high-speed applications, periodic inspection of seals and bolt torque is recommended every 6 months.Can I order a joint with a spline shaft instead of a keyway?
Yes, we can manufacture cardan joints with involute splines or other custom connection types. Please specify your spline parameters (module, number of teeth, pressure angle) when inquiring.
