【Product Parameters of Jiulei Brand Rubber and Plastic Bridge Belt】

Manufacturer: Shanghai Jiulei Traffic Facilities Co., Ltd.

Product Qualifications: Inspection Report, Certificate of Conformity.

Product Name: Jiulei Brand JL-XCB-1CA Rubber and Plastic Bridge Belt

Brand: JIULEI

Model: JL-XCB-1CA

Overall Specification: Length 1000mm * Width 130mm * Height 20mm

Inner Dimensions of the Slot: Slot Width 40mm * Slot Height 15mm * 1 Slot

Product Material: PVC

Product Color: Yellow

Number of Wire Slots: 1 Slot

Load-Bearing Capacity: 1.5 Tons

Product Weight: 1.3kg

Screw Fixing: None

Installation Method: Splicing

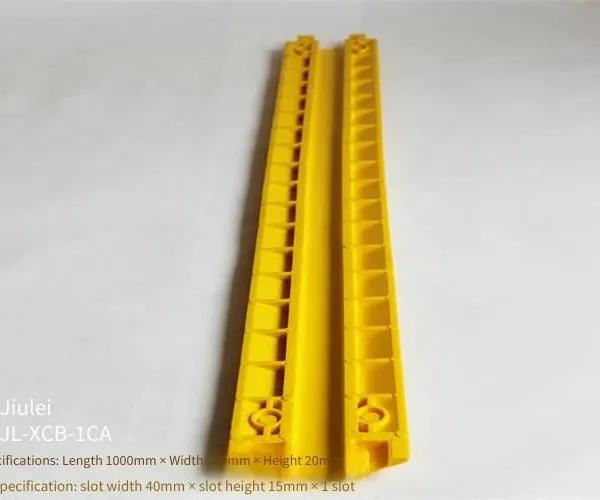

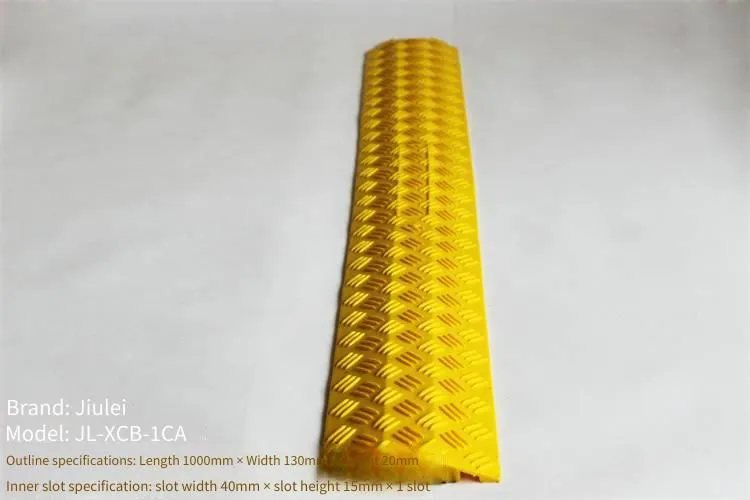

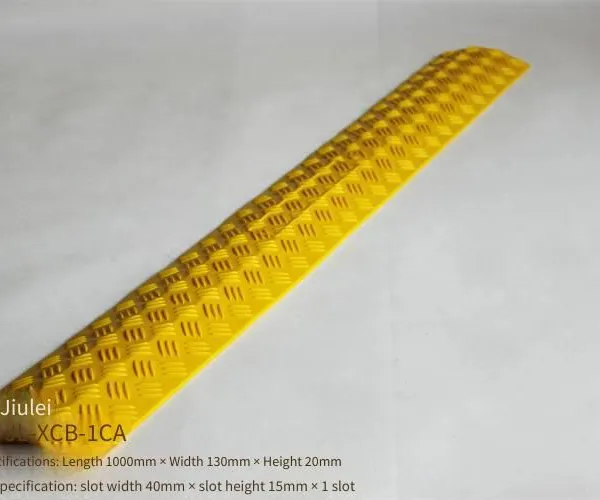

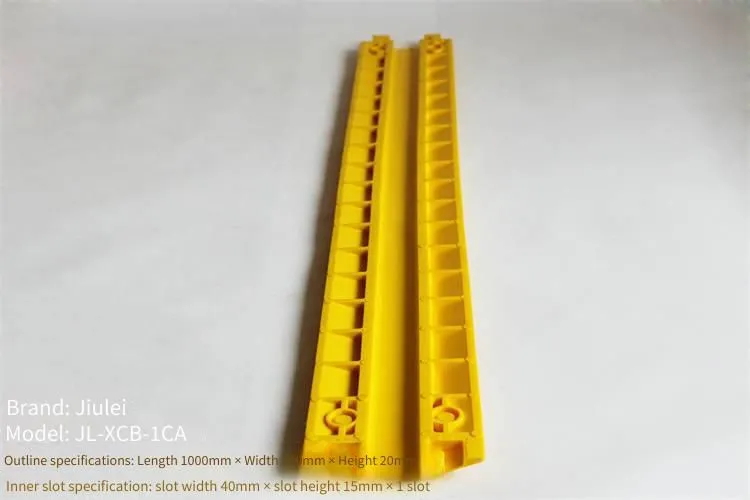

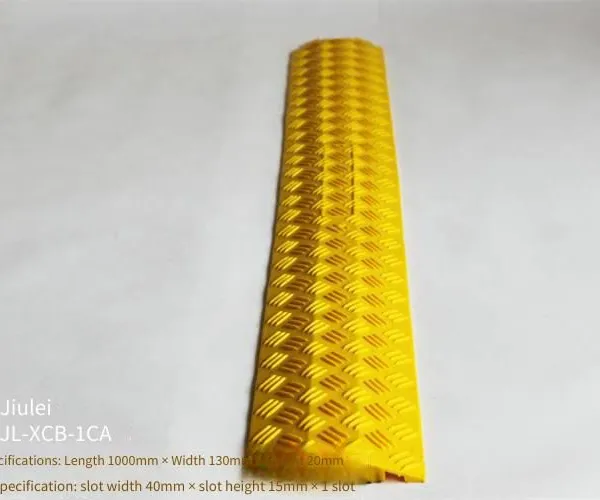

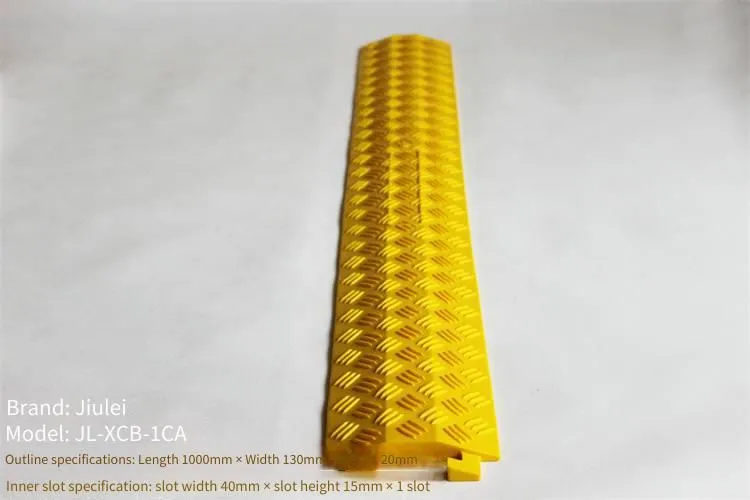

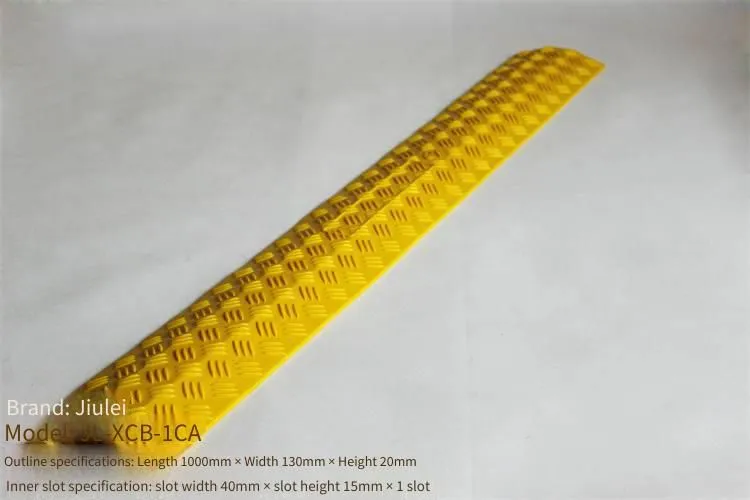

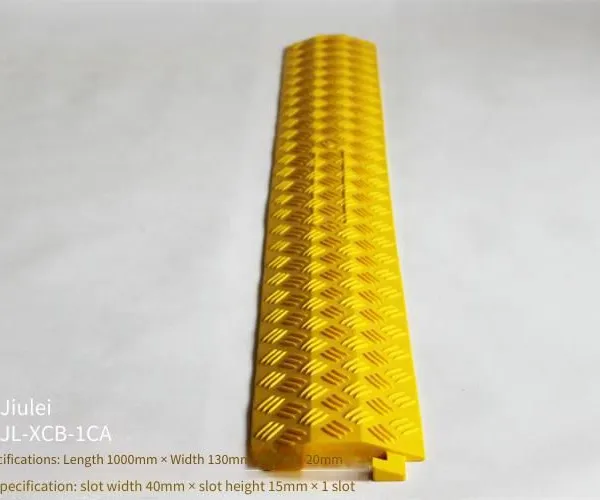

【Pictures of Jiulei Brand JL-XCB-1CA Rubber and Plastic Bridge Belt】

Pictures of Jiulei Brand JL-XCB-1CA Rubber and Plastic Bridge Belt

Pictures of Jiulei Brand JL-XCB-1CA Rubber and Plastic Bridge Belt

Pictures of Jiulei Brand JL-XCB-1CA Rubber and Plastic Bridge Belt

【Features of Rubber and Plastic Bridge Belt】

1. Tough, Insulated, Ultra-High Pressure Resistance (Compressive Resistance of 50 Tons);

2. Suitable for All Outdoor Weather Conditions, Rainproof, Lightning-Protected, Moisture-Resistant, and Flame-Retardant;

3. Anti-Slip Surface Texture on the Surface;

4. All-Round Protection for Various Cables and Communication Data Lines;

5. Unique Design, No Need to Damage the Ground for Installation;

6. Durable, Anti-Slip Surface Texture on the Surface;  　

7. Simple Installation, Easy to Move, Simple and Practical Structural Design;

8. Unique Right-Angle Elbows and T-Joints Available for Selection;

9. Diverse Designs of 1 Slot, 1 Hole, Single Hole, 1 Wire Slot, Single Wire Slot, 2 Slots, 2 Holes, Two Slots, Two Holes, Double Slots, Double Holes, 2 Wire Slots, 3 Slots, 3 Holes, 3 Wire Slots, 4 Slots, 4 Holes, 4 Wire Slots, 5 Slots, 5 Holes, 5 Wire Slots, Fully Suitable for Industries Such as Media, Exhibition, Energy, Manufacturing, Power, Communication, and Sports;

【Scope of Application of Rubber and Plastic Bridge Belt】

1. On Aisles with Vehicle Traffic in Stages, Hotels, Exhibition Halls, Large Conference Venues, and Sports Fields;

2. On the Ground Requiring Wiring in Parking Lots of Residential Communities, Shopping Malls, Office Buildings, and Government Agencies;

3. In Places with Vehicle Access Such as Material Warehouses and Goods and Personnel Gathering Areas;

4. On the passageways in factory workshops where forklifts often pass by;

【Functions of the Rubber-Plastic Bridge Belt】

The rubber-plastic bridge belt is made of high-strength rubber and high-quality PVC. It is suitable for temperatures ranging from -32 to 65 degrees Celsius. The product is sturdy and durable, with long-lasting pressure resistance and a long service life. It causes less wear and tear on vehicles, produces no noise, and has excellent shock absorption and compression resistance. It adopts the standard yellow-and-black alternating production process, with distinct colors and obvious signs. It has high visibility both during the day and at night, attracting drivers' attention and prompting them to slow down. It is especially suitable for use in amusement parks, entertainment venues, sports events, exhibition halls, and squares, as well as for temporary emergency applications in most public places, commercial, industrial, and construction sites. It can protect wires, cables, and audio-video data cables in a fast and simple way. It provides a safe and stable crossing passage, continuously protecting various cables and pedestrians' safety. It eliminates the public safety hazards caused by on-site wires and cables, maintaining a clean and orderly public activity environment. Optional elbows can allow your protection lines to bend arbitrarily and extend in multiple directions.

【Installation Method of the Rubber-Plastic Bridge Belt】

1. Lay the special rubber-plastic bridge belt along the cable path;

2. Open the upper cover and place the cables into the rubber-plastic bridge belt;

3. After closing the rubber-plastic bridge belt cover, vehicles and pedestrians can pass freely;

【Features of the Rubber-Plastic Bridge Belt】

1: It can protect up to 5 single cables with a large diameter, and the cable diameter can reach 90 mm;

2: It provides all-round protection for various power and communication data cables, and is fully applicable to the power cable YJVV4*150+1*70mm2;

3: Load-bearing capacity: 45 tons per square centimeter, allowing high-load vehicles such as generator emergency vehicles, transmission and relay vehicles, and telecommunication signal vehicles to drive normally;

4: Suitable for all outdoor weather conditions, rainproof, lightning-proof, moisture-proof, with a fire-retardant rating of Class III and a breakdown voltage of 3500 volts;

5: Outdoor applicable temperature range: -35 degrees Celsius to +75 degrees Celsius;

6: The convenient and flexible hinge cover design makes the installation and disassembly of wires and cables extremely easy;

7: The strong adhesion design at the bottom allows for arbitrary placement and installation without the need to damage the ground with bolts or use tools, and it can also prevent running and displacement;

8: The elbows and tee connection accessories enable the protection lines to bend arbitrarily and extend infinitely in multiple directions;

9: The separately designed shape after multiple demonstrations is lightweight, convenient for transportation, installation, disassembly, and handling;

10: The unique bottom groove treatment allows the cables to maintain a circular appearance even under high pressure;

11: The advanced surface vulcanization treatment process makes its appearance more exquisite;

12: The eye-catching safety warning signs comply with the regulations for road traffic facility markings;

13: It eliminates the metal keel support of the traditional rubber-plastic bridge belt and is entirely cast from high-strength rubber, completely eliminating the electromagnetic eddy current heat effect;

【Use and Maintenance of the Rubber-Plastic Bridge Belt】

The protruding part at the head of the rubber-plastic bridge belt is stuck in the groove part at the tail of another rubber-plastic bridge belt. Being stuck to each other can prevent the rubber-plastic bridge belt from moving forward and backward with the vehicle, and better protect the cables. In addition, although the rubber-plastic bridge belt is a rubber product and has a certain degree of flexibility, in order to extend its service life, do not throw it from a high distance. After use, if it needs to be cleaned, you can wipe it with a damp cloth. Then, place all of them on a flat surface and stack them face up to prevent the bottom from deforming and affecting the fit with the cover plate.
