Product Introduction

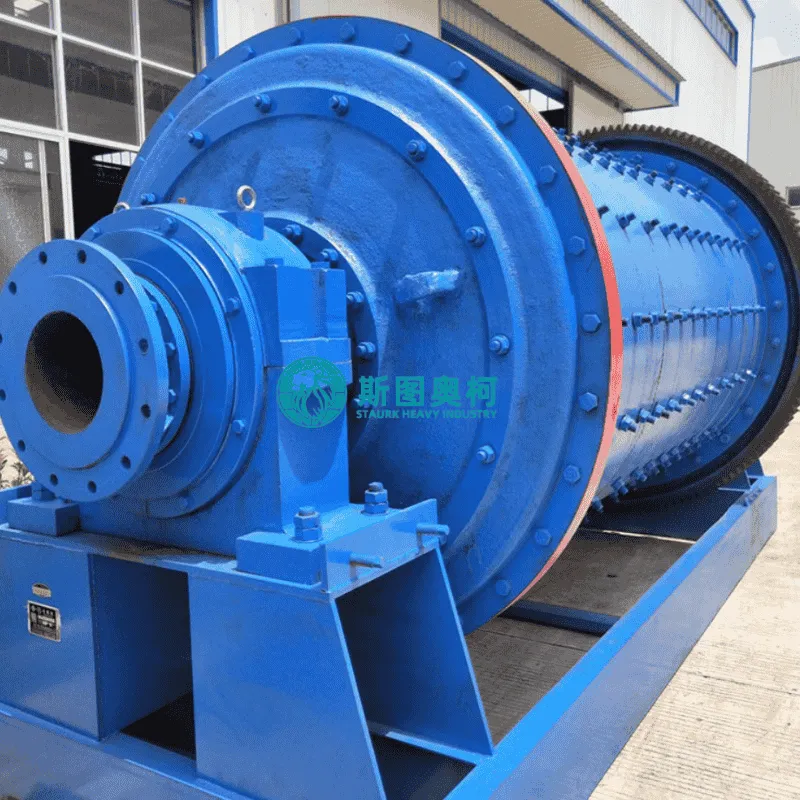

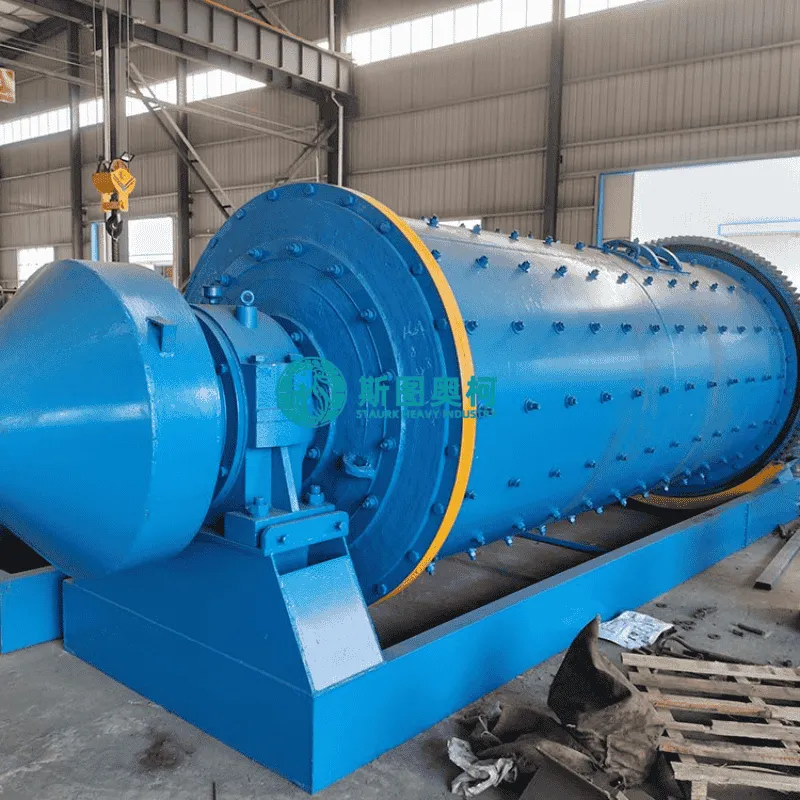

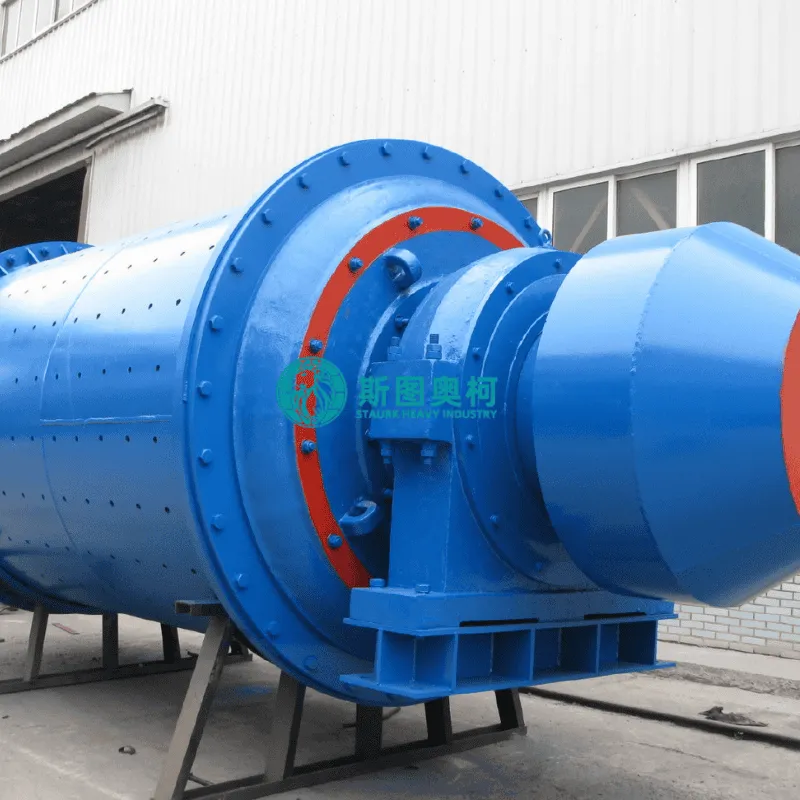

This ball mill for tin ore processing plant is a professional targeted grinding equipment tailored for tin ore beneficiation scenarios. It adopts a special anti-wear and anti-overgrinding structure adapted to the characteristics of tin ore that is easy to overgrind, covering full-series specifications from small test units to large industrial continuous grinding systems. It can fully dissociate tin minerals from gangue monomers, and the ground qualified pulp can be seamlessly connected to subsequent beneficiation processes such as gravity separation and flotation, which is the core grinding equipment to ensure the tin concentrate grade and recovery rate of the tin ore processing plant.
Working Principle
The heavy-duty cylinder is driven by a high-torque transmission system to rotate at a precisely controlled low constant speed, driving the built-in graded wear-resistant steel balls to rise to the optimal height along the specially designed liner and then fall in a parabolic trajectory. The tin ore raw material is continuously fed into the cylinder, and is fully crushed and ground by the moderate impact force of the steel balls and the continuous grinding effect between the media. The ground pulp that meets the beneficiation fineness requirements is stably discharged through the special discharge port, effectively avoiding the overgrinding of fine-grained tin minerals, and completing the high-efficiency grinding process of tin ore.
Core Features
This product has multiple targeted advantages for tin ore processing plants. The optimized low-speed grinding parameters can effectively control the pulp fineness, fully dissociate tin minerals, and greatly reduce the overgrinding loss of fine-grained tin minerals. The enhanced anti-wear structure can adapt to 24-hour uninterrupted high-load operation, with extremely low failure rate and long service life. It can be seamlessly connected with subsequent gravity separation and flotation units, significantly improving the comprehensive recovery rate of tin concentrate.
Technical Specifications
| Model | Cylinder RPM (r/min) | Ball Load (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Motor Model | Power (kW) | Weight (t) |
| MQG600*1800 | 45.5 | 0.5 | ≤ 10 | 0.074-0.5 | 0.2-0.5 | Y160M-6 | 7.5 | 2.5 |
| MQG900*1800 | 38 | 1.8 | ≤ 20 | 0.074-0.6 | 0.8-2 | Y180L-6 | 15 | 5.8 |
| MQG900*3000 | 37.4 | 2.7 | ≤ 20 | 0.074-0.3 | 0.8-3 | Y200L2-6 | 22 | 7.5 |
| MQG1200*2400 | 32 | 4.8 | ≤ 25 | 0.074-0.6 | 1.5-4 | Y225M-6 | 30 | 9.8 |
| MQG1200*4500 | 30 | 5.2 | ≤ 25 | 0.074-0.6 | 1.5-6 | Y280S-6 | 45 | 13.2 |
| MQG1300*4000 | 36 | 5.8 | ≤ 25 | 0.074-0.6 | 2-6 | Y280S-8 | 45 | 14.8 |
| MQG1500*3500 | 28.8 | 8.3 | ≤ 25 | 0.074-0.6 | 3-6 | YR280M-8 | 90 | 17.6 |
| MQG1500*4500 | 28.8 | 10 | ≤ 25 | 0.074-0.4 | 4-8 | JR125-8 | 95 | 22.3 |
| MQG1500*5700 | 28.8 | 12 | ≤ 25 | 0.074-0.4 | 5-10 | JR126-8 | 110 | 26.7 |
| MQG1500*6400 | 28.8 | 13 | ≤ 25 | 0.074-0.4 | 8-12 | JR127-8 | 130 | 29.2 |
| MQG1830*3600 | 24.5 | 12 | ≤ 25 | 0.074-0.4 | 5-10 | JR127-8 | 130 | 31.4 |
| MQG1830*5400 | 24.5 | 15 | ≤ 25 | 0.074-0.4 | 5-20 | JR137-8 | 210 | 33.6 |
| MQG1830*6400 | 24.5 | 19 | ≤ 25 | 0.074-0.4 | 6-25 | JR137-8 | 210 | 36.5 |
| MQG1830*7000 | 24.5 | 20 | ≤ 25 | 0.074-0.4 | 8-30 | JR138-8 | 245 | 39.6 |
| MQG2100*3600 | 24.1 | 21 | ≤ 25 | 0.074-0.6 | 8-20 | YR355L1-8 | 210 | 43.2 |
| MQG2100*4500 | 24.57 | 26 | ≤ 25 | 0.074-0.6 | 8-35 | JR138-8 | 280 | 53.6 |
| MQG2200*3600 | 21.8 | 22 | ≤ 25 | 0.074-0.6 | 9-25 | JR138-8 | 245 | 47.8 |
| MQG2200*4500 | 21.4 | 27 | ≤ 25 | 0.074-0.6 | 10-30 | JR138-8 | 280 | 54.7 |
| MQG2200*7500 | 21.8 | 35 | ≤ 25 | 0.074-0.6 | 10-40 | JR158-8 | 380 | 68.4 |
| MQG2200*9000 | 21.4 | 36 | ≤ 25 | 0.074-0.6 | 10-45 | JR1510-8 | 475 | 76.5 |
| MQG2400*3600 | 21.26 | 26 | ≤ 25 | 0.074-0.6 | 10-40 | JR138-8 | 280 | 63.8 |
| MQG2400*7000 | 21.8 | 36 | ≤ 25 | 0.074-0.6 | 10-45 | JR1510-8 | 475 | 82.4 |
| MQG2400*8000 | 21.8 | 42 | ≤ 25 | 0.074-0.6 | 13-50 | JR630-8 | 560 | 85.7 |
| MQG2400*10000 | 21 | 65 | ≤ 25 | 0.074-0.6 | 15-60 | YR560-8 | 710 | 88.6 |
| MQG2600*8000 | 19.6 | 52 | ≤ 25 | 0.074-0.6 | 16-70 | JR1512-8 | 630 | 97.8 |
| MQG2700*3600 | 21.4 | 39 | ≤ 25 | 0.074-0.4 | 13-75 | JR158-8 | 380 | 86.8 |
| MQG2700*4500 | 21.4 | 43 | ≤ 25 | 0.074-0.4 | 13-90 | JR1510-8 | 475 | 91.8 |
| MQG3000*5400 | 19 | 58 | ≤ 25 | 0.074-0.6 | - | TDMK-30 | 630 | 119.7 |
| MQG3000*9000 | 18.3 | 78 | ≤ 25 | 0.074-0.4 | 20-90 | YR1000-8/1180 | 1000 | 152.4 |
| MQG3000*11000 | 18 | 100 | ≤ 25 | 0.074-0.6 | 30-90 | YR6306-8 | 1120 | 166.7 |
| MQG3200*3600 | 18.6 | 56.5 | ≤ 25 | 0.074-0.6 | 20-80 | YR6302-8 | 630 | 127.4 |
| MQG3200*4500 | 18.6 | 65 | ≤ 25 | 0.074-0.6 | 20-90 | YR6302-8 | 800 | 138.6 |
| MQG3200*5400 | 18 | 72 | ≤ 25 | 0.074-0.6 | 30-100 | YR1000-8 | 1000 | 146.7 |
| MQG3200*9000 | 18 | 85 | ≤ 25 | 0.074-0.6 | 30-100 | YR6302-8 | 1250 | 168.6 |
| MQG3600*4500 | 18 | 86 | ≤ 25 | 0.074-0.6 | 30-100 | YR6302-8 | 1250 | 158.7 |
| MQG3600*6000 | 18 | 117 | ≤ 25 | 0.074-0.6 | 45-180 | - | 14000 | 195.6 |
| MQG4000*6000 | 16.9 | 145 | ≤ 25 | 0.074-0.6 | 60-230 | - | 1800 | 221.7 |
| MQG4500*6000 | 15.6 | 180 | ≤ 25 | 0.074-0.6 | 80-300 | - | 2300 | 269.6 |
