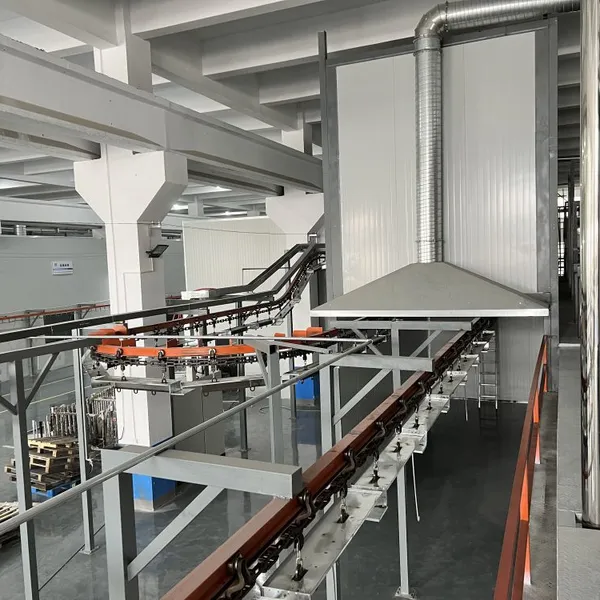

Help CenterEnergy‑saving Recycle‑type Iron Cabinet Powder Coating Line Compatible With Thin‑gauge Iron Sheet Cabinet Workpieces
Product Spotlights
Related Products
-
Custom Adjustable Size Iron Cabinet Powder Coating Line for Indoor Cabinet Anti‑corrosion Surface FinishingNegotiableMOQ: 1 Set -
Compact Space‑saving Iron Cabinet Powder Coating Line for Medium‑sized Iron‑cabinet Fabrication FactoriesNegotiableMOQ: 1 Set
-
Heavy‑duty Floor‑mounted Iron Cabinet Powder Coating Line for Furniture Iron‑cabinet Workshop Spraying ProcessingNegotiableMOQ: 1 Set
-
Digital PLC Controlled Iron Cabinet Powder Coating Line to Stabilize Coating Thickness on Iron Cabinet PanelsNegotiableMOQ: 1 Set
-
Complete Turn‑key Iron Cabinet Powder Coating Line as Replacement for Old‑style Manual Coating EquipmentNegotiableMOQ: 1 Set
Deqing Leixin Coating Equipment Co., Ltd., a professional manufacturer established in 2011 with an ISO9001-certified production system, proudly presents our Energy-saving Recycle-type Iron Cabinet Powder Coating Line. This advanced system is specifically engineered to handle thin-gauge iron sheet cabinet workpieces, offering a reliable and efficient solution for industries requiring high-quality powder coating on delicate metal surfaces. By integrating a recycling mechanism and energy-saving technology, our coating line significantly reduces powder waste and operational costs while maintaining consistent finish quality. Whether you are producing kitchen cabinets, electrical enclosures, or storage units, this line ensures uniform coating thickness, excellent adhesion, and a smooth surface that meets strict industrial standards.
Our powder coating line is designed with the challenges of thin-gauge materials in mind. Traditional coating processes often cause deformation or uneven coverage on thin sheets, but our recycle-type system incorporates precision conveyor controls and optimized spray gun positioning to avoid warping. The line includes a pretreatment section, drying oven, powder booth with cyclone recovery, curing oven, and cooling zone, all synchronized for maximum productivity. Below, we outline the key technical specifications that make this line a smart investment for your coating operations.
| Specification | Details |
| Line Type | Recycle-type, energy-saving |
| Workpiece Compatibility | Thin-gauge iron sheet cabinets (0.5–1.5 mm thickness) |
| Powder Recovery Efficiency | ≥95% via cyclone + cartridge filter |
| Conveyor Speed | 0.5–5 m/min (adjustable) |
| Oven Temperature Range | 160–220°C (curing oven); 80–120°C (drying oven) |
| Spray Gun Quantity | 4–12 guns (configurable) |
| Heating Source | Electric / gas / oil (user options) |
| Control System | PLC with HMI touch screen (optional) |
Key features and benefits for your production line include:
- Energy-saving recycled air design: The hot air from the curing oven is partially recirculated to the drying oven, cutting fuel consumption by up to 30% compared to conventional lines.
- Thin-gauge handling capability: Special chain conveyors with low-tension take-up prevent distortion of light cabinets; optional magnetic fixtures ensure stable positioning during spraying.
- High powder recovery rate: The cyclone plus cartridge filter system collects oversprayed powder and returns it directly to the feed hopper, saving material cost and reducing environmental impact.
- Uniform coating thickness: Automatic reciprocators with precise gun movement and voltage control deliver consistent film build (50–120 µm) even on complex cabinet shapes.
- Easy operation and maintenance: PLC-based automation with fault diagnosis; quick color change in less than 20 minutes due to detachable booth walls and dedicated recovery units.
- Safety features: Explosion-proof fans, fire suppression system (optional), and interlocking doors ensure compliance with international safety standards.
Our customers benefit from reduced scrap rates, lower energy bills, and faster throughput. For example, a cabinet manufacturer in Eastern Europe reported a 25% increase in production capacity after switching to this line. The system’s modular construction allows easy integration with existing pretreatment or conveyor systems, and we provide full installation and training support.
At Deqing Leixin Coating Equipment Co., Ltd., we have been serving global markets since 2011. Our factory in Huzhou, Zhejiang covers 1,000–3,000 square meters with a team of 51–100 skilled workers. We ship through Ningbo and Shanghai ports, and our annual export value reaches US$1–1.5 million. With ISO9001 quality management certification, every component is rigorously tested before delivery. We have supplied coating lines to clients across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, East Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, and the domestic market. Our proven track record ensures that you receive a reliable, long-lasting solution.
Frequently Asked Questions (FAQ)
-
Q1: Can this line coat iron cabinets with thickness less than 0.8 mm?
A: Yes, the line is designed to handle thin-gauge sheets from 0.5 mm to 1.5 mm. The conveyor system and spray parameters are optimized to prevent deformation. We recommend a test run with your specific workpiece to fine-tune settings. -
Q2: What is the typical powder savings with the recycle system?
A: The cyclone + cartridge filter recovers over 95% of oversprayed powder. In practice, customers see a 30–40% reduction in powder consumption compared to non-recycling booths. -
Q3: How long does it take to change powder colors?
A: Standard changeover time is around 15–20 minutes, thanks to the quick-release booth panels and separate recovery ducts. For frequent color changes, we offer an optional multi-color central feeding system. -
Q4: What kind of pretreatment is recommended?
A: For iron cabinets, we recommend a 3-stage or 5-stage pretreatment (degrease, rinse, phosphating, final rinse) to ensure adhesion and corrosion resistance. Our line can be integrated with pretreatment tunnels from our partners or your existing equipment. -
Q5: Do you provide installation and training?
A: Yes, our team offers on-site installation supervision and operator training for 5–7 days. We also provide detailed manuals and remote technical support for the first year. -
Q6: Can the line be customized for different cabinet sizes?
A: Absolutely. The line width, length, and conveyor system can be customized according to your maximum workpiece dimensions and desired production capacity. Contact us with your requirements for a tailored proposal. -
Q7: What safety certifications does the line meet?
A: The line is designed to comply with international safety standards (CE, OSHA, etc. – optional upon request). All electrical components are UL/CE listed, and the powder booth includes explosion-proof ventilation. We follow ISO9001 quality procedures during manufacturing. -
Q8: What is the warranty period?
A: Our standard warranty is 12 months from the date of commissioning, covering manufacturing defects. Extended warranty options are available.
For a detailed quotation and technical proposal tailored to your cabinet coating needs, please contact our sales team. We are ready to help you upgrade your production line with energy-saving, high-efficiency technology. Deqing Leixin Coating Equipment Co., Ltd. – your reliable partner in powder coating solutions.
