Complete Turn‑key Iron Cabinet Powder Coating Line as Replacement for Old‑style Manual Coating Equipment

Complete Turn‑key Iron Cabinet Powder Coating Line as Replacement for Old‑style Manual Coating Equipment thumbnail-3

Complete Turn‑key Iron Cabinet Powder Coating Line as Replacement for Old‑style Manual Coating Equipment thumbnail-4

Complete Turn‑key Iron Cabinet Powder Coating Line as Replacement for Old‑style Manual Coating Equipment thumbnail-5

Complete Turn‑key Iron Cabinet Powder Coating Line as Replacement for Old‑style Manual Coating Equipment photo-1

Complete Turn‑key Iron Cabinet Powder Coating Line as Replacement for Old‑style Manual Coating Equipment photo-2

Complete Turn‑key Iron Cabinet Powder Coating Line as Replacement for Old‑style Manual Coating Equipment photo-3

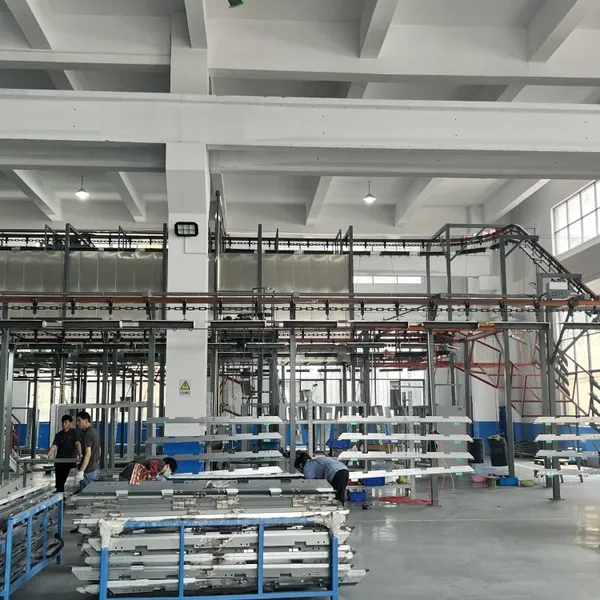

Complete Turn‑key Iron Cabinet Powder Coating Line as Replacement for Old‑style Manual Coating Equipment photo-4

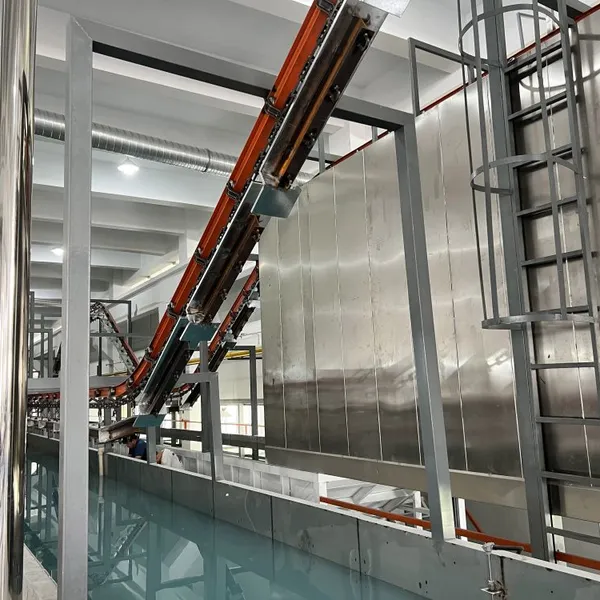

Complete Turn‑key Iron Cabinet Powder Coating Line as Replacement for Old‑style Manual Coating Equipment photo-5

Product Spotlights

This turn‑key powder coating line replaces manual equipment for iron cabinets, offering automated pre-treatment, electrostatic spraying, and curing. It reduces labor cost, improves coating consistency, and boosts throughput. Modular, energy‑efficient, and backed by an ISO9001 manufacturer with global shipping and on‑site support.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Warranty:

1 year (standard)

Type:

Complete turn-key line

Material:

Iron cabinet

Contact Supplier Request Quote Chat Now

Deqing Leixin Coating Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Warranty 1 year (standard)

Type Complete turn-key line

Material Iron cabinet

Application Metal surface coating

Technology Electrostatic powder coating

Replacement for Manual coating equipment

Capacity Customizable (e.g., 500-2000 pcs/day)

Control System PLC optional

Welcome to Deqing Leixin Coating Equipment Co., Ltd. – a professional manufacturer established in 2011 with over 13 years of experience in the powder coating industry. Our Complete Turn‑key Iron Cabinet Powder Coating Line is specifically designed as a direct replacement for old‑style manual coating equipment, helping you upgrade to a fully automated, efficient, and consistent production process. This integrated system includes pre-treatment, powder application, curing oven, and conveyor – all engineered to work seamlessly together. By choosing our turn-key solution, you eliminate the hassle of coordinating multiple suppliers and ensure a faster return on investment. With an annual export value of US$1 million to US$1.5 million and a dedicated team of 51–100 employees, we are committed to delivering high-quality coating solutions that meet international standards.

Key Features

Complete Turn‑Key Solution: Fully integrated line from pre-treatment to curing – no additional equipment needed.
Replacement for Manual Coating: Designed to replace outdated hand‑spray booths, reducing labor cost and improving coating uniformity.
Iron Cabinet Specific: Optimized for coating iron cabinets, drawers, and similar metal enclosures with complex geometries.
Energy‑Efficient Curing Oven: Insulated oven with precise temperature control (up to 250°C) for consistent curing.
PLC Control Option: Optional programmable logic controller for automated line speed, temperature, and powder flow adjustment.
Environmentally Friendly: Closed‑loop powder recovery system reduces waste and meets emission standards.
Compact Footprint: Space‑saving layout suitable for medium‑sized factories with limited floor area.

Technical Specifications

Parameter	Value
Line Type	Complete turn‑key, chain conveyor
Maximum Product Size	1200 × 800 × 600 mm (customizable)
Conveyor Speed	0.5 – 5 m/min (adjustable)
Pre‑treatment Stages	5 stages (degrease, rinse, phosphating, rinse, passivation) – optional
Powder Application	Electrostatic spray booths with cyclone recovery
Curing Oven Power	Gas/electric – up to 250°C, digital PID control
Power Supply	380V 3‑phase / 220V single‑phase (customizable)
Overall Dimensions	30 × 8 × 4 m (approximate, varies by layout)

Advantages for Your Business

Eliminate Manual Inconsistency: Automated spray guns with reciprocators ensure even coating thickness, reducing reject rates by up to 30%.
Higher Throughput: Continuous conveyor system allows non‑stop production – typical capacity: 800–1500 iron cabinets per 8‑hour shift.
Lower Operating Costs: Powder overspray is reclaimed and reused (up to 95% utilization), and energy‑efficient oven reduces gas/electricity consumption.
Easy Operation: User‑friendly control panel with intuitive interface – minimal training required for existing workers.
Modular Design: Additional pre‑treatment stages or curing zones can be added later as production needs grow.

Our turn‑key line has been successfully installed in factories across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Central America, Western Europe, Northern Europe, Southern Europe, South Asia, and the Chinese domestic market. We support clients with on‑site commissioning, training, and after‑sales technical support. All equipment is manufactured in our ISO9001‑certified facility in Huzhou, Zhejiang, China, and shipped from Ningbo or Shanghai ports with standard lead time of 30–45 days.

Why Choose Deqing Leixin?

Manufacturer since 2011 – over 13 years of expertise in powder coating equipment.
Factory area of 1,000–3,000 m² with 51–100 skilled workers.
Annual export value of US$1 million to US$1.5 million – trusted by global clients.
ISO9001 certified quality management system for consistent product quality.
Flexible customization – we work with you to adapt the line to your specific iron cabinet designs.

Upgrade from manual coating to a professional turn‑key line today. Contact us for a free line layout proposal and quotation. Our engineering team will help you design a solution that fits your factory space and production targets.

Frequently Asked Questions (FAQ)

Q: What is the typical payback period for replacing manual coating with this turn‑key line?
A: Most clients recover the investment within 12–18 months due to reduced labor costs, higher throughput, and lower material waste. Actual payback depends on your current production volume and local labor rates.
Q: Can this line handle different sizes of iron cabinets?
A: Yes, the conveyor and spray booth are adjustable. We can customize the line to accommodate your specific product dimensions up to 1200×800×600 mm. For larger cabinets, we offer tailored solutions.
Q: Do you provide installation and training support?
A: Absolutely. We offer on‑site installation supervision and operator training for your team. Remote technical support is also available via video call or phone.
Q: What powder types are compatible with this line?
A: The line works with all major thermosetting powder coatings – epoxy, polyester, hybrid, polyurethane, etc. The electrostatic spray system is compatible with standard corona charging guns.
Q: Can I add pre‑treatment if my current process doesn't require it?
A: Yes, the line can be configured with or without pre‑treatment stages. If you only need a simple cleaning step, we can include a single wash‑rinse stage. Pre‑treatment is optional and modular.
Q: How long is the warranty and what does it cover?
A: Our standard warranty is 1 year covering manufacturing defects in materials and workmanship. Extended warranty plans are available upon request. We also keep a stock of common spare parts for quick dispatch.
Q: What are the shipping and delivery terms?
A: We ship via FOB Ningbo or Shanghai. Standard lead time is 30–45 days after order confirmation and down payment. We can also arrange CIF delivery to your nearest seaport.
Q: Is the line compliant with international safety standards?
A: Yes, our equipment is designed with CE‑compliant safety features (emergency stops, interlocking guards, and earthing). Specific certifications can be provided according to your local requirements – please inquire.
