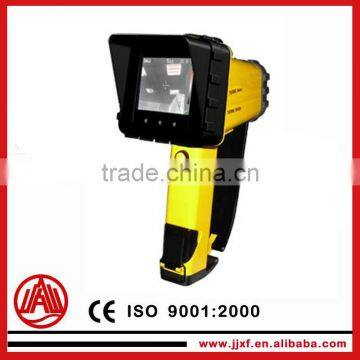

IP67 grade handheld fire fighting infrared thermal imaging camera
Description:
1.160*120 uncool FPA detctor
2.With temperature measurement function
3.Unique fire-control color palette
4.Apply to fire rescue
5.We are the manufacor,the price is competitive
6.Portable,small size,lightweight
7.Finding people and identify location in fire place
8.Best aftersales service
9.We are the manufactor,we have price advantage
specification
| Items | Technical Specification | |
| F2-T | ||
| Detector characteristics | Detector type | Un-cooled FPA micro-bolometer |
| Array size/format | 160x120 | |
| Image characteristics | Field of view/min focus distance | 30°×22.5° |
| Spatial resolution(IFOV) | 3.3mrad | |
| Thermal sensitivity | ≤0.1°C@30°C | |
| Frame frequency | 50Hz | |
| Focus | Fixed | |
| effective distance | ≥50m | |
| Spectral range | 8-14um | |
| Start-up time | ≤25s@30°C | |
| Image display | LCD | 260,000 color 3.5" TFT LCD, 640x480 |
| Measurement | Temperature ranges | -20°C-+ 600°C |
| Measurement type | Fixed spot | |
| Emissivity correction | Fixed | |
| palettes | 6palettes changeable(black and white, grey and grey inverted, 3 pseudo-color) | |
| Power source | Battery type | (NIMH) battery, rechargeable |
| Battery operating time | 2 hours continuous operation | |
| Battery recharge time | ≤2 hours | |
| Battery recharge times | More than 500 times | |
| Battery charging mode | Intelligent charger | |
| Environment | Operating temperature | -15°C-- +50°C |
| Short time operating temperature | +50°C-+260°C | |
| Storage temperature | -40°C- +70°C | |
| Encapsulation | IP67(1 meter under water) | |
| flame retardant rating | UL94-V0 | |
| Drop test | 1m | |
| Physical characteristics | Weight | ≤1.3kg |
| Dimension | 190*128*273mm | |
Application
Firefighting thermal imaging camera integrate 160*120 uncooled FPA detector.Featured with temperature measurement function and unique firefighting color scale,F2 has specifically designed to help firefighters to see through smoke,identify and quick locate targets in scene of fire.
others products:
1.We will reply your inquiry and question in 12hours
2.High quality with competitive price
3.Prompt delivery
4.Good after sales service
5.Accept OEM
6.Cooperate with us is your best choice, because we are a professional fire equipment manufacture for many years with a very good and trained team
7.We guarantee all of our products are in excellent quality .
1.How about the Delivery time?
Lead time since receipt of 100% T/T deposit payment: 20 days.Samples will be prepared within 5 Days.
2.What kind of payments does jenor support?
T/T, L/C ,Western Union, Paypal & Cash are accepted.
3.What's the MOQ?
Generally speaking, the MOQ is 10PCS, but we also can provide you samples for quality inspection.
4.Do you charge for the samples?
According to our company policy,we just charge the samples based on EXW price.and we will return the samples fee during the next order.
5.Can you produce aocording to customers' design?
Suce, we are professional maunfacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.
