Home > Products > Measuring Tools > Professional F2-T Handheld Fire Fighting Infrared Thermal Imaging Camera

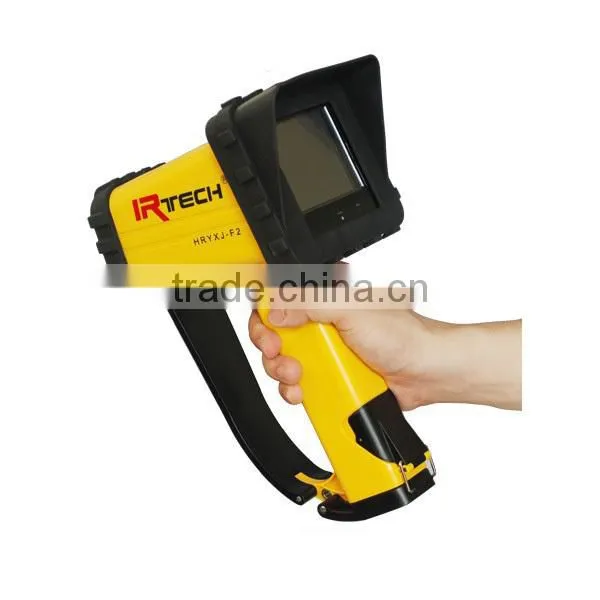

Professional F2-T Handheld Fire Fighting Infrared Thermal Imaging Camera
- 2000 Set / Sets per Month
- Shanghai or Ningbo
- T/T Credit Card
Product Details
Place of Origin: | Beijing, China | Brand Name: | DALI | Model Number: | F2-T |
Usage: | Industrial | Theory: | Infrared Thermometer | Accuracy: | ≤0.1°C |
Temperature Range: | -20°C-+ 600°C |
Product Description
Professional F2-T Handheld Fire Fighting Infrared Thermal Imaging Camera
Features
1.160*120 uncool FPA detctor
2.With temperature measurement function
3.Unique fire-control color palette
4.Apply to fire rescue
5.We are the manufacor,the price is competitive
6.Portable,small size,lightweight
7.Finding people and identify location in fire place
8.Best aftersales service
9.We are the manufactor,we have price advantage
Model and specification
Items | Technical Specification | |
F2-T | ||
Detector characteristics | Detector type | Un-cooled FPA micro-bolometer |
Array size/format | 160x120 | |
Image characteristics | Field of view/min focus distance | 30°×22.5° |
Spatial resolution(IFOV) | 3.3mrad | |
Thermal sensitivity | ≤0.1°C@30°C | |
Frame frequency | 50Hz | |
Focus | Fixed | |
effective distance | ≥50m | |
Spectral range | 8-14um | |
Start-up time | ≤25s@30°C | |
Image display | LCD | 260,000 color 3.5" TFT LCD, 640x480 |
Measurement | Temperature ranges | -20°C-+ 600°C |
Measurement type | Fixed spot | |
Emissivity correction | Fixed | |
palettes | 6palettes changeable(black and white, grey and grey inverted, 3 pseudo-color) | |
Power source | Battery type | (NIMH) battery, rechargeable |
Battery operating time | 2 hours continuous operation | |
Battery recharge time | ≤2 hours | |
Battery recharge times | More than 500 times | |
Battery charging mode | Intelligent charger | |
Environment | Operating temperature | -15°C-- +50°C |
Short time operating temperature | +50°C-+260°C | |
Storage temperature | -40°C- +70°C | |
Encapsulation | IP67(1 meter under water) | |
flame retardant rating | UL94-V0 | |
Drop test | 1m | |
Physical characteristics | Weight | ≤1.3kg |
Dimension | 190*128*273mm |
