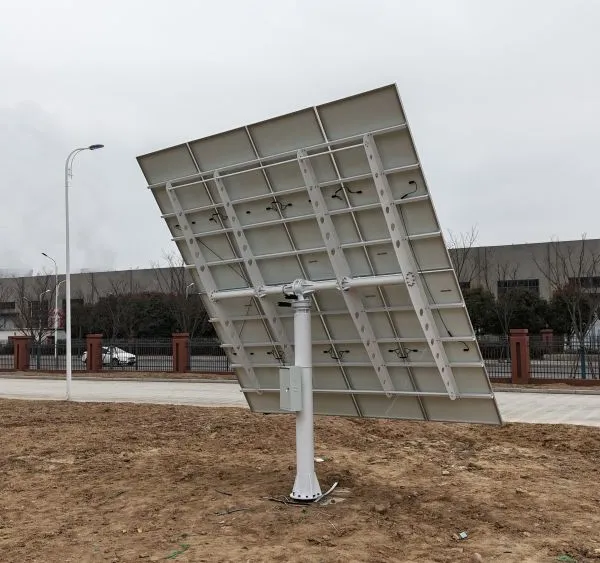

Wanze Energy Dual Axis Solar Tracking System Smart PV Tracker for Residential Commercial Utility Solar Projects
Product Spotlights
AI-powered dual-axis solar tracking system with ±0.5° precision tracking, increasing power generation by 30–40% compared to fixed systems. Equipped with SmartTrack™ intelligent control, predictive O&M, wind protection, and multi-scenario adaptive operation. Suitable for residential, commercial, industrial, utility-scale, off-grid, agricultural PV (APV), and floating PV (FPV) applications. Durable, efficient, and easy to deploy.
US$ 2570 - 2600
MOQ: 1 Unit
Key Specifications
Get Latest Price
Warranty:
5
After-sales Service:
Yes
Brand name:
Wanze Energy
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
60 days
Related Products
-
Wanze Energy Smart Dual Axis Solar Tracker Carport 5.2kWp Integrated EV Charging Station With 10kWh Battery Storage for Commercial Parking LotsUS$ 3686.73 - 16958.93MOQ: 1 Unit -
Wanze Energy Solar Sunflower 1.2 Dual-Axis Sun-Tracking Photovoltaic Power Generation SystemUS$ 7500 - 8700MOQ: 1 Set
-
Wanze Energy EV Charging Solar Carport System - Modular Design, OEM/ODM Support, Waterproof & High Wind ResistanceUS$ 3400 - 4100MOQ: 1 Set
-
Wanze Energy 2kW Solar Sunflower Three-Axis Sun-Tracking Photovoltaic Power Generation SystemUS$ 13900 - 14200MOQ: 1 Set
-
Wanze Energy Solar Carport With EV Charging Station - Customizable PV Car Park Structure, Factory PriceUS$ 3300 - 4150MOQ: 1 Set
Warranty
5
After-sales Service
Yes
Brand name
Wanze Energy
Model number
Wz Helio²
Transport Package
Wooden Box

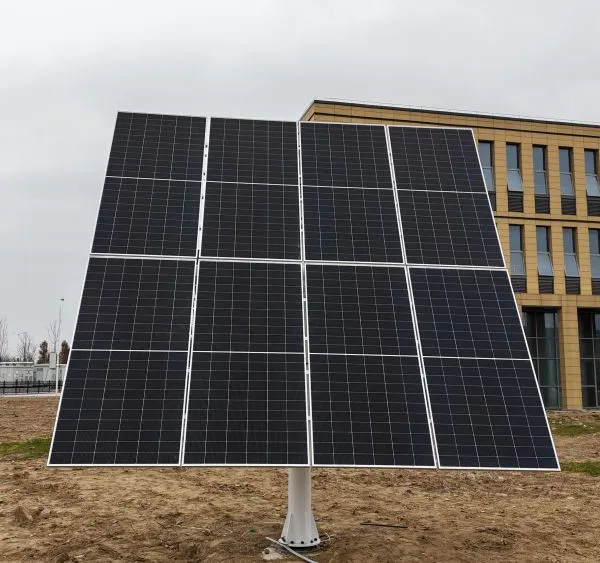

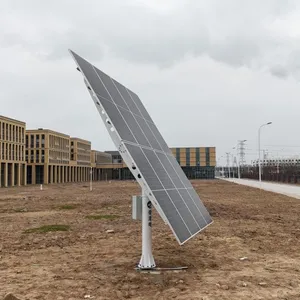

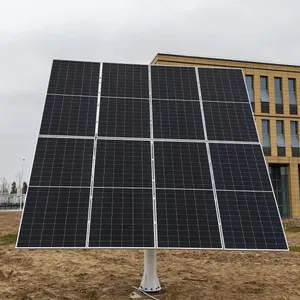

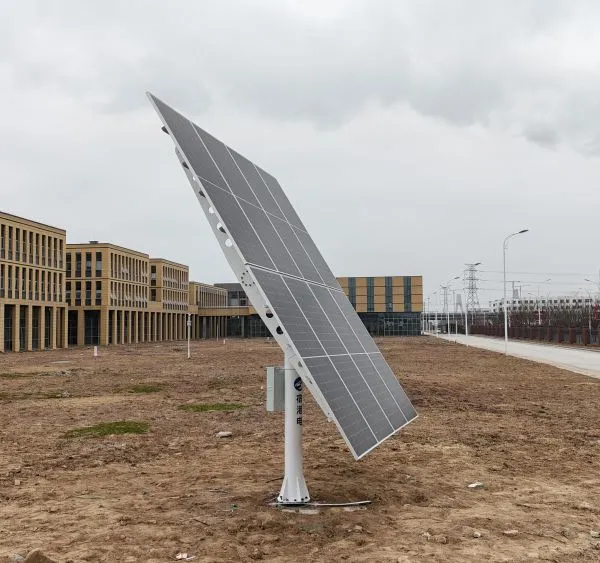

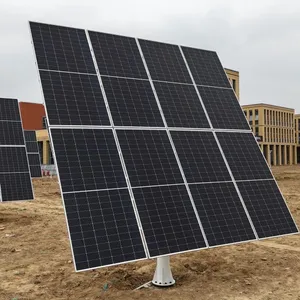

Wanze Energy Wz Helio² is an intelligent dual-axis solar tracking system designed to maximize photovoltaic power generation through real-time sun tracking technology. Powered by SmartTrack™ intelligent control, it delivers ±0.5° tracking accuracy and increases energy yield by 30–40% compared to fixed mounting systems. Suitable for residential, commercial, industrial, and utility- scale solar projects, it offers high efficiency, stable operation, and flexible deployment for various solar applications.
System-Level Parameters
| Technical Indicator | Parameter Value | Industry Comparison |
|---|---|---|
| Installed Capacity | 5.08kW (Standard) 3-12.7kW (Expandable) |
Flexible configuration, adaptable to multi-scenarios |
| Annual Power Generation | 9,800-11,200 kWh | Fixed-type only ~6,200 kWh |
| Tracking Accuracy | ±0.5° | Single-axis ~±2°, fixed-type N/A |
| Algorithm Version | SmartTrack™ 3.0 | Third-generation fusion algorithm |
| System Efficiency | ≥22.95% | Industry-leading |
| MTBF | ≥100,000 hours | Equivalent to ~11 years of continuous operation |
| Wind Resistance Rating | Operational: Grade 10 / Protection: Grade 12+ | Field-tested through Grade 12 typhoon |
Multi-Scenario Intelligent Operation Mode Library
| Strategy Series | Strategy Code | Strategy Name | Core Value | Intelligent Trigger Conditions |
|---|---|---|---|---|
| Efficiency Series | M1 | Max Power Generation Mode | Maximize power generation | Standard clear weather |
| M2 | Terrain Avoidance Mode | Handle complex terrain | Mountainous, sloped, obstructed environments | |
| Escort Series | M3 | Silent Sleep Mode | Zero power consumption at night | Nighttime or extremely low irradiance |
| M4 | Off-Grid Synergy Mode | Increase energy self-sufficiency | Paired with energy storage system | |
| Guardian Series | M8 | Hurricane Guard Mode | "Zero loss" in 32m/s | High wind warning or wind speed >20.8m/s |
| M9 | Blizzard Resistance Mode | Automatic snow removal | Blizzard warning | |
| M10 | Dust Shield Self-Cleaning Mode | Post-dust storm self-cleaning, reduce labor | Dust storm warning or PM10 >1000 µg/m³ | |
| M11 | Hail Resistance Mode | Resist hail impact | Hail warning | |
| M12 | Thunderstorm Guard Mode | Handle thunderstorms & heavy rain | Thunderstorm/heavy rain warning | |
| O&M Series | M5 | Health Self-Check Mode | Early fault warning | Scheduled weekly (e.g., Sunday) or manual trigger |
| M6 | Equipment Maintenance Mode | For safe, efficient on-site maintenance | Manually triggered for safety | |
| Showcase Series | M7 | Time-Lapse Mode | Impressive visual display | Manually activated for visits, demos |
Photovoltaic Module Technical Parameters
| Parameter Item | Standard Configuration |
|---|---|
| Module Brand | Znshine Solar |
| Technology Type | N-type SMBB Mono-Si |
| Module Power | 590-620W |
| Conversion Efficiency | 22.95% |
| Open Circuit Voltage (Voc) | 49.8V |
| Short Circuit Current (Isc) | 16.04A |
| Annual Degradation (Post-First Year) | ≤0.4% |
| 30-Year Power Retention | ≥84.8% |
| Operating Temperature | -40℃ ~ +85℃ |
| NMOT Parameter | 44℃ ±2℃ |
| Voc Temperature Coefficient | -0.23%/℃ |
Module Reliability Certifications
| Certification | Standard |
|---|---|
| ✅ IEC 61215 | Photovoltaic Module Design Qualification |
| ✅ IEC 61730 | Photovoltaic Module Safety Qualification |
| ✅ ISO 14001 | Environmental Management System |
| ✅ ISO 9001 | Quality Management System |
| ✅ ISO 45001 | Occupational Health & Safety Management System |

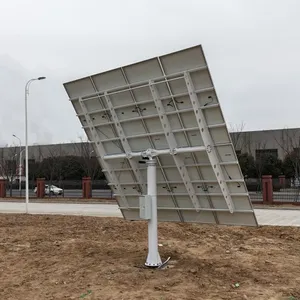

Dual-Axis Motor Drive System
| Technical Indicator | Parameter Value | Technical Advantage |
|---|---|---|
| Motor Type | DC Gear Motor | High torque, high precision |
| Rated Power | 91W | Low power consumption, high torque |
| Operating Voltage | DC 24V | Safety voltage, shock-proof |
| Rated Torque | 120 N·m | Can drive 8 modules (5kW) |
| Rotation Accuracy | ±0.5° | Closed-loop control with Hall sensors |
| Service Life | ≥50,000 hours | ~10-15 years, far exceeding industry average |
| Noise Level | Low-noise design, suitable for residential areas | |
| Protection Rating | IP65 | High-level dustproof and waterproof standard |
| Gear Ratio | 736:1 | Precision planetary gear reducer |
| Lubrication | Lifetime Maintenance-Free Lubrication | Fully sealed design, no need for oil refill |
| Ambient Temperature | -40 ~ +80℃ | Strong temperature adaptability |
| Self-Locking Function | Auto-lock on power loss | Prevents reversal, strong wind resistance |
Industrial-Grade Intelligent Control System - Hardware Platform
| Component | Model/Parameters | Performance Indicators |
|---|---|---|
| Main Control Chip | STM32F103ZET6 | ARM Cortex-M3 core, 72MHz main frequency |
| Memory | 512KB Flash + 64KB SRAM | Supports OTA upgrades |
| Communication Module | 4G All-Network (USR IOT) | Supports China Mobile/Unicom/Telecom |
| Positioning Module | GPS+BeiDou+GLONASS Tri-mode | ±3m accuracy |
| Enclosure Material | Aviation-grade 6061-T6 Aluminum Alloy | Lightweight, good heat dissipation, corrosion resistant |
| Protection Rating | IP65 | Dustproof & waterproof, all-weather outdoor |
| Operating Temperature | -40℃ ~ +85℃ | Covers 99% of global regions |
| MTBF | ≥100,000 hours | Equivalent to ~11 years continuous operation |
| Certifications | CE/FCC/CCC | Global market access |
Sensor Configuration
| Sensor Name | Accuracy | Sampling Frequency | Function |
|---|---|---|---|
| Dual-Axis Hall Sensor | ±0.3° | 300ms/cycle | Real-time feedback of equipment attitude |
| GPS Positioning Module | ±3m | 1min/cycle | Acquires latitude/longitude, altitude, time |
| Wind Speed Sensor | ±0.3 m/s | 300ms/cycle | Triggers high wind protection |
| Limit Sensor | 300ms/cycle | Acquires limit status, provides hardware protection |
Four-Level Permission Management
| Permission Level | Role | Permission Scope |
|---|---|---|
| Super Admin | Company Management | Full control (equipment control + parameter modification + account management + authorization approval) |
| Admin | Project Manager | Advanced control (equipment control + basic parameter modification + report export) |
| O&M Engineer | Technical Personnel | Basic control (equipment control + data viewing + work order handling) |
| Observer | Owner/Investor | Read-only permission (data viewing + report export) |
Extreme Weather Protection Strategies
| Weather Type | Intelligent Strategy & Core Actions | Design Standards & Validation |
|---|---|---|
| Typhoon/Hurricane | M8 Hurricane Guard Mode: Based on intelligent path prediction, executes pre-flattening and dual mechanical locking, automatically resumes operation post-storm. | Wind resistance Grade 12 (36m/s) field-tested passed. |
| Blizzard | M9 Blizzard Resistance Mode: Employs automatic snow shaking (60° tilt) | Design snow pressure 0.6 kN/m². |
| Hail | M11 Hail Resistance Mode: Automatically adjusts to 45-60° protective tilt angle upon hail warning. | Can withstand 30mm hail. |
| Thunderstorm/Heavy Rain | M12 Thunderstorm Guard Mode: Equipped with a three-level lightning protection system (lightning rod + grounding + SPD) and boasts high IP65/67 protection rating. | Stable operation in regions with >90 annual thunderstorm days, capable of withstanding 200kA lightning current impact. |
Core Component Warranty Scheme
| Component | Warranty Period | Core Commitment | Extended Warranty Service |
|---|---|---|---|
| PV Module | 25-year linear power warranty | First-year degradation ≤2%, annual ≤0.55%, 25-year output ≥84.8% of nominal | — |
| Dual-Axis Motor | 5 years | Includes motor, gearbox | Extendable to 10 years |
| Control System | 5 years | Controller, sensors, and other core electronic control components | Extendable to 10 years |
| Mounting Structure | 25 years | Structural strength and anti-corrosion performance, synchronized with design life | — |
| Inverter | 5 years | Complete unit warranty | Extendable to 10 years |
| Cloud Platform Service | Lifetime free | Includes platform use, algorithm upgrades, and OTA service | — |
