Home > Products > Plastic processing equipment > Waste Plastic Paper Cardboard Double Shaft Shredder Machine Dual Axis Shredder for Metal Shell Paper Roller

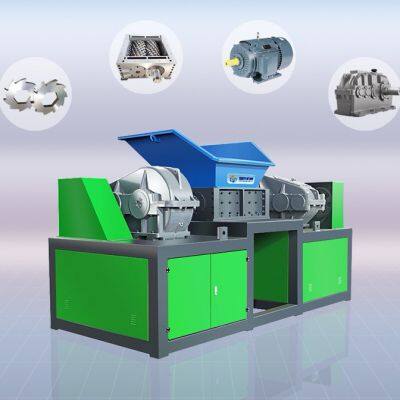

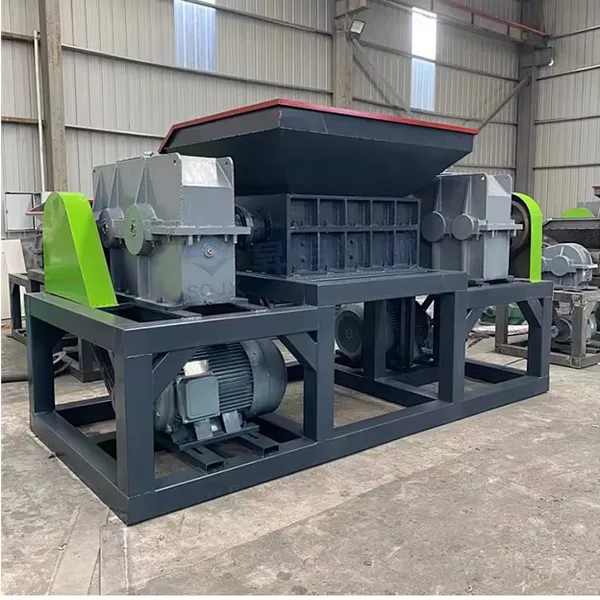

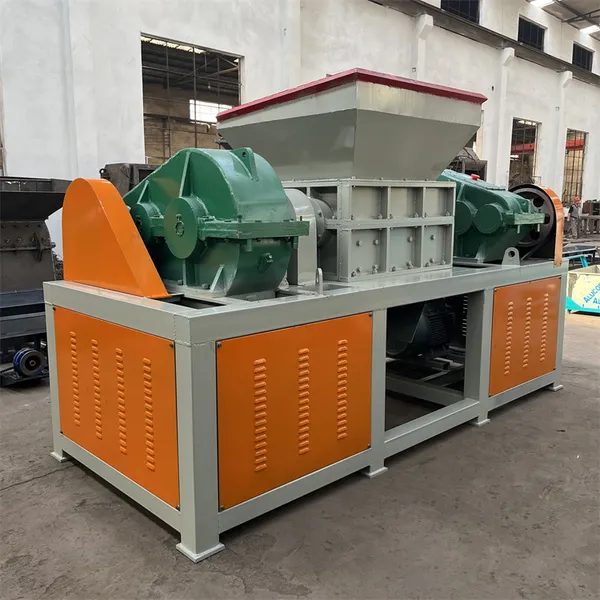

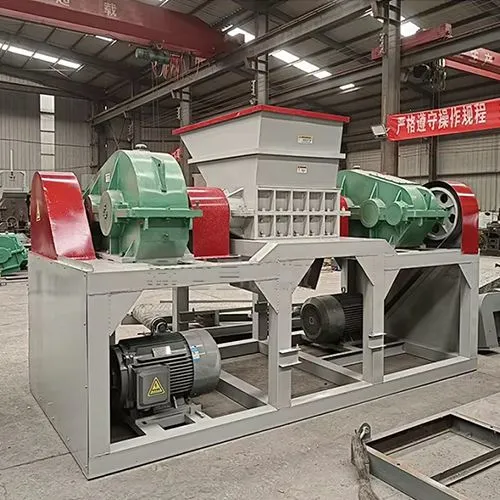

Waste Plastic Paper Cardboard Double Shaft Shredder Machine Dual Axis Shredder for Metal Shell Paper Roller
US$ 4400.00
≥1 Sets
You May Like
-
Rugged Dual-shaft Shredder - Powerful Waste Handling With High-quality Motor and Gearbox
-
Fully Automatic PE PET Crusher Small Plastic Bottle Crusher Hard Plastic Crushing Equipment Professional Manufacturer
-
Large Diameter Plastic Crusher Industrial Plastic Crusher Plastic Block Crusher
-
Small Plastic Bottle Crusher Waste Plastic Barrel Crusher Hard Plastic Crusher Price Spot Supply
-
Mini Copper Granulator Scrap Copper Wire Granulator Copper Wire Granulator Machine for Sale
-
Double Roller Granulator Waste Wires Fertilizer Pellets Machine Copper Rice Machine for Sale
Product Details
| place of origin | Henan, China | plastic type | PVC, PET, PC, PE, ABS | |
| brand name | Panqi | use | Waste Plastic Crusher | |
| shaft design | Double | voltage | 380 V | |
| Blade Material | Stainless Steel | dimension(l*w*h) | 2600*1350*1650mm | |
| power (kw) | 30 | weight (t) | 1 | |
| warranty | 1 Year | key selling points | Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, Energy Saving, Eco-Friendly | |
| machinery test report | Provided | video outgoing-inspection | Provided | |
| core components | PLC, Engine, Pressure Vessel | Special Feature | Portable | |
| Cut type | cross cut, micro cut, strip cut |
Product Description
Performance & Characteristics:
1. Multiple Model Options: From small (15-30kW) to heavy-duty (over 200kW), these shredders meet diverse needs.
2. Multi-Material Compatibility: Efficiently processes metal, rubber tires, plastics, wood, electronic waste, and bulky items,even enabling the harmless shredding of hazardous waste (such as chemical barrels).

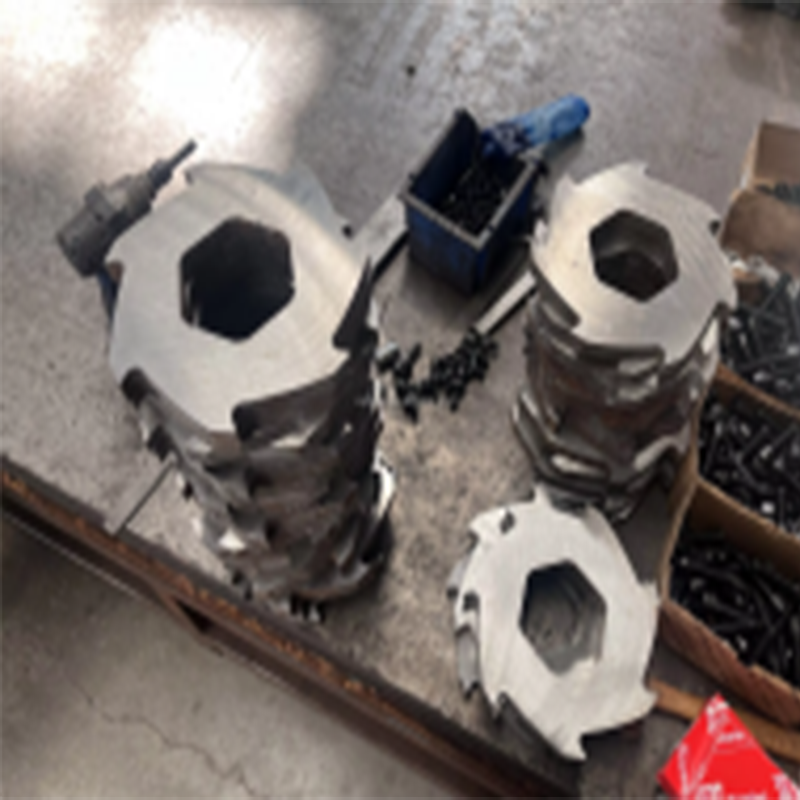

3. High Durability: The rotating blades are made from forged alloy tool steel, precision machined, and subjected to multiple heat treatments and cryogenic heat treatments, ensuring superior cutting performance and longevity. The main body is welded from high-quality steel plates, ensuring stability under long-term heavy loads. The motor and reducer are professionally matched and designed to ensure optimal performance.
4. High Crushing Capacity: The dual-shaft shredder boasts powerful shredding capabilities, quickly and efficiently reducing materials to the desired particle size.
5.High Productivity: 24-hour automated operation is possible: The dual-shafts rotate at low speeds (typically 20-60 RPM) combined with the high-torque motor to easily shred hard or tough materials without jamming.
6. High safety: The double-shaft shredder is equipped with advanced protection system and control system, which can automatically shut down under abnormal circumstances to ensure safe and reliable operation.
2. Multi-Material Compatibility: Efficiently processes metal, rubber tires, plastics, wood, electronic waste, and bulky items,even enabling the harmless shredding of hazardous waste (such as chemical barrels).
3. High Durability: The rotating blades are made from forged alloy tool steel, precision machined, and subjected to multiple heat treatments and cryogenic heat treatments, ensuring superior cutting performance and longevity. The main body is welded from high-quality steel plates, ensuring stability under long-term heavy loads. The motor and reducer are professionally matched and designed to ensure optimal performance.
4. High Crushing Capacity: The dual-shaft shredder boasts powerful shredding capabilities, quickly and efficiently reducing materials to the desired particle size.
5.High Productivity: 24-hour automated operation is possible: The dual-shafts rotate at low speeds (typically 20-60 RPM) combined with the high-torque motor to easily shred hard or tough materials without jamming.
6. High safety: The double-shaft shredder is equipped with advanced protection system and control system, which can automatically shut down under abnormal circumstances to ensure safe and reliable operation.
Model:
When selecting a machine, you need to match the machine model according to the material properties (hardness, toughness) and processing capacity to maximize efficiency！！！
Model | Power efficiency（kw） | Cutter head Diameter（mm） | Reducer | Output （Tons of） | Appearance dimensions （L*W*Hmm） |
400 | 5.5*2 | 150 | ZQ350 | 0.3 | 1750*900*1420 |
400 | 7.5*2 | 216 | ZQ350/400 | 0.5 | 2000*1100*1620 |
600 | 15*2 | 216 | ZQ400 | 1 | 2600*1350*1650 |
800 | 18.5*2 | 260 | 500 | 1.6 | 3350*1500*1720 |
22*2 | 316 | Square box 500 | 2.2 | 3500*1720*1750 | |
22*2 | 316 | ZQ650 | 2.5 | 3600*1720*1750 | |
30*2 | 400 | ZQ650 | 3 | 3800*2000*1750 | |
30*2 | 316 | ZQ650 | 2.8 | 3800*1750*1950 | |
37*2 | 400 | Square box 650 | 3.5 | 4000*2100*2000 | |
37*2 | 316 | Square box ZQ650/750 | 3.5 | 4000*2100*2120 | |
45*2 | 400 | Square box 750 | 5 | 4200*2100*2120 |
Product Application:
1. Plastic recycling: commonly used for the crushing of waste large-diameter PE plastic pipes, bales of plastic film, large piles of plastic sheets and head materials
Domestic waste treatment: residential areas, rural domestic waste
2. Electronic waste treatment: waste computers, waste home appliances, CDs, printers, etc.
3. Rubber processing: tires, car tires, truck tires without thick steel wires
4. Industrial waste treatment: waste clothes, leather scraps, industrial waste textiles, etc.
5. Recyclable waste treatment: packaging materials, cardboard, etc.
6. Metal processing: lead, aluminum, copper, etc.
7. Agricultural and forestry biomass processing: rice, wheat, corn stalks and garden branches, etc.
8. Tire rubber processing: tire rubber, industrial waste paper, metal barrels, waste steel, electronic waste, plastic barrels, large pieces of plastic, electronic equipment, wood waste, waste cars, aluminum, aluminum castings, etc.Henan Panqi Heavy Industry Technology Co., Ltd. is a well-known enterprise specializing in the production of various types of crushing machinery. Over the past decade, we have continuously introduced advanced technologies from home and abroad, professional technical teams, and experienced production personnel. We have developed a series of products including wood crushers, jaw crushers, wood chippers, plastic crushers, metal crushers, sawdust machines, double-shaft crushers, stainless steel food crushers,etc.Our products are popular with customers.Our products are complete in specification and model, and can meet the needs of different users. We are responsible for the revitalization of Chinese crushing machinery to cooperate wholeheartedly with the vast numbers of users.
A:We are a manufacturer, located in Located at Miaowang Road, Xingyang, Zhengzhou,Henan, China. Warmly welcome to
visit our company.
Q:2. What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
Q:3. How does your factory do regarding quality controlling?
A:(1) All raw material we used are thickening.
(2) Skillful workers care every details in handling the producing and packing process.
(3) Quality control department are specially responsible for quality in each process.
We have been kept providing high quality products by introducing advanced technologies for over 10 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
Q:4.What is the delivery time of your machine?
A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
Q:5.How about the after-sale service?
A:(1)TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
(2)To solve the problems with videos/pictures.
(3)One year warranty for spare parts change.
