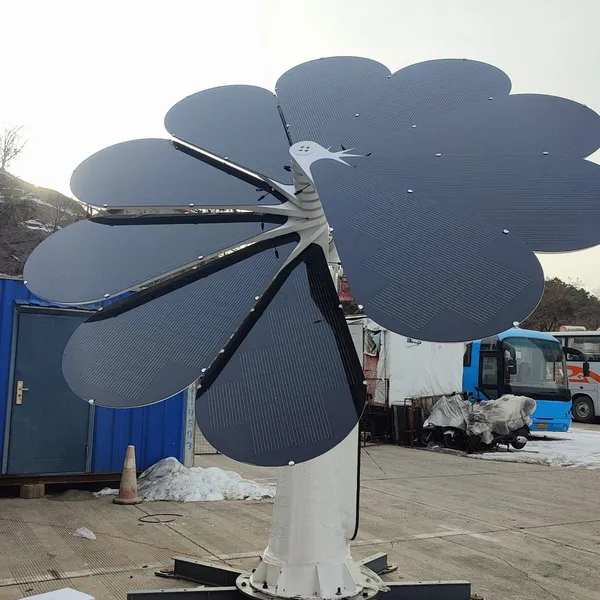

The Solar Sunflower is an advanced, mobile photovoltaic (PV) energy generation system that artfully combines biomimetic design with cutting-edge solar technology. Inspired by the natural heliotropic movement of its namesake, this system uses a precision three-axis tracking mechanism powered by a GPS-based algorithm to follow the sun's exact trajectory across the sky .
This active tracking capability is its core advantage. Unlike traditional fixed solar panels that remain stationary, the Solar Sunflower continuously adjusts its petals to maintain a perpendicular angle to the sun's rays.Even during overcast conditions, the petals' automatic horizontal and vertical adjustments ensure they are always optimally aligned to capture the maximum available diffuse and direct sunlight, guaranteeing consistently high energy output .
The efficiency gains are substantial this intelligent tracking can boost energy production by up to 40% compared to conventional, stationary installations .
The system's dynamic operation is fully automated for seamless daily function. At sunrise, the flower automatically unfolds its ten photovoltaic panels and angles them to face the sun, beginning the day's power generation. At nightfall, the petals fold downward into a protective, low-energy "sleep" state, safeguarding the components and conserving energy .
This blend of intelligent technology and graceful design makes the Solar Sunflower not just a power generator, but a distinctive piece of smart infrastructure suitable for zero-carbon parks, urban landscapes, and forward-thinking commercial projects .
System Specifications (PV Array)
| Parameter | Value |
|---|---|
| Type | WZ-200M-36 |
| Quantity | 10 pcs |
| Connection | 10 pcs series connection |
| System Operating Voltage | 260V DC |
| System Operating Current | 7.5A DC |
| System Power | 2000W |
| Maximum System Voltage | 1000V DC |
Inverter Specifications – DC Input
| DC Input Parameter | Value |
|---|---|
| Maximum Input Voltage (V) | 500 |
| MPPT Voltage Range (V) | 50–450 |
| Starting Voltage (V) | 50 |
| Rated Input Voltage (V) | 360 |
| Maximum Input Current of Each MPPT (A) | 12.5 |
| Maximum Short-Circuit Current of Each MPPT (A) | 15.6 |
| MPPT Quantity | 1 |
| Number of MPPT Input Strings per Channel | 1 |
Inverter Specifications – AC Output
| AC Output Parameter | Value |
|---|---|
| Rated Output Power (W) | 3000 |
| Maximum Output Active Power (W) | 3300 |
| Maximum Output Apparent Power (VA) | 3300 |
| Rated Output Voltage (V) | 220 |
| Output Voltage Frequency (Hz) | 50 |
| Maximum Output Current (A) | 14.3 |
| Power Factor | ~1 (0.8 leading ... -0.8 lagging adjustable) |
| Total Current Waveform Distortion Rate |
Inverter Specifications – Efficiency
| Efficiency Parameter | Value |
|---|---|
| Maximum Efficiency | 97.60% |
| China Efficiency | 97.20% |
Inverter Specifications – Protection Features
| Protection Feature | Status |
|---|---|
| Insulation Resistance Test | Integrated |
| Residual Current Monitoring | Integrated |
| Input Reverse Polarity Protection | Integrated |
| Anti-Islanding Protection | Integrated |
Inverter – Basic Parameters & Certification
| Parameter / Feature | Value / Specification |
|---|---|
| Operating Temperature Range (°C) | 25–60 |
| Relative Humidity | 0–100% |
| Maximum Operating Altitude (m) | 4000 |
| Cooling Method | Natural Cooling |
| Human-Computer Interaction | LCD and LED |
| Communication | 4G or RS485 |
| Weight (kg) | 5.8 |
| Dimensions (Width × Height × Thickness mm) | 295 × 230 × 1138 |
| Topological Structure | Non-isolated |
| Self-Consumption at Night (W) | |
| Protection Level | IP65 |
| Grid Connection Standards | NBR16149 / NBR16150 |
| Safety Standards | IEC62109 |
Product Model & Dimensions
| Parameter | Value |
|---|---|
| Model | WZ-200M-36 |
| Petal Diameter | 4 meters |
| Column Height | 1.8 meters |
| Module Power | Single block 200W; total power 2000W |
| Number of Components | 10 PCS |
| Space Dimensions (Length × Width × Height, mm) | 4000 × 3100 × 1800 |
Battery Energy Storage System Parameters
| Parameter | Value |
|---|---|
| Battery Type | Lithium Battery |
| Rated Capacity | 3000 Wh |
| Output Voltage | 26 V |
| Output Current | 10 A |
| Charging Current | 60 A |
