Help CenterWanze Energy Smart Dual Axis Solar Tracker Carport 5.2kWp Integrated EV Charging Station With 10kWh Battery Storage for Commercial Parking Lots
Product Spotlights
All-in-one solution: 5.2kWp HPBC bifacial solar + dual-axis tracking (0.17° precision) + 10kWh LiFePO₄ battery + 7kW EV charger + smart LED lighting. Generates 30-40% more energy than fixed systems. Self-locking slew drives withstand typhoons (32.7m/s). Single-pole design, 25-year lifespan, APP remote control, storm stow in
Related Products
-
Wanze Energy Solar Sunflower 1.2 Dual-Axis Sun-Tracking Photovoltaic Power Generation SystemUS$ 7500 - 8700MOQ: 1 Set -
Wanze Energy EV Charging Solar Carport System - Modular Design, OEM/ODM Support, Waterproof & High Wind ResistanceUS$ 3400 - 4100MOQ: 1 Set
-
Wanze Energy 2kW Solar Sunflower Three-Axis Sun-Tracking Photovoltaic Power Generation SystemUS$ 13900 - 14200MOQ: 1 Set
-
Wanze Energy Solar Carport With EV Charging Station - Customizable PV Car Park Structure, Factory PriceUS$ 3300 - 4150MOQ: 1 Set
-
Wanze Energy Dual Axis Solar Tracking System Smart PV Tracker for Residential Commercial Utility Solar ProjectsUS$ 2570 - 2600MOQ: 1 Unit
The Eos² is a next-generation intelligent tracking solar carport that integrates photovoltaic power generation, dual-axis sun tracking, lithium battery storage, electric vehicle charging, and smart LED lighting into a single, elegant structure.
Designed by Beijing Wanze Hongsheng Technology Co., Ltd., this innovative system represents a significant advancement in distributed clean energy solutions for residential and commercial applications.

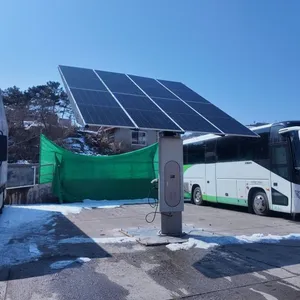

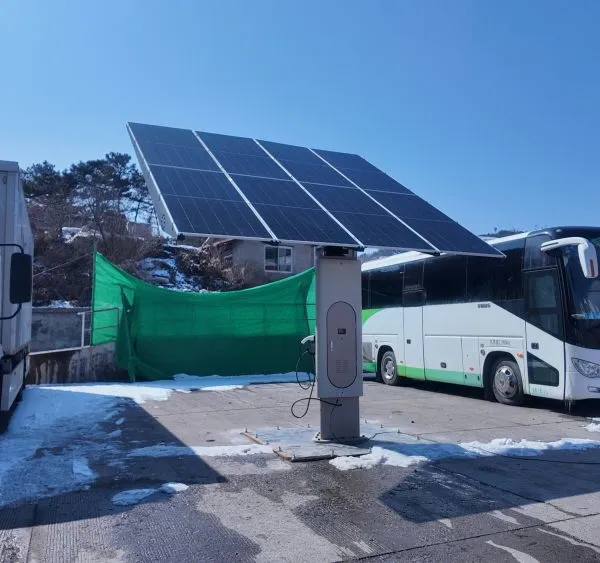

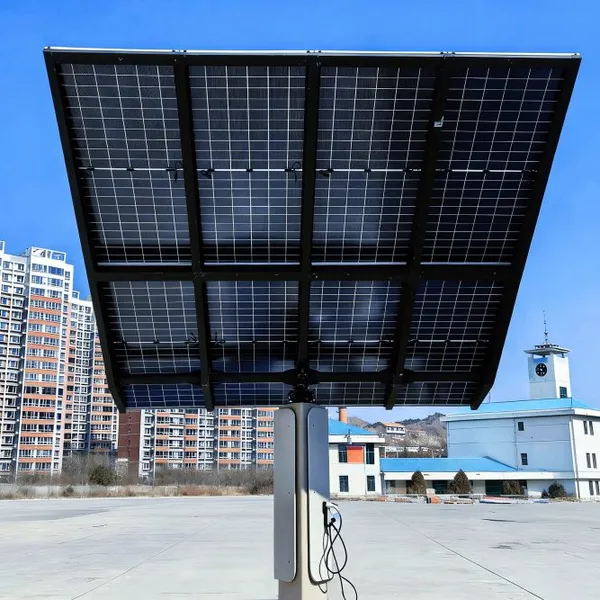

At the heart of the system is a 5.2 kWp HPBC 2.0 bifacial photovoltaic array mounted on a single-pole cantilever structure, covering approximately 23 square meters to accommodate two standard parking spaces. Unlike conventional fixed solar carports, the Eos² employs dual-axis tracking with ≤0.17° precision, following the sun's path throughout the day to capture 30–40% more solar energy than fixed installations. Two industrial-grade SDE7A-57MHD worm-gear slew drives provide reliable, self-locking motion control with 34,000 N·m holding torque, ensuring safe operation even during extreme weather conditions.
The flagship Ultra version features a 10 kWh LiFePO₄ battery system with advanced BMS, delivering 9.2 kWh of usable energy for EV charging, lighting, and critical loads. The integrated 7 kW AC charging pile (upgradeable to 11 kW three-phase) incorporates smart energy management with PV-priority charging, off-peak grid optimization, and load balancing to maximize self-consumption and minimize electricity costs.
The system is built for durability and low maintenance, with a 25-year design life, typhoon-level wind resistance (≥32.7 m/s), seismic rating of Magnitude 8 (0.2g), and ISO 12944 C4 corrosion protection. SmartTrack™ 3.0 algorithm, cloud connectivity, and mobile APP provide real-time monitoring, remote control, and over-the-air updates.

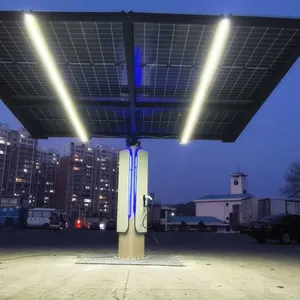

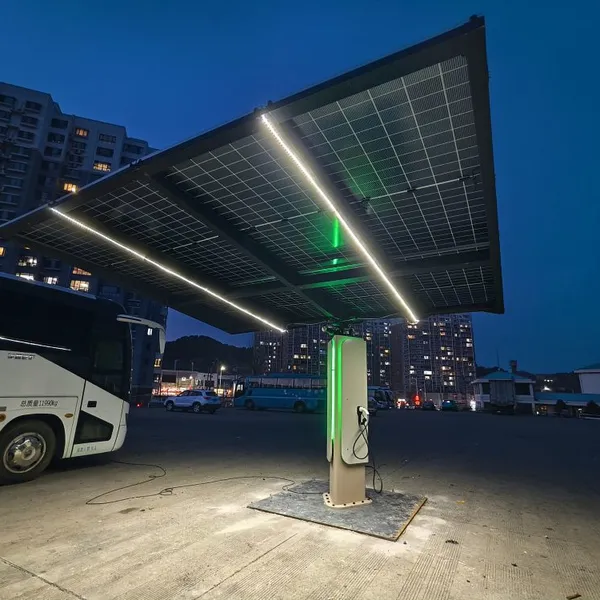

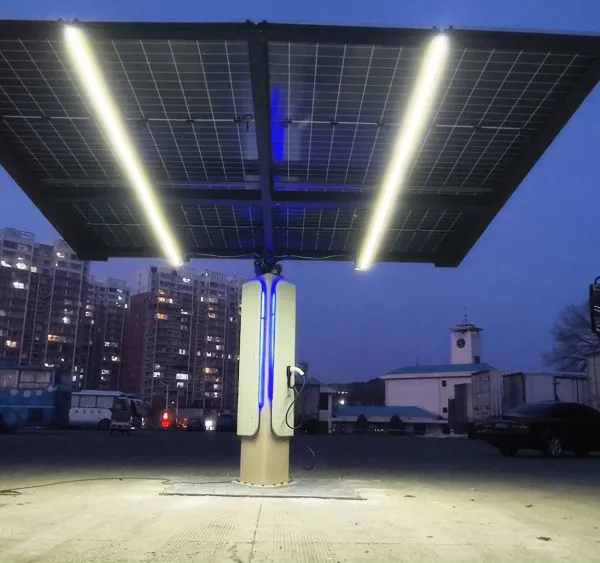

The intelligent LED lighting system with PIR motion sensing, ambient light control, and programmable schedules ensures energy-efficient illumination only when needed.
Whether for residential villas, commercial parking lots, hotels, office campuses, or off-grid applications, the Eos² delivers clean energy, EV charging convenience, weather protection, and aesthetic appeal all in a single, self-sufficient system that reduces carbon emissions by approximately 5.3 tons annually while generating significant long-term financial returns.
Backed by a 5-year system warranty and global technical support, the SolarWing™ sets a new standard for integrated solar infrastructure.
Main Technical Parameters
| Parameter | Value | Remarks |
|---|---|---|
| PV Rated Power | 5,200 Wp | 8 × 650W modules |
| PV Module Type | HPBC 2.0 BC Bifacial Double-Glass | 24.1% efficiency |
| Bifacial Factor | 70 ± 5% | Rear-side gain 10–25% |
| Inverter Rated Power | 5,000 W | Single-phase 220V grid-tied |
| Inverter Max Efficiency | 98.1% | China weighted 96.9% |
| Storage Rated Capacity | 10 kWh (9.0 kWh usable, 90% DOD) | LiFePO₄ – 6,000 cycles |
| Charging Pile Rated Power | 7 kW | Single-phase 32A, upgradeable to 11kW 3-phase |
| Tracking Method | Dual-axis (azimuth + elevation) | Worm gear slew drive |
| Slew Drive Model | SDE7A-57MHD-24RC-1202 × 2 units | Changzhou Hangtuo |
| Azimuth Travel | ±180° (continuous 360°) | Full rotation |
| Elevation Travel | 0° ~ 90° | Horizontal to vertical |
| Slew Drive Rated Torque | 7,500 N·m | Per unit |
| Slew Drive Max Torque | 13,680 N·m | Per unit (short-term) |
| Slew Drive Holding Torque | 34,000 N·m | Self-locking when powered off |
| Tracking Accuracy | ≤ 0.17° | Closed-loop control |
| PV Array Size | 4,800 × 4,800 mm | – |
| Total Height (array horizontal) | 4,600 mm | – |
| Under-canopy Clearance (horizontal) | 2,900 mm | – |
| Shading Area | ≈ 23 m² | 2 parking spaces |
| Parking Spaces | 2 | Standard |
| Total Lighting Power | ≤ 60 W | LED |
| Lighting Control | PIR + ambient light + timer + remote | Full flexibility |
| Design Wind Speed | ≥ 32.7 m/s (Typhoon Level 12) | – |
| Seismic Resistance | Magnitude 8 (0.2g) | – |
| Operating Temperature | -30°C ~ +60°C | – |
| Design Life | 25 years | – |
| Warranty | 5 years | Entire system |
PV Array Layout
| Parameter | Data |
|---|---|
| Array Frame Outer Dimensions | 4,800 × 4,800 mm |
| Module Arrangement | Portrait, 2 rows × 4 columns |
| Array Coverage Area | 4,764 × 4,536 mm |
| Effective Light-Receiving Area | 21.6 m² |
Dual-Axis Installation Configuration
| Item | Azimuth Axis | Elevation Axis |
|---|---|---|
| Drive Object | Array horizontal rotation | Array tilt adjustment |
| Installation Position | Top of column flange, vertical | Between azimuth turntable and array frame, horizontal |
| Travel Range | ±180° (continuous 360°) | 0° ~ 90° |
| Input Flange Fixing | Φ170 flange, 10 × M12 bolts to column top plate | Φ170 flange to azimuth turntable connection frame |
| Output Flange Connection | Φ190 to elevation adapter frame | Φ190 to array frame center beam |
| Cable Feedthrough Use | Motor cable + encoder cable pass through | Motor cable + encoder cable pass through |
| Required Torque for Normal Tracking | 800 ~ 1,200 N·m | 500 ~ 800 N·m |
| Torque Margin (rated/actual) | 6.3 ~ 9.4× | 9.4 ~ 15× |
| Bolt Specification | M12, Grade 10.9, torque 100 N·m | |
Tracking Modes and Intervals
| Mode | Tracking Interval | Application Scenario |
|---|---|---|
| High Efficiency | 60 s | Clear sky, full sun tracking |
| Standard | 120 s | Partly cloudy |
| Energy Saving | 300 s | Overcast or shade mode |
| Fast Response | 30 s | Rapid cloud changes |
| Fixed Angle | No tracking | Manual fixed or special conditions |
Smart Charging Strategies
| Strategy | Description |
|---|---|
| PV Priority | EMS detects PV surplus power, automatically adjusts charging output to follow PV generation ("generate what you charge") |
| Off-Peak Priority | Built-in time-of-use tariff table, charges from grid during low-tariff periods when PV/storage insufficient |
| Storage-to-Vehicle | Battery discharges to charging pile at night, supplying daytime PV power to vehicle |
| Load Management | Monitors total household power, reduces charging power when approaching capacity limit to avoid overload |
PIR Sensor Parameters
| Parameter | Value |
|---|---|
| Detection Method | Passive infrared pyroelectric |
| Detection Angle | 120° |
| Detection Distance | ≤ 5 m |
| Installation Height | 2.9m (under array frame) |
| Protection Rating | IP65 |
| Operating Temperature | -20°C ~ +50°C |
| Delay Range | 30-300 s (programmable) |
Load Design Parameters
| Load Type | Standard Value | Remarks |
|---|---|---|
| Snow Load | ≥ 0.6 kN/m² (customizable 1.0) | – |
| Basic Wind Pressure | 0.7 kN/m² (customizable 1.0) | – |
| Design Wind Speed | ≥ 32.7 m/s (Typhoon Level 12) | – |
| Seismic Resistance | Magnitude 8 (0.2g) | – |
| Dead Load (Array) | ≈ 524 kg | Includes modules + frame + 2 slew drives + adapter frame |
System Operating Modes (All Modes)
| Mode | Trigger Condition | Action | Exit Condition |
|---|---|---|---|
| High Efficiency Generation | Ambient light ≥ 50 W/m² and parking space empty | SmartTrack™ 3.0 dual-axis tracking (60s interval), inverter full power grid output, surplus stored in battery, lighting standby | Vehicle enters, or light |
| Smart Shade | Vehicle detected by ground sensor or PIR | Controller calculates optimal shade angle (15°–45°) within 3s, adjusts array to maximize vehicle coverage (≥95%), inverter continues output (reduced power) | Vehicle leaves, no signal for 30s, resumes tracking |
| Extreme Weather – High Heat (with vehicle) | Ambient temperature ≥ 38°C and vehicle present | Array moves to 10°–15° for maximum shade | Temperature drops or vehicle leaves |
| Extreme Weather – Heavy Rain | Rainfall intensity ≥ 10 mm/h | Array moves to 25°–30° for accelerated drainage | Rain stops |
| Extreme Weather – Heavy Snow | Snow accumulation sensor ≥ 3 cm | Array moves to 45°–60° + low-frequency vibration for snow removal | Snow cleared |
| Extreme Weather – Hail | Weather hail warning | Array moves to 30° protection angle | Warning lifted |
| Extreme Weather – Typhoon/Hurricane | Wind speed ≥ 17 m/s or weather typhoon warning | Array stows flat to 0°–5° within 60s, pin-type mechanical lock engages | Wind speed drops |
| Night Silent | Ambient light | Array stows flat 0°–5°, worm gear self-lock holds, motor powered off, controller low-power standby ( | Next day light ≥ 50 W/m², controller wakes, array turns east |
| Off-Grid Emergency | Grid power failure | Battery supplies critical loads via off-grid inverter, switchover lighting > charging pile (reduced power). PV continues charging battery via MPPT | Grid restored |
| Demo / Display | Manual activation via APP or panel button | Slew drives accelerate to simulate 12-hour sun trajectory, full 360° demonstration. Lighting synchronized light show (gradient, breathing, color changes). Safety sensors active, auto-slowdown/stop if personnel too close | Manual deactivation |
