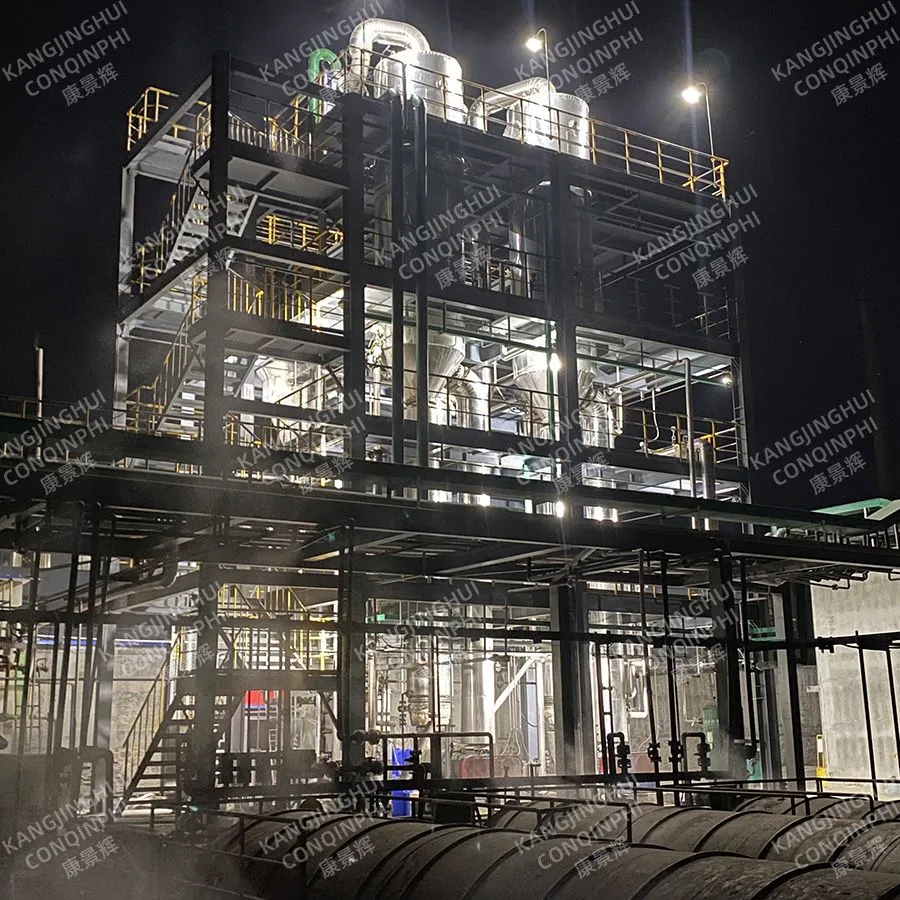

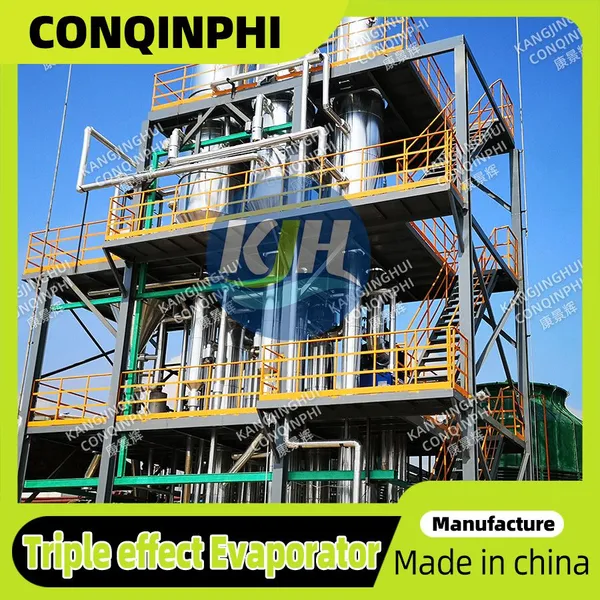

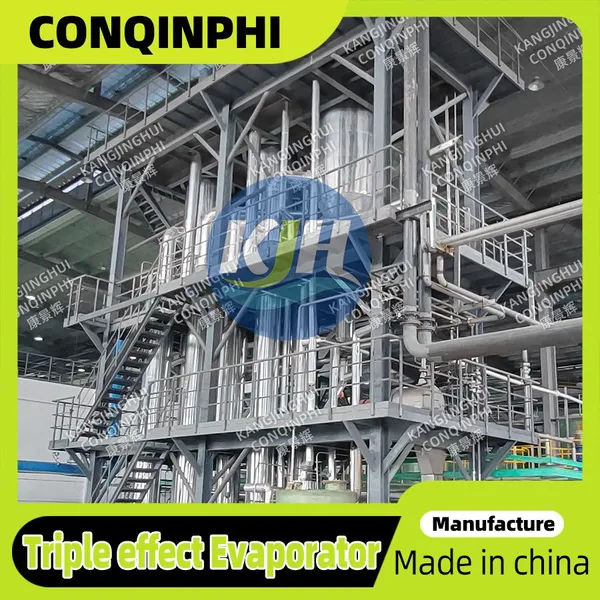

As a leading manufacturer in environmental technology, Qingdao Conqinphi Environmental Technology Group is dedicated to providing advanced solutions for sustainable industrial operations. Our Wastewater Zero Liquid Discharge (ZLD) Four-Effect Crystallization System represents a significant achievement in our mission to help industries minimize their environmental footprint. This system is engineered to transform challenging wastewater streams into reusable water and manageable solid residues, effectively closing the loop on liquid waste. By integrating high-efficiency evaporation with precise crystallization, we offer a reliable pathway for companies to meet stringent discharge regulations, conserve water resources, and enhance their operational sustainability. We understand the complex demands of modern industry, and our system is built to deliver performance, reliability, and long-term value.
The core innovation of our ZLD system lies in its multi-effect evaporation design. Unlike single-effect evaporators, the four-effect configuration recycles latent heat from one stage to power the next, dramatically improving thermal efficiency and reducing operational energy costs. The process begins with pre-concentration, where wastewater is evaporated in a series of effects under progressively lower pressures and temperatures. This staged approach maximizes water recovery as high-purity condensate. The concentrated brine then proceeds to the final crystallizer, where remaining dissolved solids are forced out of solution, forming dry, crystalline salts that can be disposed of or potentially recovered. This complete process ensures that no liquid waste is discharged from the facility.
Key Technical Specifications and Advantages:
- High Thermal Efficiency: The multi-effect design utilizes the vapor from one effect as the heating source for the next, significantly lowering steam consumption per unit of water evaporated compared to single or double-effect systems.
- Robust Construction: Critical components are constructed from premium corrosion-resistant materials such as stainless steel 316L, duplex steels, or titanium, chosen based on the wastewater chemistry to ensure longevity and resistance to scaling and fouling.
- Fully Automated Operation: The system is controlled by a sophisticated Programmable Logic Controller (PLC) with a Human-Machine Interface (HMI). This allows for continuous monitoring of parameters like temperature, pressure, flow, and density, enabling stable, hands-off operation and early fault detection.
- Flexible Design: The system can be customized to handle a wide range of feed capacities, from a few cubic meters per day to several hundred, and is adaptable to various wastewater chemistries from industries like power generation, chemicals, textiles, and mining.
- Comprehensive Water Recovery: Produces distillate water of high quality, suitable for reuse as cooling tower makeup, boiler feed water, or other process applications, reducing freshwater intake.
The following table outlines typical performance parameters for a standard configuration:
| Parameter | Specification / Capability |
|---|---|
| Feed Capacity Range | 5 - 200 m³/day (customizable) |
| Water Recovery Rate | Typically > 95% |
| Final Product | Dry Solids & High-Purity Condensate |
| Heat Source | Low-Pressure Steam or Electric Heater |
| Steam Consumption (approx.) | 0.25 - 0.35 kg steam / kg water evaporated |
| Control System | PLC with Touchscreen HMI, Optional SCADA |
| Main Materials | SS304, SS316L, Duplex Steel, Titanium (optional) |
For businesses, the benefits are substantial. Implementing this ZLD system translates directly into regulatory compliance, eliminating the risk of penalties associated with wastewater discharge. It also provides a tangible economic return by reducing freshwater procurement costs and wastewater disposal fees. Furthermore, it enhances corporate social responsibility profiles by demonstrating a commitment to environmental stewardship. The system's reliability minimizes downtime, and its automated nature reduces labor requirements, contributing to a lower total cost of ownership over its operational life.
Backed by Qingdao Conqinphi's extensive experience since 2015 and a robust operational footprint spanning 10,000-30,000 square meters, our manufacturing capabilities are proven. With an annual export value ranging between US$10 Million and US$50 Million, we have successfully delivered reliable environmental solutions to a diverse global clientele across North America, Southeast Asia, Europe, and other major markets. Our commitment to quality is reinforced by a comprehensive management system framework. Choosing our Four-Effect Crystallization System means partnering with a seasoned manufacturer capable of delivering a tailored, high-performance solution that addresses the critical challenge of industrial wastewater. We invite you to contact us to discuss your specific requirements and explore how we can help you achieve true zero liquid discharge.
Frequently Asked Questions (FAQ)
-
What types of wastewater are suitable for this Four-Effect ZLD system?
This system is highly effective for treating concentrated brine streams, RO rejects, flue gas desulfurization wastewater, landfill leachate, and various industrial process waters from chemical, pharmaceutical, power, and mining sectors. A detailed feed analysis is recommended for customization. -
How does the four-effect design save energy compared to a single-effect evaporator?
In a multi-effect setup, the vapor generated in the first effect becomes the heating source for the second, and this heat reuse continues. This cascading utilization dramatically reduces the amount of fresh steam required, often cutting energy consumption by 60-75% versus a single-effect unit. -
What is the typical quality of the recovered water (condensate)?
The condensate produced is of high purity, with very low TDS (often <50 mg/L). It is typically suitable for reuse as cooling tower makeup, boiler feed water (with possible polishing), or for other non-potable process applications, significantly reducing freshwater demand. -
How are the final solid crystals handled or disposed of?
The system produces dry, free-flowing crystalline salts. Depending on their composition and local regulations, these solids can be sent to a licensed landfill, used in some construction applications (like road salt, if applicable), or, in some cases, processed for potential resource recovery. -
Is the system fully automatic, and what level of operator attention is needed?
Yes, the system is designed for fully automatic, 24/7 operation via a PLC control system. Routine operator tasks are minimal, primarily involving monitoring via the HMI screen, routine maintenance checks, and handling of the collected solid product. -
Can the system handle fluctuations in feed flow or concentration?
The control system is designed to accommodate reasonable variations in feed. For significant or frequent fluctuations, upstream equalization tanks are recommended to provide a steady feed to the evaporator, ensuring stable operation and product quality. -
What are the key maintenance requirements?
Maintenance primarily involves periodic cleaning to prevent scaling (frequency depends on feed water), inspection of pumps and valves, and calibration of instrumentation. The robust material selection minimizes corrosion-related maintenance. -
Do you provide support for system design and installation?
Absolutely. As a manufacturer, we offer comprehensive services from initial feasibility study and process design to manufacturing, installation supervision, commissioning, and operator training, ensuring a smooth project lifecycle.
