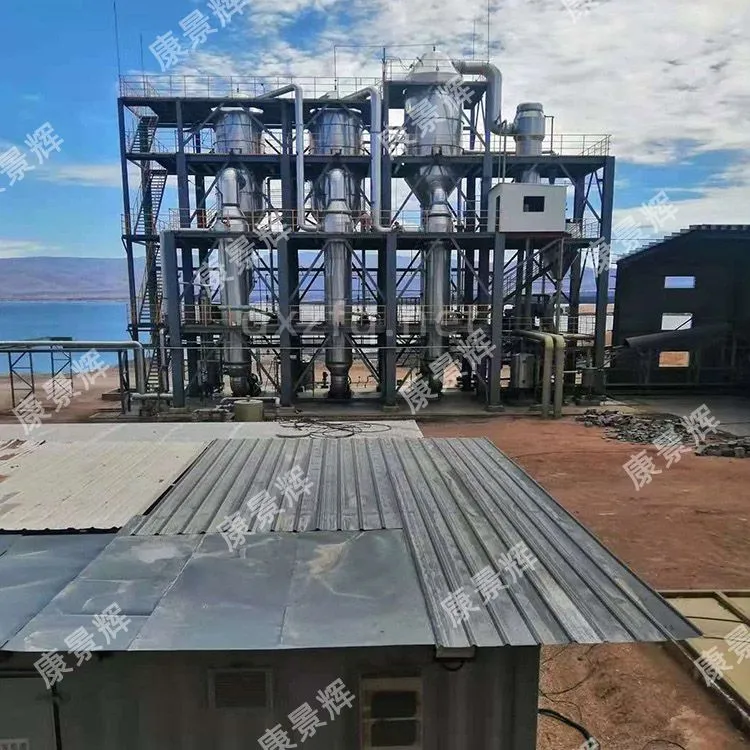

Help CenterFour-Effect MVR Evaporation Crystallization Plant for Salt Recovery
Product Spotlights
Related Products
-
Industrial Four-Effect Evaporation Crystallization System With PLC ControlUS$ 5260 - 95890MOQ: 1 Combo -
Industrial Four-Effect Evaporation Crystallizer Featuring 316L Stainless Steel ConstructionUS$ 7660 - 655000MOQ: 1 Combo
-
Four-Effect Evaporation Crystallizer System for Wastewater Treatment and ZLD ApplicationsUS$ 7660 - 655000MOQ: 1 Combo
-
High-Efficiency Four-Effect Evaporation Crystallizer for Salt Production, 10 Tons/Day CapacityUS$ 7660 - 655000MOQ: 1 Combo
-
304 Stainless Steel Four-Effect Evaporation Crystallizer With PLC Control SystemUS$ 7660 - 655000MOQ: 1 Combo
As a leading manufacturer specializing in advanced environmental solutions, Qingdao Conqinphi Environmental Technology Group is proud to introduce our high-efficiency Four-Effect MVR Evaporation Crystallization Plant. Engineered for superior salt recovery from challenging industrial waste streams, this system represents our commitment to providing sustainable and cost-effective technologies for the global market. With over eight years of expertise since our establishment in 2015, we design and build robust plants that help clients achieve zero liquid discharge (ZLD) goals, reduce operational costs, and recover valuable resources. Our plant leverages cutting-edge Mechanical Vapor Recompression technology in a multi-effect configuration to maximize energy efficiency and ensure reliable, continuous operation for demanding industrial applications.
This plant is meticulously designed to handle high-salinity wastewater, transforming it into reusable water and high-purity crystalline salt. The core value lies in its exceptional energy recovery and operational stability, making it a sound investment for industries facing stringent environmental regulations and rising energy costs. We invite you to explore the detailed features and benefits of this state-of-the-art solution.
Key Features & Technical Advantages:
- Advanced Four-Effect MVR Design: The system incorporates four sequential evaporation effects coupled with Mechanical Vapor Recompression. This design dramatically recycles the latent heat of vaporization, leading to significantly lower steam consumption compared to traditional multi-effect evaporators or single-effect MVR systems.
- High-Efficiency Crystallization: Integrated forced-circulation crystallizers ensure controlled growth of salt crystals, resulting in a uniform particle size distribution that is ideal for easy separation, drying, and packaging, enhancing the commercial value of the recovered salt.
- Superior Energy Savings: By recompressing and reusing vapor from one effect to heat the next, the plant achieves outstanding specific energy consumption, often below 20 kWh per ton of evaporated water, offering substantial reductions in operational expenses.
- Robust Construction & Corrosion Resistance: Critical components in contact with the saline solution are constructed from premium corrosion-resistant materials such as 316L or duplex stainless steel, ensuring long service life and minimal maintenance even with aggressive feed streams.
- Fully Automated Operation: The entire process is managed by a sophisticated Programmable Logic Controller (PLC) with a Human-Machine Interface (HMI). This allows for precise control over parameters like temperature, pressure, level, and density, enabling stable, unattended operation and easy data logging.
- Compact & Modular Design: Our engineering prioritizes a compact footprint and modular construction, which simplifies transportation, installation, and future capacity expansion, providing flexibility for various site conditions.
Technical Specifications Overview:
| Parameter | Specification / Description |
|---|---|
| Evaporation Type | Four-Effect with Mechanical Vapor Recompression (MVR) |
| Typical Application | Salt recovery from wastewater (e.g., RO reject, chemical industry brine) |
| Evaporation Capacity | Customizable (e.g., 5-100 tons of water evaporation per hour) |
| Final Product | High-purity crystalline salt (NaCl, Na2SO4, etc.) & Condensate water |
| Primary Construction Material | 316L / 304 Stainless Steel (other alloys available upon request) |
| Control System | Fully automatic PLC with remote monitoring capability |
| Key Energy Metric | Low specific power consumption (typically 15-25 kWh/ton evaporated water) |
| Design Standards | Complies with ASME, PED, or other international standards as required |
Benefits to Our Clients:
- Cost Reduction: Slashes energy and steam costs by over 70% compared to conventional thermal evaporation, offering a rapid return on investment.
- Environmental Compliance: Enables effective Zero Liquid Discharge (ZLD), helping industries meet strict environmental regulations and reduce their ecological footprint.
- Resource Valorization: Transforms waste brine into a marketable salt product, creating an additional revenue stream and promoting a circular economy.
- Operational Reliability: The robust design and automated controls minimize operator intervention and reduce the risk of downtime, ensuring consistent process output.
- Scalability: The modular design allows the system to be scaled up or adapted to changing production needs with relative ease.
Backed by Qingdao Conqinphi Environmental Technology Group's strong manufacturing capabilities from our 10,000-30,000 square meter facility and supported by a dedicated team of 201-300 professionals, this Four-Effect MVR Plant is built to global standards. Our substantial annual export value of US$10-50 Million and presence in markets across North America, South America, Europe, Asia, Africa, and Oceania testify to the reliability and acceptance of our solutions worldwide. We ship efficiently from the Port of Qingdao. This system embodies our certified quality management practices, ensuring a product that delivers on its promises of efficiency, durability, and performance. Contact us today to discuss how this advanced salt recovery plant can be tailored to solve your specific wastewater challenges and contribute to your operational and sustainability goals.
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of a Four-Effect MVR system over a traditional single or double-effect evaporator?
A: The primary advantage is vastly superior energy efficiency. A four-effect MVR system reuses vapor heat multiple times across four stages, coupled with mechanical recompression. This synergy can reduce specific energy consumption to a fraction of that required by traditional multi-effect evaporators that rely on fresh steam for each effect, leading to major operational cost savings.
Q2: What types of salt can this plant recover?
A: The plant is highly versatile and can be designed to recover various inorganic salts commonly found in industrial wastewater, including sodium chloride (NaCl), sodium sulfate (Na2SO4), potassium salts, and other crystallizable compounds. The specific design of the crystallizer and material selection is adjusted based on the target salt's properties.
Q3: How does the system handle scaling or fouling, which is common in evaporation processes?
A: The design incorporates several anti-scaling strategies. These include precise control of operating parameters (like supersaturation), the use of forced circulation to minimize scaling on heat exchanger surfaces, and the integration of optional automated Clean-In-Place (CIP) systems. Material selection with smooth finishes also helps reduce fouling adhesion.
Q4: Is the recovered water pure enough for reuse?
A: Yes. The condensate produced from the evaporation process is typically of high quality, with very low Total Dissolved Solids (TDS). It can often be reused directly within the plant for cooling, boiler feed water (with minimal polishing), or other non-potable applications, contributing significantly to water conservation.
Q5: What is the typical footprint required for such a plant?
A: While the footprint depends heavily on the designed capacity, our Four-Effect MVR plants are engineered with a compact and modular layout. For a standard medium-capacity unit, the required area is often comparable to or smaller than that of traditional evaporators with similar output, thanks to vertical design and efficient component integration.
Q6: What level of operator skill is required to run this plant?
A: The system is designed for ease of operation. The fully automated PLC control system handles most process adjustments. Operators primarily monitor the system via the user-friendly HMI screen and perform routine checks. We provide comprehensive training during commissioning to ensure your team is confident in operating and maintaining the equipment.
Q7: Can the plant handle variable feed flow or concentration?
A: The control system is capable of handling certain variations in feed conditions. However, for optimal performance and crystal quality, a relatively consistent feed is recommended. We can integrate feed tanks and pre-treatment systems to buffer and stabilize the incoming wastewater stream as part of a complete solution.
Q8: What are the key maintenance requirements?
A: Maintenance is generally minimal due to the robust construction. Key tasks include regular inspection of mechanical seals on pumps and compressors, monitoring of instrumentation, and periodic cleaning via the CIP system. We provide detailed maintenance schedules and spare parts lists to support long-term reliability.
