As an established supplier of industrial automation components since 2011, Rossonix Co., Limited specializes in providing reliable control solutions for global markets. We are pleased to offer the genuine Allen-Bradley 1746-QV Open-Loop Velocity Control Module, a key component for integrating precise motion control into your SLC 500 system. This module is designed to deliver reliable performance for applications requiring straightforward speed regulation without the complexity of closed-loop feedback. Our commitment to quality, backed by our ISO certifications, ensures you receive a component that meets professional standards for integration and operation.

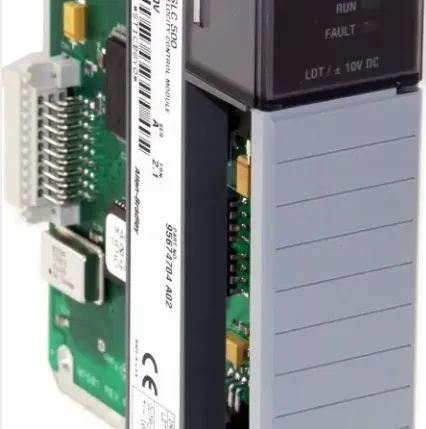

The Allen-Bradley 1746-QV module serves as a dedicated motion controller for the SLC 500 programmable logic controller family. It enables users to command and manage the velocity of motors or drives in an open-loop configuration, making it a cost-effective solution for many industrial automation tasks where absolute positional accuracy is secondary to controlled speed. The module installs directly into the SLC 500 chassis, communicating seamlessly with the processor to execute velocity profiles.
Key Features and Technical Specifications:
Seamless SLC 500 Integration: Designed as a native module for the SLC 500 platform, it uses backplane communication for fast and reliable data exchange with the main processor, simplifying programming and system architecture.
Open-Loop Velocity Command: Provides output signals to control the speed of devices like variable frequency drives (VFDs) or stepper motor controllers. It outputs a command signal (typically analog or pulse train) based on the setpoint from the SLC logic.
Flexible Configuration: Parameters such as acceleration, deceleration, maximum speed, and base speed are configurable through the SLC 500 programming software (RSLogix 500), allowing customization for specific motor and load characteristics.
Diagnostic Capabilities: Offers status feedback to the PLC, indicating module health, active operation, and fault conditions, aiding in troubleshooting and system maintenance.
Compact Form Factor: Occupies a single slot in the SLC 500 chassis, preserving space for other I/O or special function modules.
The module's operation is centered on generating a control output that is proportional to a desired velocity. The SLC processor calculates the velocity setpoint based on the application logic, and the 1746-QV module converts this into a corresponding physical output signal.
| Parameter | Description |
|---|---|
| Compatible Controller Series | Allen-Bradley SLC 500 |
| Control Method | Open-Loop Velocity |
| Typical Output Signal | Analog Voltage (e.g., 0-10VDC) or Pulse Train |
| Configuration Software | RSLogix 500 |
| Chassis Slot Requirement | 1 Slot |
| Primary Applications | Conveyor Speed Control, Fan/Pump Control, Winding, Mixing |
Advantages and Client Benefits:
Simplified Motion Control: Adds velocity control capability to the versatile SLC 500 system without needing a separate, standalone motion controller, reducing hardware costs and complexity.
Reduced Programming Overhead: Control logic and motion profiles are programmed within the familiar RSLogix 500 environment, leveraging existing skills and reducing training time.
Cost-Effective Solution: For applications where full closed-loop servo control is unnecessary, this open-loop module provides a more economical path to automated speed regulation.
Enhanced System Reliability: By keeping control within the PLC chassis, it minimizes external wiring and potential points of failure compared to external signal generators.
Easy Maintenance and Replacement: As a standard Allen-Bradley module, it is widely recognized, and its integration method makes replacement straightforward if required.
Rossonix Co., Limited supports your automation projects with a reliable supply chain. With over a decade of experience and an annual export value in the multi-million dollar range, we have established efficient logistics through major ports like Shenzhen and Hong Kong to serve our diverse markets across North America, Europe, Asia, and Oceania. Our operations are guided by ISO 9001 and ISO 9000 quality management principles, underscoring our commitment to consistent product quality and customer satisfaction. When you source the Allen-Bradley 1746-QV module from us, you are not just buying a component; you are gaining a partner dedicated to supporting your industrial control needs with genuine products and professional service. Contact us today to discuss how this module can optimize your motion control application.
Frequently Asked Questions (FAQ):
Q1: What is the main difference between open-loop and closed-loop control?
A1: Open-loop control, as used by the 1746-QV, sends a command signal (like a speed reference) to a motor or drive without verifying the actual resulting speed or position. Closed-loop control uses feedback sensors (encoders) to constantly monitor and correct the output to match the command precisely. Open-loop is simpler and more cost-effective for applications where precise following is not critical.
Q2: Can the 1746-QV module control a servo motor directly?
A2: Typically, no. The 1746-QV is designed for open-loop velocity control and usually provides an analog speed reference or pulse signal. Servo motors generally require a dedicated servo drive that accepts such a reference signal. The module commands the drive, which in turn controls the servo motor.
Q3: Which SLC 500 processors are compatible with this module?
A3: The 1746-QV module is compatible with the entire SLC 500 fixed and modular controller family. It communicates over the standard backplane. Compatibility should be confirmed in the specific processor's and module's user manuals for very early or late-series models, but general compatibility is broad.
Q4: What type of output signal does it provide?
A4: The specific output type (e.g., analog voltage, analog current, pulse train) is defined by the module's configuration and wiring. Common configurations include a 0-10 VDC analog output for speed reference to a variable frequency drive (VFD). The exact specifications should be checked in the product datasheet.
Q5: Is special programming software required?
A5: Yes, configuration of the 1746-QV module is done within the Allen-Bradley RSLogix 500 programming software for the SLC 500 platform. The module appears as a configurable slot in the I/O configuration tree.
Q6: Can it be used for positioning applications?
A6: The 1746-QV is specifically a velocity control module. For precise positioning (moving to an exact point), a closed-loop module like a servo controller or a dedicated positioning module for the SLC 500 would be more appropriate. The QV can manage speed during a move but does not provide positional feedback.
Q7: What are typical industrial applications for this module?
A7: Common uses include controlling the speed of conveyor belts, regulating fans and pumps for process control, managing tension in winding/unwinding operations, and controlling mixers or agitators at variable speeds.
Q8: Do you provide technical documentation for the module?
A8: Yes, upon request, we can provide relevant datasheets, user manuals, or configuration guides for the Allen-Bradley 1746-QV module to assist with your system integration and planning.
