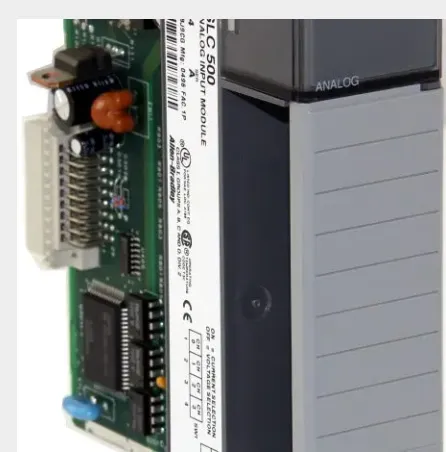

Help CenterAllen-Bradley 1746-NI4 is a SLC 500 Analog I/O Module
Product Spotlights
Related Products
-
Allen-Bradley 1746-NT4 is a SLC 500 Thermocouple/mV Analog Input ModuleNegotiableMOQ: 1 Piece -
Allen-Bradley 1746-NR4 is a SLC 500 RTD/Resistance Analog Input ModuleNegotiableMOQ: 1 Piece
-
1746-OA16 SLC500 Digital Output Module 85-265 Volts ACNegotiableMOQ: 1 Piece
-
Allen-Bradley 1746-OB8 is a SLC 500 Digital DC Output ModuleNegotiableMOQ: 1 Piece
-
Allen-Bradley 1746-IV8 is a SLC 500 Digital DC Input ModuleNegotiableMOQ: 1 Piece
As Rossonix Co., Limited, a trusted supplier in the industrial automation sector since 2011, we are pleased to offer a reliable and high-precision solution for your process control needs. We understand the critical importance of accurate data acquisition in manufacturing and processing environments. The Allen-Bradley 1746-NI4 SLC 500 Analog I/O Module represents a cornerstone of robust industrial automation, designed to deliver dependable performance for monitoring critical parameters like temperature, pressure, flow, and level. With our extensive experience serving global markets from North America to Europe and Asia, we provide not just components, but vital links in your production chain, ensuring your systems operate with the precision and reliability required for optimal efficiency.
The 1746-NI4 module is engineered to seamlessly integrate into the proven SLC 500 programmable controller platform, offering a versatile and cost-effective method for connecting analog sensors and transmitters. Its primary function is to convert real-world analog signals into precise digital values that the SLC processor can understand and act upon, forming the essential sensory input for closed-loop control and data logging systems.
Key Features and Technical Advantages:
High-Resolution Conversion: Features 16-bit analog-to-digital conversion, providing exceptional measurement resolution and accuracy for sensitive process variables. This high fidelity ensures you capture even the smallest signal changes.
Four Configurable Channels: Each of the four input channels can be independently configured via software for either voltage (e.g., 0-10V, +/-10V) or current (e.g., 4-20mA, 0-20mA) input signals. This flexibility allows a single module to interface with a wide variety of sensors.
Superior Noise Immunity: Incorporates channel-to-channel and channel-to-logic isolation. This design minimizes the risk of ground loops and protects the sensitive controller backplane from electrical noise and transients commonly found in industrial settings, leading to more stable and reliable readings.
Direct SLC 500 Backplane Integration: Draws its 5V DC power directly from the SLC 500 chassis backplane, eliminating the need for separate power supplies and simplifying cabinet design and wiring.
Robust Diagnostics: Provides comprehensive status indicators and can be programmed for out-of-range detection, helping maintenance personnel quickly identify sensor failures, wiring issues, or process anomalies.
Compact Form Factor: Occupies a single slot in the SLC 500 rack, preserving valuable chassis space for other critical I/O or communication modules.
Technical Specifications at a Glance:
| Parameter | Specification |
|---|---|
| Product Series | SLC 500 |
| Module Type | Analog Input |
| Number of Channels | 4 |
| Input Types Supported | Voltage, Current (Software Selectable per Channel) |
| Voltage Ranges (Typical) | 0 to 10V DC, +/-10V DC |
| Current Ranges (Typical) | 4 to 20mA, 0 to 20mA |
| Resolution | 16-bit |
| Isolation | Channel-to-Channel, Channel-to-Bus |
| Backplane Current Draw (5V DC) | Typically 80 mA |
| Compatibility | SLC 5/01, SLC 5/02, SLC 5/03, SLC 5/04, SLC 5/05 Processors |
Benefits for Your Operation:
Enhanced Process Control: Accurate analog input is fundamental for precise PID loop control, leading to improved product quality, reduced waste, and consistent output.
Reduced Downtime: The module's robust design and diagnostic capabilities help in predictive maintenance and faster troubleshooting, minimizing unplanned production stops.
Simplified Inventory: The ability to handle both voltage and current signals with one module type reduces the variety of spares you need to stock.
Protects Your Investment: By extending the capabilities of the widely deployed SLC 500 platform, this module allows you to upgrade analog monitoring without a complete system overhaul.
With over a decade of experience and a track record of exporting millions in automation components worldwide, Rossonix Co., Limited is your reliable partner for industrial solutions. Our operations are backed by ISO9001 and ISO9000 quality management certifications, underscoring our commitment to consistent product quality and service reliability. We strategically ship from major ports including Shenzhen, Hong Kong, and Europe to ensure timely delivery to your facility, whether in North America, Western Europe, or any of our other primary markets. The Allen-Bradley 1746-NI4 module embodies the durability and precision that our global clientele depends on. For a critical component that forms the reliable sensory foundation of your control system, choose a supplier with proven global reach and a commitment to quality. Contact us today to discuss your requirements, check availability, or request a competitive quotation.
Frequently Asked Questions (FAQ):
Q1: What types of sensors can I connect to the 1746-NI4 module?
A1: This module is highly versatile and can connect to a wide array of analog sensors that output standard voltage or current signals. Common examples include temperature transmitters (RTD/thermocouple transmitters), pressure transducers, level sensors, flow meters, and analog potentiometers.
Q2: How do I configure the input type (voltage or current) for each channel?
A2: Configuration is performed entirely through the RSLogix 500 programming software. You do not need to set physical switches on the module itself. Within the I/O configuration for your SLC processor, you can select the desired input range (e.g., 4-20mA, 0-10V) for each individual channel of the 1746-NI4.
Q3: Is the 1746-NI4 module compatible with newer ControlLogix or CompactLogix platforms?
A3: No, the 1746-NI4 is specifically designed for the SLC 500 platform. For ControlLogix or CompactLogix systems, you would need to use the 1756 or 1769 series analog input modules, respectively. However, legacy SLC systems can often communicate with newer controllers via network gateways if needed.
Q4: What is the benefit of the 16-bit resolution?
A4: A 16-bit resolution provides 65,536 discrete digital values over the selected analog range. This high resolution allows for very fine measurement discrimination. For example, on a 0-10V scale, the module can theoretically detect changes as small as approximately 0.15 millivolts, leading to more precise monitoring and control.
Q5: Does the module require an external power supply?
A5: No, for its internal logic and conversion circuitry, the 1746-NI4 draws the required 5V DC power directly from the SLC 500 chassis backplane. The connected field sensors, however, may require their own loop or external power, depending on the sensor type (e.g., 2-wire vs. 4-wire).
Q6: Can this module be used in hazardous locations?
A6: The 1746-NI4 itself is typically rated for general industrial use. Installation in hazardous locations (Class I, Div 2, etc.) would require the module to be mounted inside an appropriately rated and certified enclosure that provides the necessary protection. Always consult local electrical codes and safety standards.
Q7: What is the typical delivery lead time for this item?
A7: Lead times can vary based on stock availability and destination. As a company with established supply chains and multiple shipment ports (Shenzhen, Hong Kong, Europe), Rossonix Co., Limited strives to offer competitive lead times. Please contact our sales team with your location for the most accurate delivery estimate.
Q8: Do you provide technical support for integrating this module?
A8: While we provide product specifications and general application guidance, detailed programming and system integration support for Rockwell Automation/Allen-Bradley platforms is typically provided by certified system integrators or the end-user's engineering team. We can recommend basic wiring diagrams and configuration steps.
