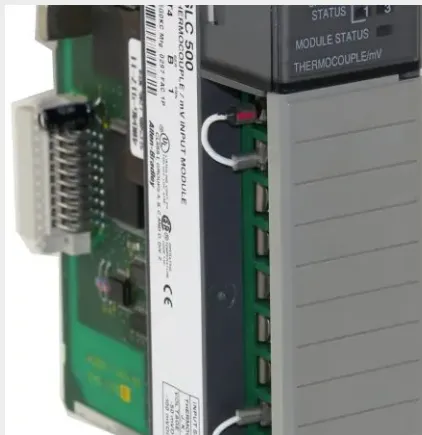

Help CenterAllen-Bradley 1746-NT4 is a SLC 500 Thermocouple/mV Analog Input Module
Product Spotlights
Related Products
-
Allen-Bradley 1746-NR4 is a SLC 500 RTD/Resistance Analog Input ModuleNegotiableMOQ: 1 Piece -
1746-OA16 SLC500 Digital Output Module 85-265 Volts ACNegotiableMOQ: 1 Piece
-
Allen-Bradley 1746-OB8 is a SLC 500 Digital DC Output ModuleNegotiableMOQ: 1 Piece
-
Allen-Bradley 1746-IV8 is a SLC 500 Digital DC Input ModuleNegotiableMOQ: 1 Piece
-
Allen-Bradley 1746-IB32 is a SLC 500 Digital DC Input ModuleNegotiableMOQ: 1 Piece
At Rossonix Co., Limited, we specialize in providing reliable industrial automation components to a global clientele. Established in 2011 and backed by ISO9001 quality management certification, we understand the critical need for precision and durability in process control. The Allen-Bradley 1746-NT4 SLC 500 Thermocouple/mV Analog Input Module is a cornerstone for accurate temperature measurement, designed to seamlessly integrate into your existing SLC 500 systems, ensuring stable and trustworthy data acquisition for your vital industrial processes.
This module is engineered to deliver high-performance signal conversion for temperature monitoring applications. Its robust design and advanced features make it a preferred choice for engineers seeking reliable analog input solutions.
High-Precision Signal Conversion: The 1746-NT4 module accurately converts low-level thermocouple or millivolt signals from sensors into digital values readable by the SLC 500 processor, enabling precise temperature monitoring and control.
Four Isolated Input Channels: Featuring four independent channels, this module allows for simultaneous monitoring of multiple temperature points. Each channel is isolated from the others and from the controller backplane, preventing ground loops and electrical noise interference, which is crucial for signal integrity in harsh industrial environments.
Wide Sensor Compatibility: It supports a variety of thermocouple types (such as J, K, T, E, R, S, B, N) and millivolt inputs, offering flexibility for different application requirements without needing multiple module types.
Built-in Cold Junction Compensation (CJC): The module includes automatic CJC, which corrects for errors caused by the temperature at the terminal block where the thermocouple wires connect, ensuring measurement accuracy is maintained.
User-Configurable Settings: Parameters like input type, data format, and filter frequency can be configured through the controller's programming software, allowing for customization based on specific process needs and response time requirements.
Diagnostic Capabilities: It provides diagnostic information to help troubleshoot issues such as open circuits, out-of-range signals, or module faults, facilitating easier maintenance and reducing downtime.
The module's technical specifications are detailed below:
| Specification | Detail |
| Product Model | 1746-NT4 |
| Compatible System | SLC 500 Modular Controller |
| Input Channels | 4 (Isolated) |
| Input Signal Types | Thermocouple (J,K,T,E,R,S,B,N) / mV (±50mV, ±100mV) |
| Resolution | 16-bit |
| Update Time per Channel | Configurable (e.g., 60ms, 240ms) |
| Isolation | Channel-to-Channel, Channel-to-Backplane |
| Power Consumption | Available upon request |
Benefits for Your Operation:
Enhanced Process Reliability: Accurate temperature data leads to better control decisions, improving product quality and process consistency.
Reduced System Complexity: A single module handles multiple sensor types, simplifying spare parts inventory and system design.
Improved Maintenance Efficiency: Built-in diagnostics help quickly identify sensor or wiring issues, minimizing troubleshooting time.
Long-Term Cost-Effectiveness: The robust Allen-Bradley design and isolation features contribute to a long service life, reducing replacement frequency and total cost of ownership.
Rossonix Co., Limited brings over a decade of industry experience and a commitment to quality, as evidenced by our ISO9001 certification. With an annual export value ranging between US$5 Million and US$10 Million and a presence in key markets across North America, Europe, Asia, and beyond, we have established a reliable supply chain and deep understanding of global industrial needs. Our offices in Shenzhen and Hong Kong, along with overseas support, ensure efficient logistics and responsive service. Choosing the Allen-Bradley 1746-NT4 through us means acquiring a proven, high-performance component backed by a trustworthy partner dedicated to supporting your automation success. Contact us today to discuss your requirements or to place an order for this essential temperature input solution.
Frequently Asked Questions (FAQ)
Q1: What is the main function of the Allen-Bradley 1746-NT4 module?
A1: The 1746-NT4 is an analog input module designed for the SLC 500 platform. Its primary function is to interface thermocouple and millivolt (mV) sensors with the controller, converting their analog signals into precise digital data for temperature monitoring and process control.
Q2: How many temperature sensors can I connect to one 1746-NT4 module?
A2: This module provides four isolated input channels. Therefore, you can connect up to four individual thermocouple or mV sensors to a single module, allowing for multi-point temperature monitoring.
Q3: Is special wiring required for thermocouples when using this module?
A3: It is recommended to use the correct type of thermocouple extension wire that matches your sensor (e.g., Type J wire for a Type J thermocouple) to ensure measurement accuracy. The module's terminal block is designed for easy connection of these wires.
Q4: Does the module compensate for ambient temperature at its connection points?
A4: Yes, the 1746-NT4 features built-in Cold Junction Compensation (CJC). This function automatically measures and corrects for the temperature at the module's terminal block, which is vital for accurate thermocouple readings.
Q5: Can I use this module with an older SLC 5/01, 5/02, or 5/03 processor?
A5: Yes, the 1746-NT4 is compatible with all SLC 500 family processors, including the SLC 5/01, 5/02, and 5/03, as well as later models. It installs directly into any slot in the SLC 500 chassis.
Q6: How do I configure the input type for each channel (e.g., J-type or K-type thermocouple)?
A6: Configuration is performed through the RSLogix 500 or similar programming software for the SLC 500 controller. Within the I/O configuration for the module, you can select the desired input type and other parameters for each channel.
Q7: What should I do if the module indicates a fault or an open circuit?
A7: The module provides status bits that can be monitored in the controller program. An open circuit indication typically means a broken thermocouple wire, a loose connection, or a faulty sensor. Checking the sensor and wiring continuity is the first troubleshooting step.
Q8: Are spare parts or replacement terminal blocks available for this module?
A8: Replacement components like terminal blocks are often available. Please inquire with our sales team for the availability of specific spare parts for the 1746-NT4 module.
