Help CenterCamera Module: 5-megapixel 240x Zoom PTZ Network Cloud Camera JH35-W-240-PT
Product Spotlights
Related Products
-
Camera Module HD Camera With 12-megapixel 300x Zoom, High-definition Smart Integrated Network Camera ChipUS$ 120 - 150MOQ: 50 Units -
4K 8-megapixel 240x Zoom Wireless Network Camera CAMHI ZOOM IP CAMERAUS$ 120 - 150MOQ: 50 Units
-
5MP 25fps 40x Zoom Wiper Surveillance Camera; Security Camera; Network CameraUS$ 200 - 220MOQ: 100 Units
-
5 Million Pixels, 240x Zoom, Facial Recognition, License Plate Recognition, Wireless POE Integrated Zoom CameraUS$ 200 - 220MOQ: 100 Units
-
5x Optical Zoom Network Camera Module Mini Optical Zoom Camera Optical Zoom, MacroUS$ 43 - 45MOQ: 50 Units
5MP IP Camera adopts highly integrated SOC GOKE7205V300 processor, extremely low power consumption and strong stability; supports H.265 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard ONVIF Protocol, support RTSP, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;
Support Chinese, English, Francais, Deutsch ,Italiano ,Espanol ,Korean,Polski,Russia
High sensitivity, high signal-to-noise CMOS image sensor
Using the GOKE7205V300 processing chip+SONY IMX335 CMOS
The highest pixel is up to 5MP, and the highest resolution is up to 5MP (2560*1920)
H.265 compression algorithm, effectively reducing network bandwidth, supporting dual stream, supporting mobile phone monitoring
Support 2.4G wifi wireless
Support humanoid recognition to trigger SD card recording, SD card capture, voice alarm, message push, email alarm and other functions.
Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, etc.
Support ONVIF protocol
Support for manufacturer dynamic domain name and third-party dynamic domain name resolution
Support alarm picture sending E-Mail
Support alarm picture upload FTP server
Support alarm sound outputs
Support timing capture pictures to FTP server
Support static IP, also support dynamic IP (DHCP)
Support P2P plug and play
Support IE, Google, Firefox browser
Supports up to 6 users to browse at the same time (3 users per stream)
Provide motion detection (area, sensitivity can be set) alarm function
Support UPNP automatic port mapping
Support Micro SD card function, support up to 128G Micro SD card
Support PC client to download SD card video
Support mobile phone download and playback SD card recording

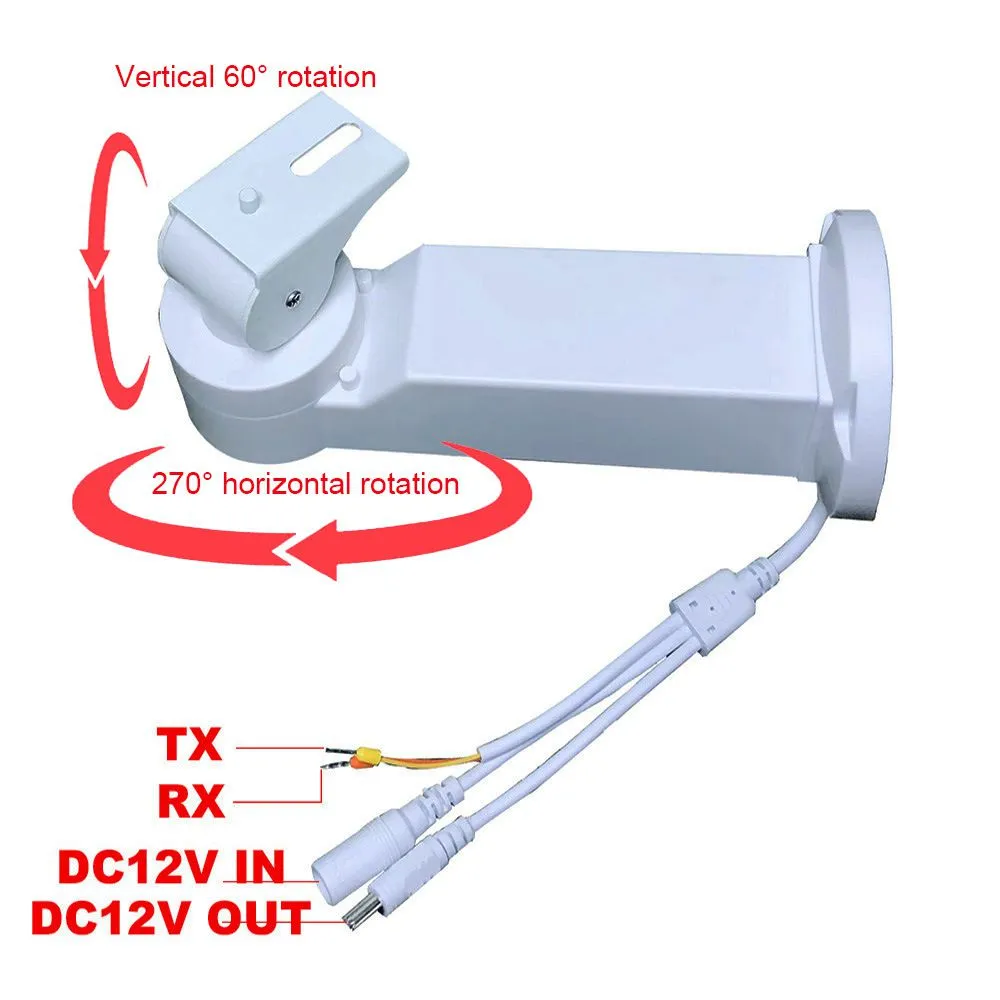

The bracket support 270° horizontal rotation and Vertical 60° rotation (Pelco-d ,9600,1)
Model:JH35-W-20-240-PT |
|
Operating system |
embedded LINUX |
Main processor |
GOKE7205V300 |
Image Sensor |
SONY IMX335 1/2.8" Ultra Low Illumination CMOS Sensor |
Day and night mode |
Support |
Compression standard |
|
Compression standard |
Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
Audio compression algorithm |
G.711AG.711U/AAC(optional) |
Compressed transport stream |
32Kbps-6144bps, can be customized, default 1536Kbps |
Images |
|
Maximum image size |
5MP (2560*1920) |
Sharpness |
First stream:5MP (2560*1920) |
D1 (704*576 or 640x480), QQ720P (800x448 or 640x352) can be set |
|
Video frame rate |
20fps (50HZ),20fps (60HZ) |
Character overlay |
Support OSD name,time and date information overlay |
Image settings |
Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable |
Network Function |
|
Storage function |
Supports up to 128G Micro SD card storage and supports scheduled video storage |
Motion detection |
Four independent detection areas can be set (sensitivity 1-100 can be set) |
Alarm linkage |
alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server; |
Network Protocol |
Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP |
Access Protocol |
Supports ONVIF 2.4 Protocol |
Interface |
|
Audio input |
support External MIC |
Audio output |
External speaker |
LAN interface |
RJ45 10Base-T/100Base-TX, and 2.4G WIFI/802.11b/g/n wireless connection |
IR night distance |
support |
LEN |
240X ZOOM (30x zoom,3.3-97mm and 8x digital zoom) |
waterproof level |
indoor |
WIFI |
2.4G WIFI/802.11b/g/n wireless |
Working temperature |
-40 to +85 Celsius |
power |
DC12V 2A |
Working Humidity |
-10-95% |

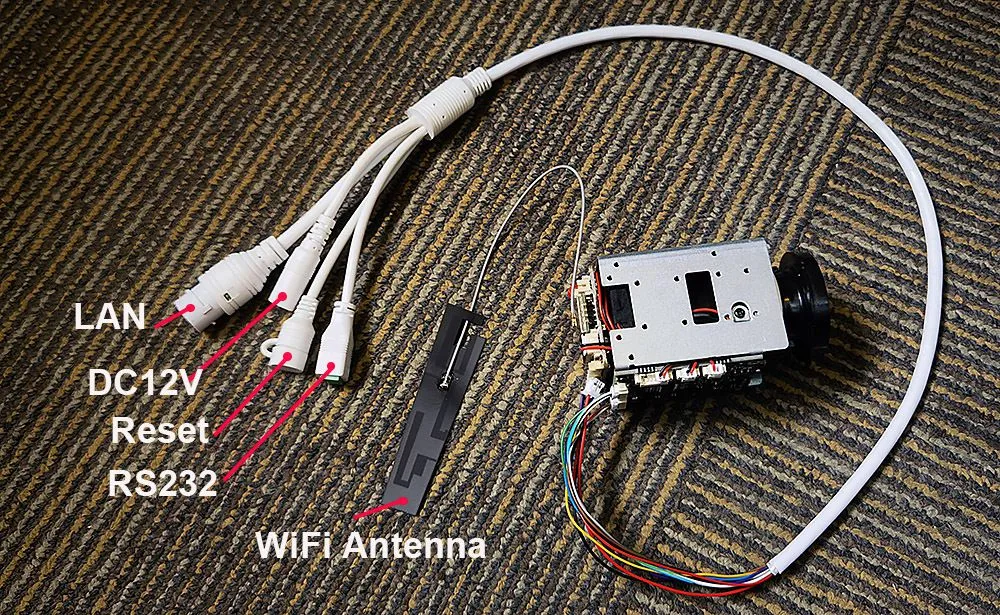

Packing List
1X 240x zoom wireless IP CAMERA
1X P/T bracket
1x cable
1X wifi antenna
1X Manual
1X DC12V 1A power adapter
