Support 15 meters wireless hotspot connection
APP:CamHi /Camhipro
Support 15 meters wireless hotspot connection
APP:CamHi /Camhipro
4K 8MP IP Camera adopts highly integrated MSTAR338Q+IMX415 processor, extremely low power consumption and strong stability; supports H.265 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard onvif protocol, and support RTSP, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;
Support alarm image and video upload to FTP server
Support Chinese, English, Francais, Deutsch ,Italiano ,Espanol ,Korean,Polski,Russia
High sensitivity, high signal-to-noise CMOS image sensor
Using the MSTAR338Q processing chip+SONY IMX415 CMOS
The highest pixel is up to 8MP, and the highest resolution is up to 8MP (3840*2160)
240X ZOOM(30X optical zoom and 8x digital zoom
H.265 compression algorithm, effectively reducing network bandwidth, supporting dual stream, supporting mobile phone monitoring
Support humanoid recognition to trigger SD card recording, SD card capture, voice alarm, message push, email alarm and other functions.
Support humanoid recognition,Support car shape recognition recording, and alarm
Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP,etc.
Support ONVIF protocol,
Support for manufacturer dynamic domain name and third-party dynamic domain name resolution
Support alarm picture sending E-Mail
Support alarm picture and video upload to FTP server
Support alarm sound outputs
Support timing capture pictures to FTP server
Support static IP, also support dynamic IP (DHCP)
Support P2P plug and play
Support IE, Google, Firefox browser
Supports up to 6 users to browse at the same time (3 users per stream)
Provide motion detection (area, sensitivity can be set) alarm function
Support UPNP automatic port mapping
Support Micro SD card function, support up to 256GB Micro SD card
Support PC client to download SD card video
Support automatic ZOOM tracking mode for corridors
How to Turn ON/OFF auto ZOOM Tracking
Enter 249 in the preset input field, then click the "Settings" button to Turn on the corridor tracking mode
Enter 249 in the preset input field, then click the "Transfer" button to Turn off the corridor tracking mode
249+Set for Turn on ZOOM Tracking
249+Call for Turn off ZOOM Tracking
New camera time continuous battery. Even if the camera loses power, as long as the power is reconnected, the camera's time will still be at the current correct time.
JH45-S-W-240X |
|
Operating system |
embedded LINUX |
Main processor |
MSTAR338Q |
Image Sensor |
SONY IMX415 1/2.8" Ultra Low Illumination CMOS Sensor |
Day and night mode |
Support |
Compression standard |
|
Compression standard |
Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
Audio compression algorithm |
G.726/G.711 |
Compressed transport stream |
32Kbps-6144bps, can be customized, default 1536Kbps |
Images |
|
Maximum image size |
8MP (3840*2160) |
Sharpness |
First stream:4K 8MP (3840*2160) 20fps,wifi 15fps,4MP,2MP 25fps |
Second stream：800*448,640*352) can be set |
|
Video frame rate |
20fps (50HZ),20fps (60HZ) |
Character overlay |
Support OSD name,time and date information overlay |
Image settings |
Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable |
Network Function |
|
Storage function |
Supports up to 256G Micro SD card storage and supports scheduled video storage |
Motion detection |
Four independent detection areas can be set (sensitivity 1-100 can be set) |
Alarm linkage |
alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server; |
Network Protocol |
Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP |
Access Protocol |
Supports ONVIF 2.4 Protocol |
Interface |
|
Audio input |
support External MIC |
Audio output |
External speaker |
LAN interface |
RJ45 10Base-T/100Base-TX, and 2.4G /5G WIFI/802.11b/g/n wireless connection |
IR night distance |
support |
LEN |
240X ZOOM (30X Optical ZOOM (3.3-97mm ) and 8X digital zoom) |
waterproof level |
indoor |
WIFI |
2.4G /5G WIFI/802.11b/g/n wireless |
Working temperature |
-40 to +85 Celsius |
power |
DC12V 1A |
Working Humidity |
-10-95% |
Remarks: This movement supports VISCA protocol (connected to Speed dome PTZ camera) and PTZ
serial port protocol (connected to PTZ). The default is VISCA protocol.

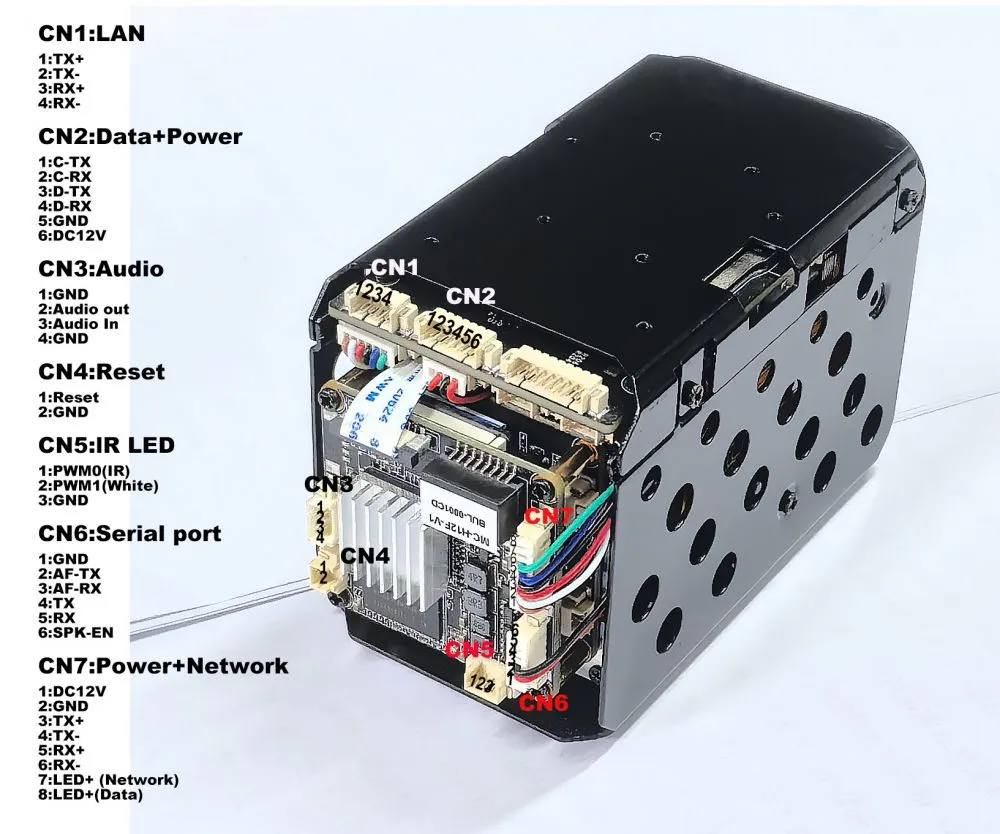

Interface definition：
|
CN1
|
1 |
TXD1 |
P/T to RXD |
VISICA9600 |
|
2 |
RXD1 |
P/T to TXD |
|||
3 |
DOME UART2-TX |
P/T RS232 serial port , Pelco-D,Baud rate:9600 |
|||
4 |
DOME UART2-RX |
Connect IR LED board ICR port for D/N |
|||
5 |
GND |
||||
6 |
DC12V |
||||
|
CN2
|
1 |
TX+ |
J1
|
1 |
APP D/N switch |
2 |
TX- |
||||
3 |
RX+ |
2 |
Infrared: Connect to the IPC infrared light interface |
||
4 |
RX- |
Command and Instructions:
1.The lens curve learning command: 253 + set + 252 +call
(The distance between the camera and the object must be greater than 50meters)
2.Minimum focus distance setting:Set command: 251 + set + X + call.
When X = 1, the minimum focusing distance is about 1.5 meters;
when X = 2, the minimum focusing distance is about 3 meters;
when X = 3, the minimum focusing distance is about 6 meters;
when X = 4, the focusing distance is infinity.Default X = 2
3. Focus mode setting:Set command: 250 + set + X + call.
When X = 1, the focus will only be triggered when the zoom movement is triggered;
when X = 2, any change in the pan, tilt, left, right, and zoom modes will trigger the movement to focus;
when X = 3, the automatic focusing mode, In any case, the movement will automatically focus. Default X = 2
4. Modification Digital ZOOM:
If ip address of camera is 192.168.188, Please open the browser and enter this address:
http://192.168.1.88/cgi-bin/hi3510/param.cgi?cmd=setmaxezoom&-maxezoom=10
10X Digital zoom when maxezoom=10; digital zoom close when maxezoom=1
Maxezoom value can be equal to any value from 1-10, representing the multiplier digital zoom of the number.
After the command is executed, please power off andrestart the camera. digital zoom to take effect
5.ZOOM OSD display and not display: 225 + call + X + call,
when X = 1, the ZOOM timesdisplay is on;
when X = 2, the zoom timesdisplay is off, the default X =1
6.Modify the control protocol method (you need to restart the movement to take effect after modification):
254+set+1+set: VISCA protocol (default) (PELCO-D, baud rate: 9600, address code: 1/255)
254+set+2+set: PTZ serial port protocol (PELCO-D, baud rate: 9600, address: 1
7. The movement supports the standard Visca protocol with a baud rate of 9600.
The address codes of the dome camera is 1
Humanoid recognition algorithm based on deep learning.Based on Huawei's deep learning humanoid recognition algorithm V2.0,
itprovides accurate humanoid recognition, providing continuous humanoid coordinates for the camera and smooth tracking of the camera.
