As a leading manufacturer in precision mechanical components, Henan San Kuang Machinery Technology brings over a decade of expertise to the production of high-quality ground gear shafts. Our precision ground gear shafts with DIN 5480 spline standards represent the culmination of advanced manufacturing techniques and rigorous quality control processes. These components are engineered to deliver exceptional performance in demanding industrial applications where reliability and precision are paramount.
With our extensive manufacturing facilities spanning 10,000-30,000 square meters and a dedicated team of 51-100 skilled professionals, we have established ourselves as a trusted supplier to global markets. Our commitment to quality is demonstrated through multiple certifications including ISO 9001, ISO 14000, and TS 16969, ensuring that every gear shaft meets the highest industry standards.
Key Technical Specifications:
| Feature | Specification |
| Spline Standard | DIN 5480 compliant |
| Material Options | Alloy steel, carbon steel, stainless steel |
| Surface Finish | Ground to Ra 0.4-1.6 μm |
| Hardness Range | HRC 28-62 (depending on treatment) |
| Dimensional Tolerance | IT6-IT8 grade |
| Straightness | ≤ 0.05mm per meter |
Manufacturing Excellence: Our precision ground gear shafts undergo meticulous production processes that include:

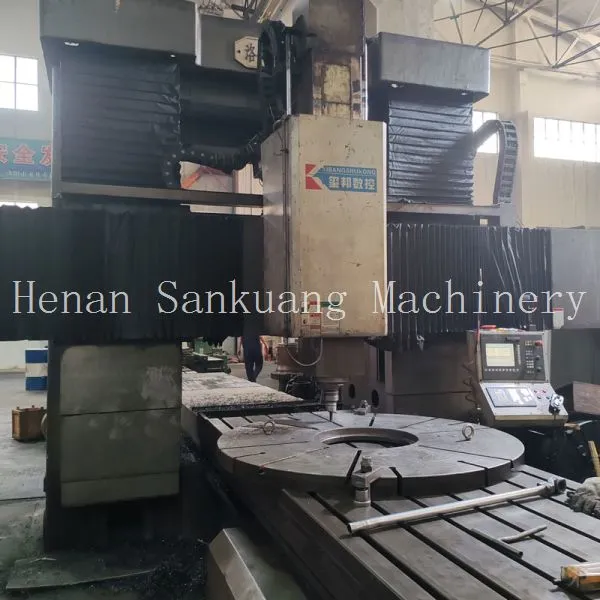

Advanced CNC Machining: Utilizing state-of-the-art computer numerical control equipment for consistent dimensional accuracy
Precision Grinding: Specialized grinding operations that ensure optimal surface finish and geometric precision
Heat Treatment Options: Customizable hardening processes to meet specific application requirements
Comprehensive Testing: Rigorous inspection protocols including CMM measurement and surface roughness analysis
Performance Advantages: The DIN 5480 standard spline configuration offers several significant benefits:
Enhanced torque transmission capability compared to standard keyways
Superior alignment accuracy for mating components
Reduced stress concentration at spline roots
Improved fatigue resistance and service life
Compatibility with international component standards
Application Versatility: Our precision ground gear shafts find applications across multiple industries:
Automotive Systems: Transmission components, steering mechanisms, and powertrain assemblies
Industrial Machinery: Gearboxes, conveyor systems, and processing equipment
Agricultural Equipment: Tractor transmissions and harvesting machinery
Construction Machinery: Excavator components and heavy equipment drives
The precision grinding process we employ ensures minimal runout and excellent concentricity, which translates to smoother operation and reduced vibration in final assemblies. This attention to detail results in components that contribute to overall system efficiency and reliability.
Frequently Asked Questions:
Q: What materials are typically used for your precision ground gear shafts?
A: We primarily use high-grade alloy steels and carbon steels, selected based on application requirements. Material specifications can be customized to meet specific strength, hardness, and environmental resistance needs.
Q: How does the DIN 5480 standard benefit my application?
A: DIN 5480 provides standardized involute spline dimensions that ensure compatibility with mating components from various suppliers. This standardization facilitates easier sourcing, replacement, and international compatibility.
Q: What quality control measures are implemented during manufacturing?
A: Our quality control includes dimensional verification using CMM, surface roughness testing, hardness testing, and visual inspection. We maintain comprehensive documentation for traceability and quality assurance.
Q: Can you accommodate custom spline specifications outside DIN 5480?
A: Yes, we have the capability to produce custom spline profiles and dimensions. Our engineering team can work with your specifications to develop components that meet unique application requirements.
Q: What is the typical lead time for production orders?
A: Lead times vary based on order quantity and complexity. Standard configurations typically have shorter lead times, while custom orders may require additional engineering and setup time.
Q: Do you provide heat treatment services for the gear shafts?
A: We offer various heat treatment options including case hardening, through hardening, and tempering processes. These treatments can be specified based on your performance requirements.
Q: What packaging standards do you follow for international shipping?
A: We use protective packaging methods including rust-preventive treatments, individual wrapping, and secure crating to ensure components arrive in perfect condition, regardless of destination.
Q: How do you ensure consistent quality across production batches?
A: Our ISO-certified quality management system, combined with standardized manufacturing processes and regular equipment calibration, ensures consistent quality and dimensional accuracy across all production runs.
With an annual export value ranging from US$2.5 million to US$5 million and established presence in major global markets including North America, Europe, and Southeast Asia, Henan San Kuang Machinery Technology has demonstrated consistent reliability in delivering precision components. Our strategic location with access to multiple shipping ports ensures efficient logistics and timely delivery to customers worldwide.
The combination of our manufacturing expertise, comprehensive quality certifications, and global market experience positions us as an ideal partner for your precision gear shaft requirements. We invite you to contact our technical team to discuss how our DIN 5480 compliant ground gear shafts can enhance your mechanical systems and contribute to your operational success.
