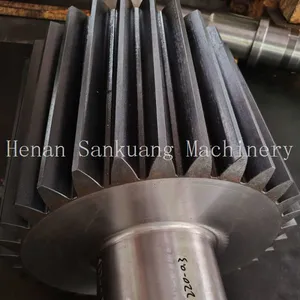

Custom Non-standard Gears With Technical Support and Prototyping Service
Product Spotlights
We provide complete solutions for custom non-standard gears, from collaborative engineering design and rapid prototyping to full-scale production. Our expertise ensures optimal gear performance, material selection, and cost-effective manufacturing for your unique application, supported by advanced facilities and stringent quality control.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Surface Finish:
Other, Grinding, honing, polishing, coating
Application:
Other, Industrial machinery
Material:
Steel, Stainless Steel, Brass, Plastic, Alloys
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hardened and Tempered Gear Shafts With Material CertificationNegotiableMOQ: 1 Piece -
High-Torque Heavy Duty Gear Shafts for Mining Equipment ApplicationsNegotiableMOQ: 1 Piece
-
High Precision Gear Shaft Machining | Custom Gear Shaft Manufacturer - Henan Sankuang MachineryNegotiableMOQ: 1 Set
-
Precision Gear Shaft for Heavy Duty Applications - 42CrMo Alloy SteelNegotiableMOQ: 1 Unit
-
Custom Gear Shaft Solutions - Engineering Support AvailableNegotiableMOQ: 1 Unit
Surface Finish
Other, Grinding, honing, polishing, coating
Application
Other, Industrial machinery
Material
Steel, Stainless Steel, Brass, Plastic, Alloys
Gear Type
Spur, Helical, Bevel, Worm, Rack & Pinion, Custom
Module Range
0.5 to 10 module, customizable
Diameter Range
Up to 2000mm, customizable
Tooth Profile
Involute, cycloidal, custom designs
Heat Treatment
Carburizing, nitriding, induction hardening
Prototyping Lead Time
2-4 weeks, depending on complexity
Technical Support
Full engineering and design assistance
As a leading manufacturer with over a decade of expertise, Henan San Kuang Machinery Technology Co., Ltd. specializes in delivering high-precision, custom non-standard gears coupled with comprehensive technical support and rapid prototyping services. Established in 2014 and operating from a modern facility spanning 10,000-30,000 square meters, we understand that off-the-shelf solutions rarely meet the unique demands of advanced machinery. Our mission is to bridge that gap by transforming your specific requirements into reliable, high-performance gear components that drive innovation and efficiency in your applications.
Our core value lies in a collaborative engineering approach. We don't just manufacture parts; we become an extension of your R&D and engineering teams. From the initial concept sketch to the final production batch, our engineers work alongside you to optimize designs for manufacturability, performance, and cost-effectiveness. This partnership ensures that every custom gear we produce is not only a precise mechanical component but a validated solution tailored to your system's exact operational parameters.
Key Features & Technical Capabilities:
- Unmatched Design Flexibility: We specialize in gears that fall outside standard catalogs. Whether you need unique tooth profiles, unconventional materials, specific hardness requirements, or complex geometries for space-constrained applications, our team has the expertise to bring your vision to life.
-
End-to-End Technical Support: Our service begins long before manufacturing. We offer:
- Design Review & Optimization: Our engineers analyze your CAD models to suggest improvements for strength, noise reduction, and longevity.
- Material Selection Guidance: We advise on the optimal material (alloy steels, stainless steels, engineered plastics, etc.) based on load, speed, environment, and wear requirements.
- Prototyping & Testing: We build functional prototypes for validation, allowing for design iterations before committing to full-scale production.
- Failure Analysis & Redesign: If you're replacing a failed component, we can diagnose the failure mode and redesign a more robust solution.
- State-of-the-Art Manufacturing: Our 10,000-30,000 sqm factory is equipped with advanced CNC gear hobbing, shaping, grinding, and turning centers. This allows us to maintain tight tolerances (AGMA and DIN standards) and superior surface finishes critical for smooth, quiet, and efficient power transmission.
- Comprehensive Quality Assurance: Our commitment to quality is embedded in our processes. We utilize coordinate measuring machines (CMM), gear testers, and hardness testers to verify every critical dimension, tooth profile, and material property, ensuring consistent performance batch after batch.
Technical Specifications & Common Parameters:
| Parameter | Capability Range | Notes |
|---|---|---|
| Gear Types | Spur, Helical, Bevel, Worm, Rack & Pinion, Internal, Splines | Custom hybrid designs available |
| Module (Metric) | 0.5 – 10 Module | Fine to coarse pitch |
| Diametral Pitch (Imperial) | 2 – 50 DP | Upon request |
| Gear Diameter | Up to 2000 mm (78") | Larger sizes negotiable |
| Face Width | Up to 400 mm | Dependent on gear type |
| Material Hardness | Up to 60-62 HRC | After heat treatment |
| Quality Grade | Up to AGMA 12 / DIN 3 | For precision applications |
| Standard Tolerances | AGMA, DIN, ISO, JIS, Customer Prints | Fully customizable |
Advantages for Your Business:
- Accelerated Time-to-Market: Our integrated prototyping service allows you to test and refine designs quickly, reducing development cycles and getting your product to market faster.
- Reduced Total Cost: By optimizing designs for manufacturability, we help avoid costly over-engineering and minimize material waste, offering better value than simply machining an over-spec standard part.
- Enhanced Product Performance: A gear designed specifically for your application will operate more efficiently, with less noise, vibration, and wear, leading to longer service life for your entire machine.
- Supply Chain Simplification: We act as a single-source partner for custom gearing needs, from design to delivery, simplifying your procurement and quality management processes.
With a proven track record of serving a global clientele across North America, Europe, Asia, and beyond, and an annual export value in the range of US$2.5-5 Million, Henan San Kuang has established itself as a trusted partner for precision mechanical components. Our strategic location in Luoyang, with access to major ports like Shanghai, Qingdao, and Tianjin, ensures reliable and efficient logistics for our international customers. We invite you to leverage our engineering expertise and manufacturing prowess. Contact us today with your drawings or concepts, and let's discuss how our custom non-standard gears and technical support can provide the perfect drive solution for your next project.
Frequently Asked Questions (FAQ):
-
Q: What information do you need to provide a quote for a custom gear?
A: To provide an accurate quotation and feasibility assessment, we typically require the following: Detailed drawings (2D PDF or 3D CAD files), material specifications, required hardness/heat treatment, quantity, and any applicable industry standards. The more information you can share about the application (loads, speeds, operating environment), the better we can optimize the design. -
Q: How does your prototyping process work?
A: Our prototyping process is collaborative. After finalizing the design, we manufacture a small batch (usually 1-5 pieces) using production-intent methods. We then provide these prototypes to you for fit, form, and function testing. Based on your feedback, we can make iterative adjustments before releasing the design for full production. -
Q: What are the typical lead times for prototypes and production orders?
A: Lead times vary based on complexity. Simple prototype gears can be delivered in 2-3 weeks. More complex designs may require 3-4 weeks. For production orders, lead times are quoted based on the order volume and manufacturing schedule, typically ranging from 4-8 weeks. -
Q: Can you work with the materials and heat treatments we specify?
A> Yes, absolutely. We have extensive experience with a wide range of materials, including various grades of carbon steel, alloy steel, stainless steel, brass, bronze, and engineered plastics. We also offer or can coordinate with partners for heat treatments like carburizing, nitriding, induction hardening, and tempering to achieve your desired mechanical properties. -
Q: Do you provide reverse engineering services for damaged or obsolete gears?
A: Yes, we offer reverse engineering services. If you have a worn or broken gear, we can measure it using advanced equipment to recreate the original design specifications or even improve upon them to prevent future failures. We require the physical sample for this service. -
Q: What quality control measures are in place during manufacturing?
A> Our quality control is multi-stage. It includes incoming material certification, in-process checks during machining (dimensions, tooth profile), and final inspection using gear measuring machines and CMMs to verify all critical parameters against your drawing. Inspection reports can be provided with shipments. -
Q: What is your minimum order quantity (MOQ) for custom gears?
A: For truly custom, non-standard gears, our MOQ can be as low as 1 piece for prototyping. For production runs, the MOQ is determined by the design complexity and setup costs, but we strive to be flexible to meet our clients' needs, whether for small-batch replacement parts or high-volume OEM production. -
Q: How do you handle shipping and logistics for international orders?
A: We have extensive experience in international shipping. We handle all export documentation and can ship from major Chinese ports (Shanghai, Qingdao, Tianjin, etc.) via sea freight (FOB, CIF) or air freight (DAP, DDP) based on your preference and urgency. We will provide the most cost-effective and reliable logistics solution for your order.
