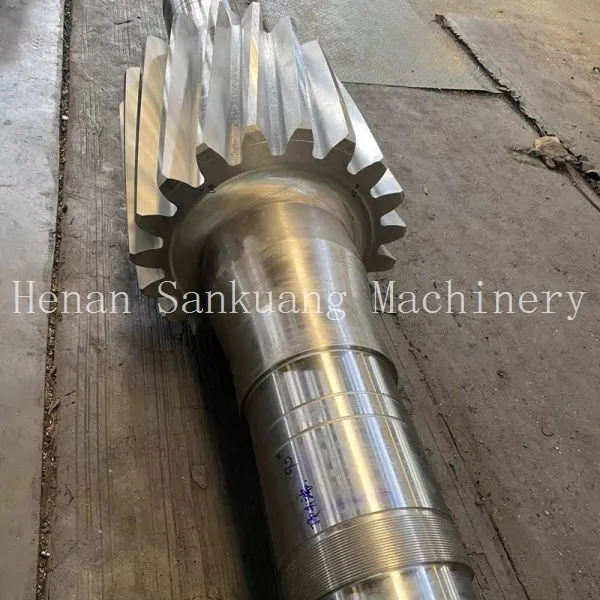

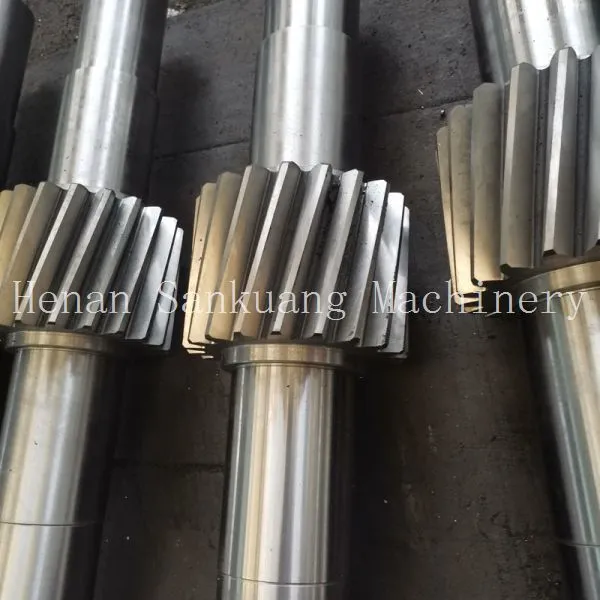

Help CenterCustom Non-standard Gear Shafts Manufactured to Your CAD Drawings
Product Spotlights
Related Products
-
Heavy Duty Gear Shafts Made From 4140 Alloy Steel for Industrial DrivesNegotiableMOQ: 1 Piece -
Non-standard Gears for Robotics and Automation SystemsNegotiableMOQ: 1 Piece
-
Custom Non-standard Gears With Technical Support and Prototyping ServiceNegotiableMOQ: 1 Piece
-
Hardened and Tempered Gear Shafts With Material CertificationNegotiableMOQ: 1 Piece
-
High-Torque Heavy Duty Gear Shafts for Mining Equipment ApplicationsNegotiableMOQ: 1 Piece
At Henan San Kuang Machinery Technology Co., Ltd., we specialize in transforming your unique design concepts into high-precision, reliable mechanical components. With nearly a decade of experience since our establishment in 2014, we have built a reputation as a trusted partner for custom and non-standard gear shaft manufacturing. Our core mission is to provide seamless, end-to-end production services that bridge the gap between your engineering drawings and the final, functional part. We understand that off-the-shelf solutions often fall short in specialized applications, which is why our entire 10,000-30,000 square meter facility is dedicated to custom manufacturing, ensuring every gear shaft we produce meets your exact specifications and performance requirements.
Our manufacturing process begins with a thorough analysis of your provided CAD drawings. We collaborate closely with your engineering team to clarify specifications, suggest potential optimizations for manufacturability, and confirm all critical dimensions, tolerances, and material requirements. This collaborative approach minimizes errors and ensures the final product aligns perfectly with your design intent.
Key Technical Capabilities and Process:
-
Material Selection and Sourcing: We work with a wide range of materials suitable for gear shafts, including but not limited to:
Material Type Common Grades Typical Applications Alloy Steel 4140, 4340, 8620 High-stress automotive and industrial gearboxes Carbon Steel 1045, 1144 General machinery, agricultural equipment Stainless Steel 303, 304, 316, 17-4PH Food processing, marine, chemical environments Advanced Machining: Our workshop is equipped with state-of-the-art CNC lathes, milling machines, and gear hobbing/shaping equipment. This allows us to machine complex geometries, precise splines, keyways, and gear teeth profiles directly from your 3D models.
Heat Treatment and Surface Finishing: To enhance durability and performance, we offer various secondary processes:
Heat Treatment: Processes like carburizing, induction hardening, and tempering are available to achieve desired surface hardness and core toughness.
Surface Finishing: Options include black oxide for corrosion resistance and aesthetics, zinc or nickel plating, phosphating, and precision grinding for superior surface finish and dimensional accuracy.
Rigorous Quality Assurance: Every custom gear shaft undergoes multiple inspection stages. We utilize CMMs (Coordinate Measuring Machines), optical comparators, gear testers, and standard metrology tools to verify dimensions, tooth profile, runout, and surface finish against your drawing. Material certifications are provided upon request.
Benefits for Your Business:
Design Freedom: Escape the limitations of standard catalog parts. We manufacture truly custom shafts, enabling innovation and optimization in your product design.
Reduced Assembly Time: A shaft manufactured to exact specifications fits perfectly, eliminating shimming, filing, or other adjustments during assembly, which saves labor costs.
Improved Product Performance and Longevity: Precision-machined gear shafts ensure optimal meshing with gears and bearings, reducing noise, vibration, and premature wear in the entire drivetrain.
Supply Chain Simplification: We handle the entire process from material procurement to final inspection and packaging, acting as a single, reliable source for your custom component needs.
Scalability: Whether you need a single prototype for testing or high-volume production runs for a new product launch, our flexible manufacturing setup can accommodate your order volume.
Frequently Asked Questions (FAQ)
What file formats do you accept for CAD drawings?
We accept all major 2D and 3D CAD file formats, including but not limited to STEP, IGES, DWG, DXF, SLDPRT, and PDF with detailed dimensions. Our engineering team will review the files for completeness.What is your typical lead time for a custom gear shaft order?
Lead time varies based on complexity and quantity. For prototype/sample quantities, it can range from 2-4 weeks. For production batches, a timeline will be provided after reviewing your drawings and requirements. We prioritize clear communication of schedules.Can you help with material selection if we are unsure?
Absolutely. Based on your application's load, speed, environmental conditions, and required lifespan, our experienced engineers can recommend suitable material grades and heat treatment processes.Do you provide samples before mass production?
Yes, we strongly recommend and can produce pre-production samples for your evaluation and testing. This ensures all specifications are met before committing to the full production run.How do you handle quality control for non-standard parts?
We create a customized inspection plan based on your drawing's critical dimensions. First-article inspection reports are standard, and we can implement statistical process control (SPC) for high-volume orders to ensure consistency.What is your minimum order quantity (MOQ) for custom gear shafts?
We are flexible with MOQs. We accept low-volume and prototype orders to support your R&D, as well as large-scale production contracts. The pricing will be adjusted accordingly.What packaging options are available for shipment?
We use protective packaging like wooden crates, plywood boxes, or plastic vacuums to prevent damage during transit. Packaging can be customized based on part size, fragility, and your logistics preferences.Do you offer assembly services, such as pressing bearings or gears onto the shaft?
Yes, we can provide value-added services including sub-assembly. This can include pressing on components, balancing, and applying threadlocker or retaining compounds as specified.
Backed by a dedicated team of 51-100 skilled professionals and a robust quality management system, Henan San Kuang is committed to delivering precision and reliability. Our annual export value of US$2.5-5 Million and presence in major global markets including North America, Europe, and Southeast Asia attest to our capability to meet international standards and logistics demands. We ship efficiently through major ports like Shanghai, Qingdao, and Tianjin. By choosing us as your manufacturing partner, you gain more than a supplier; you gain a technical ally focused on bringing your most demanding custom gear shaft designs to life with accuracy, consistency, and on-time delivery. Contact us today to discuss your project and receive a detailed quotation.
