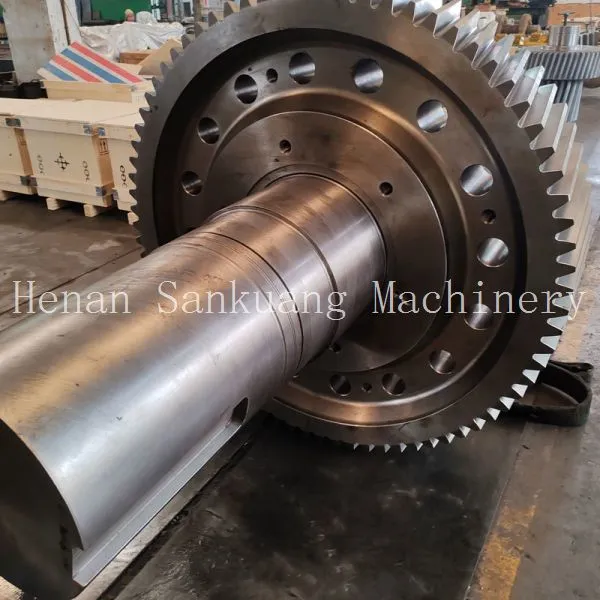

Help CenterCrowned Spline Shaft 1045 Steel Heat Treated Heavy Duty Power Transmission Shaft
Product Spotlights
Related Products
-
High Torque Induction Hardened Spline Shaft Agricultural PTO Drive Shaft Custom TeethNegotiableMOQ: 1 Piece -
Anti-Corrosion 304 Stainless Steel Spline Shaft Marine Equipment Custom MachiningNegotiableMOQ: 1 Piece
-
Heavy Duty Gear Spline Shaft Custom Size Machining For Construction Mining MachineryNegotiableMOQ: 1 Piece
-
CNC Machined Straight Spline Shaft 40Cr 4140 Alloy Steel For Transmission GearboxNegotiableMOQ: 1 Piece
-
Automotive Gearbox Spline Shaft Precision Fit Hardened Spline Transmission ShaftNegotiableMOQ: 1 Piece
Henan San Kuang Machinery Technology Co., Ltd. has been a trusted manufacturer of precision transmission components since 2014, operating from a 10,000-30,000 m² facility with 51-100 skilled employees and an annual export value of US$2.5-5 million. Our Crowned Spline Shaft, made from high-grade 1045 steel and fully heat treated, is engineered for heavy-duty power transmission applications where reliability and longevity are critical. This shaft combines crowned spline geometry with robust material treatment to minimize edge stress and maximize torque transfer, making it an ideal solution for demanding industrial drives.
Key Features & Technical Specifications
Material Excellence: 1045 medium carbon steel offers an excellent balance of strength, toughness, and machinability.
Heat Treatment: Quenching and tempering deliver uniform hardness (typically HB 220-280), enhancing wear resistance and fatigue life.
Crowned Spline Design: The convex tooth profile reduces stress concentration at the ends, allowing for minor misalignment and preventing edge loading.
Heavy-Duty Capability: Designed to handle high torque loads in harsh environments such as mining, construction, and steel mills.
Customizable Options: Lengths from 200 mm to 6000 mm, diameters from 20 mm to 200 mm, and spline parameters (DIN/ANSI/ISO) available upon request.
Surface Finish: Precision ground to ≤ Ra 1.6 μm, ensuring smooth engagement and reduced friction.
| Parameter | Value | Remarks |
|---|---|---|
| Material | 1045 Steel | Equivalent to AISI 1045 / C45 |
| Tensile Strength | ≥ 600 MPa | After heat treatment |
| Yield Strength | ≥ 350 MPa | Typical |
| Hardness (HB) | 220 - 280 | Customizable per request |
| Spline Module | 1 - 10 mm | As per drawing |
| Tooth Profile | Crowned involute | Reduces edge contact |
| Surface Finish | Ra ≤ 1.6 μm | Ground finish |
Advantages & Benefits
Extended Service Life: The crowned spline reduces pitting and fretting, while heat treatment boosts wear resistance – up to 30% longer life compared to standard shafts.
Reduced Maintenance: Lower stress concentration means fewer unexpected failures, minimizing downtime for your equipment.
High Load Capacity: 1045 steel with proper heat treatment can withstand heavy radial and axial loads typical in crushers, conveyors, and gearboxes.
Misalignment Tolerance: Crowned teeth allow up to 0.5° angular misalignment without loss of torque transmission.
Cost-Effective: Combines the performance of more expensive alloy steels with the affordability of carbon steel.
Applications
Industrial gearboxes and speed reducers
Heavy machinery in mining, cement, and steel industries
Power transmission for agricultural equipment
Construction machinery (cranes, excavators)
Wind turbine pitch and yaw systems
Trust & Quality Assurance
Backed by our company’s ISO9001, ISO14001, and OHSAS18001 certified management systems (among other certifications listed), every Crowned Spline Shaft undergoes rigorous inspection including dimensional checks, hardness testing, and surface roughness measurement. With a factory area of 10,000-30,000 m² and an annual export value exceeding US$2.5 million, we serve markets across North America, Europe, Asia, and Oceania from our strategic location in Luoyang, China. Our shafts are shipped through major ports (Shanghai, Qingdao, Lianyungang, Tianjin) with secure packaging to ensure they arrive in perfect condition. Contact us today for a custom quote or technical consultation – we are ready to support your power transmission needs with over a decade of engineering experience.
Frequently Asked Questions
Q: What is the difference between a crowned spline and a standard spline?
A: A crowned spline has a slightly convex tooth profile along the length, which compensates for minor misalignment and reduces edge loading, resulting in less wear and longer life under load.Q: Can the hardness be customized for specific applications?
A: Yes, we can adjust heat treatment parameters to achieve hardness ranges from HB 200 to HB 320 or even surface hardening (e.g., induction hardening) if required. Please provide your specifications.Q: What heat treatment is applied to this shaft?
A: Standard is through hardening by quenching and tempering (Q&T). Alternative treatments such as normalizing or case hardening are available upon request.Q: Do you offer shafts with keyways or other secondary machining?
A: Absolutely. We can machine keyways, threads, grooves, and other features according to your drawings or samples.Q: What is the typical lead time?
A: For standard dimensions, lead time is 15-25 working days. Custom projects may require 25-35 days depending on complexity and quantity.Q: How do you ensure quality during production?
A: We follow a full inspection plan: incoming material test (composition & hardness), in-process dimensional checks, and final inspection including spline gauge testing and surface finish measurement. Reports are provided with shipment.Q: What is the minimum order quantity (MOQ)?
A: Our MOQ is 10 pieces for standard sizes, but we accept smaller trial orders for first-time customers. Contact our sales team for details.Q: Can you provide samples before mass production?
A: Yes, sample production is available. Sample cost and shipping charges are negotiable; we can refund the sample cost upon bulk order.
