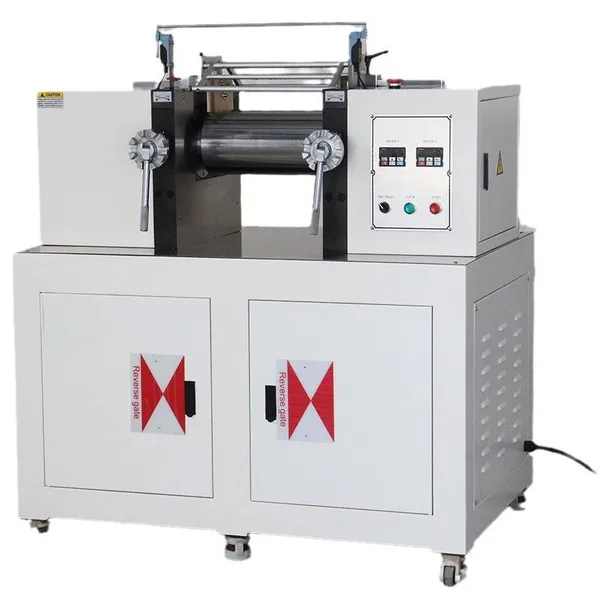

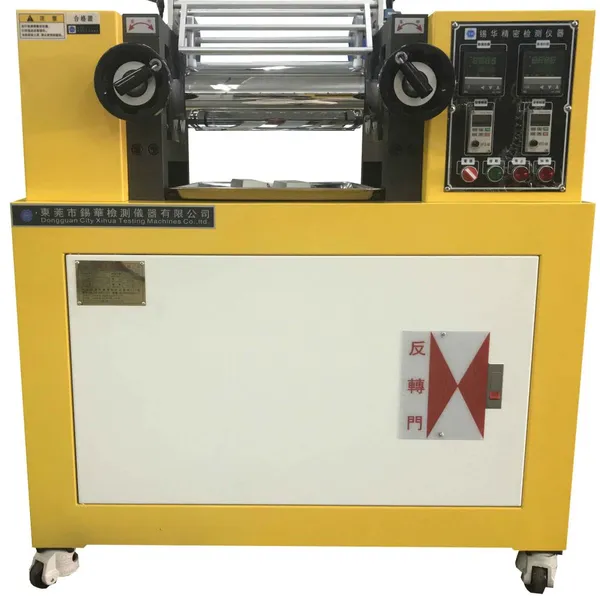

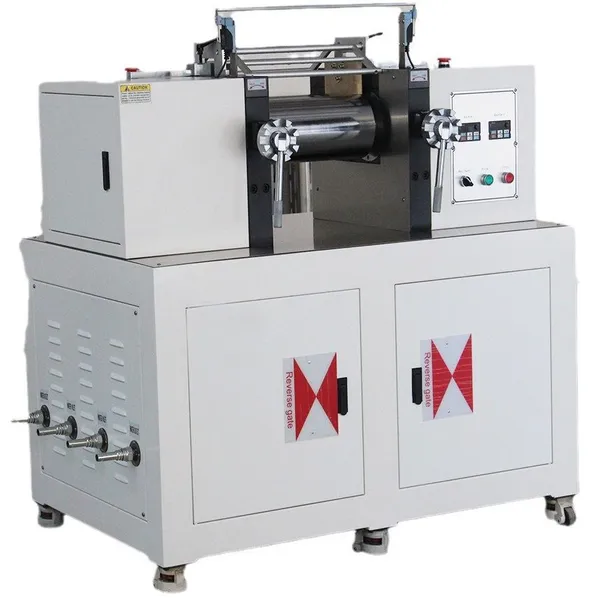

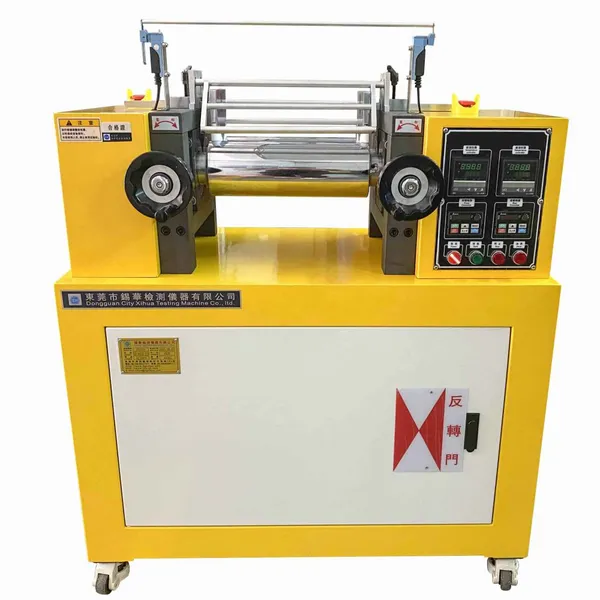

Help CenterEfficient Liquid Cooling Two Roll Mixer Mill for Laboratory Rubber Crusher and Plastic Mixing
Product Spotlights
Related Products
-
High Performance PE PP TPU Rubber Dispersion Mixing Mill Internal Mixer Kneader MachineUS$ 24000 - 25000MOQ: 1 Set -
High Capacity Two Roll Open Mixing Mixer Machine for Truck and Bus Tire Compound PreparationUS$ 20000 - 25000MOQ: 1 Set
-
New Leak-Proof Design PLC Control Production Internal Mixer Machine for Rubber TPE EVA MaterialsUS$ 24000 - 25000MOQ: 1 Set
-
Two Roll Milling MillUS$ 10,000 - 80,000MOQ: 1 Set
-
Two Roll MillNegotiableMOQ: 1 Piece
Control Function Features：
- Material Stop Plate Adjustment Rod: Loosen the rod to move the material stop plate; tighten the rod to fix the material stop plate in position.
- Material Stop Plate: Prevents material spillage, with adjustable position.
- Support Base: Supports theentire frame.
- Fine-tuning Handwheel: Adjusts the roller gap, which is directly related to the thickness of the output sheet.
- Electrical Control Box: Controls the entire circuit and operations.
- Reversing Door: When the knee touches the reversing door,the double rollers will stop.
- Brake Caster: Equipped with a braking function for easy movement and positioning.
- Emergency Stop Pull Rod: Pulling this rod will make the rollers reverse half a turn and then stop.
- Emergency Stop Button: In case of emergency, it can make the rollers stop immediately.
- Safety Guard: Prevents foreign objects from entering the rollers
Specification
Model No. |
WX-401A |
WX-401B |
WX-401C |
Roller speed |
Fixed speed |
Single frequency inverter |
Dual frequency inverter |
Control Mode |
PID control or PLC program control |
||
Size of roll |
200×350mm or customized |
||
Heating Mode |
electrical heating /oil heating |
||
Cooling Mode |
No cooling or tap water cooling (optional) |
||
Rollgap adjustment |
Manual or electric gap adjustment |
||
Flipping Mode |
Manual or automatic flipping |
||
Safety device |
Reverse stop or emergency opening system |
||
Motor Power |
0.75KW or customized ×1/0.75KW or customized×2 |
||
Volume(W×D×H) |
1100×560×1150mm |
||
(kg) Weight |
400kg/450kg |
||
Power Supply |
3∮,AC380V |
||
Special models can be customized according to customer requirements. | |||
