Product Description

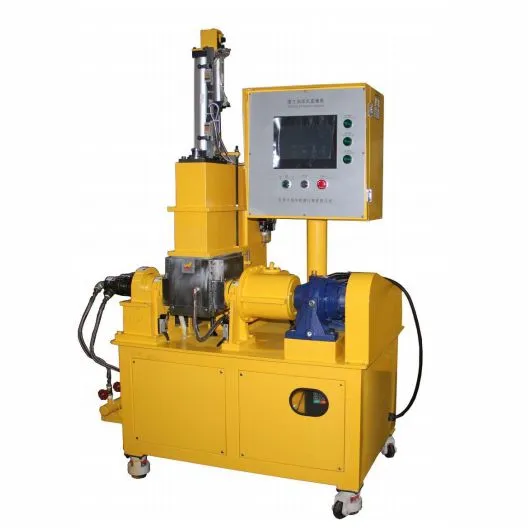

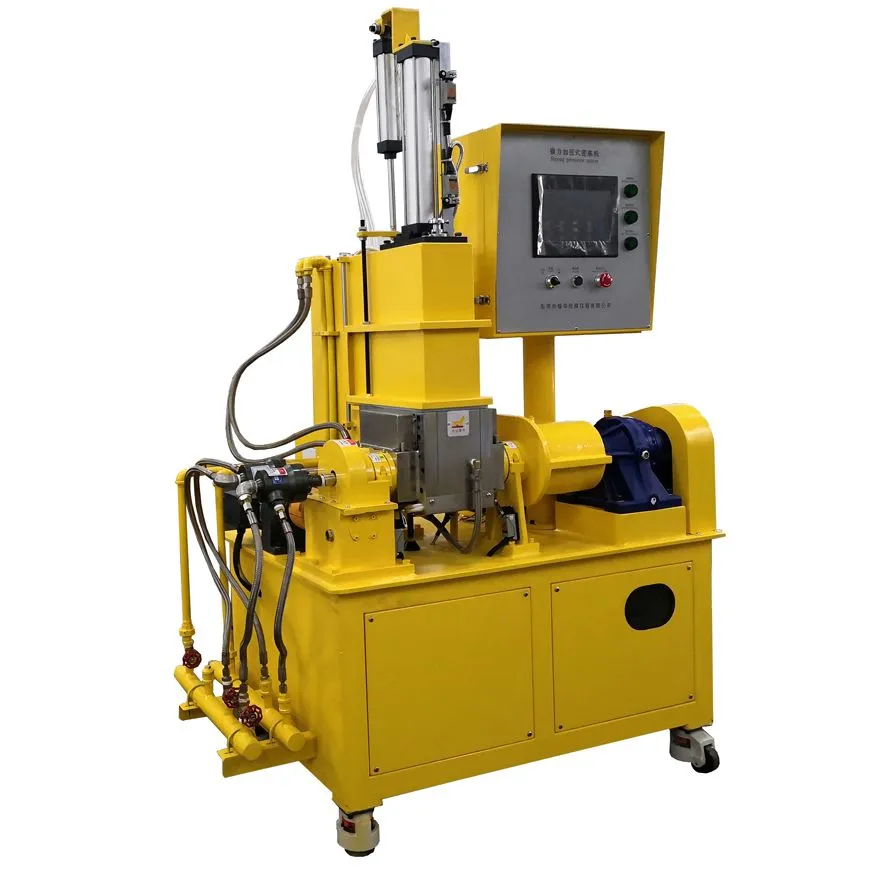

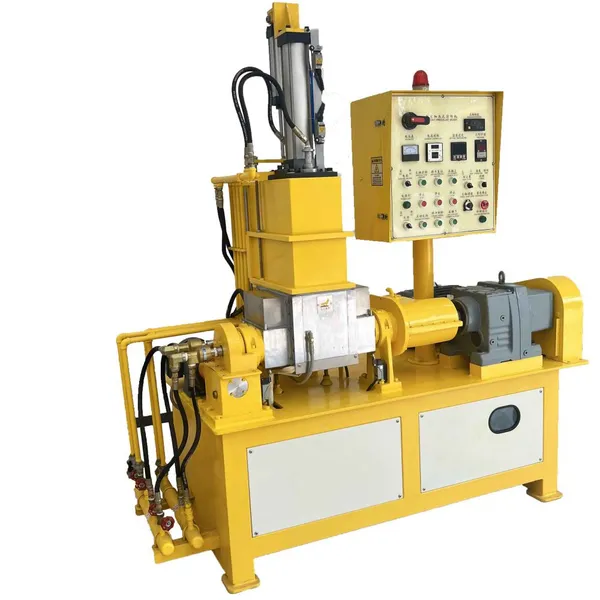

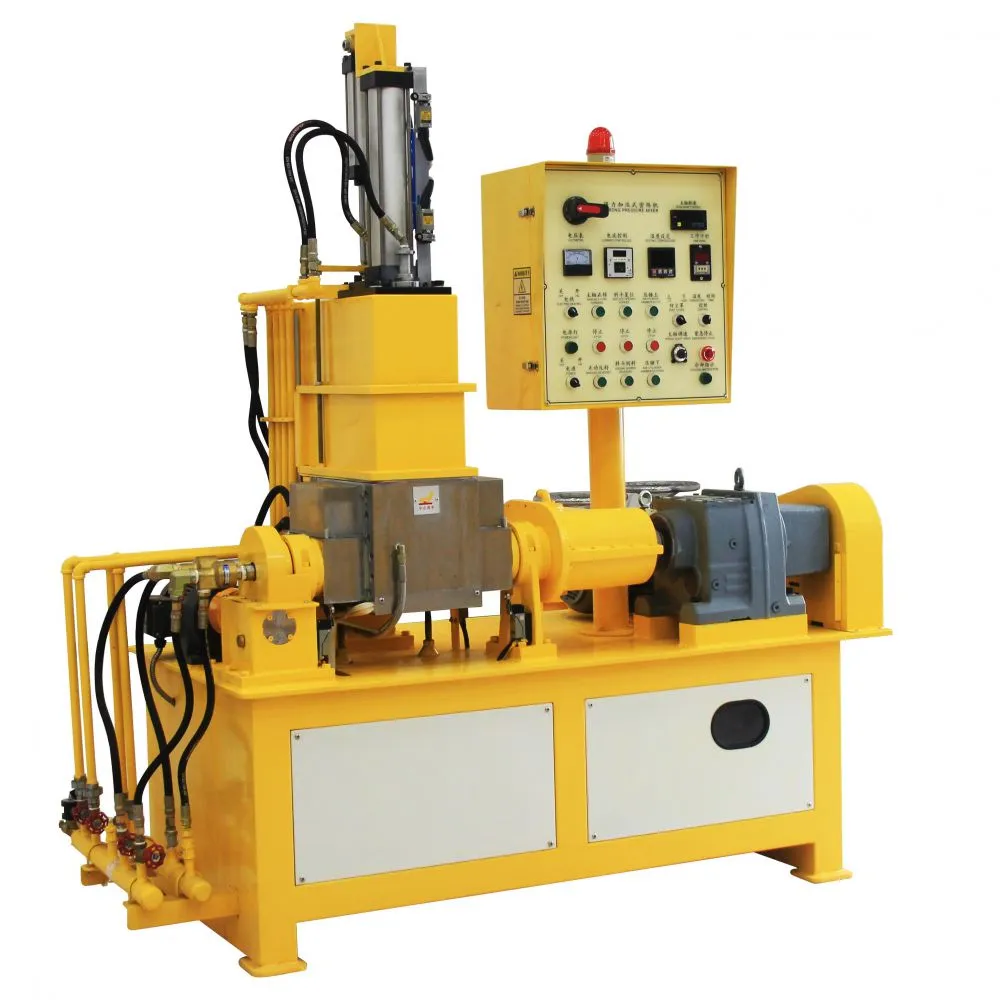

PRESSURIZED TYPE REFINING INTERNAL MIXER
Unlock the potential of your production line with our Pressurized Type Refining Internal Mixer, designed for superior mixing efficiency and consistency. This innovative mixing solution applies precise pressure conditions, dramatically enhancing the integration of materials. Ideal for applications in rubber, plastics, and other industries, this mixer ensures a homogenous product with optimal characteristics. With its user-friendly control system and robust construction, the Pressurized Type Refining Internal Mixer streamlines your manufacturing process while maximizing output and quality.
Features
Automated system with high production efficiency, uniform material mixing, convenient material changing, smooth and precise transmission system, noiseless operation, wear-resistant, and corrosion-resistant.
Applications
Used for the mixing and plasticizing of rubber and plastics. Materials are subjected to pressure from a pressure roller in a closed tank, where they undergo shearing, extrusion, stirring, folding, and other kneading actions by two rotors rotating at different speed ratios to plasticize (mix) into the desired raw material. Suitable for large-scale production.
Specification
PRESSURIZED TYPE REFINING INTERNAL MIXER |
||||||
Specification |
20L |
35L |
55L |
75L |
110L |
150L |
Feeding Amount Per Time |
15-25kg/time |
26-45kg/time |
45-75kg/time |
60-85kg/time |
100-140kg/time |
120-160kg/time |
Batch Time |
4-7 times/hour |
4-7 times/hour |
4-7 times/hour |
4-7 times/hour |
4-7 times/hour |
4-7 times/hour |
TemperatureControlPrecision |
±5℃ |
±5℃ |
±5℃ |
±5℃ |
±5℃ |
±5℃ |
Cooling Mode |
Tap Water Cooling |
|||||
Main Motor Power |
30KW |
55KW |
75KW |
110KW |
160KW |
220KW |
Turning Motor Power |
1.5KW |
1.5KW |
2.2kW |
4KW |
5.5KW |
7.5KW |
Turning Angle |
135° |
135° |
135° |
135° |
135° |
135° |
Front Andrear Rotor Speed Rati |
1:1.2~1.35 |
1:1.2~1.3 |
1:1.2~1.3 |
1:1.2~1.3 |
1:1.2~1.3 |
1:1.2~1.3 |
Rotor Speed |
35/29rpm |
35/27rpm |
36/27rpm |
36/27rpm |
37/30rpm |
38/30rpm |
Feeding Method |
Pre/post Feeding |
|||||
Installation Size (mm) |
2500*1480*2600 |
3000*1920*2840 |
3250*2300*3450 |
3800*2300*3200 |
4100*2900*3800 |
2500*1480*2600 |
Machine Weight |
4000kg |
6500kg |
8500kg |
12000kg |
14000kg |
21000kg |
Power Supply |
3∮,AC380V |
3∮,AC380V |
3∮,AC380V |
3∮,AC380V |
3∮,AC380V |
3∮,AC380V |
Tota Power |
30KW |
55KW |
75KW |
110KW |
160KW |
220KW |
Functional Advantages
ADVANCED PRESSURE MANAGEMENT
Maintain optimal mixing conditions with adjustable pressure settings, ensuring uniform material distribution and enhanced quality.
EFFICIENT MIXING MECHANISM
Designed to offer superior mixing capabilities, reducing cycle times and improving overall production efficiency.
ROBUST CONSTRUCTION
Built with durable materials that withstand high temperatures and pressures, ensuring long-lasting performance and reliability.
INTEGRATED CONTROL SYSTEM
User-friendly interface with precise controls for temperature, pressure, and mixing speed, facilitating seamless operation and monitoring.
VERSATILE APPLICATION
Suitable for a wide range of materials, from rubber compounds to plastics, accommodating diverse industrial processes.
Core Applications
RUBBER PROCESSING
Ideal for mixing and refining rubber compounds, ensuring a consistent blend for high-quality products used in various applications.
PLASTICS MANUFACTURING
Efficiently mix and compound plastic formulations, enhancing properties like strength, flexibility, and durability in end products.
CHEMICAL INDUSTRIES
Perfect for producing uniform chemical mixtures, contributing to improved performance and compliance with industry standards.
