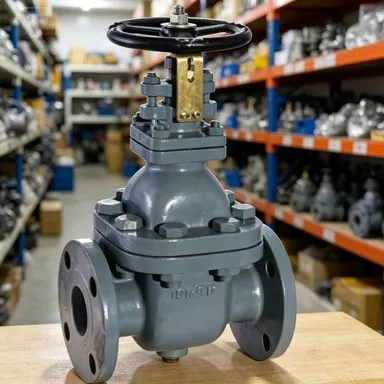

As a specialized manufacturer of industrial valves, Shanghai Zhibang Valve Manufacture Co., Ltd. presents our Flanged DIN 3352 Gate Valve, engineered specifically for demanding seawater applications. With our ISO9001-certified production processes and a decade of experience since 2016, we deliver valves that combine robust construction with reliable performance in corrosive marine environments. This valve is designed to provide secure isolation and flow control in pipelines handling seawater, brine, and other aggressive media, offering a durable solution for global clients across continents from North America to Oceania.
Our gate valve stands out for its adherence to the DIN 3352 standard, ensuring dimensional interchangeability and compatibility with international piping systems. The flanged connection design facilitates easy installation and maintenance, a critical factor for offshore platforms, desalination plants, shipbuilding, and coastal industrial facilities. We understand the challenges posed by seawater's corrosive nature, which is why our valve features carefully selected materials and sealing technologies to extend service life and reduce total cost of ownership.
Key Product Features & Technical Advantages:
- Corrosion-Resistant Construction: Available in a range of materials including cast iron with protective coatings, ductile iron, and stainless steel (upon request) to withstand the chloride-rich seawater environment.
- Wide Size Compatibility: Covers a comprehensive range from DN50 (2") to DN300 (12"), making it suitable for various pipeline diameters commonly found in marine and process industries.
- Robust Sealing System: Utilizes high-quality seat materials (options include bronze or stainless steel) and packing (graphite or PTFE) to ensure bubble-tight shut-off and prevent external leakage, even under fluctuating pressures.
- Easy Operation & Maintenance: The standard handwheel operation is ergonomically designed. For larger sizes or higher differential pressures, a gearbox operator is available as an option, reducing required actuation torque.
- Enhanced Flow Characteristics: The full-bore design minimizes pressure drop across the valve when fully open, promoting efficient fluid transport and reducing pumping energy costs.
- Durable Stem Design: The rising stem mechanism provides a clear visual indication of the valve position (open or closed), and the stem is protected from the medium, reducing wear and corrosion.
Detailed Technical Specifications:
| Parameter | Specification / Option |
| Design & Manufacturing Standard | DIN 3352 |
| Nominal Diameter (DN) | 50, 65, 80, 100, 125, 150, 200, 250, 300 |
| Pressure Rating (PN) | PN10, PN16 (Standard); Higher ratings available upon request |
| Flange Standard | DIN EN 1092-2 (PN10/16), ASME B16.5 (Optional) |
| Body Material (Typical) | Cast Iron GG-25 / Ductile Iron GGG-40 / Stainless Steel CF8 (316) |
| Seat & Wedge Material | Bronze, Stainless Steel, or other alloys (Customizable) |
| Stem Material | Stainless Steel (Standard for seawater service) |
| Packing Material | Graphite (High-Temp) or PTFE (Standard) |
| Operating Temperature | -10°C to +120°C (Standard, varies with material) |
| Operation Mode | Handwheel (Standard), Gear Operator (Optional for DN≥200) |
Benefits for Your Operations:
- Extended Asset Lifecycle: The corrosion-resistant design directly combats seawater-induced degradation, leading to fewer replacements and lower long-term capital expenditure.
- Reduced Maintenance Downtime: Reliable sealing and robust construction minimize unplanned maintenance, keeping your seawater systems operational and productive.
- Global System Compatibility: Compliance with DIN standards ensures the valve integrates seamlessly with existing European-style piping, while optional flange standards cater to projects worldwide.
- Operational Safety: Secure shut-off capability protects downstream equipment and processes, while the sturdy construction handles system pressure surges common in marine applications.
- Supply Chain Confidence: With an annual export value reflecting consistent global demand and shipment capabilities from major Chinese ports like Shanghai and Guangzhou, we offer reliable logistics and supply stability.
Frequently Asked Questions (FAQ):
Q1: Is this valve suitable for full immersion in seawater?
A1: Yes, when ordered with the appropriate material combination (e.g., stainless steel body and internals), this DIN 3352 gate valve is designed to handle continuous immersion in seawater. The specific material grade should be selected based on temperature, flow velocity, and the presence of other corrosive elements.
Q2: Can you provide valves with flanges according to ASME B16.5 instead of DIN?
A2: Absolutely. While the valve is manufactured to the DIN 3352 standard for the valve itself, the flange dimensions and facing can be produced to ASME B16.5 standards (RF, RTJ) upon request. Please specify your required flange standard and pressure class when inquiring.
Q3: What is the typical delivery lead time for an order of DN200 valves?
A3: Lead times vary based on order quantity, material specifications, and current production schedule. For standard material configurations, typical lead times range from 4 to 8 weeks. We provide specific timelines with our formal quotation.
Q4: Do you offer any protective coatings for cast iron bodies?
A4: Yes, we can apply various protective coatings such as epoxy paint, fusion-bonded epoxy (FBE), or other specialized marine-grade coatings to enhance corrosion resistance for cast iron bodies. This is a customizable option.
Q5: Is the valve suitable for regulating flow, or is it only for isolation?
A5: Gate valves are primarily designed for isolation (fully open or fully closed) rather than flow regulation. Using them for throttling can cause vibration, wire-drawing damage to the seat, and accelerated wear. We recommend using them strictly for on/off service.
Q6: What documentation do you provide with the valves?
A6: Standard documentation includes a material test certificate (3.1 or 3.2 as applicable), dimensional drawing, and a manual. Our ISO9001 certification underpins our consistent documentation and quality control processes.
Q7: Can the valve be automated with an actuator?
A7: Yes, the valve design is compatible with the installation of electric, pneumatic, or hydraulic actuators. The rising stem provides a clear stroke indication. We can source and mount suitable actuators as a package or supply the valve prepared for later actuator installation.
Q8: How do you ensure quality control for seawater service valves?
A8: Our quality control includes material verification, dimensional checks, pressure testing (shell and seat tests per relevant standards), and visual inspection. For critical seawater applications, additional tests like PMI (Positive Material Identification) or coating thickness checks can be arranged.
Shanghai Zhibang's commitment to quality is demonstrated through our ISO9001 certification and our track record of supplying valves to diverse markets across six continents. Our annual export volume is a testament to the reliability and performance our clients have come to expect. This Flanged DIN 3352 Gate Valve embodies our focus on creating durable, application-specific solutions. It is engineered not just to meet a standard, but to withstand the real-world challenges of seawater systems, helping you protect your assets and ensure operational continuity.
We invite you to leverage our manufacturing expertise and global supply chain experience. Contact us today to discuss your specific requirements for size, material, pressure rating, or certification. Let us provide you with a detailed quotation and technical support to ensure this valve is the optimal choice for your seawater or corrosive media application.
