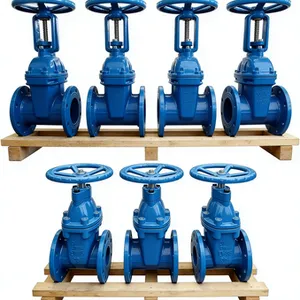

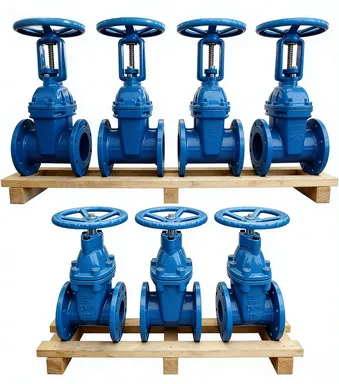

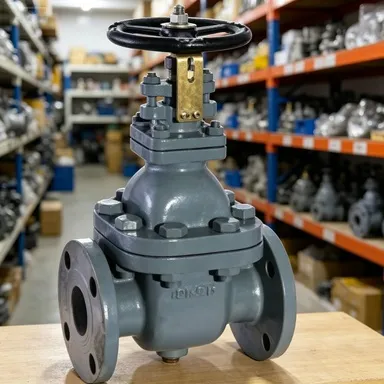

Help CenterDIN 3352 Marine Gate Valve OEM in Cast Steel With Rising Stem
Product Spotlights
Related Products
-
DIN 3352 Marine Gate Valve OEM, Technical Support and Customization AvailableNegotiableMOQ: 1 Unit -
Rising Stem Gate Valve for Marine Fuel Oil, Manufactured to DIN 3352 StandardNegotiableMOQ: 1 Unit
-
Marine Gate Valve for Oil Service, DIN 3352 Compliant With Full Technical SupportNegotiableMOQ: 1 Unit
-
DIN 3352 Marine Gate Valve Supplied With Mill Test Report and 18-Month WarrantyNegotiableMOQ: 1 Unit
-
DIN 3352 F5 Class Gate Valve for Offshore Platform Oil Systems, Flanged End ConnectionNegotiableMOQ: 1 Unit
As a professional valve manufacturer established in 2016, Shanghai Zhibang Valve Manufacture Co., Ltd. specializes in producing high-performance industrial valves for demanding global markets. Our DIN 3352 Marine Gate Valve is engineered to meet the rigorous standards of marine and offshore applications, where reliability and durability are non-negotiable. Built with precision from quality cast steel and featuring a robust rising stem design, this valve offers exceptional shut-off capability and long service life in seawater, ballast, fuel oil, and other critical shipboard systems. We combine our manufacturing expertise with ISO9001 certified quality processes to deliver valves that ensure operational safety and efficiency for our clients across North America, Europe, Southeast Asia, and beyond.
This gate valve is designed for bi-directional flow isolation in pipelines. Its construction prioritizes strength and corrosion resistance, making it a trusted component in harsh marine environments.
- Superior Sealing Performance: The precision-machined solid wedge and seat create a bubble-tight seal, preventing leakage even after prolonged periods of inactivity, which is crucial for safety and environmental protection.
- Robust Construction & Corrosion Resistance: Manufactured from ASTM A216 WCB or other specified cast steel grades, the valve body offers high tensile strength. Critical internal parts like the stem and wedge are often made from stainless steel (e.g., SS304, SS316) or surface-hardened to resist wear, galling, and seawater corrosion.
- Clear Visual Indication: The rising stem (OS&Y) design provides an immediate, clear visual indication of the valve position (open or closed), enhancing operational safety and preventing errors during crucial procedures.
- Easy Maintenance & Repairability: The bolted bonnet design allows for straightforward disassembly for inspection, maintenance, or seat replacement without removing the valve from the pipeline, minimizing downtime and life-cycle costs.
- Versatile Actuation Options: Available with standard handwheel operation. For larger sizes or automated systems, it can be fitted with gear operators or various actuators (electric, pneumatic, hydraulic) upon request, enabling integration into modern control systems.
- Compliance with International Standards: Designed and manufactured in accordance with DIN 3352 F4 for dimensions and face-to-face, ensuring interchangeability and compatibility with existing European-standard piping systems commonly found in shipbuilding.
The technical specifications below outline the standard configurations available. Customizations in materials, pressure ratings, and end connections are possible to meet specific project requirements.
| Parameter | Specification / Option |
| Design & Manufacturing Standard | DIN 3352 F4 |
| Pressure-Temperature Rating | PN10, PN16, PN25, PN40 (Per DIN 2401) |
| Valve Size Range (Nominal Diameter) | DN50 (2") to DN600 (24") |
| Body & Bonnet Material (Typical) | Cast Steel (A216 WCB), Ductile Iron, Stainless Steel |
| Trim Material (Seat, Wedge, Stem) | 13% Cr / Stellite, SS304, SS316, Alloy 20 |
| Gasket Material | Graphite, PTFE, Spiral Wound (SS/Graphite) |
| Stem Packing | Graphite, PTFE, Flexible Graphite |
| Test Standards | Shell Test: API 598 / EN 12266-1; Seat Test: API 598 |
For shipyards, offshore platform operators, and marine engineering firms, the benefits are significant. You gain a reliable valve that reduces the risk of in-service failure, lowers maintenance frequency, and ensures compliance with marine classification society rules (materials and design can be tailored to meet specific requirements). Its standardized dimensions facilitate easy installation and replacement within global supply chains.
Trust and Global Reach: Backed by our ISO9001 quality management system, every valve undergoes rigorous inspection and testing before shipment. With an annual export value ranging between US$1 Million and US$1.5 Million, Shanghai Zhibang has established a strong presence in key markets including North America, South America, Eastern and Western Europe, Southeast Asia, and Africa. We ship efficiently from major ports like Shanghai, Guangzhou, and Hong Kong, ensuring timely delivery to support your project schedules. Choose our DIN 3352 Marine Gate Valve for a combination of proven design, robust manufacturing, and dependable performance. Contact us today for a quotation or to discuss your specific OEM requirements.
Frequently Asked Questions (FAQ)
-
Q: What does "DIN 3352 F4" specifically refer to in this valve?
A: DIN 3352 is a German industrial standard that defines the design, dimensions, face-to-face lengths, and testing requirements for gate valves. "F4" designates the specific type within this standard for flanged-end, metal-seated gate valves, ensuring dimensional interchangeability with other valves built to the same spec. -
Q: Is this valve suitable for saltwater (seawater) service?
A> Yes, it is designed for marine applications. For optimal corrosion resistance in seawater, we recommend specifying a body material like LCB/LCC (low-temperature carbon steel) or stainless steel, along with stainless steel (316/316L) or higher alloy trim (e.g., duplex stainless steel) for internal components. -
Q: Can you provide valves with specific certifications for marine use, like ABS, DNV, or LR?
A> Material certifications and manufacturing processes can be aligned with the requirements of major marine classification societies (ABS, DNV, BV, LR, etc.). This is typically handled as a custom order. Please provide the specific class society and approval requirements during inquiry. -
Q: What is the advantage of a rising stem (OS&Y) design over a non-rising stem?
A> The rising stem provides a clear, visual and tactile indication of the valve's position: if the stem is raised, the valve is open; if it is lowered, the valve is closed. This is a critical safety feature, preventing accidental operation, especially in emergency situations or complex piping systems. -
Q: What is the typical lead time for an order of these valves?
A> Lead time depends on the size, material specification, quantity, and any special testing/certification requirements. For standard configurations in common sizes, we often have stock or can produce within 4-8 weeks. We provide a confirmed lead time with every quotation. -
Q: Do you offer actuated versions of this gate valve?
A> Absolutely. While supplied with a standard handwheel, the valve can be prepared for the mounting of electric, pneumatic, or hydraulic actuators. We can source and pre-assemble the actuator package for you, providing a ready-to-install automated valve solution. -
Q: How do you ensure sealing performance over the valve's lifetime?
A> We employ precision machining of the wedge and seat surfaces. The use of hardened or corrosion-resistant trim materials reduces wear. Additionally, the bolted bonnet design allows for future maintenance, such as seat replacement or re-machining of sealing surfaces, to restore performance if needed. -
Q: What packaging is used for export to prevent damage during ocean freight?
A> Valves are carefully cleaned, dried, and all internal and external surfaces are protected with anti-rust coatings. They are then securely packed in wooden crates or plywood boxes, with internal bracing to prevent movement. Flange faces and stems are specially protected to avoid damage.
