ECU Repair Workbench — Anti Static Work Station for Automotive Electronics & Module Tuning
Most automotive electronics work happens on a bench that was never meant for it.
A lot of ECU repair shops start with a wooden workbench from a hardware store. It works fine for a while. Then the tech notices that some ECUs that come in for repair seem to fail again after reflashing. Or certain modules just won't communicate after being opened. Or a bench flash succeeds on the first try, but the second ECU fried for no clear reason.
It's not the ECU. It's the bench.
Static discharge is invisible. You don't feel a 50-volt zap, but your ECU's delicate MOSFETs do. In an automotive electronics shop, you're handling bare circuit boards from engine control units, TCUs, BCMs, and ABS modules every day. Those boards are designed to survive under the hood, not to sit on an ungrounded wood surface while a tech connects a bench harness.
We build workstations designed for automotive electronics repair and ECU tuning.
The work surface: built for the job
Our bench top is a 5mm polymer composite ESD laminate, fused to a high-density fiberboard core. The entire surface is an ESD dissipative layer connected to ground through a steel chain. Surface resistance stays at 10⁶–10⁹ ohms, ANSI/ESD S20.20 compliant.
What this means in practice: you set an open ECU on the bench, connect your bench harness, and start diagnosing. No static buildup. No unexpected failures from ESD events you never knew happened.

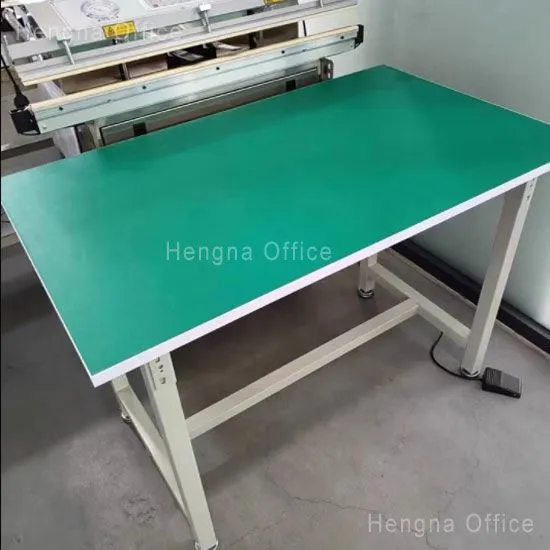

The surface is forest green. Chosen for a practical reason: contrast. White component markings, resistor bands, and PCB traces show up clearly against a green background. After a full day of staring at circuit boards, the difference matters.
The surface handles what a workshop throws at it. Solder flux, contact cleaner, brake cleaner, isopropyl alcohol — wipe it off and it's fine. The PVC edge banding seals the perimeter so moisture and chemicals don't wick into the core.
The frame: built to hold everything you put on it
Cold-rolled steel welded frame. Same construction we use in industrial benches rated for 3,000 kg uniform load. For an ECU bench, you'll never get close to that limit — but the stiffness matters for another reason.
An ECU workbench typically holds:
A power supply (3-5 kg)
An oscilloscope (2-4 kg)
A bench programmer (1-2 kg)
A soldering station (1-2 kg)
A hot air rework station (2-3 kg)
Multiple ECUs in various states of disassembly
Plus you'll lean on the bench. You'll torque screws. You'll press down on connectors that don't want to separate. A flimsy bench flexes and transfers that movement to whatever you're working on. Our bench doesn't flex.

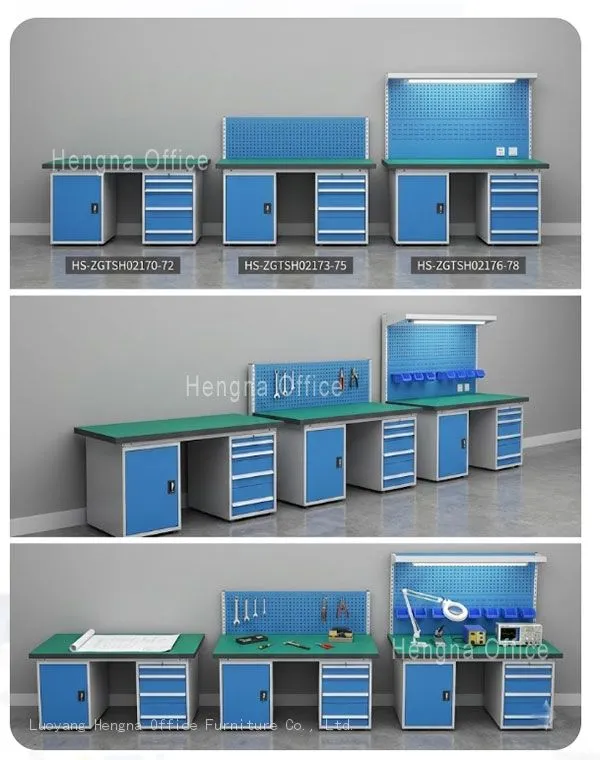

| Parameter | Options |
|---|---|
| Width | 1200 / 1500 / 1800 / 2100 mm |
| Depth | 750 mm |
| Height | 800 mm |
| Pegboard | 450 mm, optional |
Adjustable leveling feet come standard. Garage floors are rarely level.

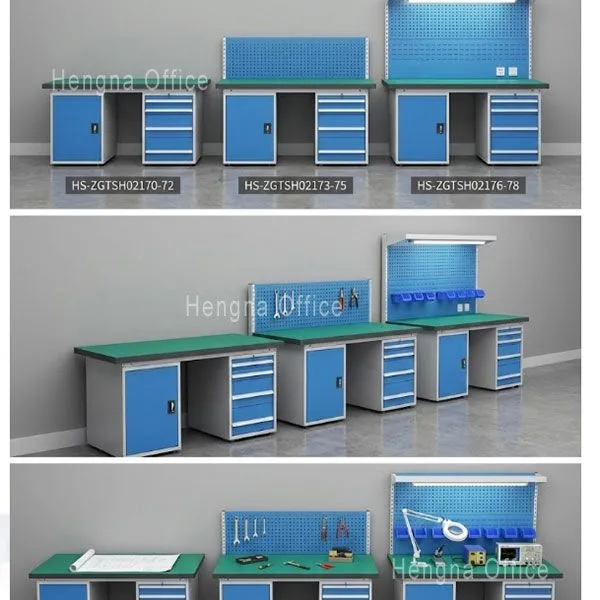

Storage designed for an ECU workshop
ECU work has its own tooling needs. You need different things within reach than a general electronics bench.

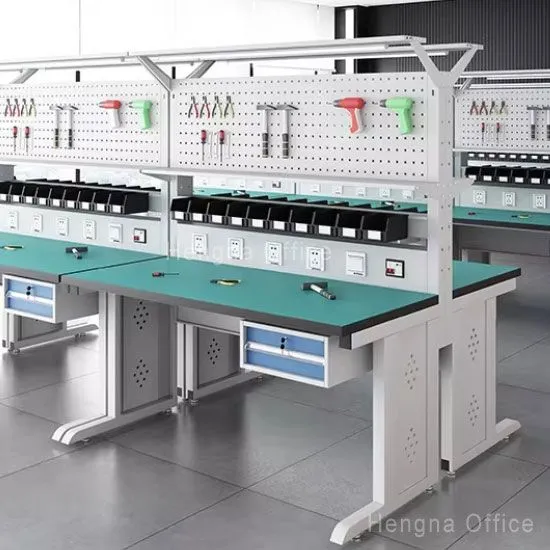

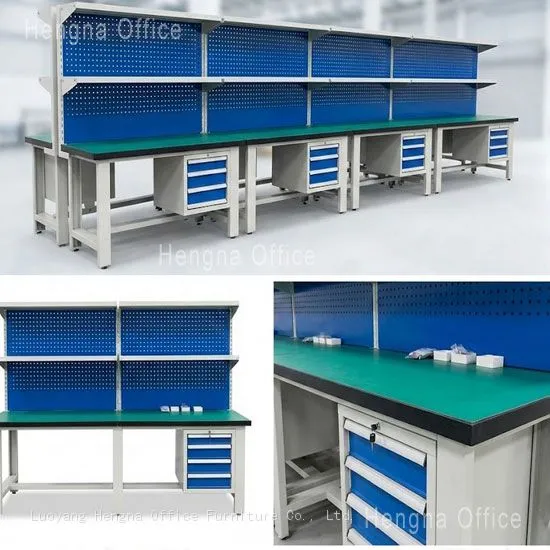

Our modular storage includes:

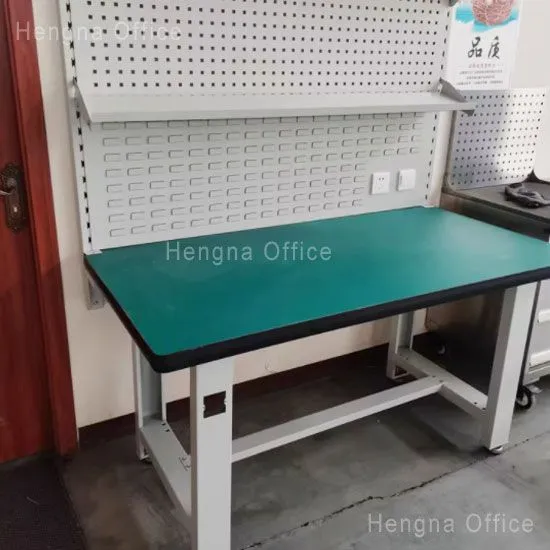

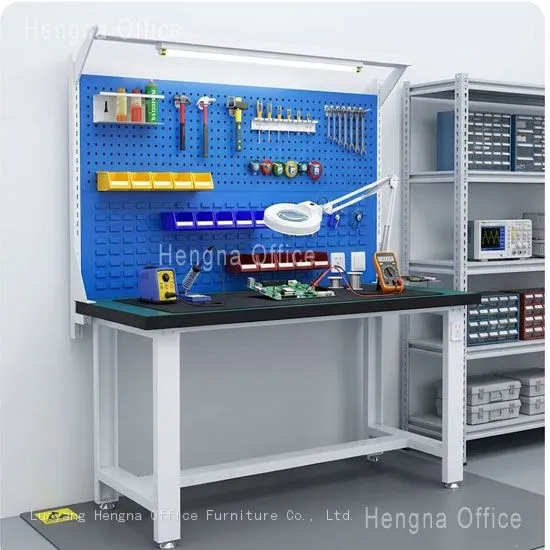

Square hole pegboard — 10×10mm holes on 28mm centers. Hang your hot air station, helping hands, multimeter, screwdriver set. Every tool visible and a hand's reach away.
Louver pegboard — 50×20mm slots for bin brackets. Keep your collection of connectors, pins, terminal sockets, and repair wires sorted by type. When you're diagnosing an ECU and need a specific pin socket, you find it in seconds.

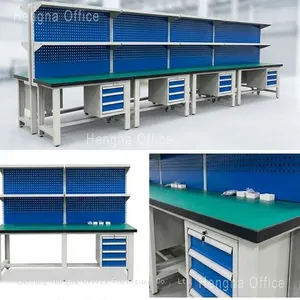

Drawer units — mount under the tabletop. Linked self-locking lock. Keep expensive programmer modules, specialized adapters, and your oscilloscope probes locked and secure.
Light frame — mounts on top. Even illumination across the work surface. No shadows when you're tracing a broken trace on a multi-layer board.
Everything detaches and reattaches. Reconfigure the bench when your workflow changes.
Power that keeps up
Recessed outlet panel on the back frame. One five-outlet socket (two-prong + three-prong) with a circuit breaker.
An ECU bench draws more current than you think. Bench power supply, oscilloscope, hot air station, soldering iron, laptop charger, and the ECU itself — all running simultaneously. The built-in breaker gives you protection if something shorts.
The socket placement keeps cords off the work surface. One less thing to knock over when you're focusing on a repair.
Packaging and shipping
KD package. Every steel component wrapped in VCI moisture-proof film. Foam edge protectors. Hardware bagged and taped to the frame.
Assembly in about 20 minutes. Printed guide.
Why our customers in automotive electronics buy from us
A customer in the UAE runs a shop specializing in ECU cloning and tuning for Mercedes and BMW modules. He ordered two benches after losing multiple ECUs during bench flashing — modules that would program successfully on the first attempt but fail to communicate after being installed back in the car. The ESU surface on his old bench was the issue. After switching to our bench, the problem stopped.
Not every ECU failure is caused by ESD. But when it is, you'll never know — unless you eliminate it and the failures stop.
FAQ
I work from my garage, not a shop. Is this bench too big? The 1200mm width fits most home workshop spaces. Depth is 750mm — similar to a standard workbench. It's designed to work in small spaces.
Can I mount my bench power supply and soldering station to the pegboard? Yes. Most standard power supplies have mounting ears or can sit on a shelf bracket attached to the square hole pegboard. Soldering stations often have a built-in holder that can be screwed to the board.
Do I need special flooring for ESD protection? No. The bench connects to electrical ground through the ground chain. Your workshop's existing grounded outlet is sufficient. An ESD mat on the floor is optional — helpful for chairs with casters but not required for the bench to work.
What kind of ECUs can I work on? Any. The bench provides the ESD-safe work surface. The bench harness, software, and programmer are separate. Our bench works with any ECU, TCU, BCM, or module you service.
Can I mount my laptop on a arm attached to this bench? Yes. The cold-rolled steel frame can support monitor arms and laptop mounts with C-clamp or through-bolt mounting. The frame is thick enough to hold the clamp securely without damaging the powder coating.
What's your lead time and pricing? Standard sizes: 15–20 working days. FOB Shanghai or CIF destination port. Quote within 24 hours.
If you're setting up an ECU repair and tuning station — whether in a professional workshop or your garage — and you need a bench that protects the modules you work on — send your requirements. Same-day quote.
