Heavy Duty Steel Workbench – 2mm to 10mm Steel Plate, Built for Workshops and Machine Shops
1. Steel Thickness is the Spec That Matters
Heavy duty workbenches all look similar from a distance. Steel frame. Drawers. Pegboard. But once you start loading them with actual work, the difference shows up fast — and it comes down mainly to one number: how thick is the steel top?
A 2mm plate is fine for light assembly. Put a 50kg vice on a 10mm plate and bolt down a cylinder head for machining — completely different machine. Same frame, same footprint, but the worktop thickness determines what that bench can actually handle.
HNJUNTO offers steel plate worktops in six thicknesses: 2mm, 3mm, 4mm, 6mm, 8mm, and 10mm. All bonded to a high-density fiberboard core for a flat, vibration-dampening surface. Here's how to pick yours.
2. Steel Plate Thickness – Matching the Bench to the Job
2mm – 3mm: Light-duty assembly and inspection
These thinner plates work for benches that see light use: parts inspection, electronics testing (non-ESD), small-component assembly, packing stations. They support a bench vice for light holding work but aren't meant for pounding or heavy clamping.
Best for: QC stations, light assembly lines, shipping departments, clean sorting.
4mm – 6mm: General workshop and maintenance
The mid-range is the most common choice for general workshop use. A 4mm or 6mm plate handles regular automotive work, machine maintenance, and fabrication prep. Mount a vice, bolt on a grinder stand, clamp down workpieces for drilling — the plate holds up without flexing.
Best for: Maintenance shops, general fabrication areas, equipment repair stations, vocational school workshops.
8mm – 10mm: Heavy machining and industrial use
This is for shops where the bench gets treated like a machine tool surface. Heavy milling vice. Press work. Transmission rebuilds. Welding prep where clamps need serious bite. The 10mm plate alone weighs enough to dampen vibration — tools stay put and work stays accurate.
Best for: CNC machine shops, heavy equipment repair, welding and fabrication, tool and die shops.
| Thickness | Max load feel | Best vice size | Typical users |
|---|---|---|---|
| 2-3mm | Light | 4" max | Inspection, packing, light assembly |
| 4-6mm | Medium | 5-6" | General maintenance, auto repair |
| 8-10mm | Heavy | 6-8"+ | Machine shops, welding, heavy fab |
3. The Steel Plate Itself – How It's Made
A steel worktop isn't just a flat sheet of metal bolted onto legs. The way it's constructed determines how flat it stays and how well it absorbs vibration.
HNJUNTO steel plate worktops start as cold-rolled SPCC steel, cut to size, then bonded to a high-density fiberboard core under pressure. The steel surface is powder-coated for oil, solvent, and scratch resistance. Edges are ground smooth — no sharp corners.
Why the fiberboard core? A solid steel plate of the same thickness would be heavier and more expensive. The composite gives you a rigid, flat surface with better vibration absorption than solid steel, at a practical weight.
The plate sits on a welded steel frame with integrated cross beams. The frame is SPCC cold-rolled steel, powder-coated gray-white. Drawer fronts are blue.
4. Modular Frame – One Bench, Many Layouts
The frame system is the same across all HNJUNTO heavy duty workbenches. You choose the width (1200mm / 1500mm / 1800mm / 2100mm), pick the steel plate thickness, then configure the storage underneath.
Depth is fixed at 750mm. The work surface stands at 800mm — standard for standing work. Frame only height is 1700mm without the light stand option.

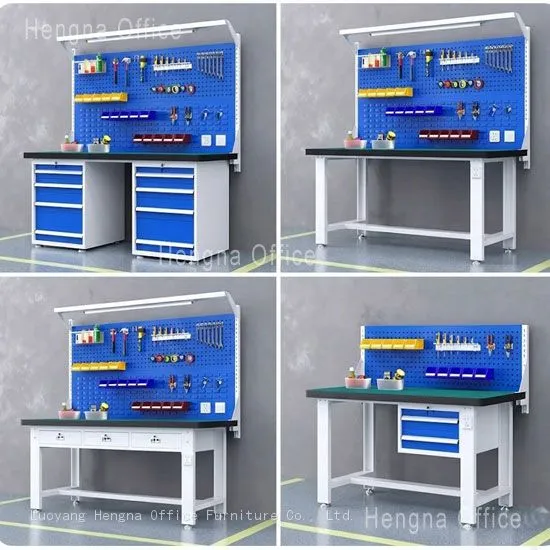

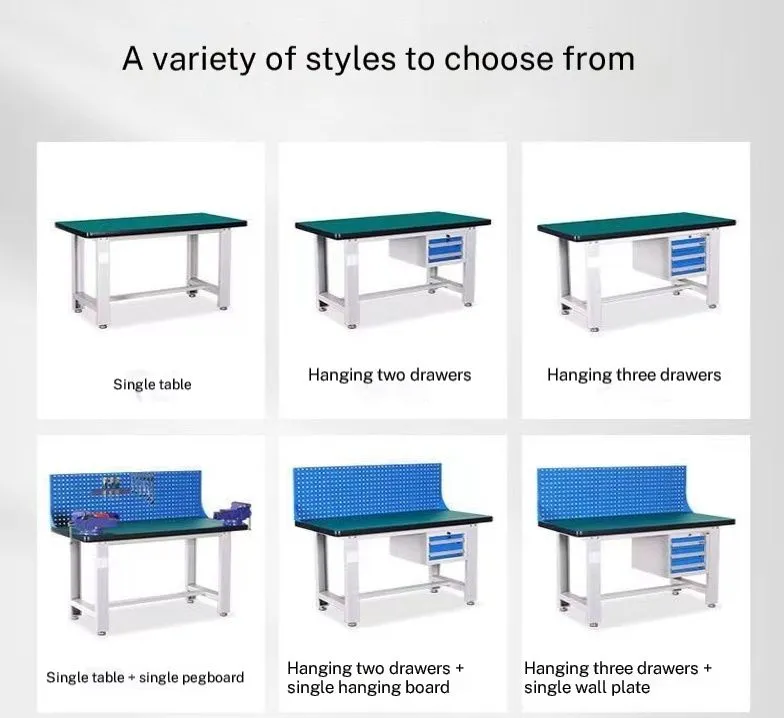

Under-bench storage options:
| Option | What goes in it |
|---|---|
| Single 4-drawer cabinet | Hand tools, measuring instruments, small parts |
| Double 4-drawer cabinets | Two-person station or one mechanic with lots of tools |
| 3-drawer + 1-door cabinet | Daily tools in drawers, bulky items behind the door |
| Door cabinet only | Brooms, floor jack, coolant, larger stock |
| No cabinets (legs only) | Open bench, heavy parts storage underneath |
Cabinets bolt onto the frame. No welding. No permanent decisions — swap cabinets when your needs change.
5. Drawer System
Drawers run on heavy-duty ball-bearing slides with full extension. Pull them all the way out — the anti-tip stops hold them in place even when loaded unevenly.
Each cabinet has a central lock. One turn, all drawers in that cabinet are secured.
Standard drawer interiors handle tool sets, wrenches, socket trays, and gauges. Add divider boxes for fasteners, drill bits, and cutting inserts. For machine shops, dedicated tool holder inserts are available for end mills, collets, and gauges.
6. Pegboard and Workstation Accessories

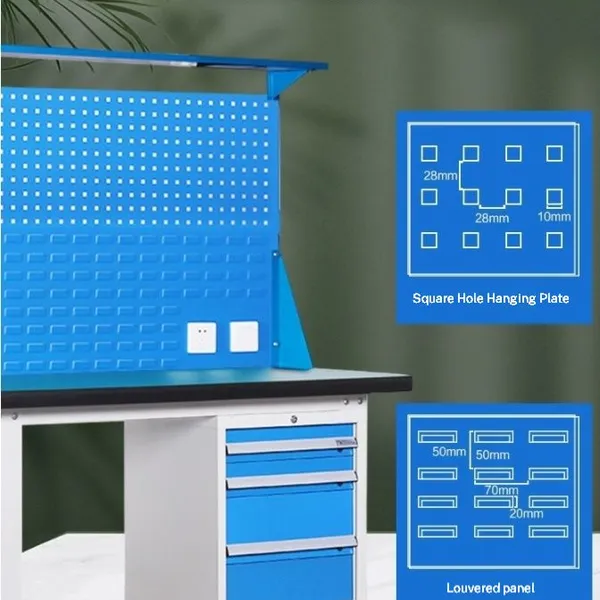

The back panel supports a double pegboard system:
Square-hole pegboard (upper): Hang hand tools, wrenches, hammers, pliers. Organized by frequency of use — the tools you reach for every few minutes go at eye level.
Louver panel (lower): Holds bin boxes for consumables — grinding wheels, drill bits, gloves, rags.
An optional power module mounts above the work surface — outlet strip with switches for bench grinder, drill press, or test equipment. No extension cords.
The light stand (standard) accepts LED tubes (optional). In a machine shop, good lighting over a steel worktop is essential for spotting surface defects and reading measurements.
7. Frame and Construction Details

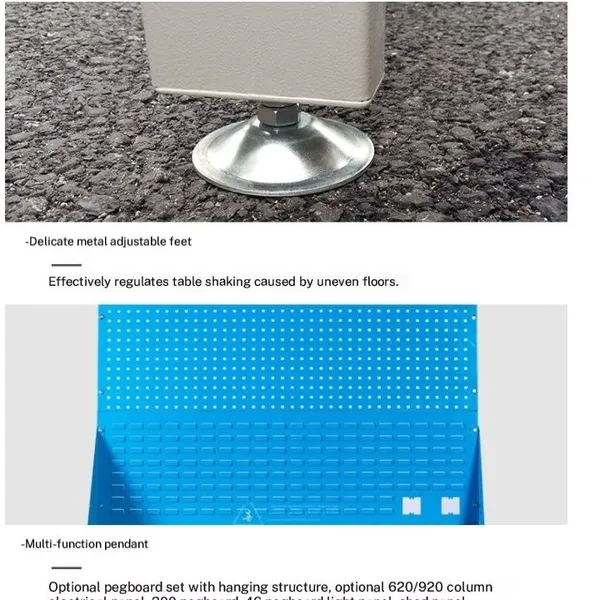

The frame is SPCC cold-rolled steel throughout. Welded cross beams prevent racking under heavy side loads. Leveling feet compensate for uneven shop floors — adjustable up to 30mm.
Powder coat finish: gray-white body, blue drawer fronts. This finish resists oil, grease, and common shop chemicals. Heavy spills should be wiped up promptly, but routine exposure won't damage it.
All units ship KD (knocked down). Flat-packed in moisture-protective wrapping with edge guards. Full assembly hardware, English manual, and QR-linked assembly video included.
8. Factory-Gate Pricing
HNJUNTO (Luoyang, Henan) has been manufacturing steel workstations since 2017. You're ordering from the production source.
OEM services: Logo, custom colors, custom packaging
Certifications: CE available
MOQ: 1 unit. Volume pricing on container loads
Sample orders: Accepted. Quotations within 24 hours
Packaging: Shrink-wrapped, corner-protected, bunded by component. Container-ready.
9. FAQ
Q: Which thickness for a general machine shop? A: 6mm is the practical starting point for machine shop work. 8mm or 10mm if you plan to mount a large vice or do press work.
Q: Can I change the thickness later? A: You can replace the top. The frame and cabinets stay the same. If your work changes, order a new top, swap it out.
Q: Are the legs adjustable? A: Yes, leveling feet compensate for uneven floors. Up to 30mm adjustment.
Q: How much weight can this bench hold? A: Load capacity depends on the combination of plate thickness and frame configuration. Contact sales for specific figures.
Q: Can I get a stainless top instead? A: Yes. 201 or 304 stainless steel worktops fit the same modular frame.
Q: Is this bench suitable for welding? A: The steel plate top is fine for welding prep, clamp-down, and cleanup. For direct welding on the bench surface, use a steel plate top in 8mm or 10mm
Heavy duty means different things to different shops. For a packing station, 2mm steel is overkill. For a machine shop, 10mm is the starting point. HNJUNTO gives you the range to match the bench to the work — same modular frame, six plate thicknesses, one supplier.
Need a quote or to discuss your shop's requirements? Contact sales.
