1. Most "Modular" Workbenches Are Not Actually Modular
Plenty of workbenches out there claim to be modular. Look closer and you'll find "modular" means you can pick whether the drawer goes on the left or right. The frame is welded. The pegboard position is fixed. Want to add a cabinet later? Can't. The structure won't take it.
HNJUNTO modular workbenches use a bolted frame. The legs, cross beams, drawer cabinets, door cabinets, pegboards, and light stand are all independent units held together with bolts. What you order today might be a single repair station. Next year your shop expands to a four-person line — buy extra components, reposition what you have, bolt everything back down. No cutting. No reordering the whole bench.
Why does this matter? Because shop layouts change. Equipment gets added. Lines shift. Workstations get reconfigured. A welded workbench forces you to adapt to it. A genuinely modular workbench adapts to you.
2. The Frame – Bolted, Not Welded
The core frame is two side uprights connected by upper and lower cross beams. Everything bolts together. Drawer cabinets and door cabinets hang off the cross beams — the cabinet bodies don't bear structural load, so they don't warp over time.
Frame material is SPCC cold-rolled steel with electrostatic powder coating. Gray-white body, blue drawer fronts. Classic industrial colors — dirt and oil smudges don't stand out the way they do on lighter finishes. Four leveling feet compensate for uneven floors, up to 30mm of adjustment.
| Spec | Value |
|---|---|
| Width | 1200mm / 1500mm / 1800mm / 2100mm |
| Depth | 750mm (fixed) |
| Work surface height | 800mm |
| Overall height (no light) | 1700mm |
| Overall height (with light) | 1950mm |
Everything ships knock-down, flat-packed. Volume is roughly one-third of an assembled unit. One person, 30 to 40 minutes with the English manual. It's not a jigsaw puzzle — you're bolting pre-assembled modules together, not building from loose parts.
3. Six Configurations – Pick What Fits Your Shop
The six common configurations aren't a quiz for the customer to pass. They're a matching exercise for the shop floor. Lots of tools? Go drawer-heavy. Lots of parts? Prioritize cabinets. Both? Full spec.
| Configuration | What you get | Who it fits |
|---|---|---|

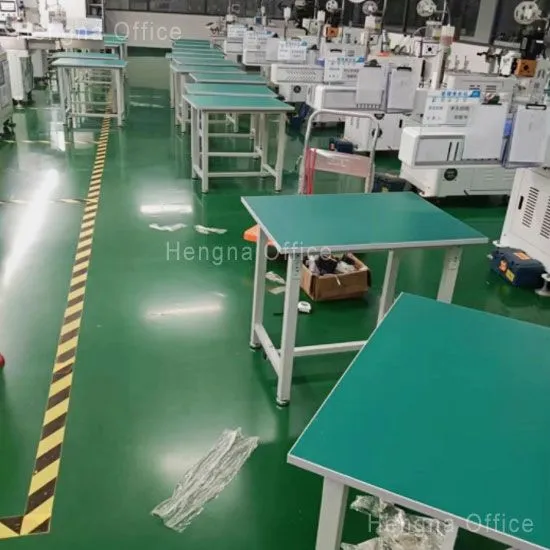

| Legs only | Worktop + frame, no storage underneath | Tight spaces, a basic work surface, or a staging area for large parts |
| Single-side 4-drawer + double pegboard | One cabinet + pegboards on the back | Solo repair or assembly station — tools on the wall, consumables in drawers |
| Double-side 4-drawer | Two cabinets, left and right | Two people working face-to-face, each managing their own tools |
| 3-drawer + 1-door cabinet + double pegboard | Three drawers, one door cabinet, pegboards | Drawers for daily tools, cabinet for bulk items like cleaners or spare stock |

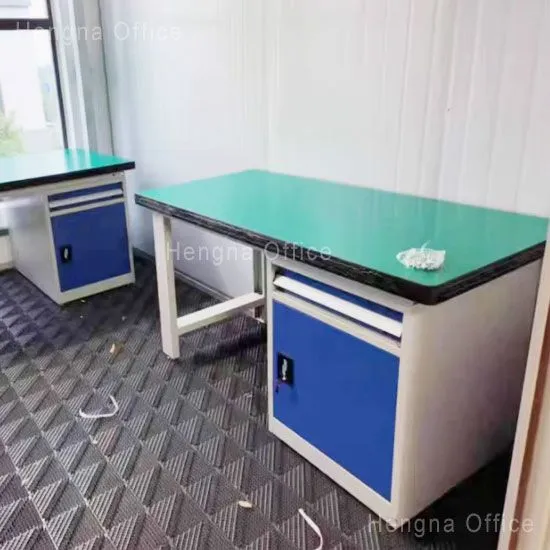

| 1-drawer + door cabinet + double pegboard | Single drawer, double-door cabinet, pegboards | Keep a few go-to tools on the wall, store everything else behind doors |

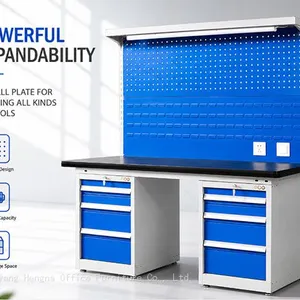

| Full spec (dual 4-drawer + door + double pegboard + light) | Everything on the list | Multi-person line, done in one order |
Those six are the starting point, not the limit. Cabinets and pegboards mount independently. You can mix things up.
4. Three Worktop Options, One Frame
The frame stays the same. The worktop is what you spec to match the job.

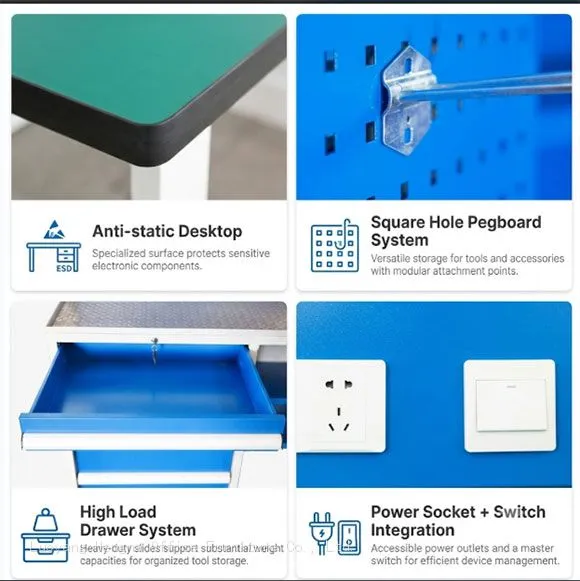

| Top type | Construction | Best for |
|---|---|---|

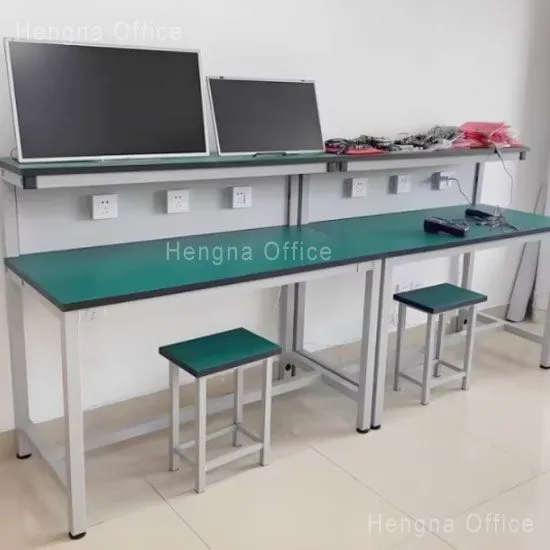

| Anti-static laminate | High-density fiberboard + green vinyl surface, 10^6~10^9 Ω | Electronics assembly, PCB soldering, component inspection |
| Steel plate | SPCC steel (2/3/4/6/8/10mm) bonded to fiberboard core | Mechanical repair, welding prep, heavy assembly |
| Stainless steel | 201 or 304 stainless (1mm) wrapped over fiberboard | Food processing, pharma GMP, chemical plants, wet environments |
If your shop's work changes, you don't need a new workbench. Order a different top, swap it onto the same frame. Buy an anti-static setup today, switch to steel plate tomorrow when the work shifts to mechanical. The frame is the long-term asset.

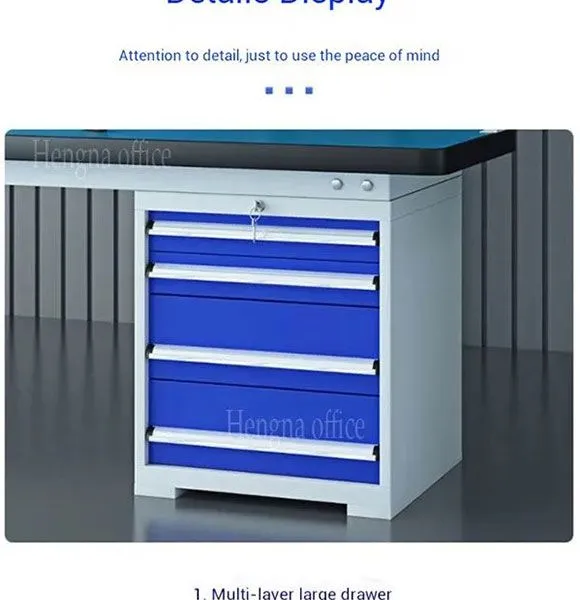

5. Drawers – Heavy Slides, Independent Locks

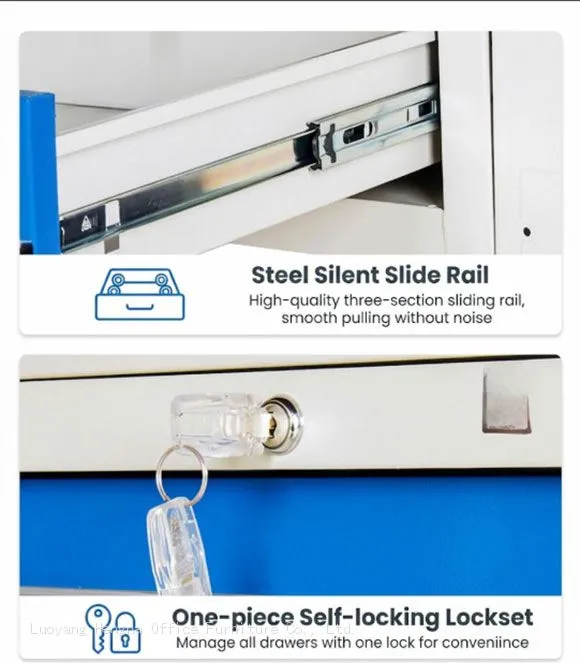

Each drawer unit runs on heavy-duty ball-bearing slides with full extension. Anti-tip stops prevent the drawer from pulling all the way out and falling. Each cabinet locks independently — one key secures all drawers in that unit.
Throw in divider boxes and you can separate fasteners from cutting inserts, small instruments from bulky tools. Open a drawer, see what you need, grab it — no digging.
Drawer units bolt to the cross beams on the frame. Want to swap a drawer cabinet from the left side to the right? Unbolt it, reposition, bolt it back. Took you longer to read that sentence than to do it.

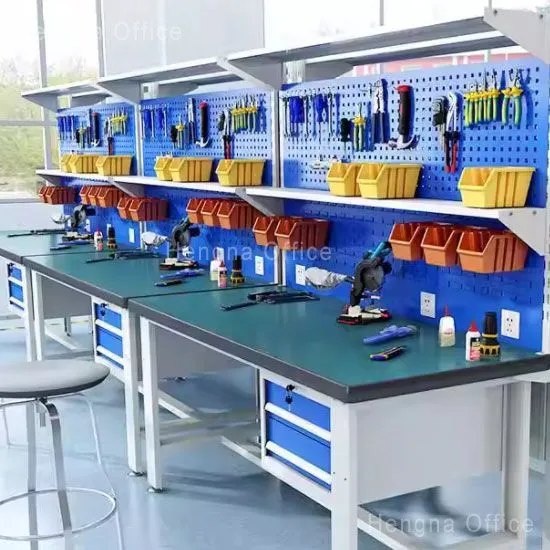

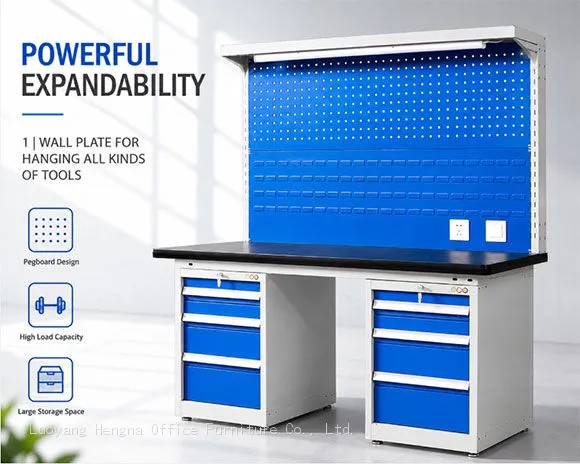

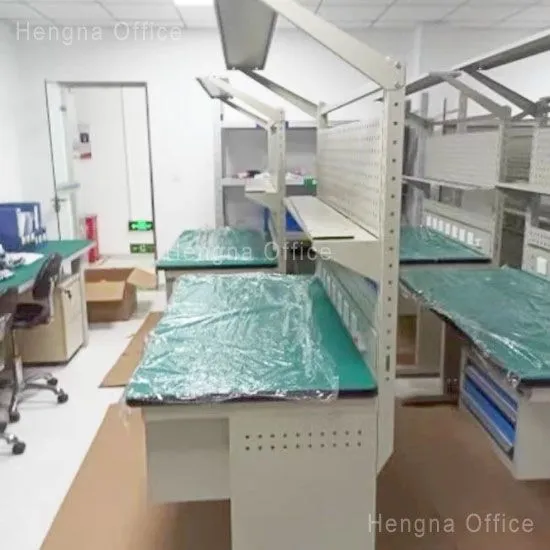

6. Double Pegboard + Power + Light
Two layers on the back panel, two different jobs:
Square-hole pegboard (upper): Hang high-use tools — wrenches, screwdrivers, pliers, hammers. Eye level, instant access.
Louver panel (lower): Holds bin boxes. Blue for daily stock, yellow for consumables that run low, red for items needing replacement.
The power outlet module drops into a pre-cut slot above the work surface. Plug in soldering stations, test equipment, bench grinders directly. No extension cords draped across the bench.
Light stand is standard. LED tubes are optional. If you're doing precision work, good overhead light isn't a luxury — it's fewer mistakes.
7. What You're Getting From Us
HNJUNTO. Luoyang, Henan, China. Nine years manufacturing steel workstations for export.
OEM: Logo printing, custom colors, custom packaging — all doable
CE certification: Available
MOQ: 1 unit. Mix configuration in containers for better pricing
Quote response: Within 24 hours
Packaging: Moisture-proof wrap + corner guards + component-bundled. Sea freight ready
Assembly: English manual + QR-coded video guide
You're ordering from the factory floor. Not a middleman.
8. FAQ
Q: Can I add more cabinets or pegboards after I buy? A: Yes. The frame is bolted. Order extra drawer units, door cabinets, or pegboard panels and bolt them on.
Q: Which configuration should I pick? A: Count your tools and your parts. Lots of both? Go full spec. Mostly hand tools with a few bulk items? 3-drawer + door cabinet splits the difference. Just need a surface? Legs only.
Q: Can I change the worktop later? A: Yes. The top unbolts from the frame. Swap anti-static for steel plate, steel plate for stainless. Frame stays.
Q: Is KD assembly a pain? A: One person, 30-40 minutes. Pre-assembled modules, numbered hardware packs, illustrated English manual. No welding, no guesswork.
Q: Can I get different colors? A: Cabinet bodies and drawer fronts can be custom-colored. Reasonable MOQ applies.
Q: Is it stable on uneven floors? A: Leveling feet adjust up to 30mm. Set the bench, adjust each foot, done.
9. Closing
A modular workbench system isn't about how many configurations the factory decided to list. It's about whether the frame gives you the freedom to change your mind later. HNJUNTO uses a bolted steel frame, three worktop types, and independently mounted storage — so the bench you set up today isn't locked in for good.
