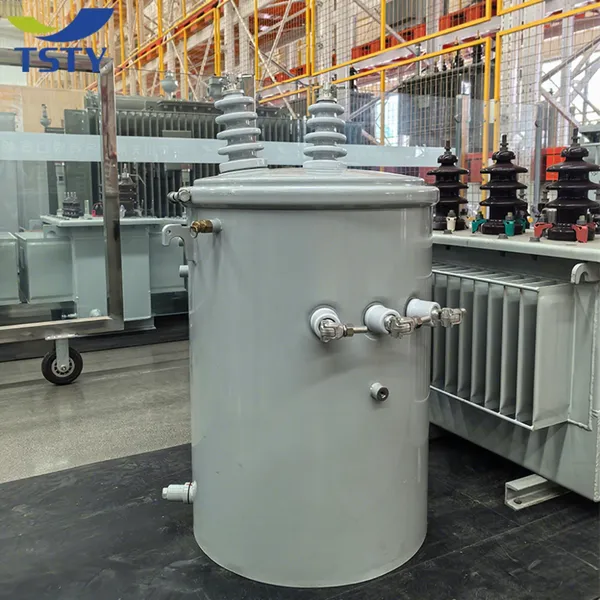

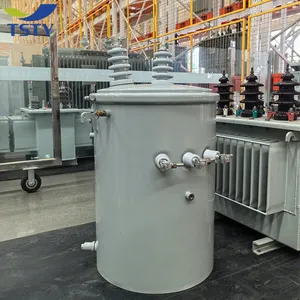

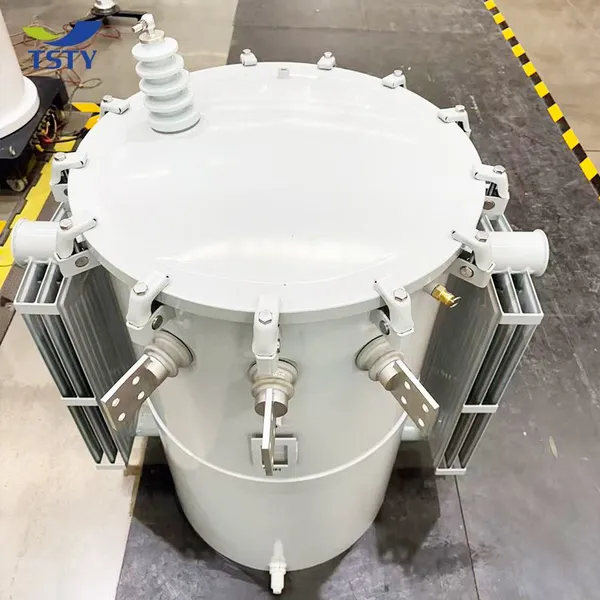

Single Phase Pole Transformer for Overhead Line Service to Residential Areas
Product Spotlights
Designed for reliable overhead power distribution to residential areas, this single-phase pole transformer offers durable construction, high efficiency, and easy installation. It features customizable voltage ratings, robust environmental resistance, and is backed by ISO-certified manufacturing, ensuring stable electricity supply for communities worldwide with minimal maintenance.
US$ 5647
≥1 Unit
Key Specifications
Get Latest Price
Phase Configuration:
Single Phase
Mounting Type:
Pole Mounted
Application:
Overhead Line Service to Residential Areas
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
250kVA 7.2kV to 120/240V Single Phase Pole Mount Distribution TransformerUS$ 5647MOQ: 1 Unit -
7.2kV Class Pole Mount Transformer Oil Filled 250kVA for Rural DistributionUS$ 5647MOQ: 1 Unit
-
Single Phase 250kVA Pole Transformer With Standard Compliant Oil Filled DesignUS$ 5647MOQ: 1 Unit
-
Transformer for Utility Pole Mounting in Commercial and Residential Power SupplyUS$ 5647MOQ: 1 Unit
-
Pole Mounted Distribution Transformer 250kVA 7.2kV 60Hz Single Phase 120/240VUS$ 5647MOQ: 1 Unit
Phase Configuration
Single Phase
Mounting Type
Pole Mounted
Application
Overhead Line Service to Residential Areas
Insulation Type
Liquid-filled or Dry-type (specify)
Cooling Method
ONAN (Oil Natural Air Natural) or similar
Standard Compliance
IEC, ANSI, or other regional standards
Capacity Range (kVA)
5 kVA to 100 kVA (typical)
Primary Voltage (kV)
11 kV, 15 kV, 20 kV, 33 kV
Secondary Voltage (V)
120/240 V, 230/400 V, 240/480 V
As a dedicated manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. specializes in providing reliable and efficient power distribution solutions for communities worldwide. Our Single Phase Pole Transformer for Overhead Line Service to Residential Areas is engineered to deliver stable and safe electricity directly to homes and small residential networks. Designed for durability and ease of installation on utility poles, this transformer is a cornerstone for utilities and contractors seeking to enhance grid reliability in suburban and rural settings.
Our transformers are built to withstand the rigors of outdoor service, ensuring a continuous power supply. Key features and benefits include:
- Robust Construction: The housing and core are designed for excellent mechanical strength and resistance to environmental factors like moisture and temperature fluctuations.
- High Efficiency: Advanced core and winding designs minimize energy losses, leading to lower operational costs and a reduced carbon footprint over the transformer's lifespan.
- Easy Installation & Maintenance: The pole-mounted design simplifies installation processes, and our transformers are built for low maintenance requirements, reducing long-term service interruptions and costs.
- Safety-First Design: Incorporating features to prevent overloads and ensure safe operation, protecting both the electrical grid and residential end-users.
- Customization Options: We offer various configurations to meet specific regional voltage standards, capacity needs, and environmental conditions.
Below is a table outlining typical technical specifications for our Single Phase Pole Transformers. Please note that specific parameters can be customized based on your project requirements.
| Parameter | Typical Specification / Range |
|---|---|
| Rated Capacity | 5 kVA, 10 kVA, 15 kVA, 25 kVA, 37.5 kVA, 50 kVA, 75 kVA, 100 kVA |
| Primary Voltage (High Side) | 11 kV, 15 kV, 20 kV, 33 kV (Standard) |
| Secondary Voltage (Low Side) | 120/240 V, 230/400 V, 240/480 V (Common) |
| Frequency | 50 Hz or 60 Hz |
| Insulation Class | Class A (105°C) or higher |
| Cooling Type | ONAN (Oil Natural Air Natural) |
| Impedance Voltage | Typically 4% (Customizable) |
| Noise Level | Below 55 dB(A) at rated load (Subject to design) |
The advantages of choosing our Single Phase Pole Transformer extend beyond basic specifications:
- Enhanced Grid Stability: Provides consistent voltage regulation, reducing flicker and ensuring appliances in homes operate safely and efficiently.
- Cost-Effective Expansion: Ideal for extending power lines to new residential developments without the need for expensive substation infrastructure.
- Long Service Life: Manufactured with high-quality materials and processes, our transformers are designed for a service life exceeding 25 years under normal operating conditions.
- Global Compatibility: Our products are designed to meet various international standards, making them suitable for our diverse main markets, including North America, Southeast Asia, Africa, and Europe.
Trust in Jinhua Dika Electrical Equipment Co., Ltd. is built on a foundation of quality and reliability. Our commitment is reflected in our adherence to stringent management systems, including ISO9001 for quality and ISO14000 for environmental management. With an annual export value of US$1 Million - US$1.5 Million and a team of 11-50 dedicated professionals, we have successfully served clients across the globe, from North America and Western Europe to Southeast Asia and Africa. We ship efficiently from major ports like Shanghai, Tianjin, Guangzhou, and Ningbo, ensuring timely delivery. Our Single Phase Pole Transformer embodies this commitment, offering a reliable, efficient, and durable solution for powering residential communities. Contact us today to discuss how we can support your next overhead distribution project.
Frequently Asked Questions (FAQ)
-
Q: What is the typical lifespan of your Single Phase Pole Transformer?
A: When operated within its specified ratings and under normal environmental conditions, our transformers are designed for a service life of over 25 years, thanks to robust construction and high-quality insulating materials. -
Q: Can you customize the transformer for different voltage standards, like 60Hz systems in North America?
A: Absolutely. We regularly manufacture transformers for both 50Hz and 60Hz applications. Please provide your specific primary and secondary voltage requirements during inquiry. -
Q: What are the main installation considerations for this pole-mounted transformer?
A: Key considerations include selecting a suitable, sturdy utility pole, ensuring proper clearances from other lines and objects, and following local electrical codes. We provide detailed installation guidelines with our products. -
Q: Is the transformer oil-filled or dry-type? What are the differences?
A: We offer both types. Oil-filled transformers are common for their excellent cooling and insulation properties. Dry-type transformers use solid insulation and are often chosen for their fire safety and lower environmental impact in sensitive areas. We can advise on the best option for your application. -
Q: What kind of maintenance is required?
A: Routine maintenance typically involves periodic visual inspections, checking for oil leaks (if oil-filled), monitoring temperature, and ensuring bushings and connections are clean and tight. Our transformers are designed for minimal maintenance. -
Q: Do you provide technical support and documentation?
A: Yes, we provide comprehensive documentation, including wiring diagrams, test reports, and operation manuals. Our technical team is available to support installation and troubleshooting. -
Q: What certifications do your products hold?
A: Our manufacturing processes are certified under ISO9001 and ISO14000, among others. Product-specific certifications can be discussed based on your market's requirements. -
Q: What is your lead time for a standard order?
A: Lead times vary based on order quantity and customization level. For standard models, typical production time is 4-6 weeks. We strive to provide accurate timelines upon order confirmation.
