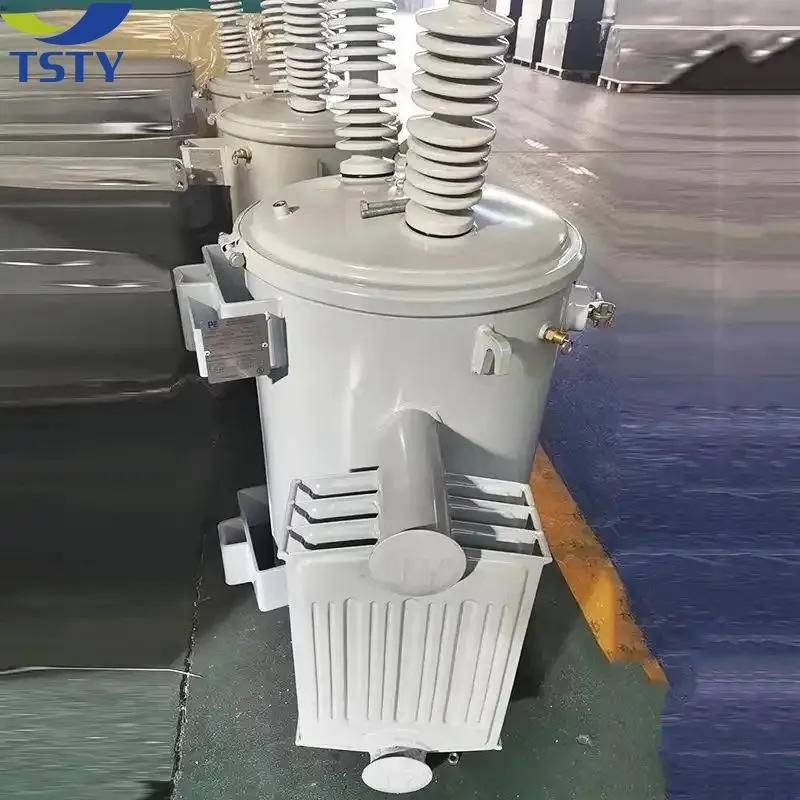

Transformer for Utility Pole Mounting in Commercial and Residential Power Supply
Product Spotlights
Designed for space-efficient overhead power distribution, this utility pole-mounted transformer offers reliable voltage transformation for commercial and residential areas. It features rugged, weather-resistant construction for outdoor durability, high-efficiency core design to reduce energy losses, and flexible options including oil or dry-type cooling and customizable electrical ratings. Simplifies installation and maintenance while adapting to diverse project needs.
US$ 5647
≥1 Unit
Key Specifications
Get Latest Price
Mounting Type:
Pole Mounting
Application:
Commercial and Residential Power Supply
Phase Configuration:
Single Phase or Three Phase
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pole Mounted Distribution Transformer 250kVA 7.2kV 60Hz Single Phase 120/240VUS$ 5647MOQ: 1 Unit -
American Single Phase Pad-Mounted Transformer 50Kva 75Kva 100Kva 167Kva 250Kva 333Kva for Rural Power DistributionUS$ 1250MOQ: 10 Units
-
50Kva 75Kva 100Kva 167Kva 250Kva 333Kva American Single Phase Pad-Mounted Transformer With WarrantyUS$ 1250MOQ: 10 Units
-
American Single Phase Transformer 50Kva to 333Kva for Residential and Commercial ServiceUS$ 1250MOQ: 10 Units
-
American Single Phase Transformer Pad-Mounted Design 50Kva 75Kva 100Kva 167Kva 250Kva 333KvaUS$ 1250MOQ: 10 Units
Mounting Type
Pole Mounting
Application
Commercial and Residential Power Supply
Phase Configuration
Single Phase or Three Phase
Cooling Method
Oil-Immersed or Dry Type
Voltage Rating
Customizable Primary and Secondary Voltages
Power Rating
Available in Various kVA Ratings
Insulation Class
Standard or High-Temperature Insulation
Enclosure Protection
Weather-Resistant IP Rating
Core Material
High-Grade Silicon Steel
Standard Compliance
Industry Standards and Customizable Certifications
As a dedicated manufacturer of electrical equipment, Jinhua Dika Electrical Equipment Co., Ltd. specializes in providing robust and reliable power distribution solutions. Our Transformer for Utility Pole Mounting is engineered to meet the demanding requirements of modern commercial and residential power supply networks. Designed for durability and efficiency, this transformer ensures stable voltage transformation and distribution directly from the utility pole, minimizing ground space requirements and simplifying installation logistics. With years of experience and a commitment to quality, we deliver products that form the backbone of safe and continuous electricity delivery to communities and businesses alike.
This pole-mounted transformer is a critical component in stepping down high distribution voltages to usable levels for end consumers. Its design prioritizes longevity and performance in outdoor environments.
- Rugged Construction for Outdoor Use: Built with a weather-resistant tank and corrosion-protected fittings, the transformer withstands harsh environmental conditions including rain, snow, UV exposure, and temperature fluctuations. The enclosure is designed to prevent moisture ingress and protect internal components.
- High-Efficiency Core Design: Utilizing premium, low-loss silicon steel laminations for the core, our transformers minimize energy wastage in the form of heat, leading to lower operational costs and improved overall system efficiency over their lifespan.
- Flexible Configuration Options: Available in both oil-immersed and dry-type designs to suit different safety, environmental, and maintenance preferences. Customers can specify single-phase or three-phase configurations based on their load requirements.
- Optimized for Pole Mounting: The compact and balanced design, along with integrated mounting brackets, facilitates secure and straightforward installation on standard utility poles, reducing labor time and installation complexity.
- Customizable Electrical Parameters: We offer a range of standard kVA ratings and voltage combinations. Primary and secondary voltages can be customized to match specific regional grid standards or project requirements.
- Enhanced Safety Features: Designs incorporate features such as pressure relief devices, visible oil level gauges (for oil-type), and secure terminal compartments to ensure safe operation and easier maintenance checks.
The technical specifications below outline some of the key parameters available. Please note that these are common examples, and exact specifications can be tailored.
| Parameter | Typical Range / Option | Notes |
|---|---|---|
| Power Rating (kVA) | 25 kVA, 50 kVA, 100 kVA, 167 kVA | Other ratings available upon request |
| High Voltage (Primary) | 11 kV, 15 kV, 33 kV | Common distribution voltages |
| Low Voltage (Secondary) | 120/240V, 240/480V, 347/600V | For residential/commercial supply |
| Cooling Type | ONAN (Oil), AN (Dry) | ONAN: Oil Natural Air Natural |
| Insulation Class | Class A, Class F, Class H | Determines temperature withstand |
| Enclosure Protection (IP) | IP23, IP45 | Protection against solid objects & water |
Benefits for Your Project:
- Space-Saving Installation: By mounting directly on existing utility poles, you eliminate the need for a dedicated transformer pad or enclosure on the ground, preserving valuable land, especially in dense urban or residential areas.
- Reduced Power Losses: The high-efficiency design translates directly into lower electricity transmission losses, which can result in cost savings for utilities and end-users over the long term.
- Reliability and Uptime: Built with quality materials and rigorous testing, these transformers are known for their dependable service, contributing to a stable power supply with minimal outages.
- Simplified Maintenance: The pole-mounted position and clear design features allow for easier visual inspections and routine maintenance activities compared to some ground-based alternatives.
- Adaptability: With customizable ratings and configurations, this transformer can be precisely matched to the load demands of a new housing development, a commercial strip mall, or for upgrading an existing neighborhood grid.
Jinhua Dika Electrical Equipment Co., Ltd. operates with a firm commitment to quality and customer satisfaction, supported by an annual export value in the range of US$1 Million to US$1.5 Million. Our production processes are structured, and we employ a dedicated team of 11-50 professionals focused on electrical equipment manufacturing. Our products reach global markets, including North America, South America, Europe, Asia, Africa, and Oceania, shipped from major Chinese ports like Shanghai, Tianjin, Guangzhou, and Ningbo. This extensive reach demonstrates our capability to meet diverse international standards and logistical requirements. We invite you to leverage our manufacturing expertise for your next power distribution project. Contact us today to discuss your specific needs for a reliable, efficient, and customizable utility pole-mounted transformer.
Frequently Asked Questions (FAQ)
-
What are the main advantages of a pole-mounted transformer over a pad-mounted one?
Pole-mounted transformers save significant ground space, which is crucial in crowded areas. They can also be easier and faster to install since they utilize existing pole infrastructure, and they may offer improved accessibility for maintenance in certain terrains. -
Can you provide transformers for both 50Hz and 60Hz power systems?
Yes, our design and manufacturing processes allow us to produce transformers suitable for both 50Hz and 60Hz electrical systems. The specific frequency requirement must be specified during the ordering process. -
What is the typical lead time for a custom-order pole transformer?
Lead times vary based on the complexity of customization and current production schedule. For standard models, it is generally shorter. We provide a projected timeline upon confirmation of your technical specifications. -
How do I choose between an oil-immersed and a dry-type transformer for pole mounting?
Oil-immersed units are often more compact and efficient for higher ratings but require containment measures. Dry-type transformers are preferred where fire safety is a paramount concern, such as near buildings. We can advise based on your local regulations and site conditions. -
Are bushings and lightning arresters included?

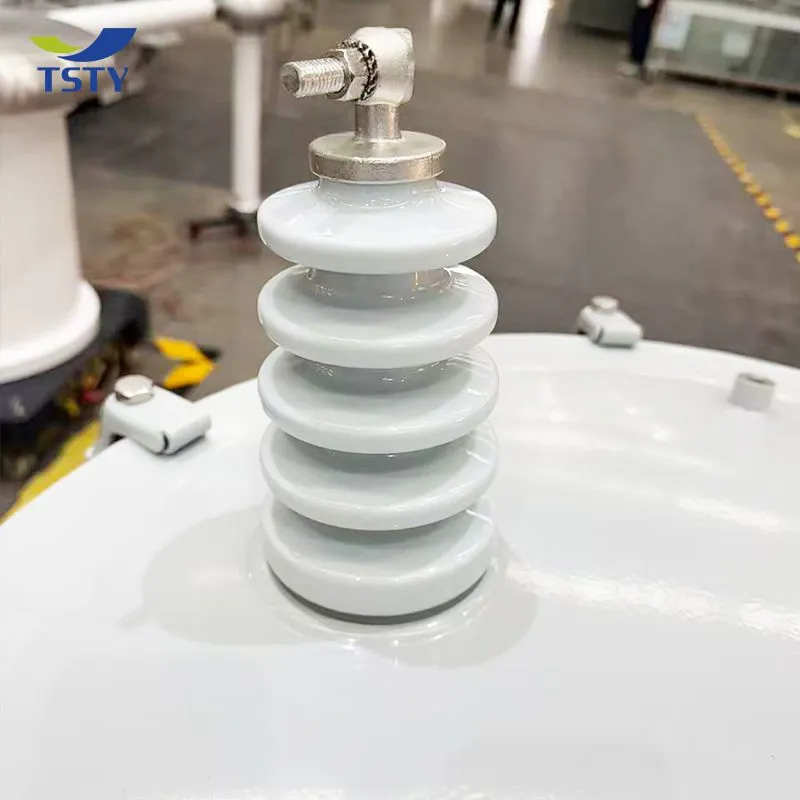

Bushings are standard. Lightning arresters or other protective devices like fuse cutouts are typically specified separately based on the system design requirements and can be supplied as part of a complete package. -
Do you offer any testing reports or factory acceptance tests?
Standard routine tests are conducted on every unit. Additional type tests or factory acceptance tests (FAT) can be arranged upon request and agreement before shipment. -
What kind of warranty do you provide?
We offer a standard warranty period for our transformers, covering defects in materials and workmanship. The specific terms and duration will be detailed in our sales contract. -
Can you assist with installation guidelines or connection diagrams?
Yes, we provide detailed installation manuals, connection diagrams, and nameplate information with each transformer. Technical support is available to answer specific questions during the planning phase.
