Sludge treatment equipment - Fuhang brand FW20 drying-type sludge treatment equipment
Analysis of the advantages and disadvantages of sludge treatment process equipment
Process unit |
Name of treatment building |
Treatment equipment |
Supporting equipment |
Advantages |
Disadvantages |
|
Category |
Name Name |
|||||
Sludge concentration |
Sludge thickening tank |
Thickening scraper |
Center-driven thickening scraper, peripheral-driven thickening scraper |
High-pressure water flushing system |
Small footprint and low cost |
High operating and mechanical maintenance costs, and the moisture content after treatment is still as high as 95 - 97% |
Sludge thickener |
Rotating filter cloth |
Belt sludge thickener, spiral centrifugal thickener |
||||
Sludge digestion |
Sludge digestion tank |
Mixing equipment |
Mechanical agitator, biogas agitator, sludge circulation agitator |
Steam boiler |
||
Heating equipment |
Plate heat exchanger, tube heat exchanger, spiral heat exchanger |
|||||
Biogas utilization |
Biogas utilization equipment |
Biogas purification and desulfurization equipment, biogas compressor, biogas generator, biogas boiler, biogas storage tank, biogas burner |
Biogas leakage detection system |
Resource utilization |
Large investment, small and unstable biogas production, and the biogas residue still needs to be treated |
|
Sludge dewatering |
Sludge dewatering room |
Filter press |
Belt filter press, plate and frame filter press |
Medicine dissolving and dosing device |
High target moisture content |
|
Centrifugal dehydrator |
Screw centrifugal dehydrator, decanter centrifuge, disc centrifuge |
High investment, high power cost, and complex maintenance; |
||||
Vacuum dehydrator |
Horizontal vacuum filter, cylindrical vacuum filter |
High target moisture content |
||||
Sludge drying |
Sludge drying room |
Dryer |
Ventilation dryer, spray dryer, air flow dryer, rotary dryer, drum dryer, vacuum dryer |
Blower |
Fast drying |
High energy consumption, small processing capacity |
Drying greenhouse |
Solar energy equipment |
Solar collector, sludge spreading and turning machine, sludge feeding and discharging machine, ventilation device, ground source heat pump unit |
Computer remote control |
Low cost, no pollution, large processing capacity |
Affected by weather conditions |
|
Sludge incineration |
Sludge incineration room |
Incinerator |
Fluidized bed incinerator, horizontal rotary incinerator, multi - stage vertical incinerator |
Exhaust gas treatment device |
Thorough treatment |
High energy consumption and environmental pollution |
Sludge composting |
Sludge composting bin |
Composter |
Chain type turning machine, dryer, granulator |
Blower |
||
★1、Sludge disposal equipment, materials: Sludge thickening---Dewatering, high - dry dewatering equipment, sludge drying equipment, sludge dewatering equipment, sludge drying equipment, complete sludge treatment equipment, petroleum sludge treatment equipment, filter presses and other filter press equipment, filter, hollow blade dryer, concentration meter, filter plate, filter cloth, filter screenFilter equipment such as screens, oil-water separation equipment, rotary drum drying equipment, sludge pumps, impurity pumps, screw pumps, centrifuge plastic separation equipment Mining separation equipment Food separation equipment, medical and pharmaceutical separation, sewage pumps, chemical separation equipment, wear-resistant pumps Hollow paddle dryers, sludge clean storage, transportation, and loading systems. Various types of air flotation machines such as vortex air flotation machines, sludge scraping and suction machines
★2、Sludge anaerobic digestion technology; Sludge aerobic digestion technology; Lime stabilization technology
★3、Sludge composting treatment technology, application of sludge in building materials; Sludge power generation technology
★4、Sludge landscaping and soil improvement technology; Digester mixing equipment(Mechanical, biogas)
★5、New technologies, processes, and equipment for the treatment and disposal of oily and heavy metal-containing sludge
★6、Sludge sanitary landfill; Incineration and comprehensive utilization equipment and devices
★7、Application of Microbial and Deodorization Technologies and Products in Sludge Treatment and Disposal
★8、Application Technology of Co-processing Sludge in Cement Kilns
★9、Sludge Conveying Technology and Equipment
★10、Tap Water Sludge Treatment Equipment
★11、Application of Membrane Technology in Sludge Treatment
Sludge Treatment Equipment - Fuhang Brand FW20 Drying-type Sludge Treatment Equipment -- Process Introduction:

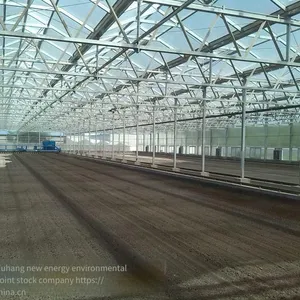

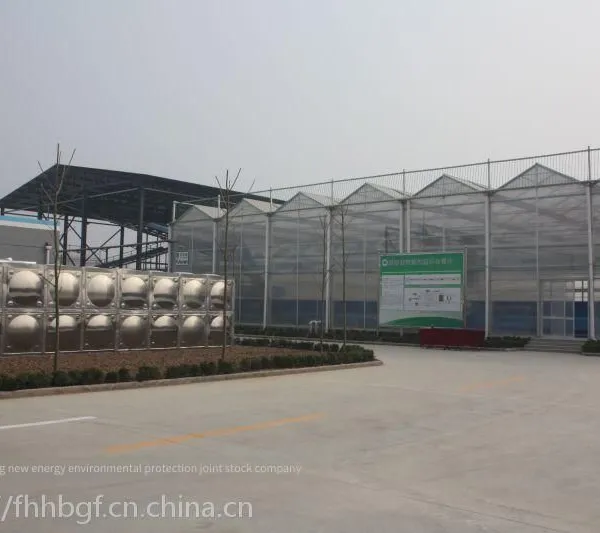

1. Active Fully Automatic Solar Greenhouse System

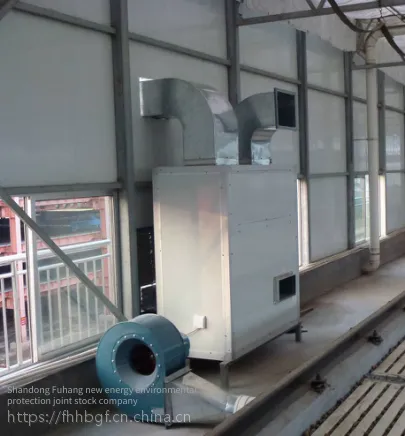

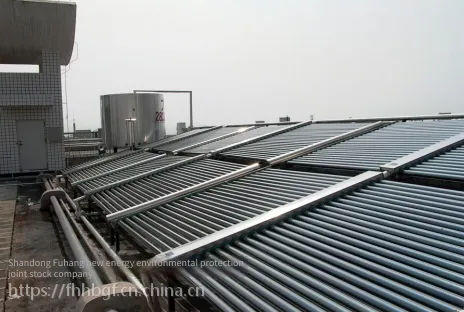

2. Solar and Heat Pump Heating and Bottom Air Supply System

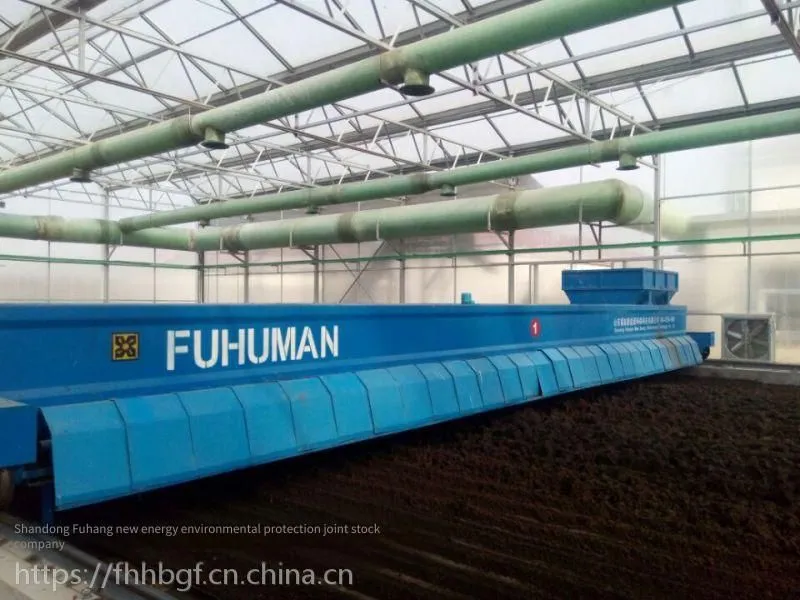

3. Fully automatic sludge spreading and feeding system
4. Wet sludge hydraulic pumping system

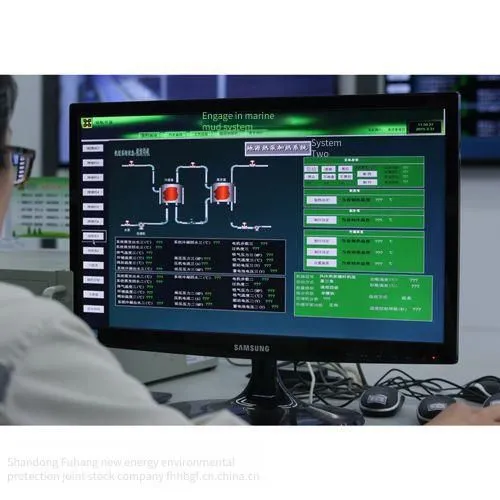

5. Remote automation control system
6. Sterilization and deodorization system
7. Negative ion fresh air ventilation system
8. Dry material collection and conveying system
9. New building material system for dry mud processing
Sludge treatment equipment - Fuhang brand FW20 drying-type sludge treatment equipment, Technical feature analysis:
1. Utilize clean energy such as solar energy, air energy and geothermal energy (heat pump technology) combined with remote
automation technology process.
2. It has more than 20 independent technologies, masters independent technologies, and saves 70% energy.
3. It is low-carbon, environmentally friendly, and has low operating costs.
4. It has a high degree of remote automation, enabling one person to control the entire sludge treatment process.
5. It processes at a low temperature of 80 degrees and does not produce harmful gases such as dioxins.

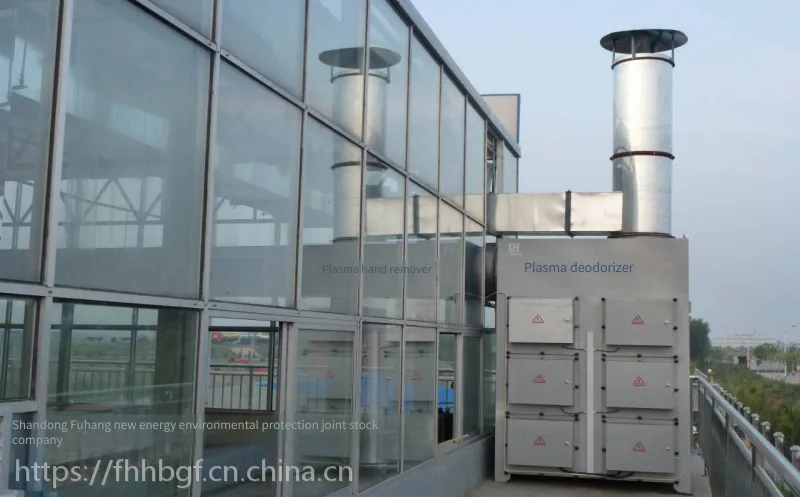

6. It adopts plasma active oxygen purification and deodorization technology and negative ion fresh air ventilation technology.
7. It comprehensively utilizes new energy, realizes all-weather continuous operation, and facilitates industrial operation.

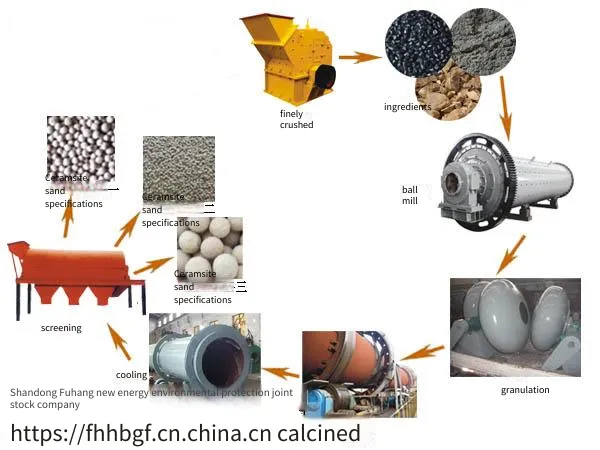

8. It uses sludge to make environmentally friendly building materials, thermal insulation materials, ceramsite, filter materials, etc., to achieve resource utilization.
Utilization.
The new energy sludge drying complete equipment has obtained the new product and new technology appraisal certificate from the Economic and Information Technology Bureau of Shandong Province. After appraisal, it is "............".
