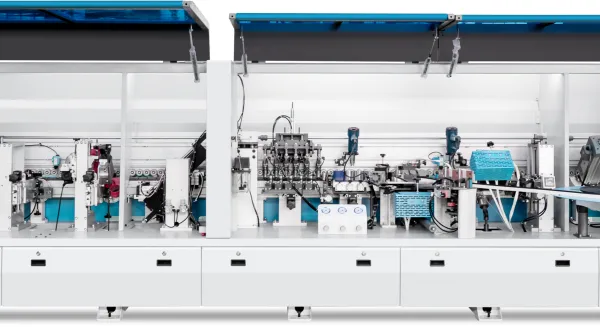

Help Center568 Beveled Edge Banding Machine
Related Products

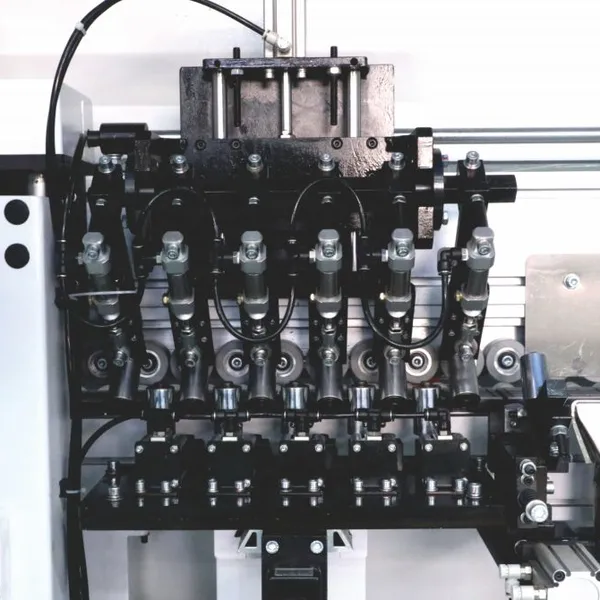

Separation, 45° inclined milling for shaping, inclined and straight-sided gluing (using a lower glue pot), six-wheel pressing with a glue cleaning function, board preheating, edge slotting, inclined and straight-sided pressing, front and rear alignment, rough upper trimming and fine lower trimming, upper flat scraping, lower scraping edges, cleaning, polishing (encoder control)
technical parameter
model HKJ-568
working air pressure 0.6Mpa
aggregate capacity 15.49kw
feed rate Medium speed: 17m/min
Electric lifting Standard (0.37kw)
Plate thickness hypotenuse
(Angle: 45°) Straight edge section thickness of slab
5mm 16~25mm
Plate length ≧250mm
Width of sheet metal ≧120mm
Sealing band thickness Hypotenuse: 0.6-1.5mm
outline dimension （mm） 6430*1000*1700
weight （KG） Approximately 2 tons (actual weight)
