Product Overview

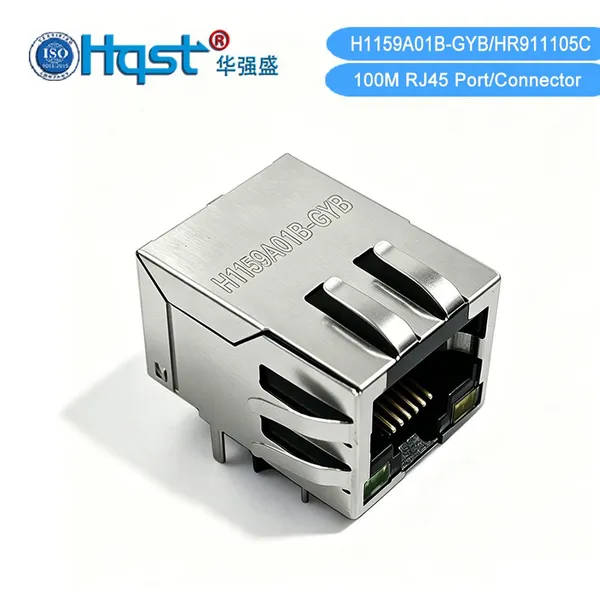

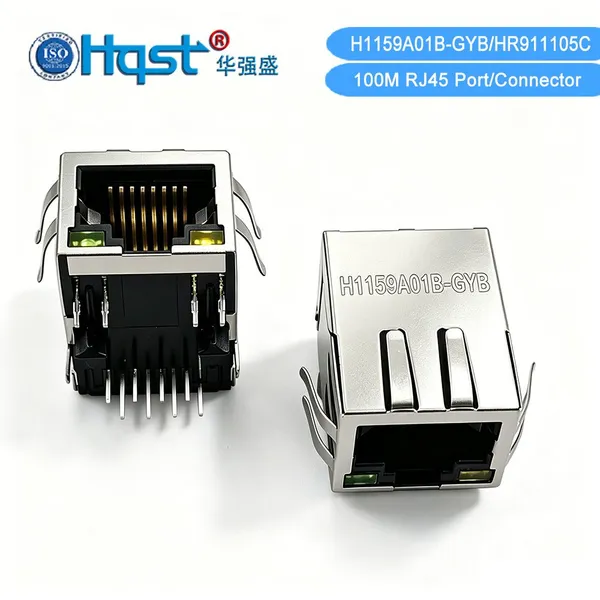

Model: H1159A01B-GYBThis is a 100Mbps RJ45 integrated network transformer, specially designed for Ethernet LAN communication systems. It integrates isolation transformer and RJ45 connector in one unit, widely used in network switches, routers, network adapters and other network terminal devices.
Main Features
Strict Standard CertificationFully compliant with IEEE 802.3 and ANSI X3.263 industry standards, and RoHS environmental requirements, suitable for global electronic product export.
Optimized PCB DesignThe integrated design cuts down the quantity of discrete magnetic components on PCB, greatly simplifies circuit layout, saves PCB space, and effectively lifts production efficiency and product reliability.
Superior Isolation & Anti-InterferenceComes with cable isolation function to reduce common mode emissions. With 1500V AC isolation voltage (3S), low insertion loss, high return loss, excellent CMRR and crosstalk suppression performance, ensures stable network signal transmission within 1~100MHz frequency band.
Stable Electrical ParametersRated inductance: 350uH (Min) @100KHz/0.1Vrms; Turns Ratio: 1:1; Maximum DCR: 1.2Ω; Typical inter-winding capacitance: 35pF. All electrical parameters are strictly tested to guarantee consistent performance.
Wide Temperature AdaptabilityOperating temperature: 0℃ ~ +70℃; Storage temperature: -40℃ ~ +85℃. It can work steadily in harsh indoor and industrial environments.
High-Quality Material & Durability
Housing: UL94 V-0 grade thermoplastic, flame retardant and safe.
Contact & Shield: Copper alloy with nickel plating; contact with selective gold plating (6u"), good conductivity and anti-oxidation.
Mechanical durability reaches 800 mating cycles. Equipped with green and yellow LED indicator lights for easy working status observation.
Application Scope
Widely applied in 100M Ethernet equipment, such as network switches, wired routers, industrial network modules, computer peripherals, smart home network devices and other network communication products.
