Home > Products > LAN Transformer > 100Mbit SOP16 LAN Transformer H81601S | Direct Replacement for Pulse H1102NL | RJ45 Network Filter Module with Discrete Magnetic

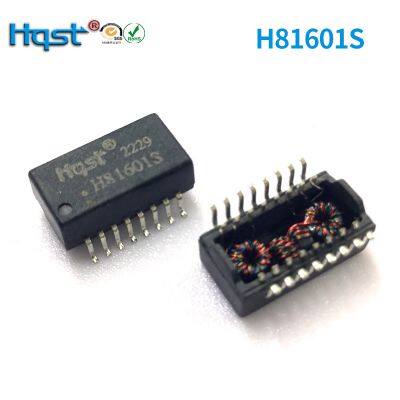

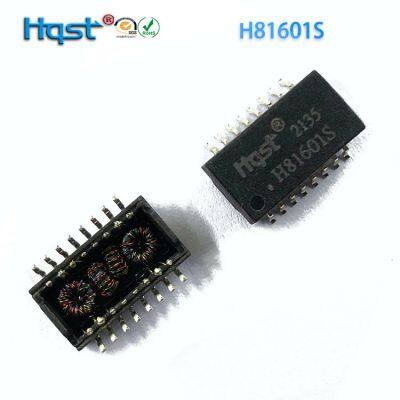

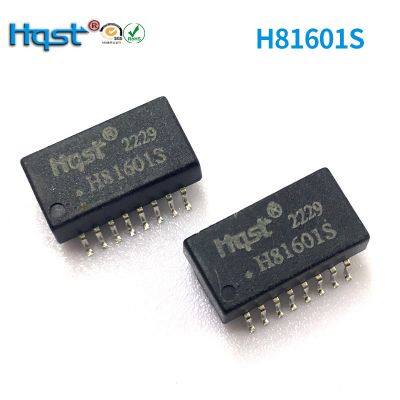

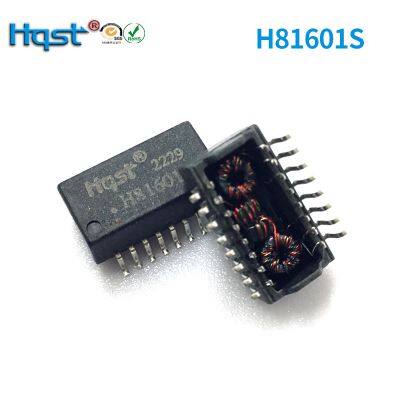

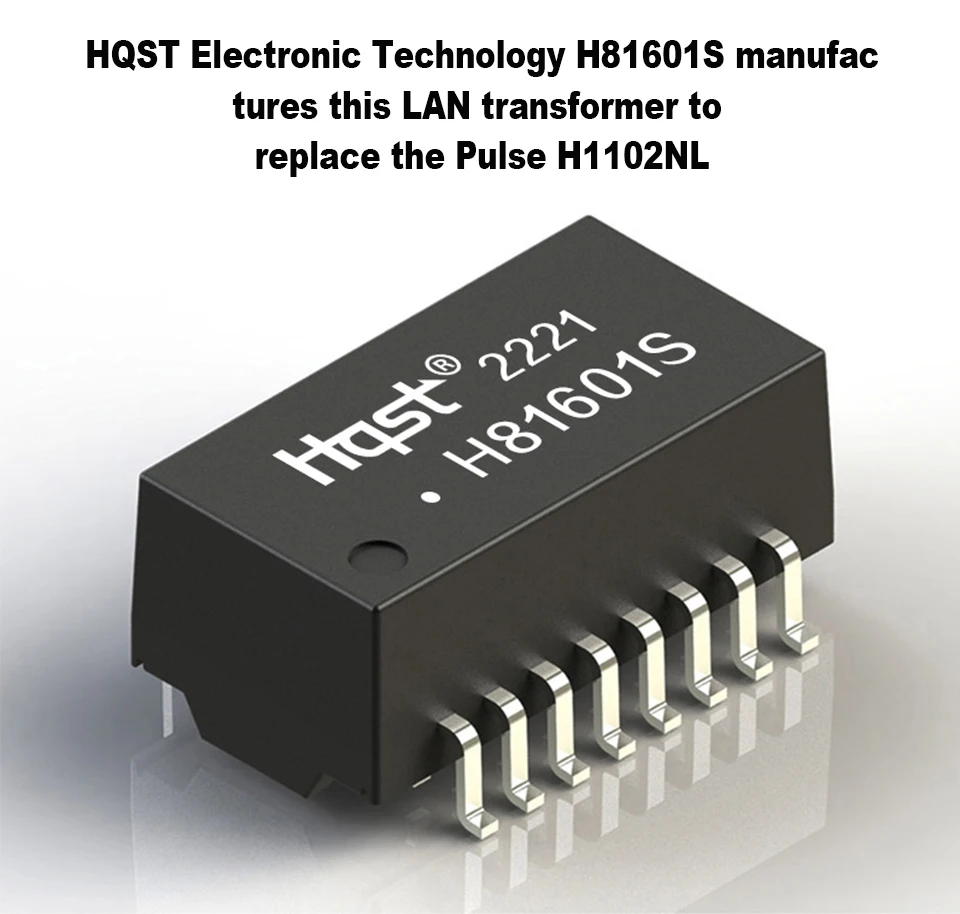

100Mbit SOP16 LAN Transformer H81601S | Direct Replacement for Pulse H1102NL | RJ45 Network Filter Module with Discrete Magnetic
US$ 0.67
≥1000 Pieces
- shen zhen
- T/T L/C PayPal D/P Western Union Other
- 30 days
You May Like
-
H84802S Dual Port SMD SOP-48 Pin Gigabit Ethernet Isolation Filter/Network Transformer 10/100/1000Mbps POE+ IEEE 802.3 for Route
-
HM82409S Dual Port SMD SOP-24 Pin Gigabit Ethernet Isolation Filter/Network Transformer 10/100/1000Mbps IEEE 802.3 for Route
-
H81603S Hundred Gigabit Single Port POE550MA H1102nl /H1601cg/HR601680/S16001G16P LAN Pulse Filter Transformer
-
100M RJ45 Connector Jack HX1159A11B-GG with Dual Green LEDs, PCB Mount Ethernet Port for Router/Switch/Networking Devices
-
GX82405SP 10G Industrial POE Ethernet Transformer Module 24Pin LAN Pulse Isolation Filter for Network Card PCB
-
H1152E01A 100M Ethernet filter 1X1 Port 180 UP vertical Magjack RJ45 Female Connector 8p8c Cat5 Modular Jack/Socket
Product Details
| Brand Name | HQST | Place of Origin | China | |
| Model Number | H81601S |
Product Description
Technical Specification
————————————————————
H81601S
Transformer Type | 10/100 Base-TX |
No. of Ports | 1 Port |
Turns Ratio | 0.6 |
Isolation Voltage | 1.5kV |
Operating Temperature Max | 70°C |
SVHC | No SVHC (17-Jan-2023) |
Compatible With | 10/100 Base-TX |
Transformer Mounting | Surface Mount |
Inductance | 350µH |
Operating Temperature Min | - |
Product Range | - |
