Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > H1152E01A 100M Ethernet Filter 1X1 Port 180 UP Vertical Magjack RJ45 Female Connector 8p8c Cat5 Modular Jack/Socket

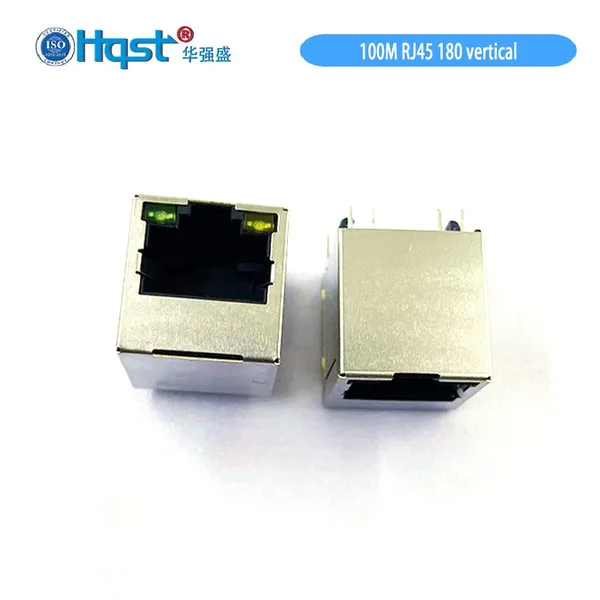

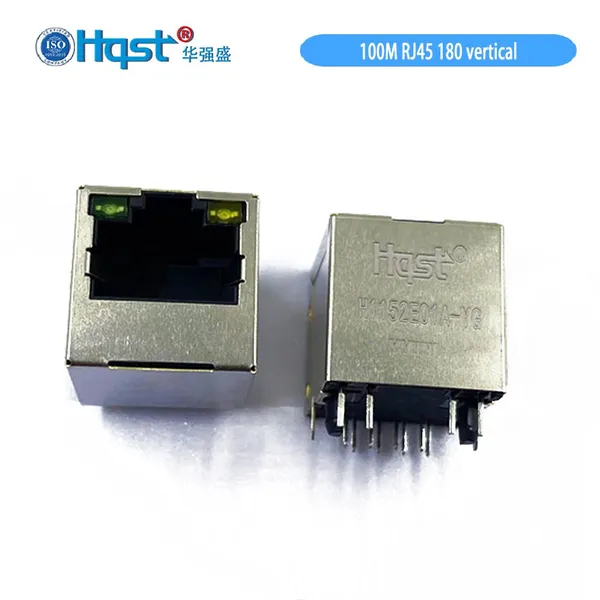

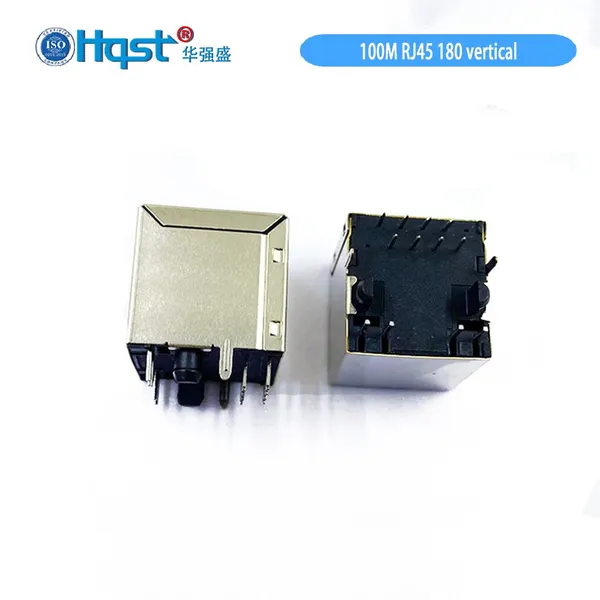

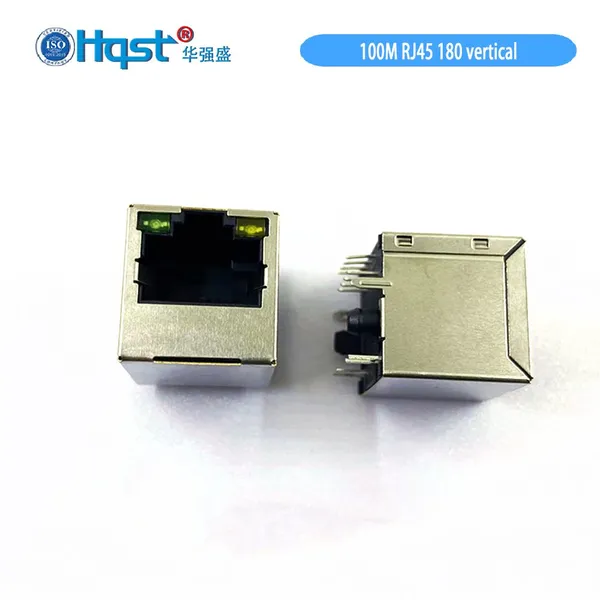

H1152E01A 100M Ethernet Filter 1X1 Port 180 UP Vertical Magjack RJ45 Female Connector 8p8c Cat5 Modular Jack/Socket
US$ 3.48
≥1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
H1152E01A
Type:
RJ45
Payment & Shipping
Payment Methods:
Port of Shipment:
shen zhen
Delivery Detail:
30 days
Related Products
-
HX1159A11B-GGB 100M RJ45 Network Transformer Module With LEDUS$ 14.7MOQ: 10 Pieces -
100M RJ45 Network Transformer H1159A01B-GYB Isolation LAN Magnetic TransformerUS$ 14.7MOQ: 10 Pieces
-
H1159A01B-GYB 100M RJ45 Network Transformer IEEE 802.3 Compliant LAN Isolation Transformer With LED IndicatorUS$ 14.7MOQ: 10 Pieces
-
OHS Compliant 100M RJ45 Connector Transformer H1159A01B-GYB Network Isolation ModuleUS$ 14.7MOQ: 10 Pieces
-
Pulse H5004NL/H82407S SOP24 SMT 1Gbps Ethernet Mag Module, 1000Base-T Isolation Filter for Router/Switch/IndustrialUS$ 1.29MOQ: 1000 Pieces
Place of Origin
China
Model Number
H1152E01A
Type
RJ45
Application
PCB

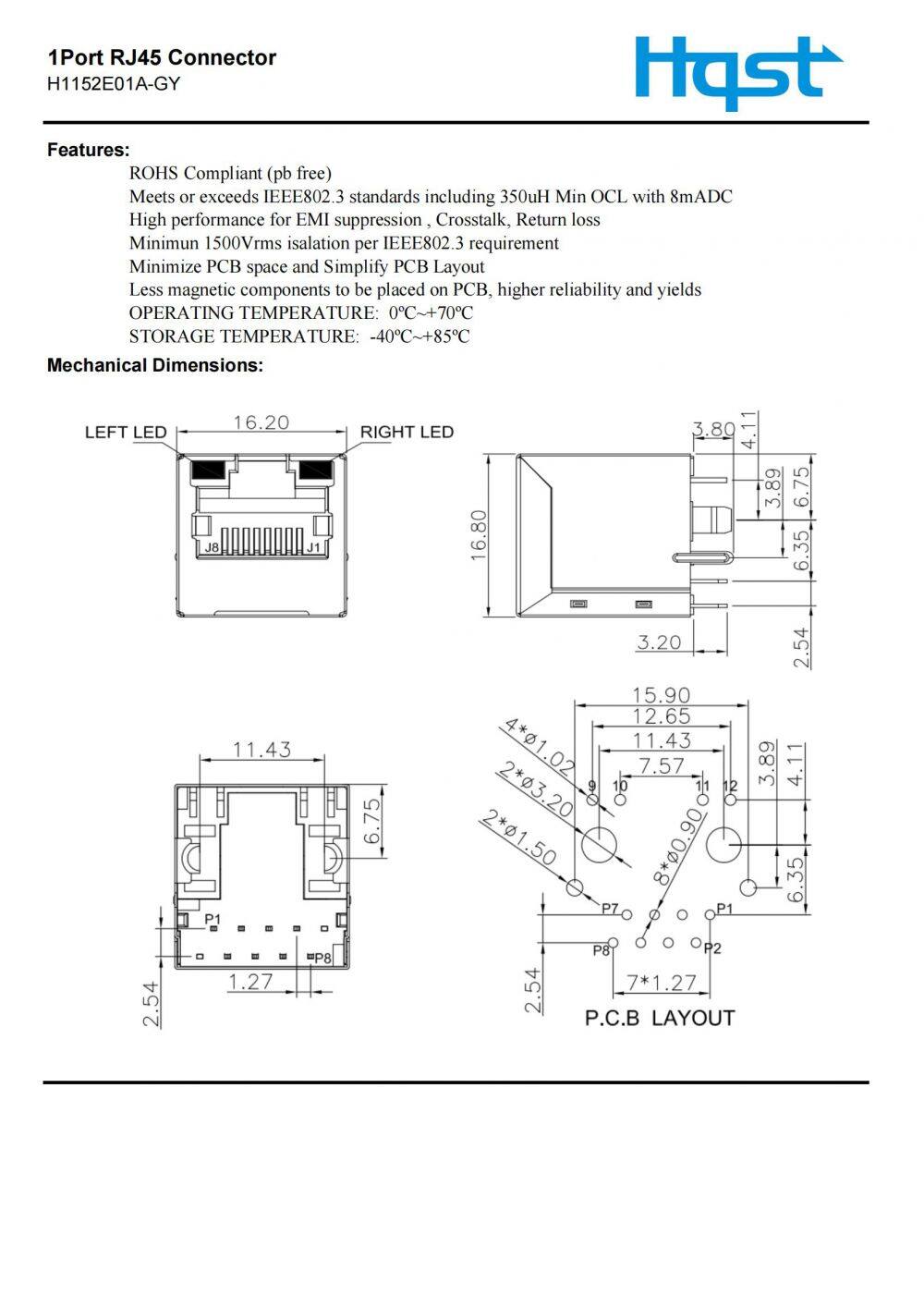

Technical Specification
H1152E01A
1 |
Hqst product model |
H1152E01A |
2 |
Alternative models |
HR911180A |
3 |
Product category |
/ |
4 |
Turns Ratio(TX:RX:PL) |
/ |
5 |
SHIELD |
0.20~0.25MM THICKNESS BRASS WITH TIN PLATED |
6 |
MATING/UNMATING FORCE |
2.2KG.F MAX |
7 |
RETENTION STRENGTH |
7.7KG.F MIN BETWEEN JACK AND PLUG |
8 |
OPERATING LIFE |
600 CYCLES MIN |
9 |
OPERATION |
-40℃~+70℃ |
