Help CenterHX1159A11B-GGB 100M RJ45 Network Transformer Module With LED
Product Spotlights
Simplifies PCB layout, saves board space and improves production yield
Excellent isolation performance, low common mode emissions
Wide temperature range: -40℃ ~ +85℃ for stable operation
Related Products
-
100M RJ45 Network Transformer H1159A01B-GYB Isolation LAN Magnetic TransformerUS$ 14.7MOQ: 10 Pieces -
H1159A01B-GYB 100M RJ45 Network Transformer IEEE 802.3 Compliant LAN Isolation Transformer With LED IndicatorUS$ 14.7MOQ: 10 Pieces
-
OHS Compliant 100M RJ45 Connector Transformer H1159A01B-GYB Network Isolation ModuleUS$ 14.7MOQ: 10 Pieces
-
H1152E01A 100M Ethernet Filter 1X1 Port 180 UP Vertical Magjack RJ45 Female Connector 8p8c Cat5 Modular Jack/SocketUS$ 3.48MOQ: 1000 Pieces
-
Gigabit PoE+ RJ45 Jack With Transformer 2250V Isolation Gold Plated for Industrial Switch Network EquipmentUS$ 12.9 - 14.7MOQ: 100 Pieces
HX1159A11B-GGB 100M RJ45 Transformer Module

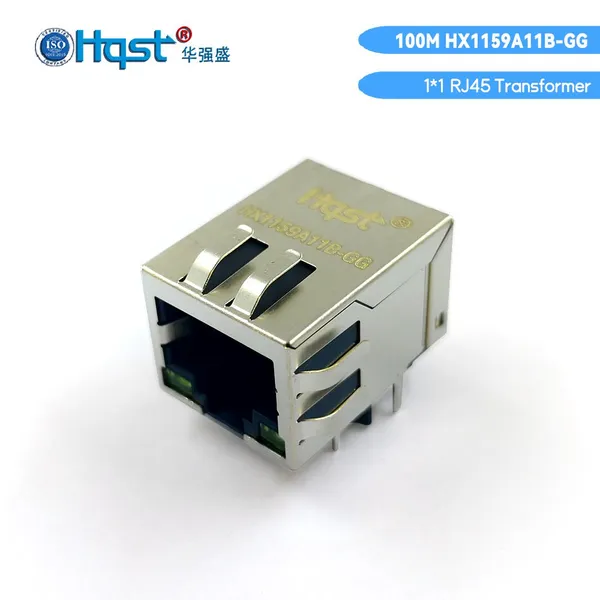

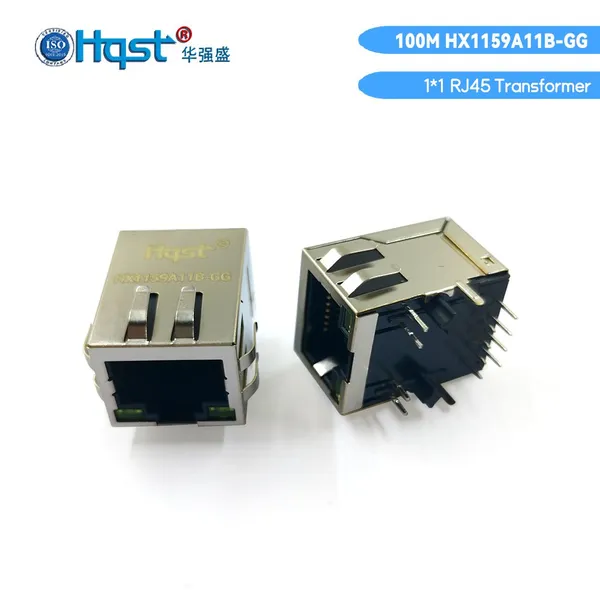

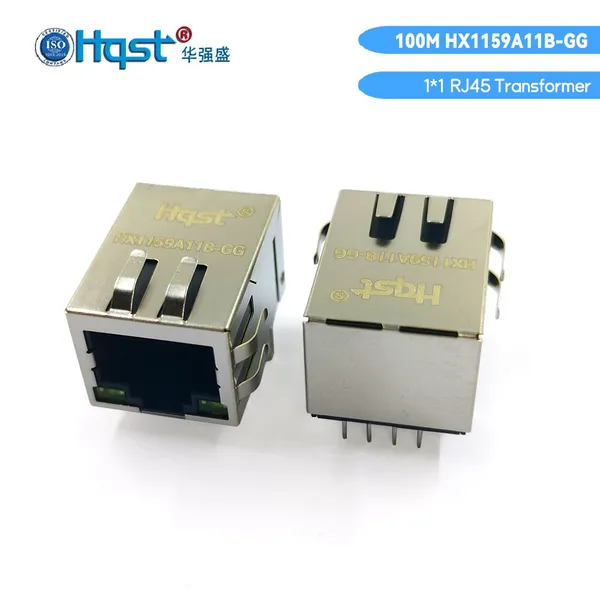

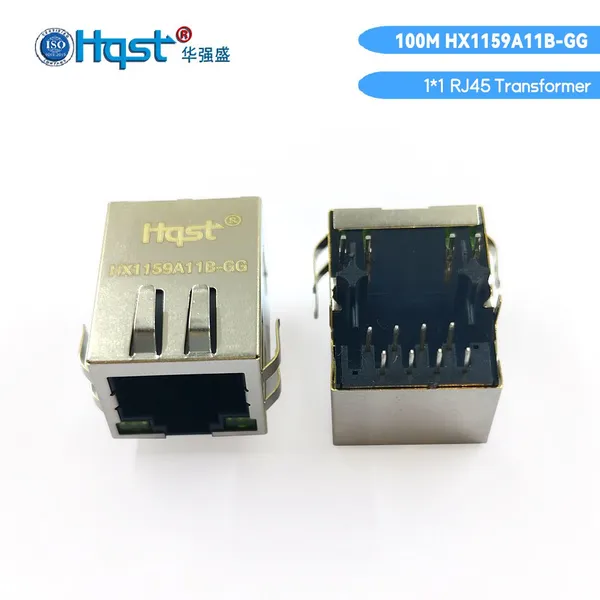

Our HX1159A11B-GGB is a high-performance 100Mbps RJ45 Ethernet transformer connector integrated with magnetic components and dual green LED lights, professionally designed for network communication devices.
Key Advantages
Standard & Certification: Strictly compliant with IEEE 802.3 and ANSI X3.263 industry standards, fully RoHS compliant, safe for global market sales.
PCB Optimization: Integrated magnetic structure reduces extra magnetic parts on PCB, greatly simplifies layout, saves board space and enhances product reliability and production yield.
Superior Electrical Performance: Rated 350μH inductance, 1:1 turns ratio, maximum 1.2Ω DCR and 35pF inter-winding capacitance. 1500V AC 3s isolation voltage provides strong signal isolation and circuit protection. Low insertion loss, crosstalk and high CMRR guarantee stable and high-quality network signal transmission within 1~100MHz.
Wide Temperature Adaptation: Operating and storage temperature range from -40℃ to +85℃, suitable for various harsh working environments.
Material & Durability: Housing adopts UL94 V-0 flame-retardant thermoplastic. Contact and shield are made of copper alloy with nickel plating; contact uses selective 6u" gold plating. Support 800 mating cycles, wear-resistant and long service life.
LED Indicator: Equipped with left and right dual green LEDs (568nm, 1.8V~2.8V, 20mA) to clearly display device working status.
Application
Ideal for network switches, routers, network cards, industrial control network equipment and other 100M Ethernet communication products.
